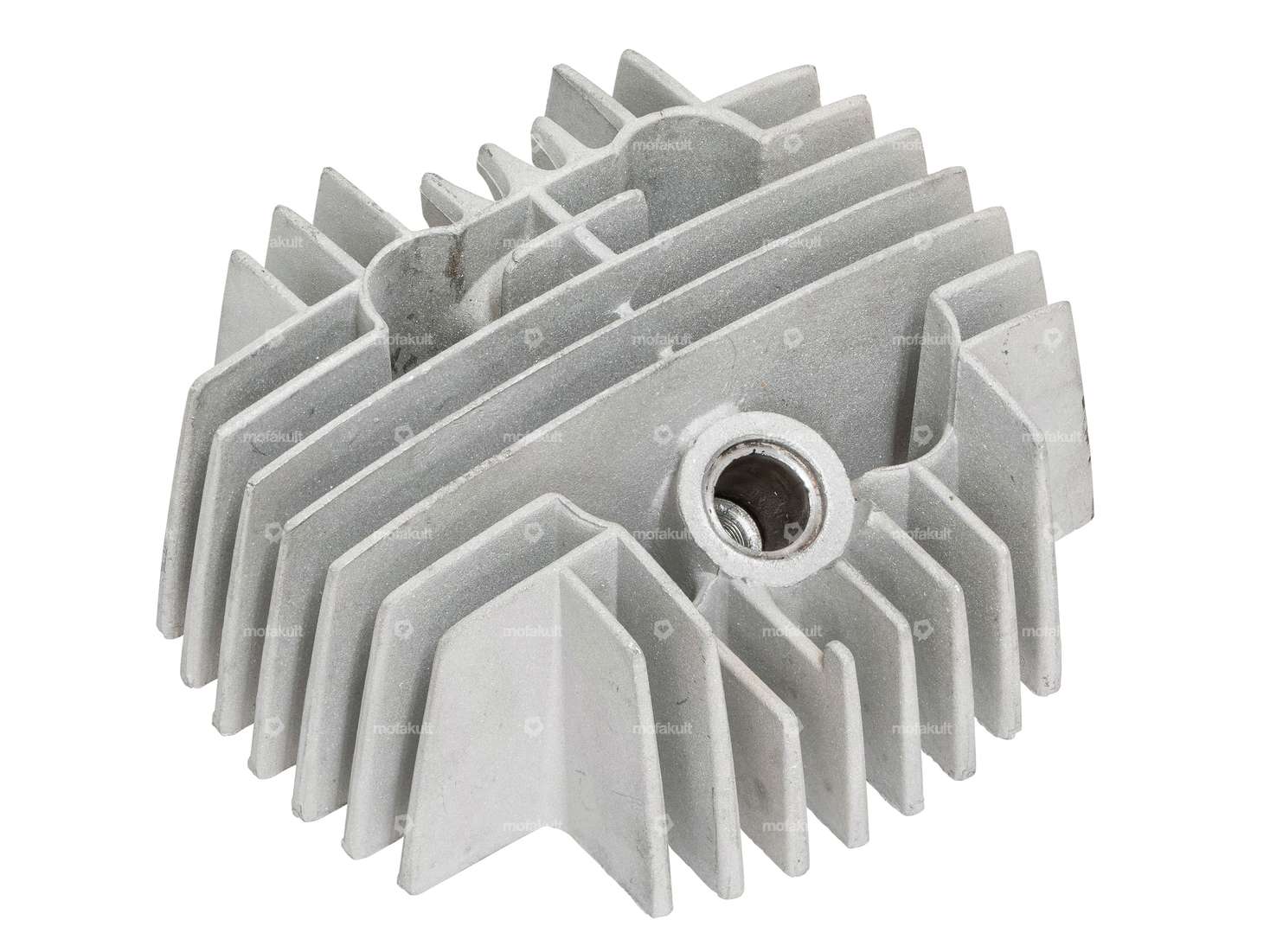

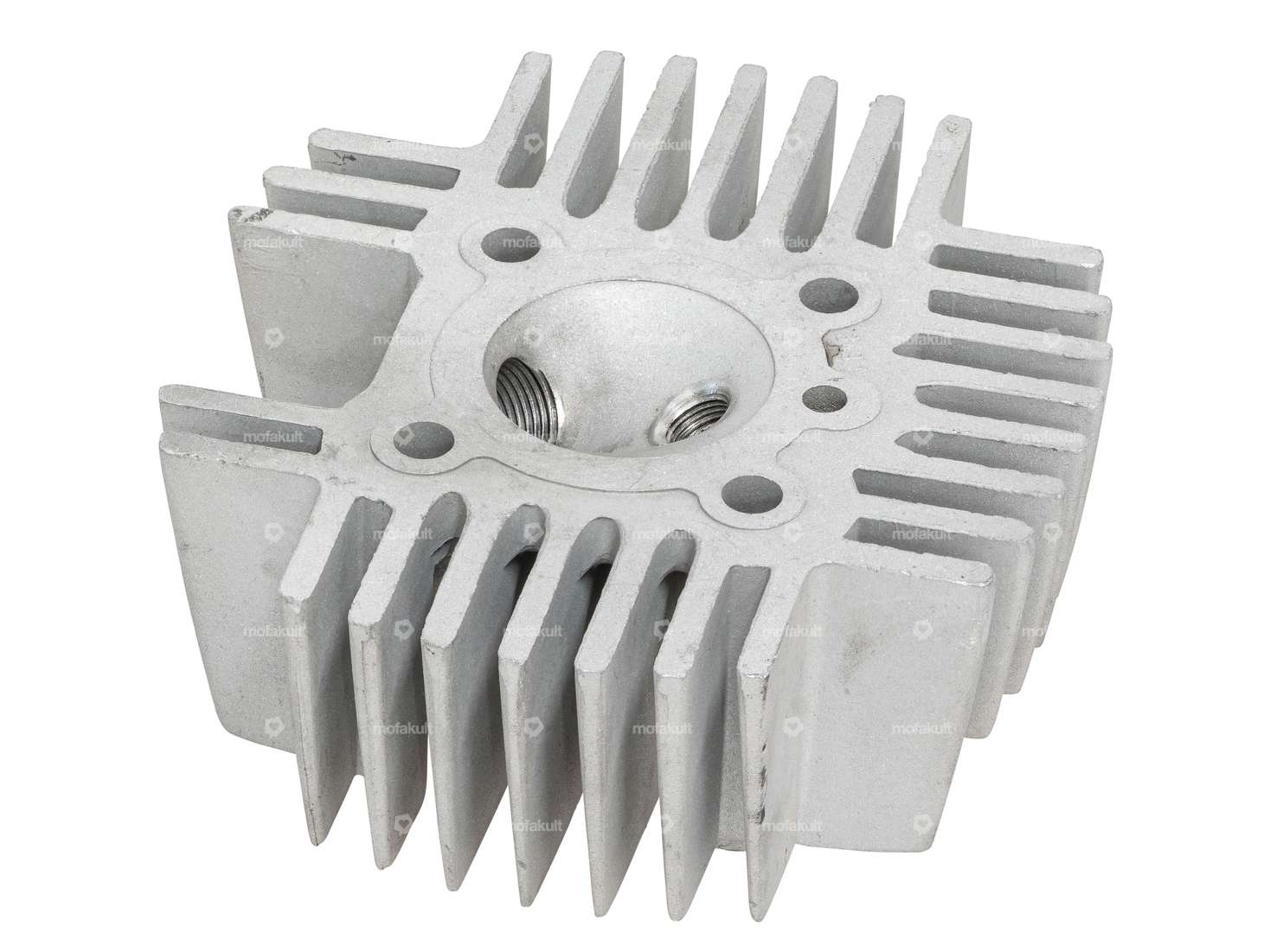

Used cylinder cover with 38 mm combustion chamber diameter suitable for the Puch Ur-Maxi S and Ur-Maxi N moped / moped.
An original cylinder head from the CH model with small cooling fins, which is cooled by ambient air (airstream). This head has an M10x1 thread for mounting a decompressor.
Dimension (L x W x H): 13.5 x 12.5 x 5.5 cm
Thread decompressor valve: MF 10 x 1 mm
Used spare part which is in technically serviceable condition, signs of use are to be expected. The cylinder head is sandblasted, the sealing surface should be briefly ground flat for safety reasons.
You can find the matching decompressor valve in the accessories section.
Original Puch spare part number: 349.2.10.401.1
| Manufacturer | Puch |
| Material | Aluminum |
| Area of application | Original |
| Surface | sandblasted |
| Number of fixing points | 4 pcs |
| Ø cylinder | 38 mm |
| Total length | 135 mm |
| Width | 125 mm |
| Height | 55 mm |
| Decompressor | MF10x1 |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
