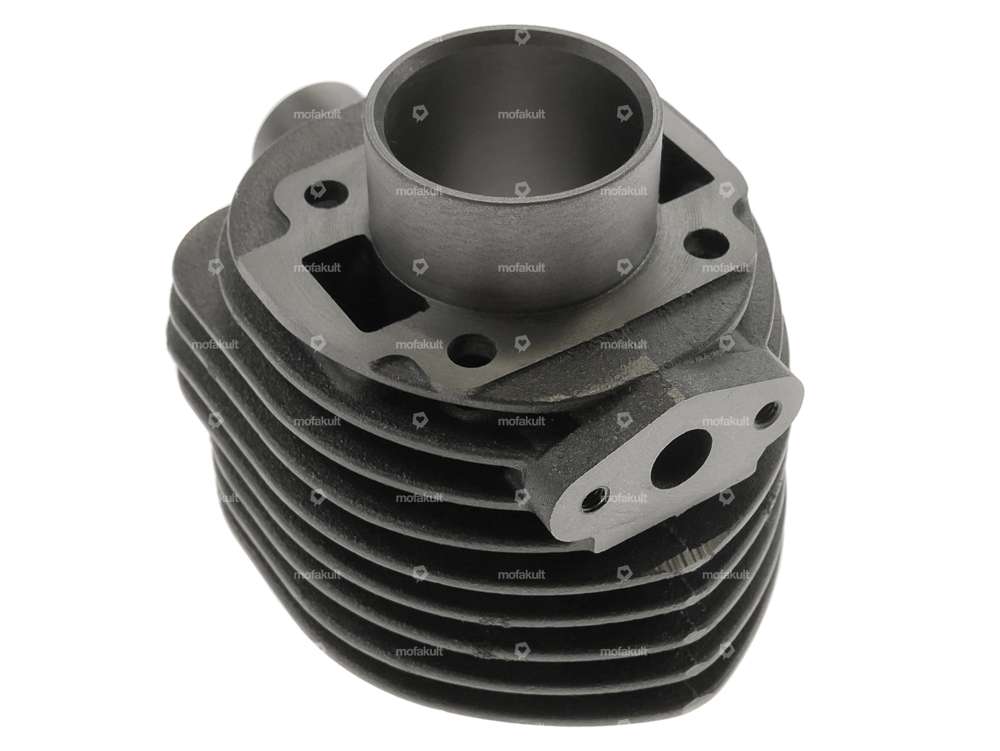

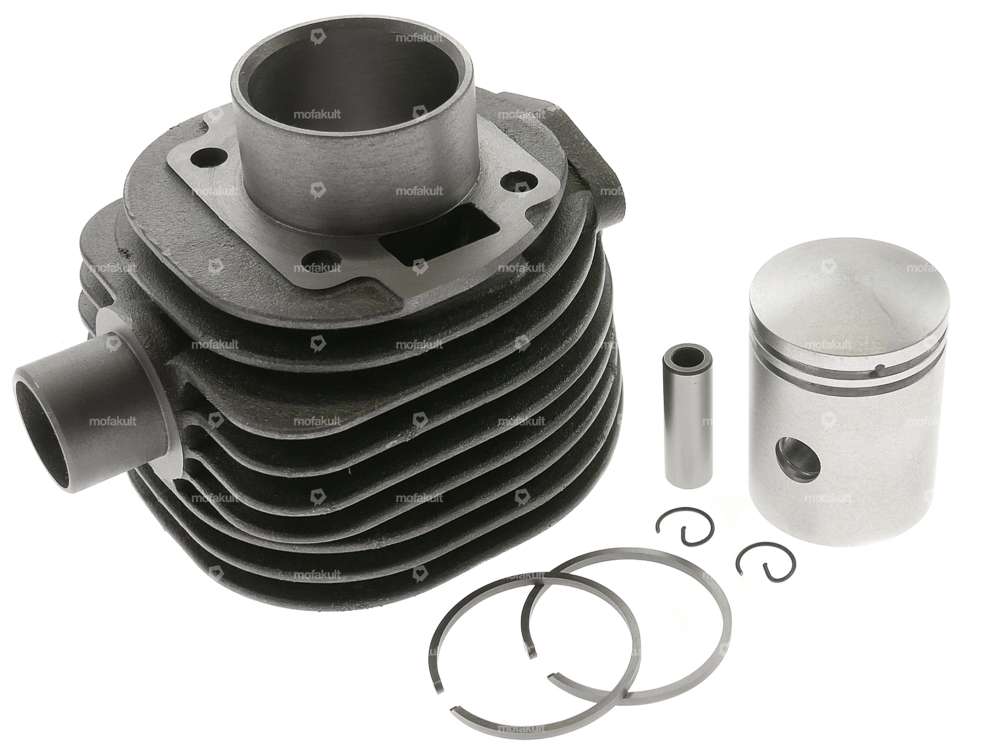

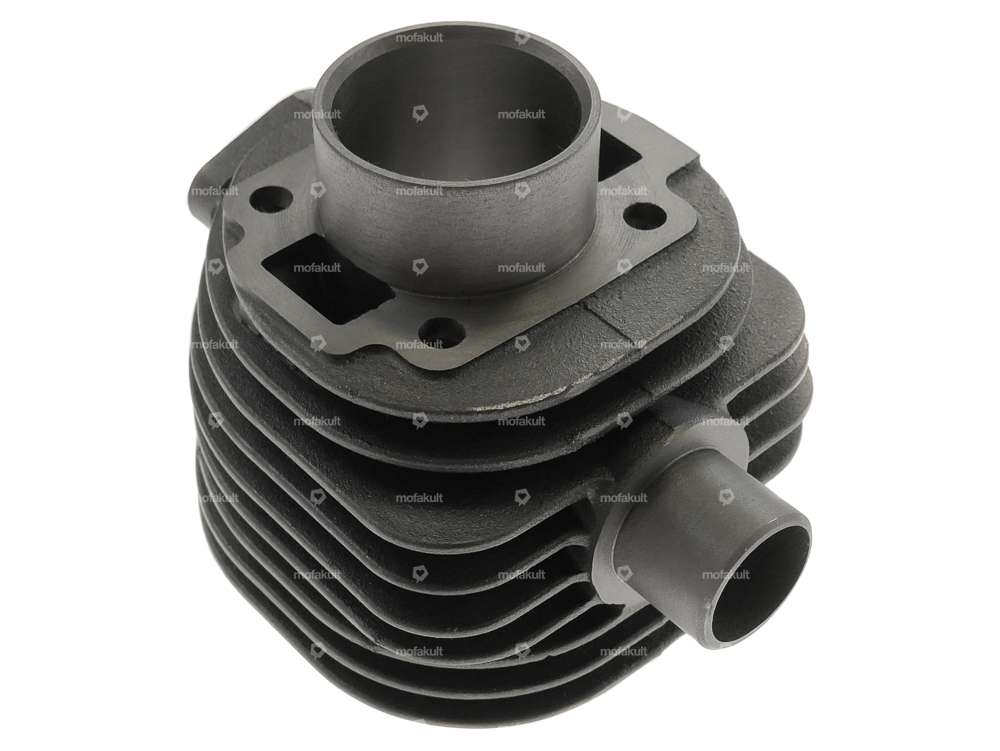

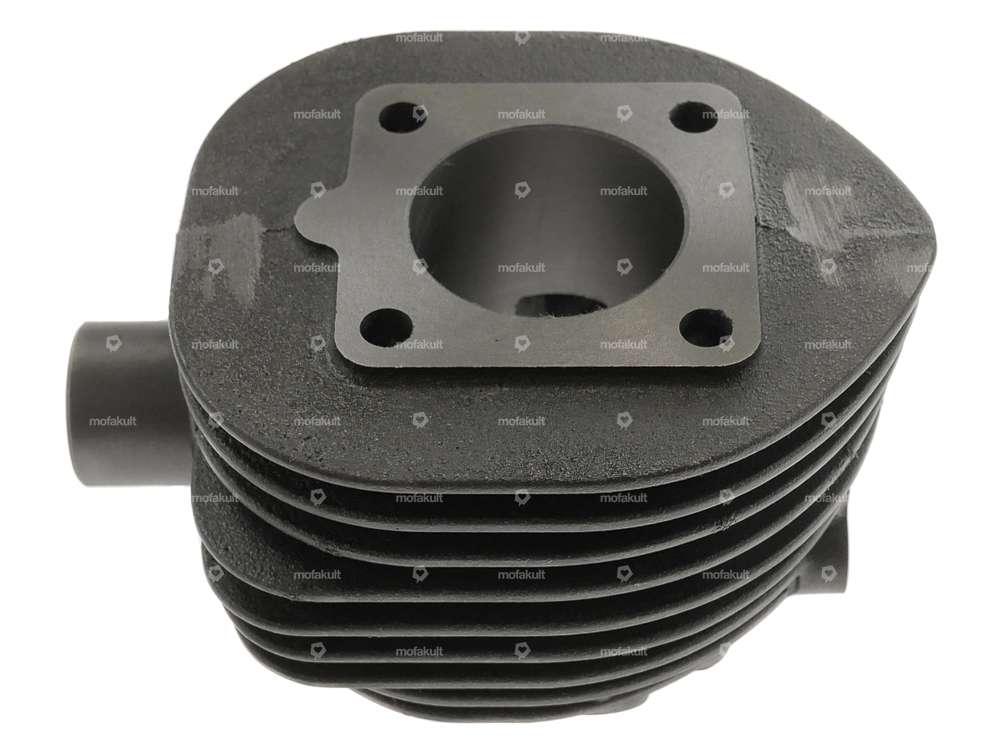

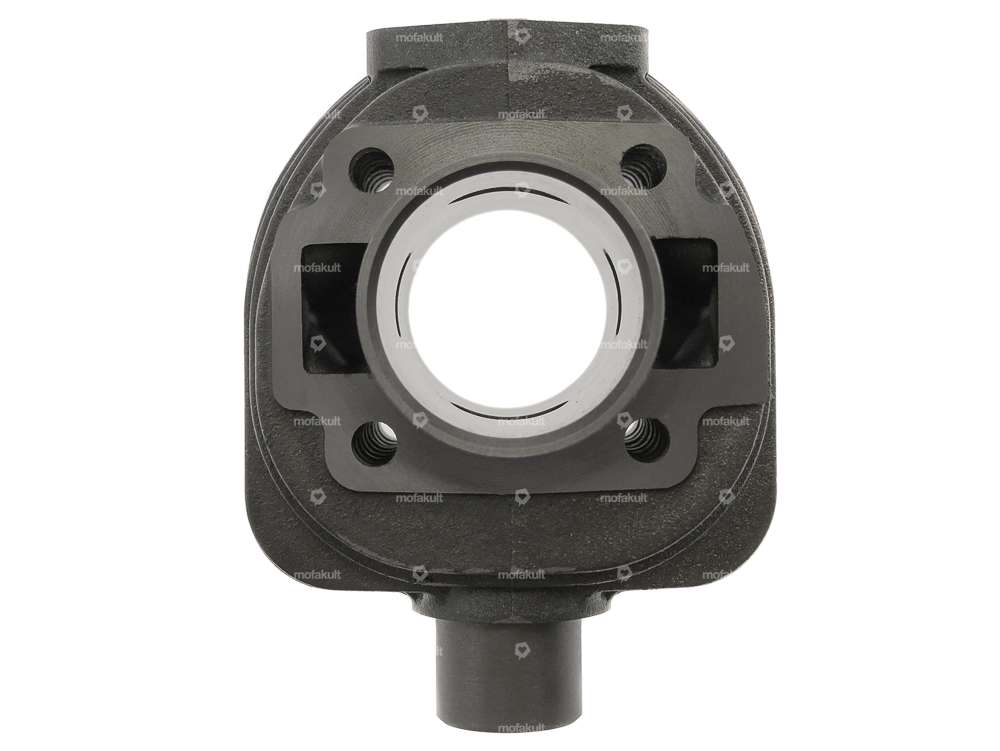

38 mm cylinder suitable for ILO / JLO mopeds.
Ø Connection exhaust: 24.85 mm
Hole spacing threaded intake manifold: 31 mm
Distance between stud bolt holes diagonal: 60 mm (square)
Attention: This cylinder does not fit the Swiss engines, the one stud bolt hole must be adapted as this is slightly offset on the CH engines.
Note: Please note the installation direction when assembling. The piston is inserted with the arrow pointing towards the outlet on the exhaust side.
| Nominal diameter | 38 mm |
| Material | Gray cast iron |
| Camouflaged | No |
| Area of application | Standard |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Ø cylinder neck | 44 mm |
| Ø Outlet outside | 24.85 mm |
| Hole spacing inlet | 31 mm |
| Hole pattern [mm] | 42 x 42 |
| Number of fixing points | 4 pcs |
| Ø piston pin (B) | 10 mm |
| Outlet type | clamped |
| ILO / JLO |
