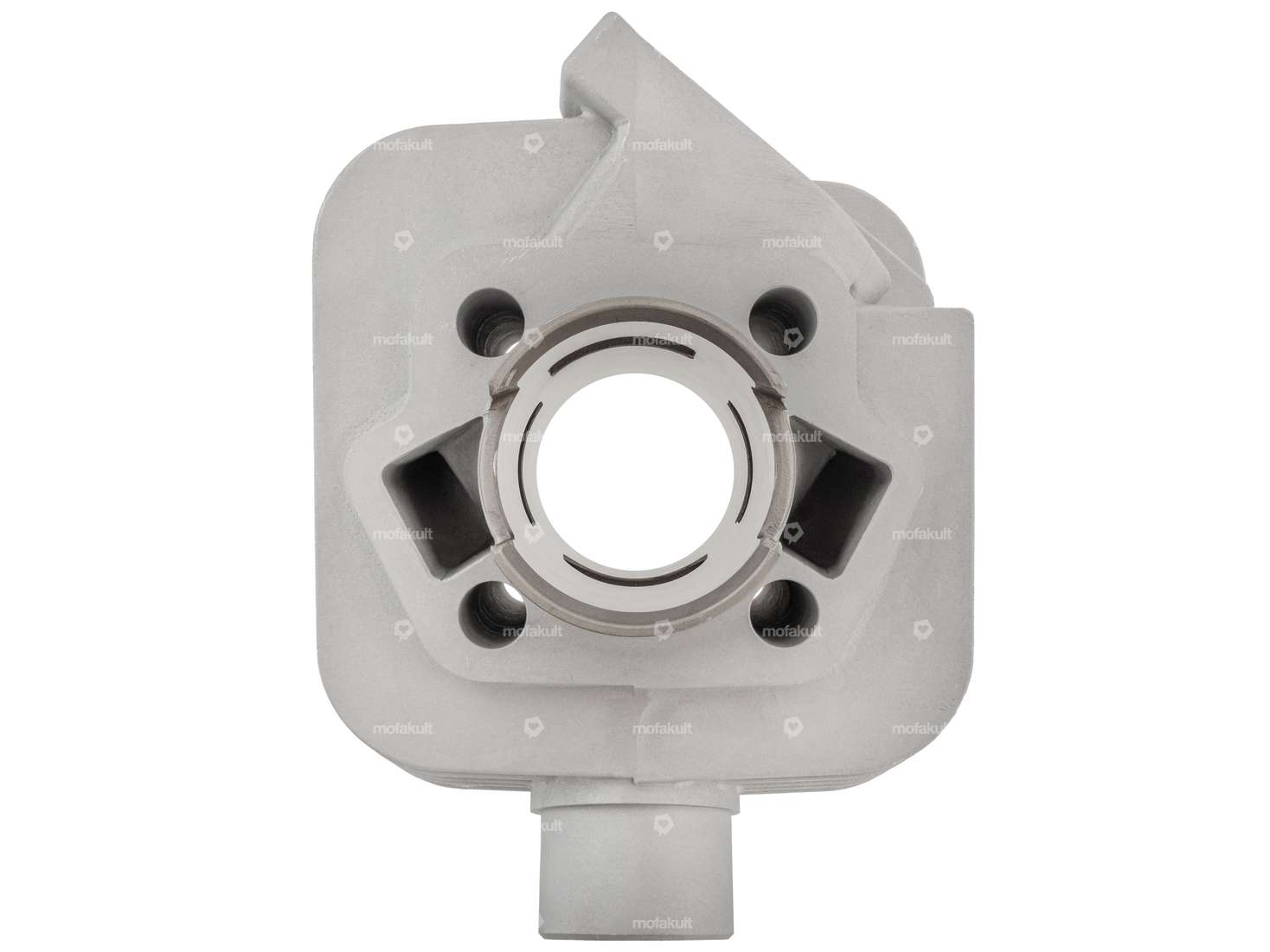

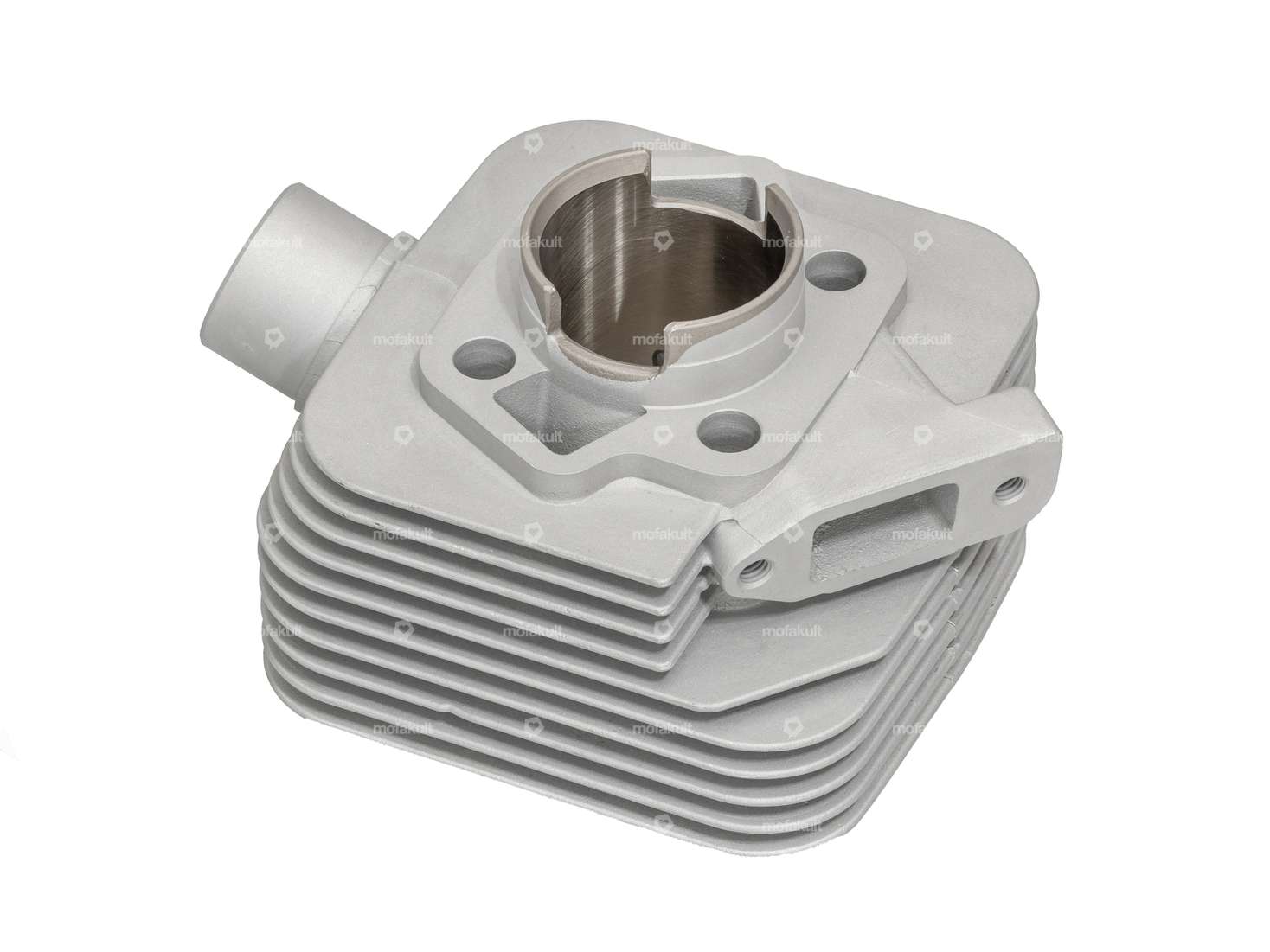

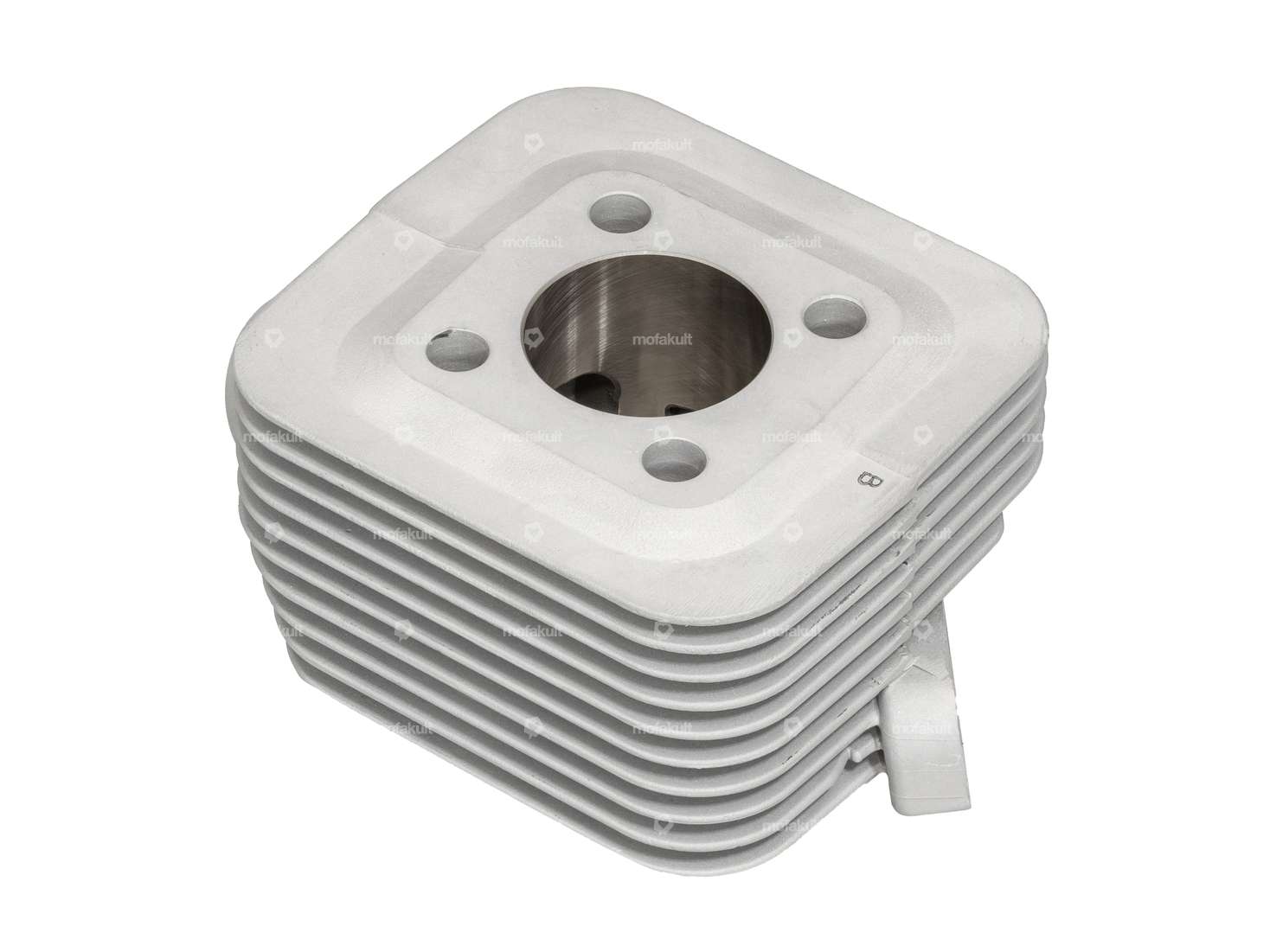

High-quality 40 mm aluminum cylinder with Nikasil coating for blown Kreidler Florett Super TS, Mustang (1965 - 1969), Kreidler Florett GT - TM etc. Small engine bikes.
The cylinder kit can also be installed as a tuning cylinder on Kreidler models such as K 54, K54 0, K54 0M, K 54/2A, LF - LF, LH K 54/32 etc.
The cylinder was modeled almost identically on the original Zeta cylinder with 5.8 hp. The durable cylinder delivers high torque and decent power even at high engine speeds.

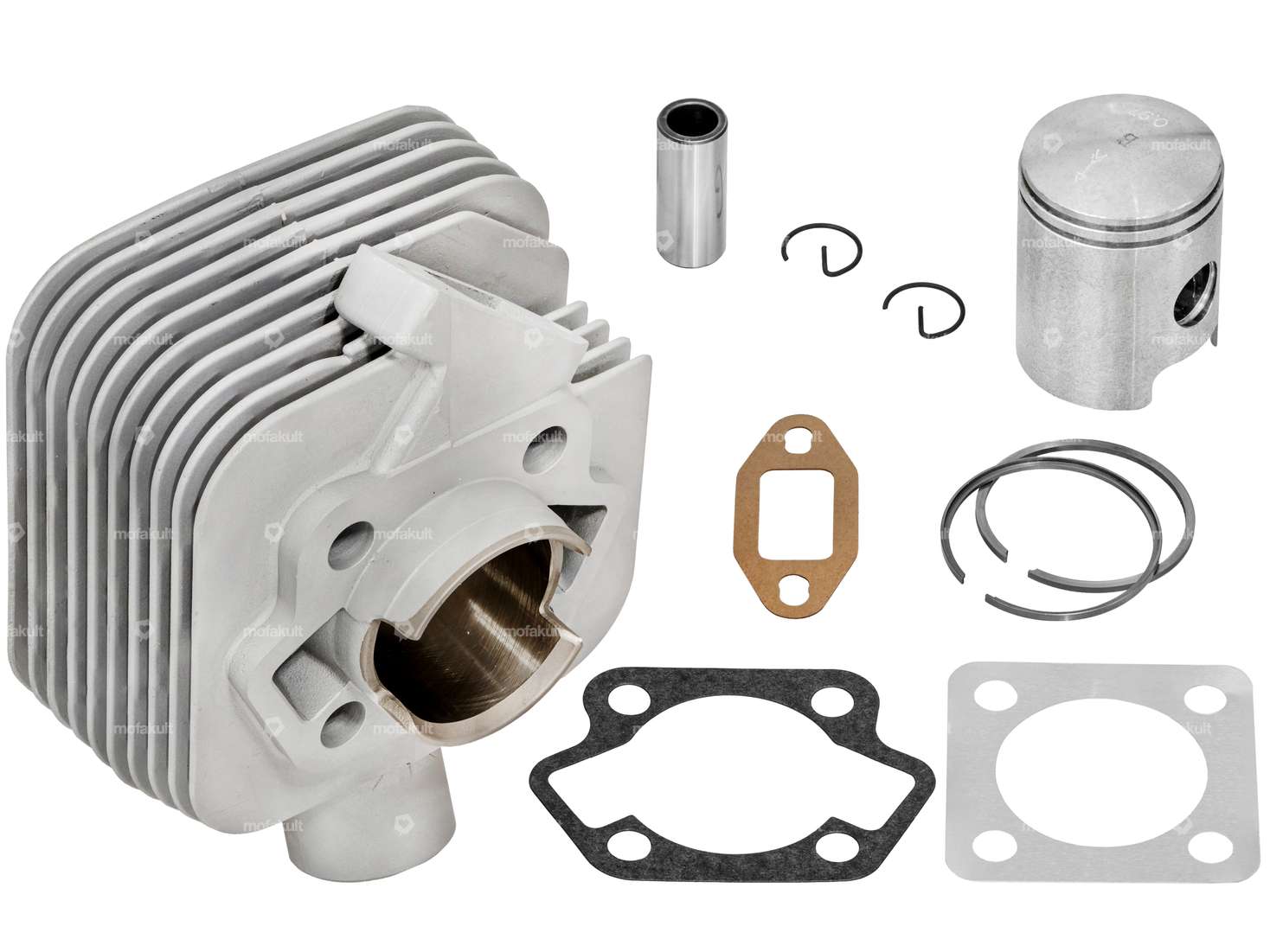

Delivery according to figure 1 incl. cylinder, piston kit and gasket set.
Ø exhaust flange: 32 mm
Inlet window: 15 x 25 mm
Inlet stud spacing: 32 mm
Ø piston pin: 14 mm
Hole pattern: 43.5 x 43.5 mm
| Material | Aluminum |
| Surface | sandblasted |
| Nominal diameter | 40 mm |
| Ø piston pin (B) | 14 mm |
| Hole spacing inlet | 32 mm |
| Ø Outlet outside | 32 mm |
| Number of fixing points | 4 pcs |
| Thread inlet | M6x1 (standard thread) |
| Area of application | Tuning |
| Hole pattern [mm] | 44 x 44 |
| Outlet type | clamped |
| Camouflaged | No |
| Kreidler |
Accessories & related products
Rito crankshaft Kreidler Florett K3 42 mm stroke
Manufacturer: Rito · Area of application: Standard · Cheek type: standard · Crankshaft stroke: 42 mm · Ø piston pin (B): 14 mm · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 64.2 mm · Total length crankpin ignition side: 63.8 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 39.9 mm · Number of gears: 3 pcs · Number of gears: 4 pcs · Number of gears: 5 pcs
EUR 317.30
Not in stock
Rito crankshaft Kreidler Florett K3 39.8 mm stroke Racing
Manufacturer: Rito · Area of application: Racing · Cheek type: standard · Crankshaft stroke: 39.8 mm · Ø piston pin (B): 14 mm · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 64.2 mm · Total length crankpin ignition side: 63.8 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 39.9 mm · Number of gears: 3 pcs · Number of gears: 4 pcs · Number of gears: 5 pcs
EUR 317.30
44 mm tuning cylinder | Kreidler Florett RS, RMC
Material: Aluminum · Area of application: Tuning · Surface: sandblasted · Nominal diameter: 44 mm · Ø piston pin (B): 14 mm · Hole spacing inlet: 47 mm · Number of fixing points: 4 pcs · Thread inlet: M6x1 (standard thread) · Hole spacing outlet: 50 mm · Outlet type: slanted · Camouflaged: No
EUR 353.90

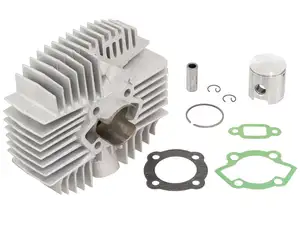

Parmakit 44 mm cylinder kit tuning | Kreidler Florett RS, RMC
