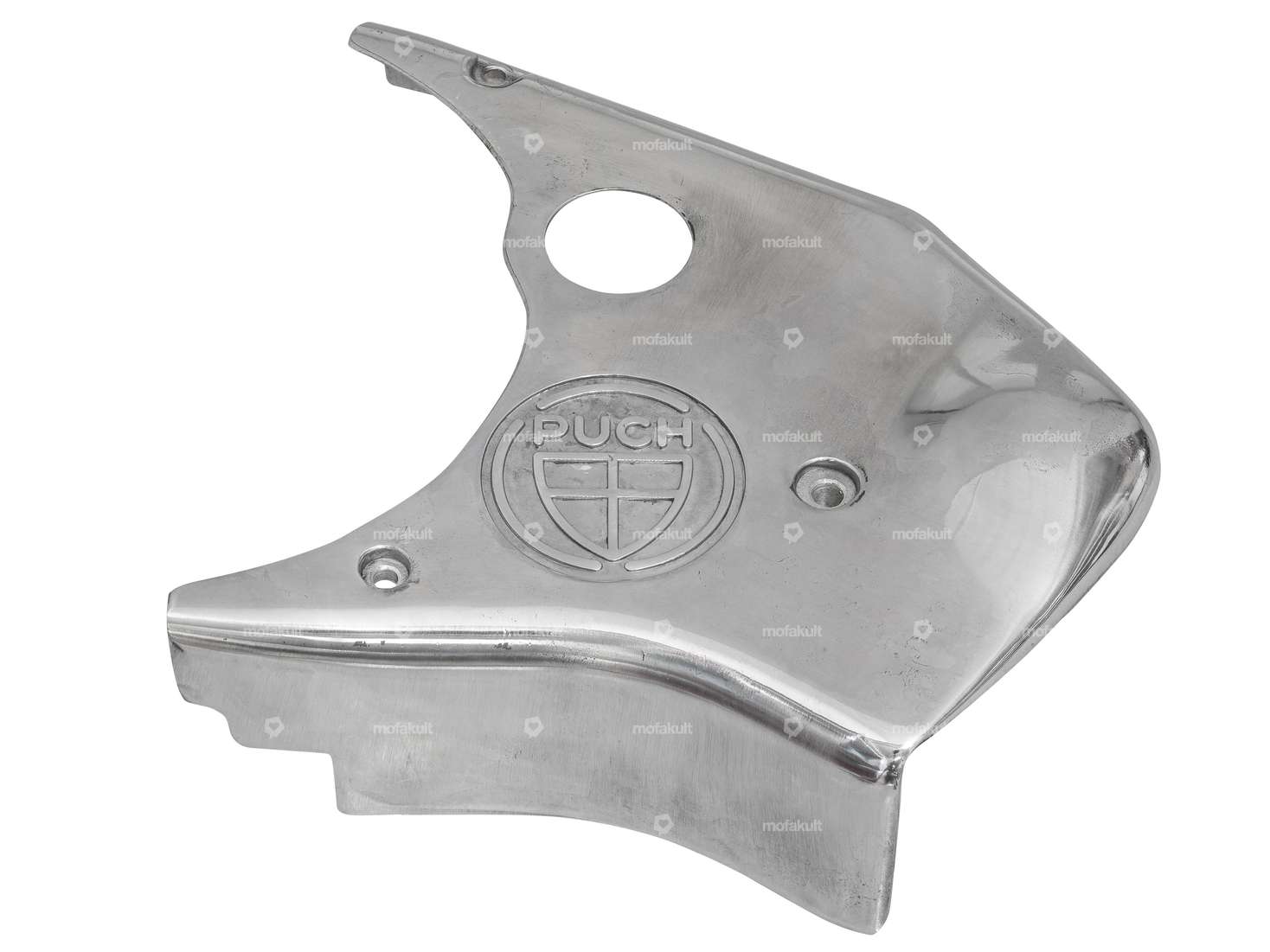

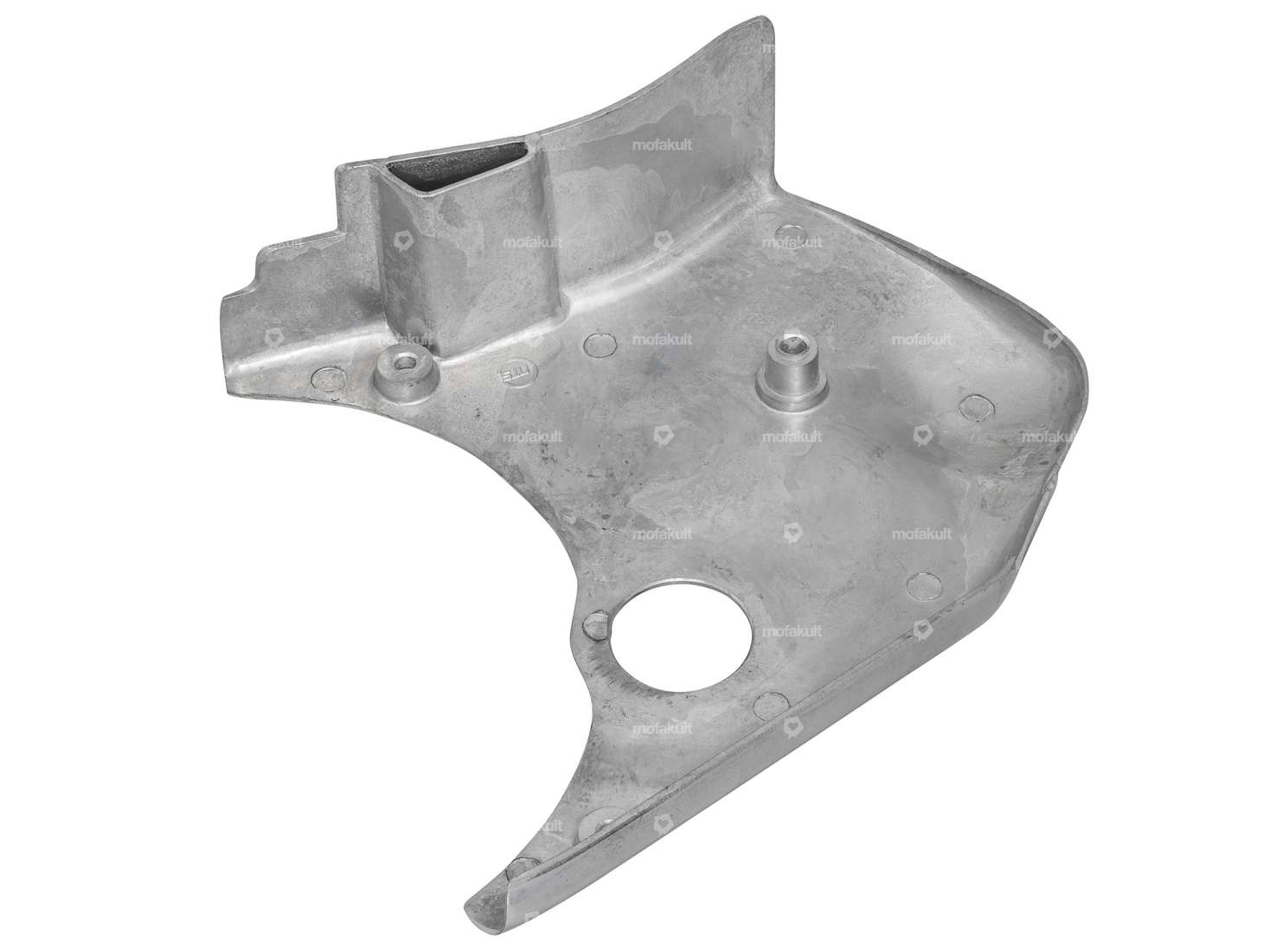

Aluminum engine cover with pedal shaft | Puch MV50

Engine gasket set | M51/ MS50/ MS51

Area of application: Standard · Number of components: 7 pcs

Brake shoes Ø 105 x 25 | Puch MV, DS, VS, VZ

Ø drum: 105 mm · Number of springs: 2 pcs · Springs included: Yes · Width: 25 mm

Surflex clutch plates | DKW / Puch MV

Manufacturer: Surflex · Ø inside: 55.5 mm · Ø inside: 72.7 mm · Ø inside: 74 mm · Number of slats: 3 pcs · Ø outside: 98 mm · Ø outside: 99.4 mm · Ø outside: 104.2 mm · Area of application: Original

Thrust Washer 12.5/25/1.5 | Puch M50, DSV, VZV

Material: Steel · Surface: hardened & ground · Thickness: 1.5 mm · Ø inside: 12.5 mm · Ø outside: 25 mm · Puch OEM number: 329.1.13.006.1

Intake rubber (1A quality) | Puch MS, VS, MV, DS, X50 (small motorcycle)

Manufacturer: Made in Italy · Material: Rubber · Color: black

NC-Motorparts Solid-Flange Crankshaft | Puch MV, VS, MS, DS, Monza, X50 (3- and 4-speed)

Manufacturer: NCMotorparts · Cheek type: Full cheeks · Total length of crankpin on clutch side: 73 mm · Total length crankpin ignition side: 66 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Number of gears: 3 pcs · Number of gears: 4 pcs · Area of application: Tuning

Cast aluminum fan cover | Puch MS, VS, DS, MV, VZ

Material: Aluminum · Surface: polished · Color: silver · Number of fixing points: 2 pcs

Blank aluminum fan wheel Bosch / Ducati | Puch MS, VS, DS, MV, VZ

Material: Aluminum · Surface: raw · Ø outside: 163 mm · Ø inside: 90 mm · Number of fixing points: 4 pcs · Ø mounting hole: 5 mm · Ø bolt circle: 102 mm

38 mm Cylinder Head, Fan-Cooled (with Decompressor) NOS | Puch X30 NG-2AH, NG-2A, Velux

Manufacturer: Puch · Ø cylinder: 38 - 39 mm · Number of fixing points: 4 pcs · Ø outside: 90 mm · Decompressor: Yes · Area of application: Original · Puch OEM number: 050.10.1001

Gasket cylinder head 38 mm | Puch X30 Velux

Thickness: 0.4 mm · Place of use: Cylinder head · Material: Aluminum · Ø cylinder: 38 mm · Ø screw holder: 8 mm

Blank aluminum fan cover | Puch MS, VS, DS, MV, VZ

Ø outside: 168 mm · Material: Aluminum · Color: silver · Number of fixing points: 2 pcs

Blank aluminum fan wheel Bosch / Ducati | Puch MS, VS, DS, MV, VZ

Material: Aluminum · Surface: raw · Ø outside: 163 mm · Ø inside: 90 mm · Number of fixing points: 4 pcs · Ø mounting hole: 5 mm · Ø bolt circle: 102 mm

Flywheel cover aluminum | Puch DS50, VZ50V, VZ50M, VS50, MV50

Material: Aluminum · Ø outside: 125 mm · Ø inside: 118 mm

Exterior blower cover blank aluminum | Puch MS, VS, DS, MV, VZ

Material: Aluminum · Surface: polished

Blower cover inside blank aluminum | Puch MS, VS, DS, MV, VZ

Material: Aluminum · Color: gray · Puch OEM number: 350.4.10.061.2 · Puch OEM number: 350.5.10.061.1
