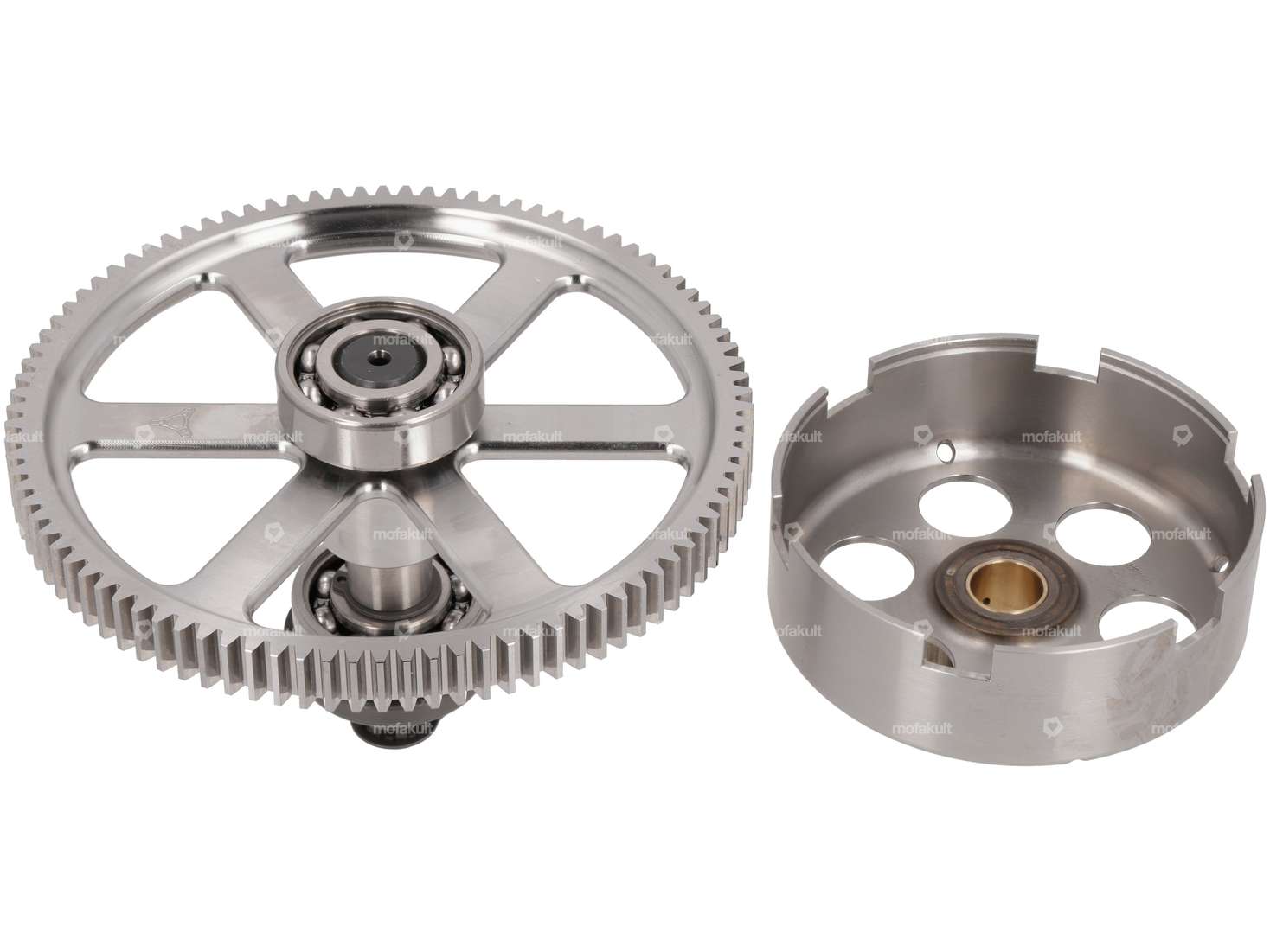

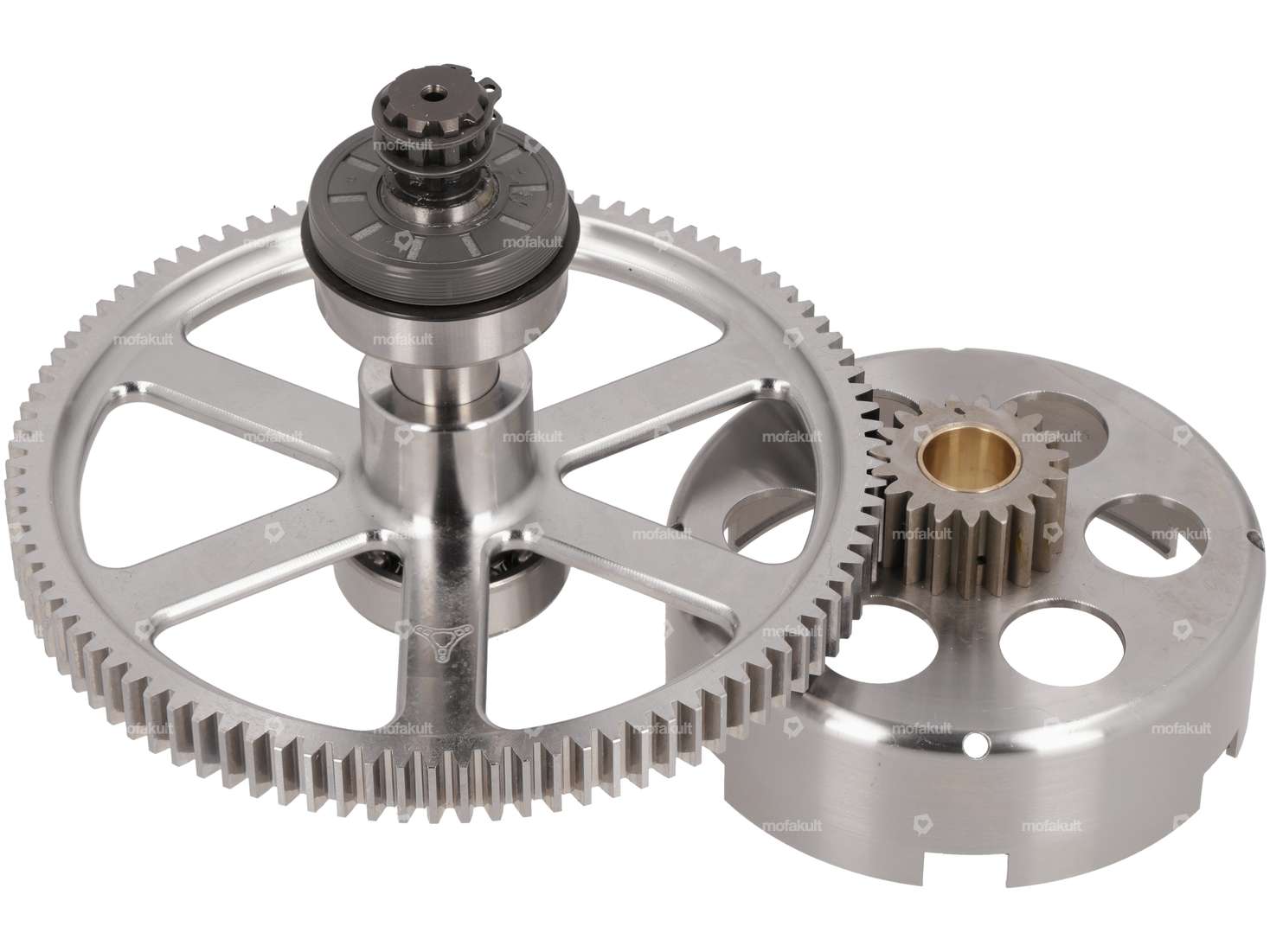

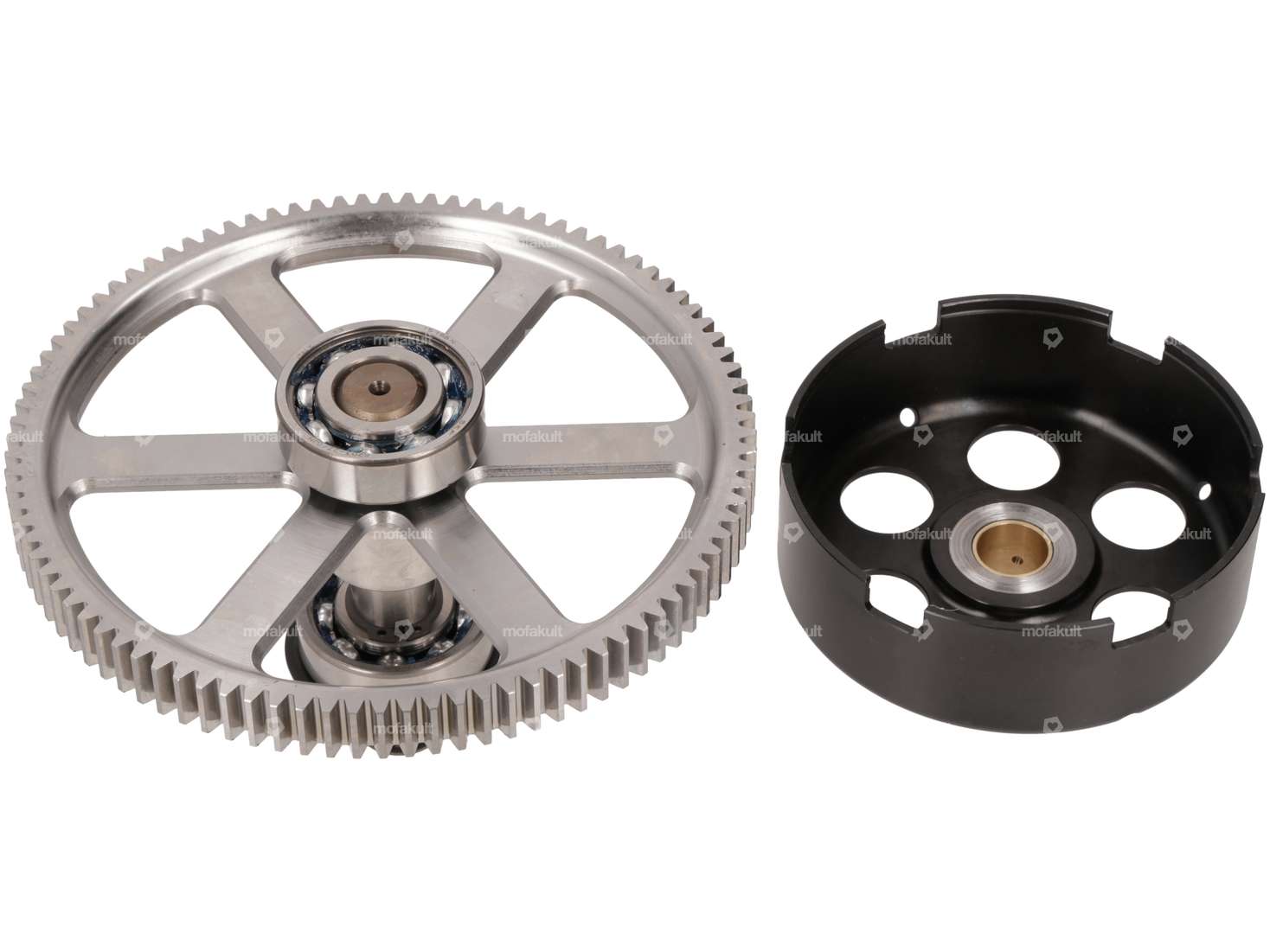

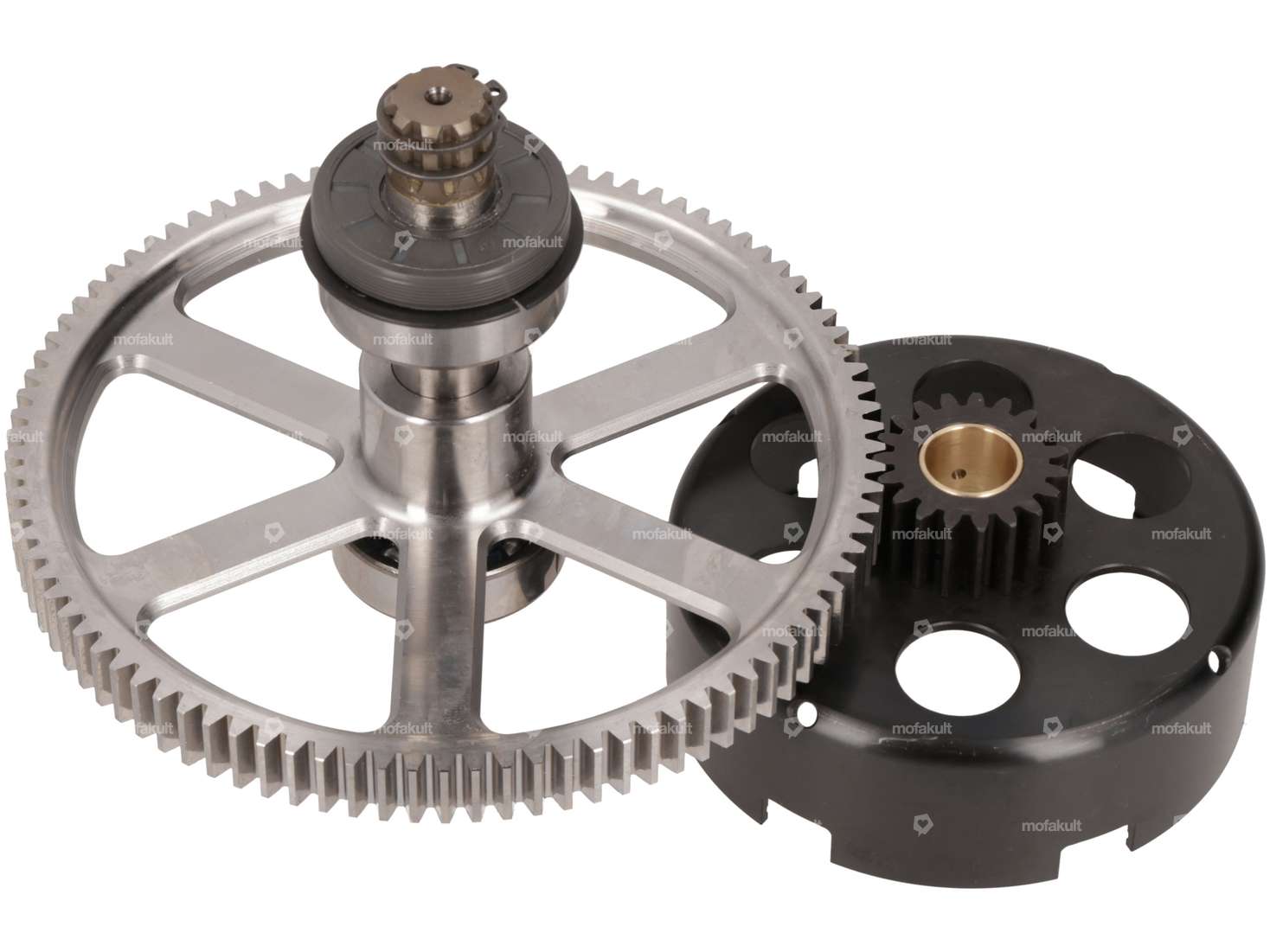

ASP clutch basket & spur gear set 19:94 teeth CNC | Puch E50

MBR clutch basket 18 teeth Racing straight short | Puch E50

Manufacturer: MBR · Area of application: Tuning · Toothing type: helical toothed · Number of teeth: 18 pcs

MBR spur gear 94 teeth "Racing" straight | Puch E50

Manufacturer: MBR · Material: Steel · Surface: hardened & ground · Toothing type: straight toothed · Number of teeth: 94 pcs · Recording type: Interlocking · Ø axle: 17 mm · Ø outside: 145 mm

MBR clutch basket & spur gear 18:94 teeth Racing straight short | Puch E50

Manufacturer: MBR · Toothing type: straight toothed · Number of teeth: 18 pcs · Number of teeth: 94 pcs · Area of application: Tuning

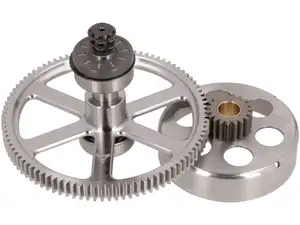

ASP clutch basket & spur gear set 19:94 teeth Kickstart CNC | Puch E50

Manufacturer: ASP · Area of application: Racing · Material: Steel · Area of application: Tuning · Surface: hardened & ground · Toothing type: straight toothed · Number of teeth: 19 pcs · Number of teeth: 94 pcs

ASP clutch basket & spur gear set 19:94 teeth KTM SX50 CNC | Puch E50

Manufacturer: ASP · Material: Steel · Surface: hardened & ground · Toothing type: straight toothed · Number of teeth: 19 pcs · Number of teeth: 94 pcs · Area of application: Racing · Area of application: Tuning

ASP clutch conversion kit "woven" 2-jaw Aramid | Puch E50

Manufacturer: ASP · Area of application: Racing · Material: Steel · Area of application: Tuning · Material addition: Aramid (colloquially known as Kevlar) · Number of jaws: 2 pcs · Number of springs: 4 pcs · Thickness: 12 mm

ASP plain bearing clutch basket | Puch E50

Nominal diameter inside: 15 mm · Manufacturer: ASP · Material: special bearing bronze · Ø inside: 15 mm · Ø outside: 17 mm · Total height: 21.8 mm · Puch OEM number: 349.1.12.011.1 · Puch OEM number: 349.2.12.011.1

GPO Gasket Set for E50 Engine | Puch Maxi S, N

Manufacturer: GPO · Material: Aluminum · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Number of components: 7 pcs · Ø outlet inside: 19.9 mm · Hole spacing outlet: 42 mm · Area of application: Standard · Decompressor: Yes · Hole pattern [mm]: 44 x 44 · Hole spacing inlet: 32 - 38 mm

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Surflex pressure plate clutch | Puch E50

Material: Steel · Manufacturer: Surflex · Surface: galvanized (blue) · Ø outside: 94.5 mm · Ø outside: 100 mm · Area of application: Original

swiing® revival Stud Bolt Set M6x106 | Puch

Material: Steel · Surface: galvanized (blue) · Manufacturer: swiing® revival parts · Thread type: M6x1 (standard thread) · Total length: 106 mm · Drive: External hexagon · Nominal diameter (thread): 6 mm · Thread length: 13 mm · Thread length: 18.5 mm · Diameter: 5.9 mm · Width across flats: 10 mm · Alternative version of the Puch OEM number: 360.1.10.034.1

swiing® revival Screw Set, Engine, Galvanized, Small | Puch E50

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Drive: Cross recess · Drive: Hexagon socket · Screw head: Countersunk head · Screw head: Cylinder head · Screw head: Lens head · Puch OEM number: 900.1216 · Puch OEM number: 901.1308

swiing® revival gasket gearbox cover engine 1 mm | Puch E50

Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Ø inside: 106 mm · Ø outside: 116 mm · Thickness: 1 mm · Number of fixing points: 4 pcs · Number of components: 1 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1

swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: High End · Area of application: Racing · Material: Steel · Area of application: Tuning · Cheek type: Full cheeks · Ø piston pin (B): 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Thread length: 11 mm · Thread length: 15 mm · Ø Connecting rod eye: 15 mm · Weight: 968 g · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs

Elring Dirko HT sealing compound red (silicone) high temp. 70 ml elastic up to 315°C

Manufacturer: Elring · Area of application: Chemistry · Color: red · Contents: 70 ml · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Temperature resistance (min.): -60 - 300 °C · Gap dimension (max.): 2 mm

swiing® revival thrust washer set Ø 15 / 17 mm | Puch E50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø inside: 17 mm · Ø outside: 22 mm · Ø outside: 24 mm · Thickness: 1.1 mm · Thickness: 1.3 mm · Thickness: 1.5 mm · Thickness: 1.7 mm · Area of application: Standard
