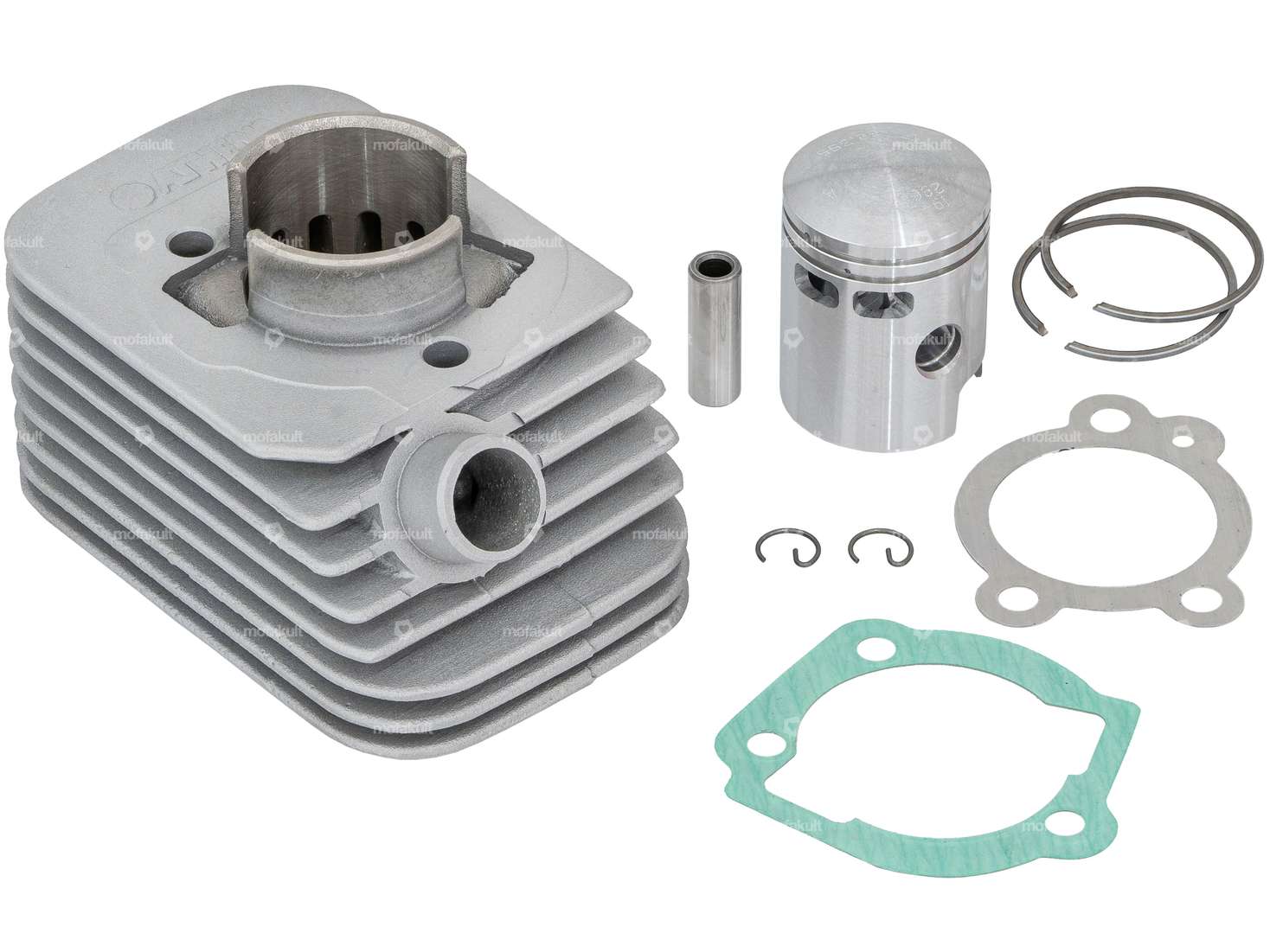

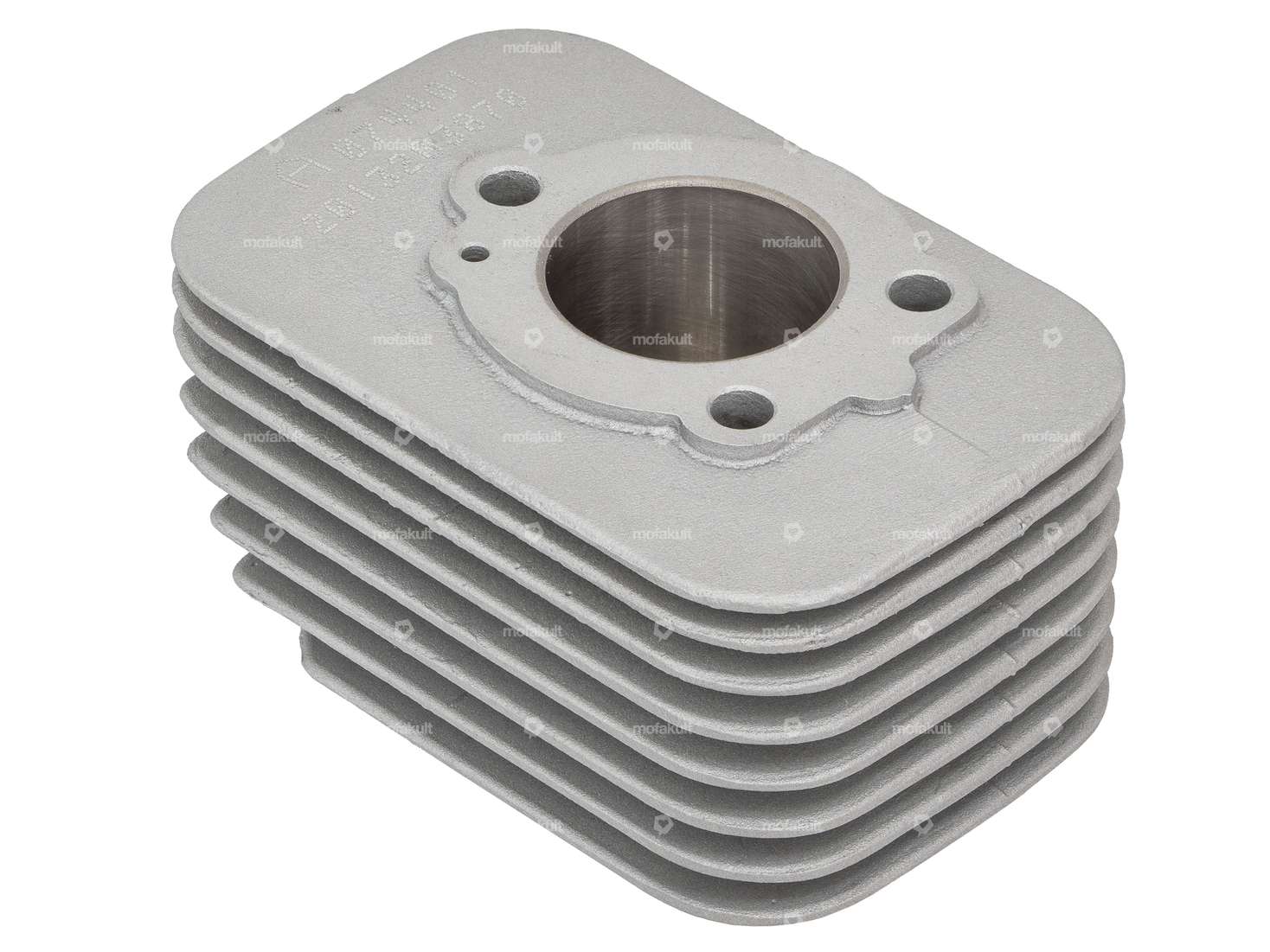

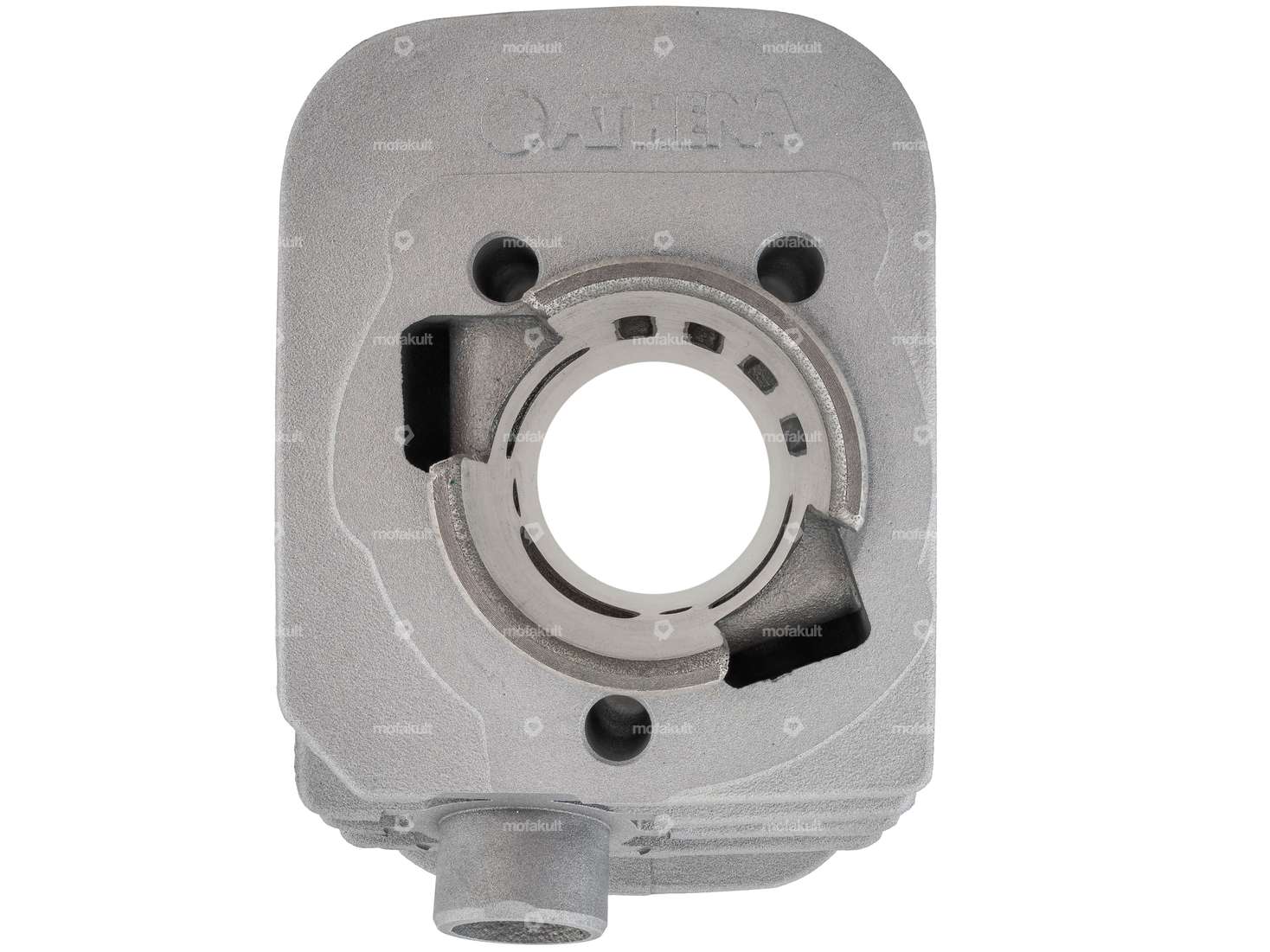

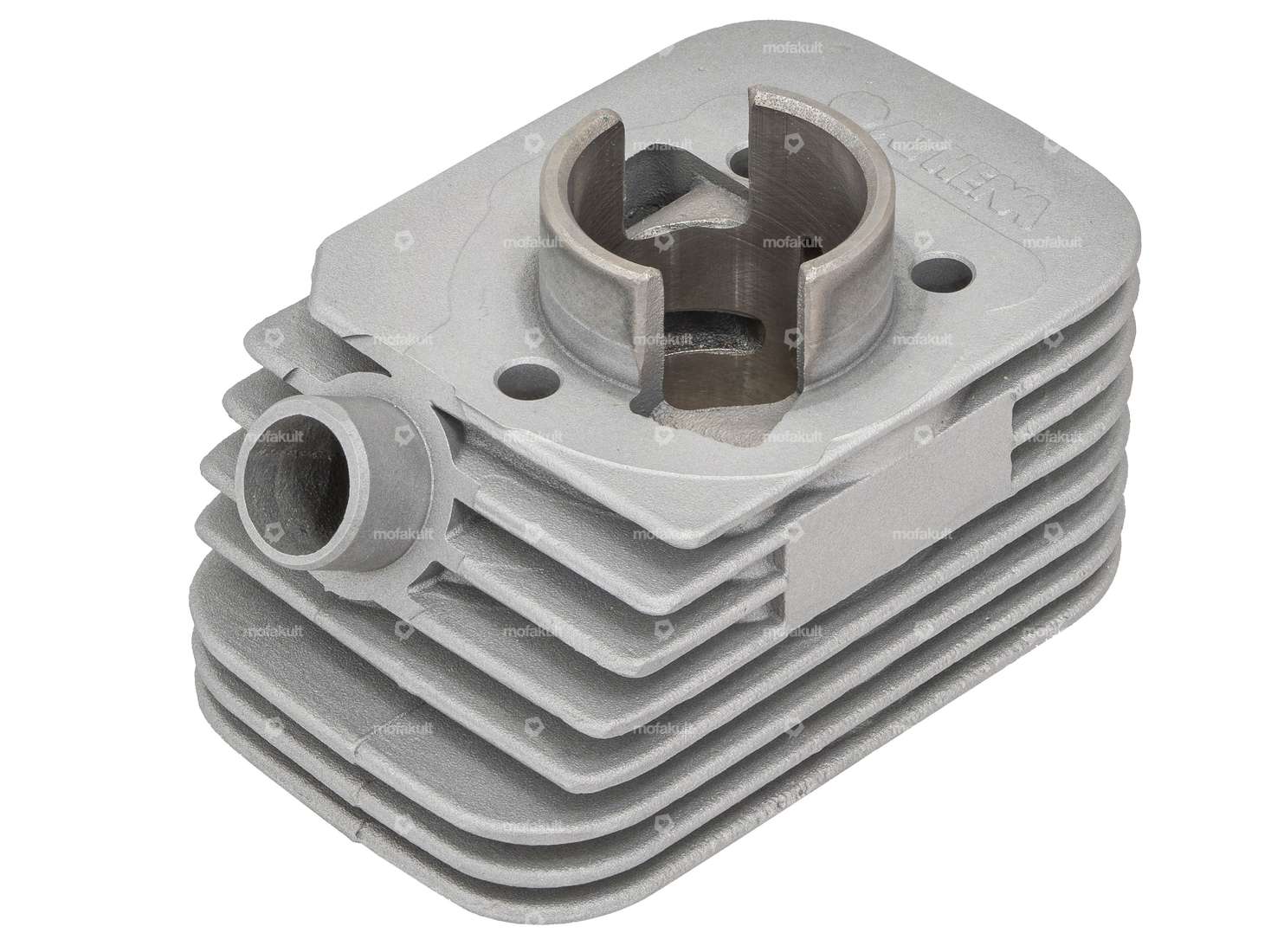

Athena 38.4 mm cylinder kit without head 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Area of application: Standard · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

Stud bolt M7 x 120 (budget)

Material: Steel · Surface: galvanized (blue) · Thread type: M7x1 (standard thread) · Total length: 120 mm · Thread length: 25 mm

38 mm cylinder head (reproduction) | Piaggio Ciao, Bravo, Boxer

Width: 78 mm · Height: 62 mm · Total length: 120 mm · Ø cylinder: 38 mm · Decompressor: Yes

Athena gasket set 38.4 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Number of components: 2 pcs · Ø cylinder: 38.4 mm · Decompressor: Yes · Area of application: Tuning

Malossi needle bearing 10/13/14.5 aluminum cage piston pin

Width: 14.5 mm · Bearing cage: Sheet steel cage · Manufacturer: Malossi · Ø inside: 13 mm · Bearing type: Needle roller and cage assembly · Ø outside: 1 mm · Dimension needle bearing: 10/13 x 14.5

Athena piston 38.4 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 38.4 mm · Manufacturer: Athena · Ø outside piston (A): 38.355 mm · Compression height (C): 26.3 mm · Curvature (D): 3.9 mm · Total piston height (E): 51.85 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 10 mm · Weight piston kit: 80 g

Athena piston ring 38.4 x 1.5 mm | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 38.4 mm · Manufacturer: Athena · Diameter: 38.4 mm · Height: 1.5 mm

NGK B5HS spark plug short thread

Manufacturer: NGK · Candle thread type: short · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Width across flats: 21 mm · Thread type: MF14x1.25 (fine pitch thread)

swiing® ingenious stud bolt M7x120 / Ø 7.3 shank - 10.9 strength

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Diameter: 7.3 mm · Thread type: M7x1 (standard thread) · Total length: 120 mm · Thread length: 20 mm · Thread length: 30 mm · Strength class: 10.9

Karcoma fuel tap M12x1 vertical (with union nut) 2 connections

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Mounting type: Union nut · Installation direction: vertical / vertical · Outlet direction: any · Spare tube shape: straight · Reserve level: 50 mm · Thread type: MF12x1 (fine pitch thread)

swiing® revival nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Total length: 8 mm · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70 · Nozzle thread: M5x0.8 (standard thread)

Shim 15/21/0.5

Nominal diameter inside: 15 mm · Material: Steel · Surface: blank / oiled · Ø outside: 21 mm · Thickness: 0.5 mm · Ø inside: 15 mm

Decompressor set | Piaggio Ciao, Bravo, Boxer

Surface: blank · Surface: galvanized (blue) · Total length: 75 mm · Material: Spring steel · Material: Steel · Area of application: Standard

38 mm cylinder head (reproduction) | Piaggio Ciao, Bravo, Boxer

Width: 78 mm · Height: 62 mm · Total length: 120 mm · Ø cylinder: 38 mm · Decompressor: Yes

Wedge 12.1x4.9x3 mm

Width: 3 mm · Height: 4.9 mm · Total length: 12.5 mm · Material: Steel

Dell'Orto 12/10 SHA carburetor hand choke

Nominal diameter: 10 mm · Nominal diameter: 12 mm · Material: Aluminum · Manufacturer: Dell'Orto · Camouflaged: No · Component group Carburetor: Carburetor complete · Carburetor type: SHA (Piaggio) · Choke control: Hand choke · Color: black · Nozzle thread: M5x0.8 (standard thread) · Mounting type: Plug connection clamped · Ø fuel hose connection: 5.3 mm · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 19 mm · Nozzle size: 37 · Ø Inside entrance: 10 mm · Ø Internal connection: 16 mm · Ø Output inside: 12 mm · Total length: 55 mm · Ø Air filter connection: 50.6 mm · Mixed oil connection: No · Width: 60 mm · Vacuum connection: No · Height: 111 mm · Area of application: Original · Area of application: Tuning

NTN 6202 C3 ball bearing 15/35/11

Width: 11 mm · Bearing cage: Sheet steel cage ball-guided · Stock number: 6202 · Inner ring width: 11 mm · Manufacturer: NTN · Bearing clearance: C3 · Bearing type: Deep groove ball bearing · Ø outside: 35 mm · Ø inside: 15 mm · Puch OEM number: 900.4.6202

GPO engine overhaul kit with bearing selection | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Number of components: 9 pcs
