Athena 43 mm cylinder kit without head 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

Stud bolt M7 x 120 (budget)

Material: Steel · Surface: galvanized (blue) · Total length: 120 mm · Thread type: M7x1 (standard thread) · Thread length: 25 mm

Olympia cylinder head for 41 - 43 mm cylinder kit | Piaggio Ciao

Manufacturer: Olympia · Material: Aluminum · Ø cylinder: 41 - 43 mm · Total length: 120 mm · Width: 78 mm · Height: 60 mm · Candle thread: short · Number of fixing points: 3 pcs · Area of application: Racing · Area of application: Tuning

Olympia cylinder head for 41 - 43 mm cylinder kit | Piaggio SI

Manufacturer: Olympia · Ø cylinder: 41 - 43 mm · Area of application: Racing

Athena gasket set 43 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Area of application: Tuning · Ø cylinder: 43 mm · Number of components: 2 pcs · Decompressor: Yes

Malossi needle bearing 10/13/14.5 aluminum cage piston pin

Bearing type: Needle roller and cage assembly · Dimension needle bearing: 10/13 x 14.5 · Manufacturer: Malossi · Bearing cage: Sheet steel cage · Width: 14.5 mm · Ø inside: 13 mm · Ø outside: 1 mm

Athena piston 43mm (10 mm KoBo) #A | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 43 mm · Manufacturer: Athena · Ø outside piston (A): 42.9 mm · Compression height (C): 26.52 mm · Curvature (D): 2.4 mm · Total piston height (E): 50.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 10 mm · Tolerance group: A · Weight piston kit: 87 g

NGK B5HS spark plug short thread

Manufacturer: NGK · Candle thread type: short · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Thread type: MF14x1.25 (fine pitch thread) · Width across flats: 21 mm

Mirror bracket M8 galvanized

Manufacturer: Bumm · Material: Steel · Surface: galvanized (blue) · Clamping diameter: 22 mm · Ø mirror rod holder: 9.2 mm · Total length: 40 mm · Width: 23 mm · Thread size: M8 · Height: 49 mm

Polini 43 mm cylinder kit without head 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 43 mm · Manufacturer: Polini · Material: Gray cast iron · Surface: sandblasted · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45.8 mm · Ø Outlet outside: 22.6 mm · Ø outlet inside: 18.4 mm · Number of fixing points: 3 pcs · Ø piston pin (B): 10 mm · Outlet type: clamped · Hole pattern [mm]: 55 x 34 · Decompressor: Yes · Camouflaged: No · Area of application: Tuning

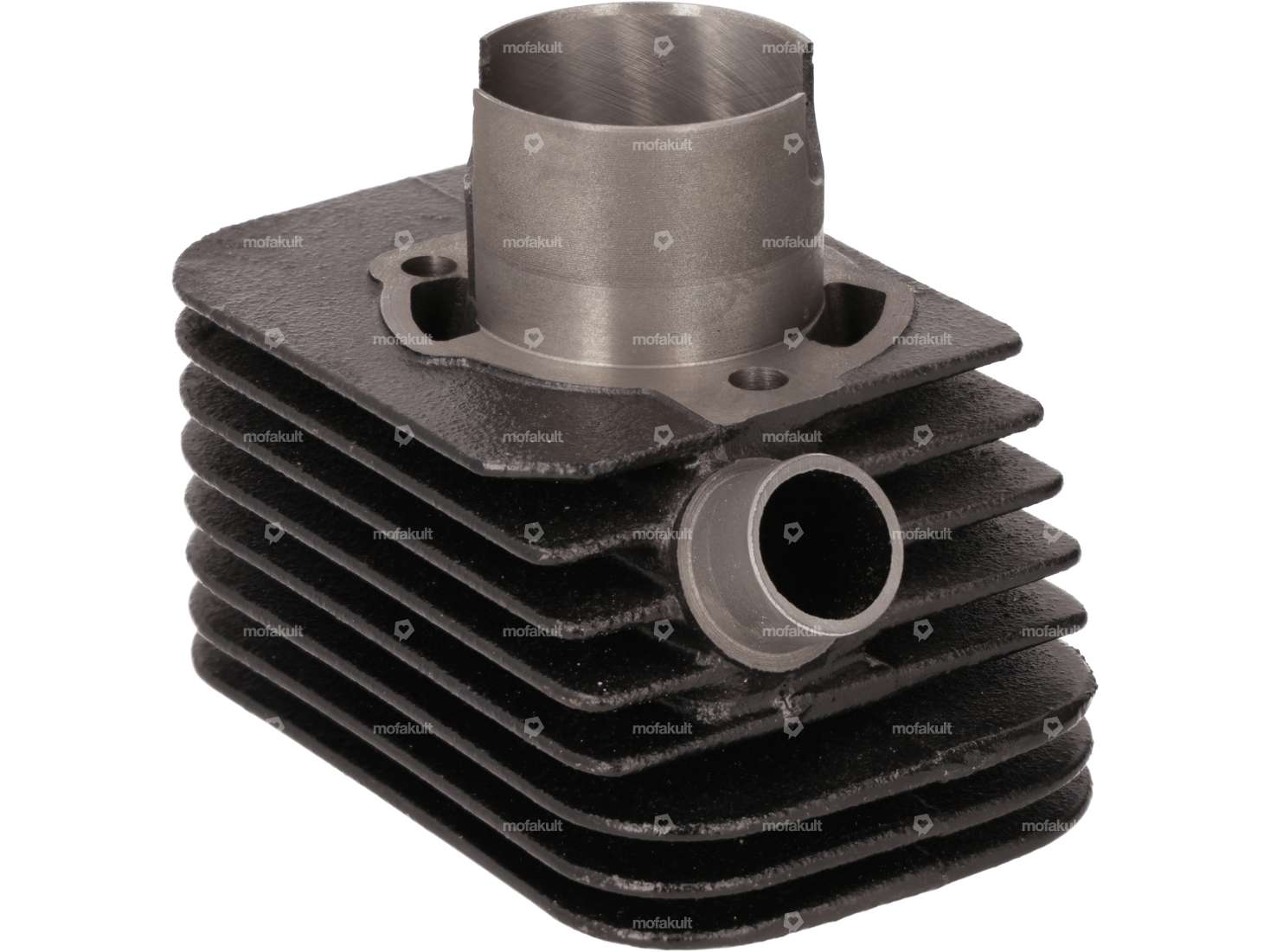

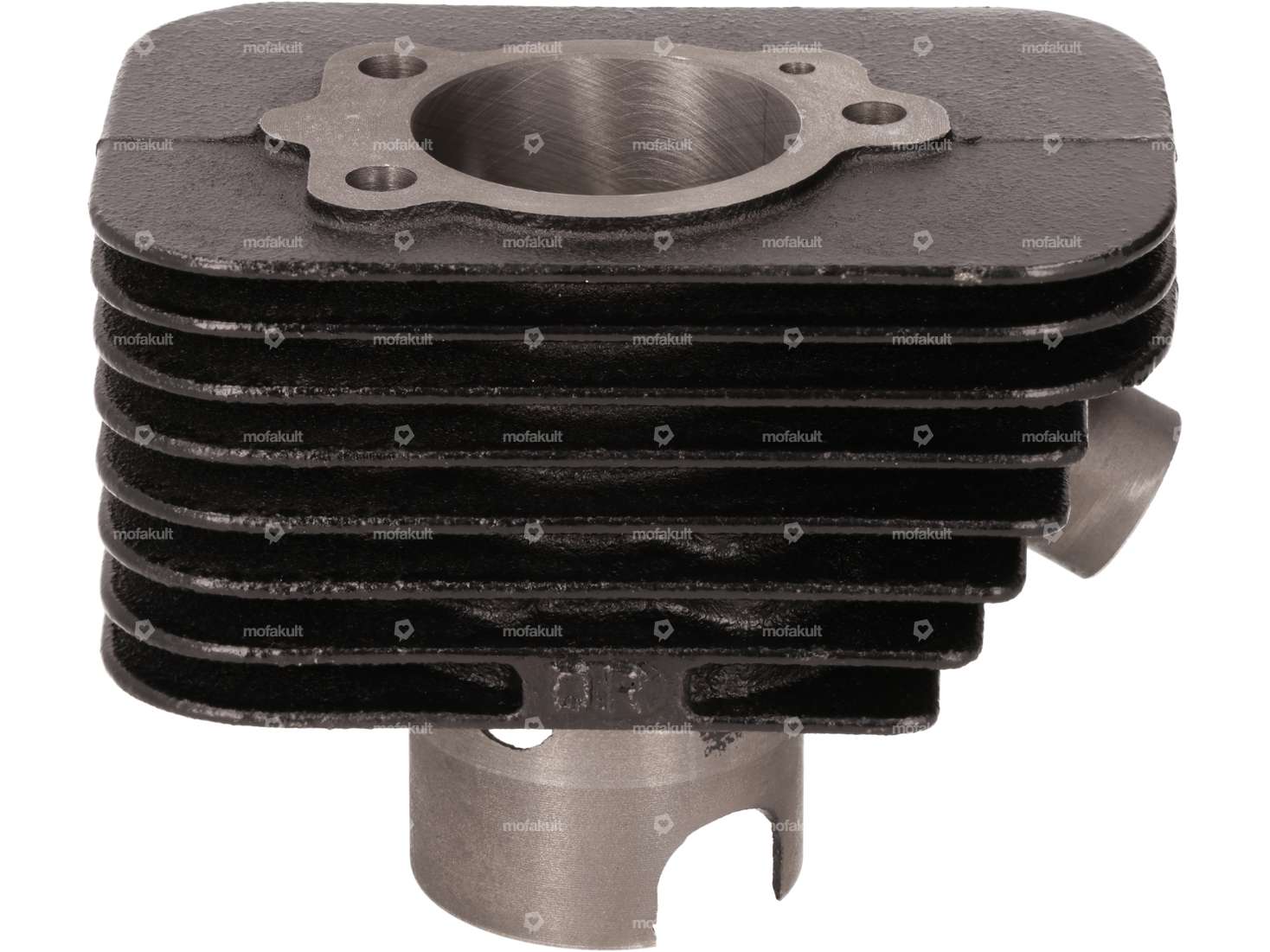

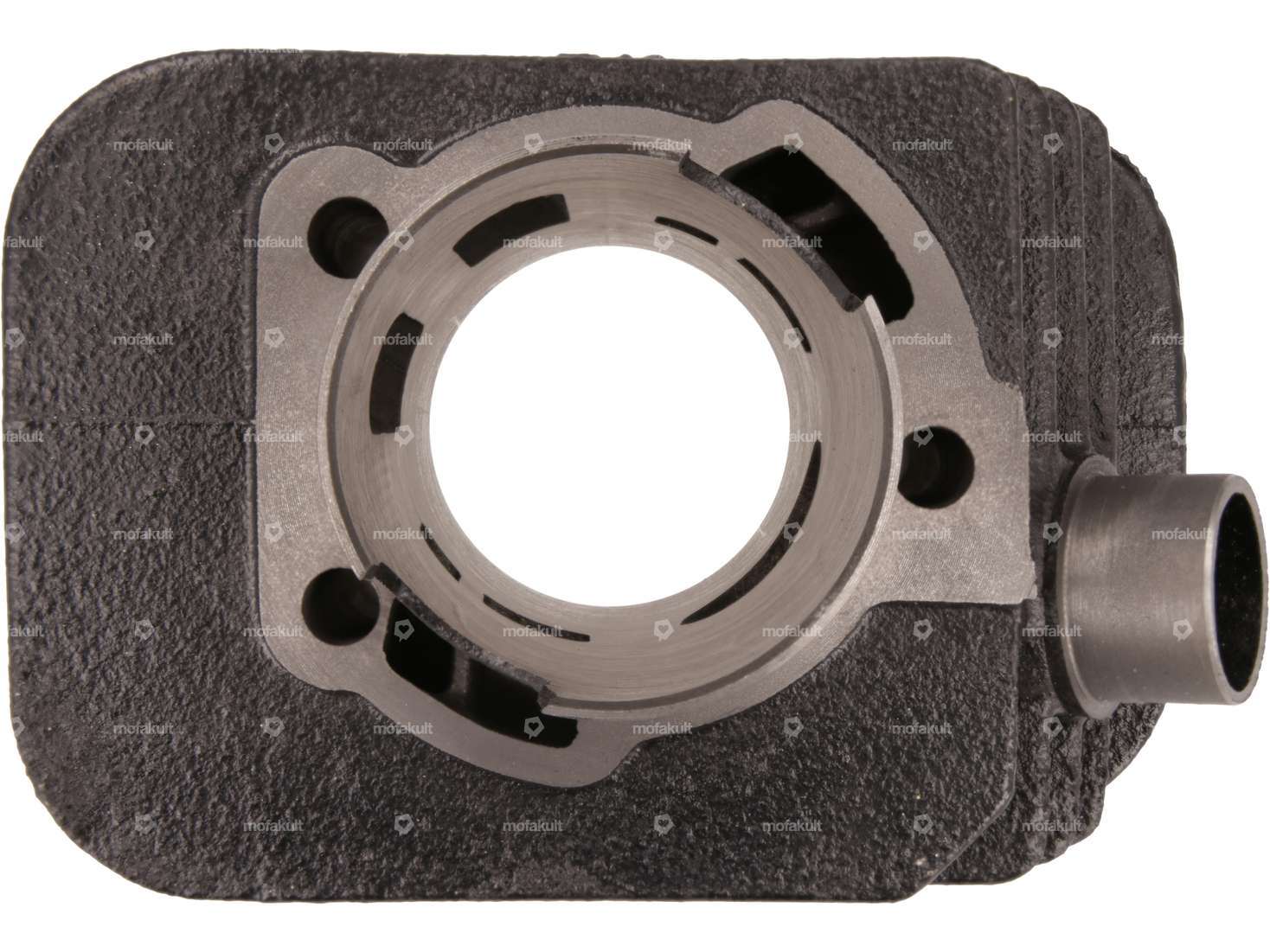

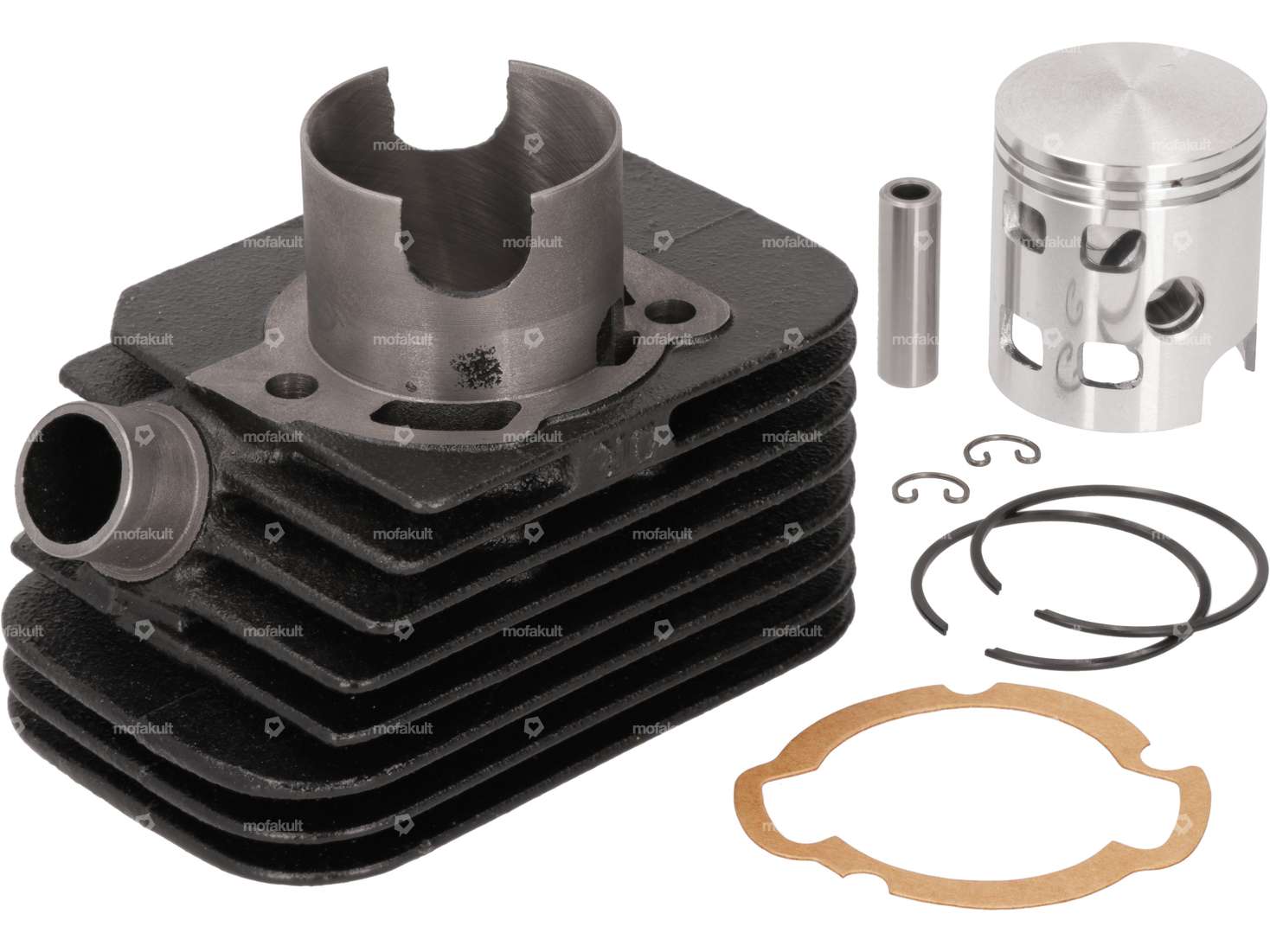

Athena 43 mm cylinder kit without head 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 43 mm · Manufacturer: Athena · Material: Aluminum · Area of application: Tuning · Surface: sandblasted · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Number of fixing points: 3 pcs · Ø piston pin (B): 10 mm · Outlet type: clamped · Decompressor: Yes · Camouflaged: No

mk-Merch Lanyard key ring

Manufacturer: mofakult Merch · Material: Polyester (PES) · Color: black · Color: red · Color: white · Diameter: 8 mm · Total length: 490 mm · Closure type: Key ring
