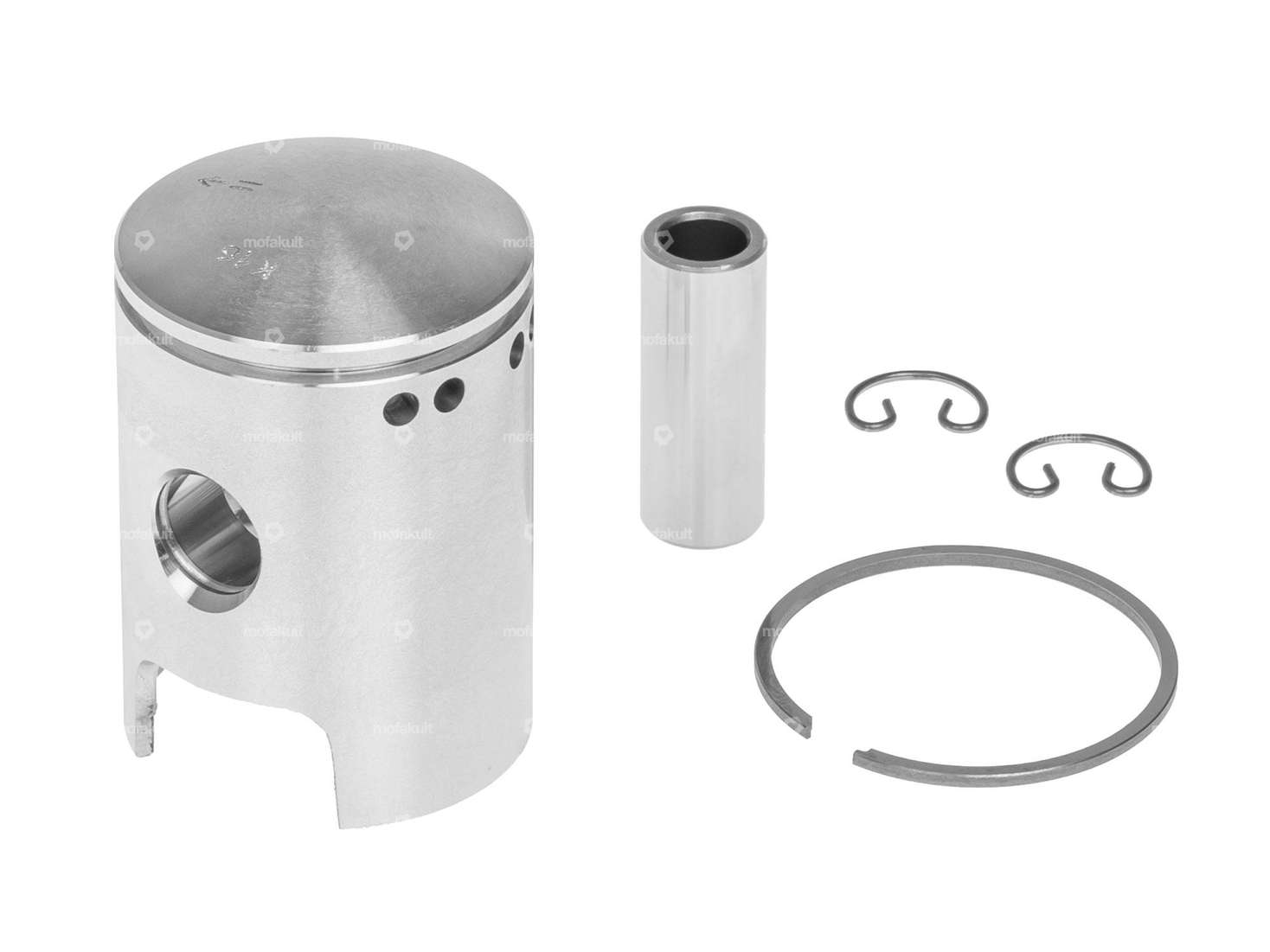

38.0 mm piston with a 1.5 mm rectangular piston ring with internal fuse (IS) for slotted cylinders of various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.
Tolerance type: A
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tools, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Athena.
Details
| Nominal diameter | 38 mm |
| Manufacturer | Athena |
| Ø outside piston (A) | 37.94 mm |
| Compression height (C) | 22.5 mm |
| Curvature (D) | 3.55 mm |
| Total piston height (E) | 55 mm |
| Number of piston rings (F) | 1 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Tolerance group | A |
| Piston weight | 76 g |
Suitable for the following models
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Number of components: 7 pcs · Width across flats SW: 10 mm · Width across flats SW: 17 mm
EUR 21.90
EUR 24.30

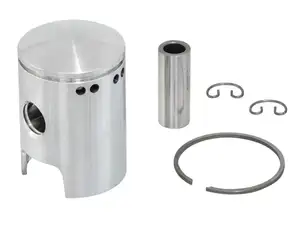

Athena piston 38 mm #B | Puch
Manufacturer: Athena · Nominal diameter: 38 mm · Ø outside piston (A): 37.94 mm · Compression height (C): 22.45 mm · Curvature (D): 3.55 mm · Total piston height (E): 55 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: B · Piston weight: 74 g
EUR 79.40
Athena piston 38 mm #C | Puch
Manufacturer: Athena · Nominal diameter: 38 mm · Ø outside piston (A): 37.97 mm · Compression height (C): 22.45 mm · Curvature (D): 3.55 mm · Total piston height (E): 55 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: C · Piston weight: 76 g
EUR 79.40
