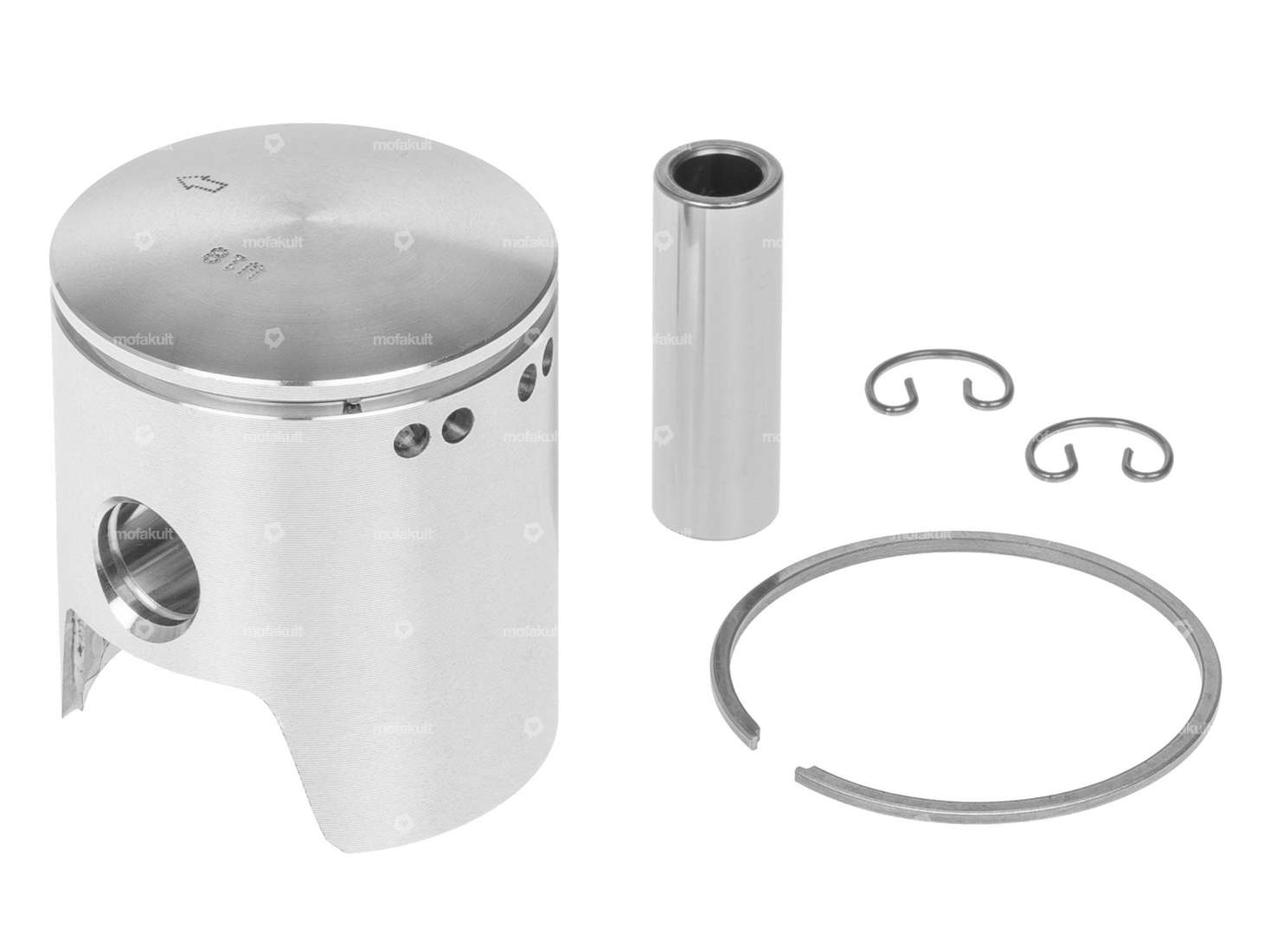

Athena piston 45 mm #B | Puch

EUR 61.20

Incl. 25% VAT.

Description

45.0 mm replacement piston with a 1.5 mm rectangular piston ring with internal fuse (IS) for various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

ManufacturerAthena
Nominal diameter45 mm
Ø outside piston (A)44.95 mm
Compression height (C)28.5 mm
Curvature (D)3.2 mm
Total piston height (E)52.7 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Ø piston pin (B)12 mm
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Tolerance groupB
Weight piston kit97 g
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)
