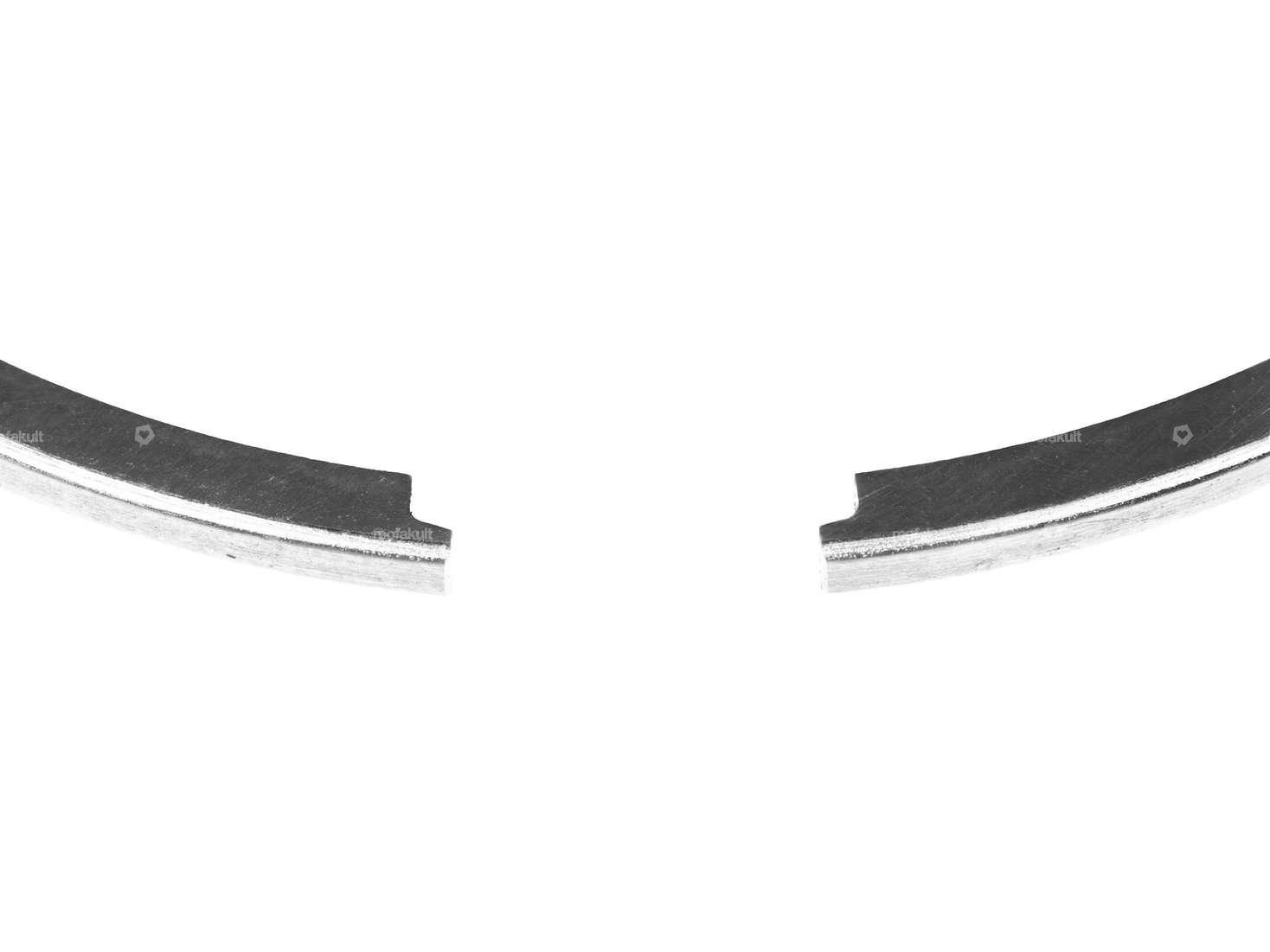

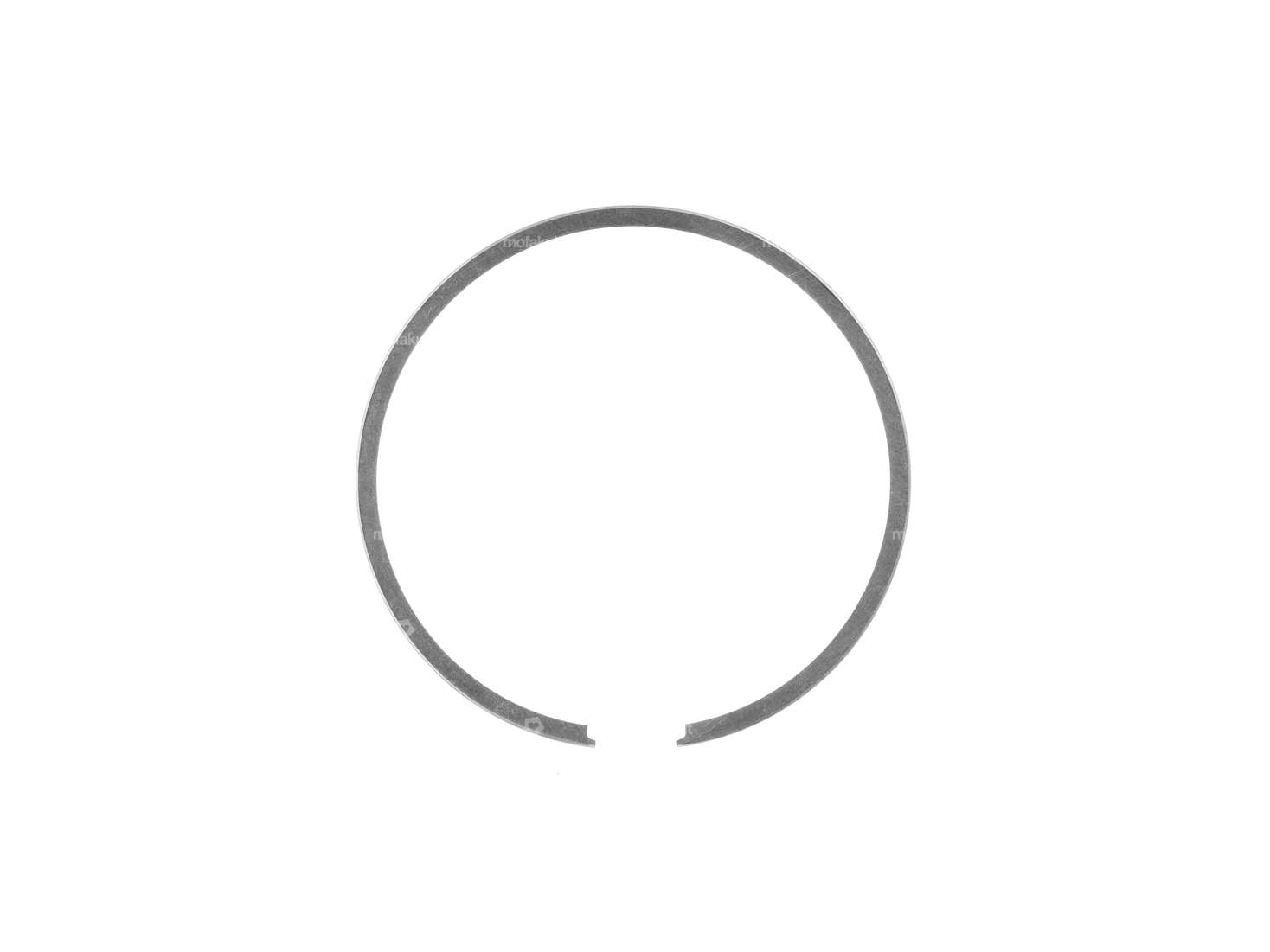

Athena piston ring 48 x 1.5 mm | Sachs 504, 504 / Hercules

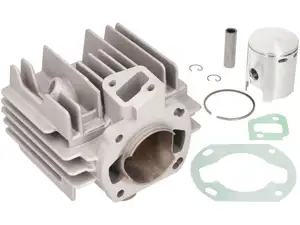

Athena 48 mm cylinder kit without mounting parts | Sachs (504), 505, 508

Material: Aluminum · Surface: sandblasted · Nominal diameter: 48 mm · Manufacturer: Athena · Number of fixing points: 4 pcs · Camouflaged: No · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.6 mm · Area of application: Tuning · Ø piston pin (B): 12 mm · Outlet type: clamped · Decompressor: M10x1.5

Athena 48 mm cylinder kit incl. diaphragm | Sachs (504), 505, 508

Material: Aluminum · Surface: sandblasted · Nominal diameter: 48 mm · Manufacturer: Athena · Number of fixing points: 4 pcs · Camouflaged: No · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.8 mm · Area of application: Tuning · Ø Outlet outside: 26 mm · Ø Inlet inside: 14.7 mm · Ø Inlet inside: 17.8 mm · Ø piston pin (B): 12 mm · Inlet window: 31.9 x 36.2 · Thread inlet: M5x0.8 (standard thread) · Ø outlet inside: 19.4 mm · Hole spacing outlet: 50 mm · Outlet type: clamped · Outlet type: straight · Hole spacing inlet: 32.5 mm · Thread outlet: M8x1.25 (standard thread) · Hole pattern [mm]: 56/60 x 56 · Decompressor: M10x1.5

Athena piston 48 mm #B | Sachs 504 / 505

Nominal diameter: 48 mm · Manufacturer: Athena · Ø outside piston (A): 47.96 mm · Compression height (C): 30.12 mm · Curvature (D): 1.94 mm · Total piston height (E): 59 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Tolerance group: B · Piston weight: 123 g

Athena gasket set 48 mm cylinder kit Sachs 504, 505, 535

Manufacturer: Athena · Number of components: 2 pcs · Area of application: Tuning · Ø cylinder: 48 mm

Athena gasket set 48 mm cylinder kit (diaphragm) | Sachs 504, 505

Manufacturer: Athena · Number of components: 3 pcs · Area of application: Tuning · Ø cylinder: 48 mm

Athena piston 48 mm #A | Sachs 504 / 505

Nominal diameter: 48 mm · Manufacturer: Athena · Ø outside piston (A): 47.94 mm · Compression height (C): 30.2 mm · Curvature (D): 1.94 mm · Total piston height (E): 59.05 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Tolerance group: A · Piston weight: 123 g

Dell'Orto SHA reducing bushing (21/18 mm)

Manufacturer: Dell'Orto · Material: Plastic · Component group Carburetor: Adjusting screws, float, etc. · Color: white · Carburetor type: SHA · Ø outside: 21 mm · Ø inside: 18 mm · Total length: 14 mm

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Surface: blank · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Sachs OEM no.: 0245 000 000 · Tomos OEM number: 032039

MKX shock absorber 30 cm black

Manufacturer: MKX · Material: Aluminum · Material: Steel · Surface: varnished · Damping type: Spring · Adjustable: Yes · Color: black · Ø spars: 24 mm · Ø outside: 46 mm · Ø Fastening inside: 8 mm · Ø Fastening inside: 10 mm · Number of fixing points: 2 pcs · Hole spacing: 300 mm · Mounting type: Nuts & bolts
