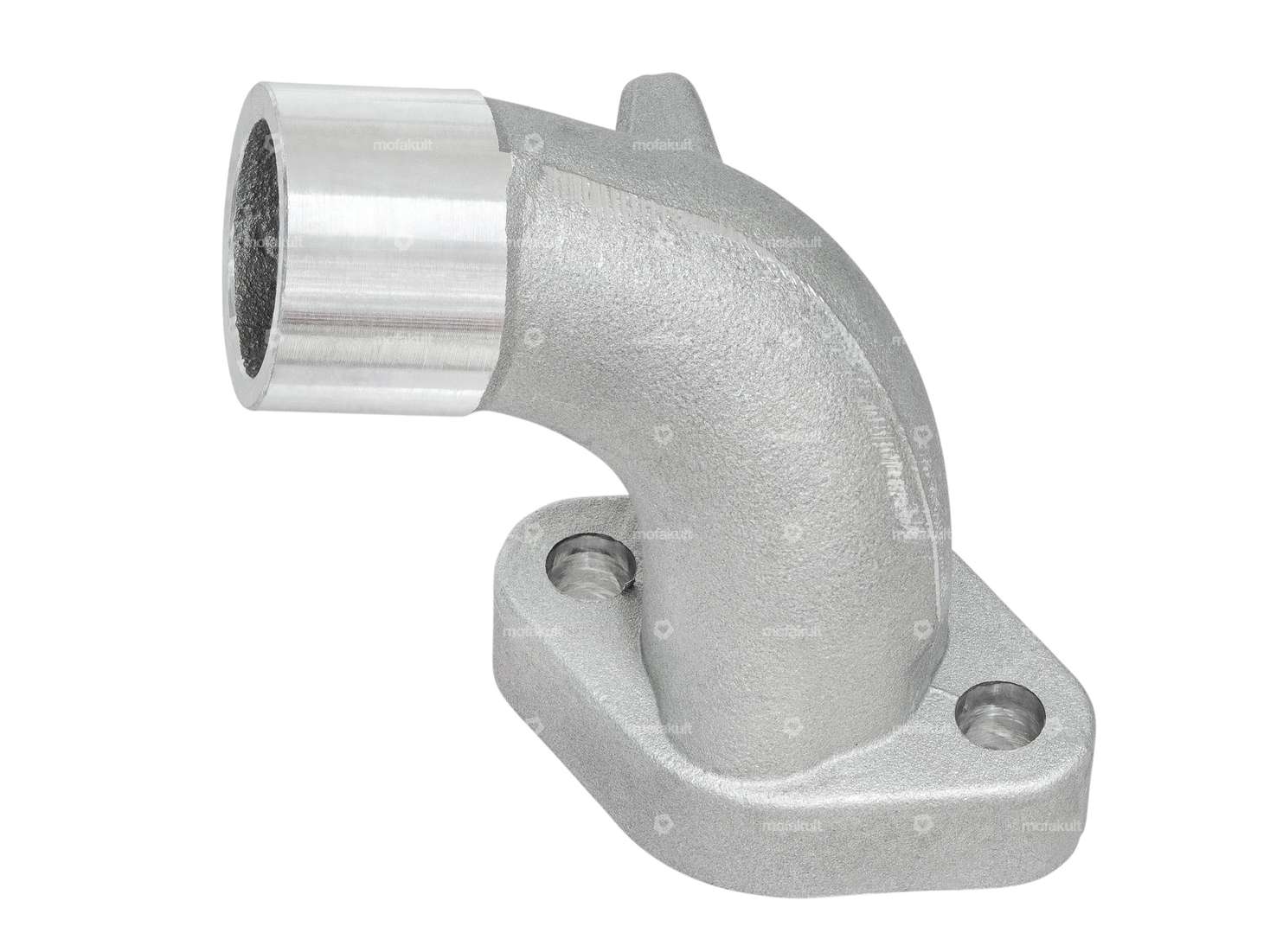

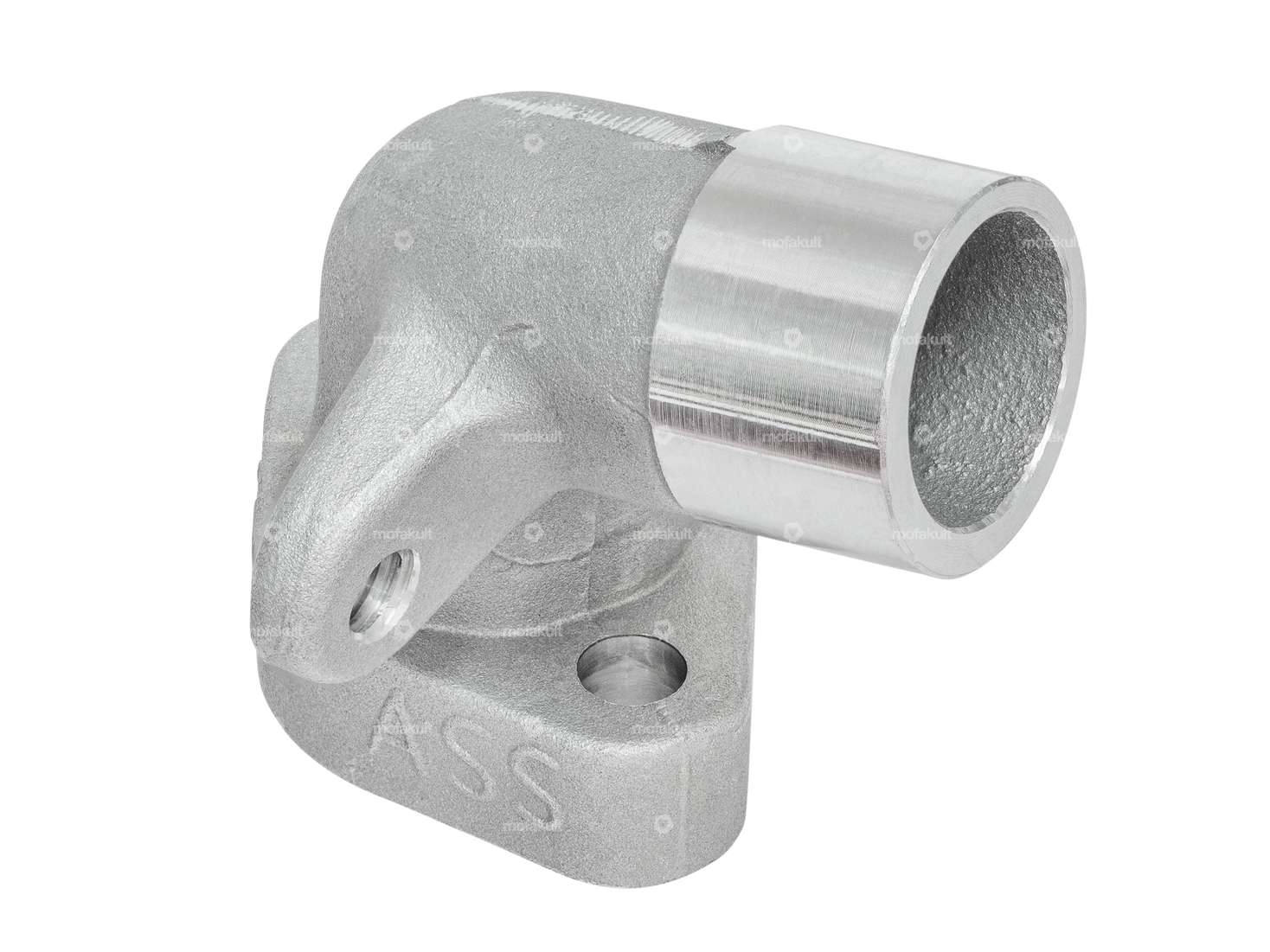

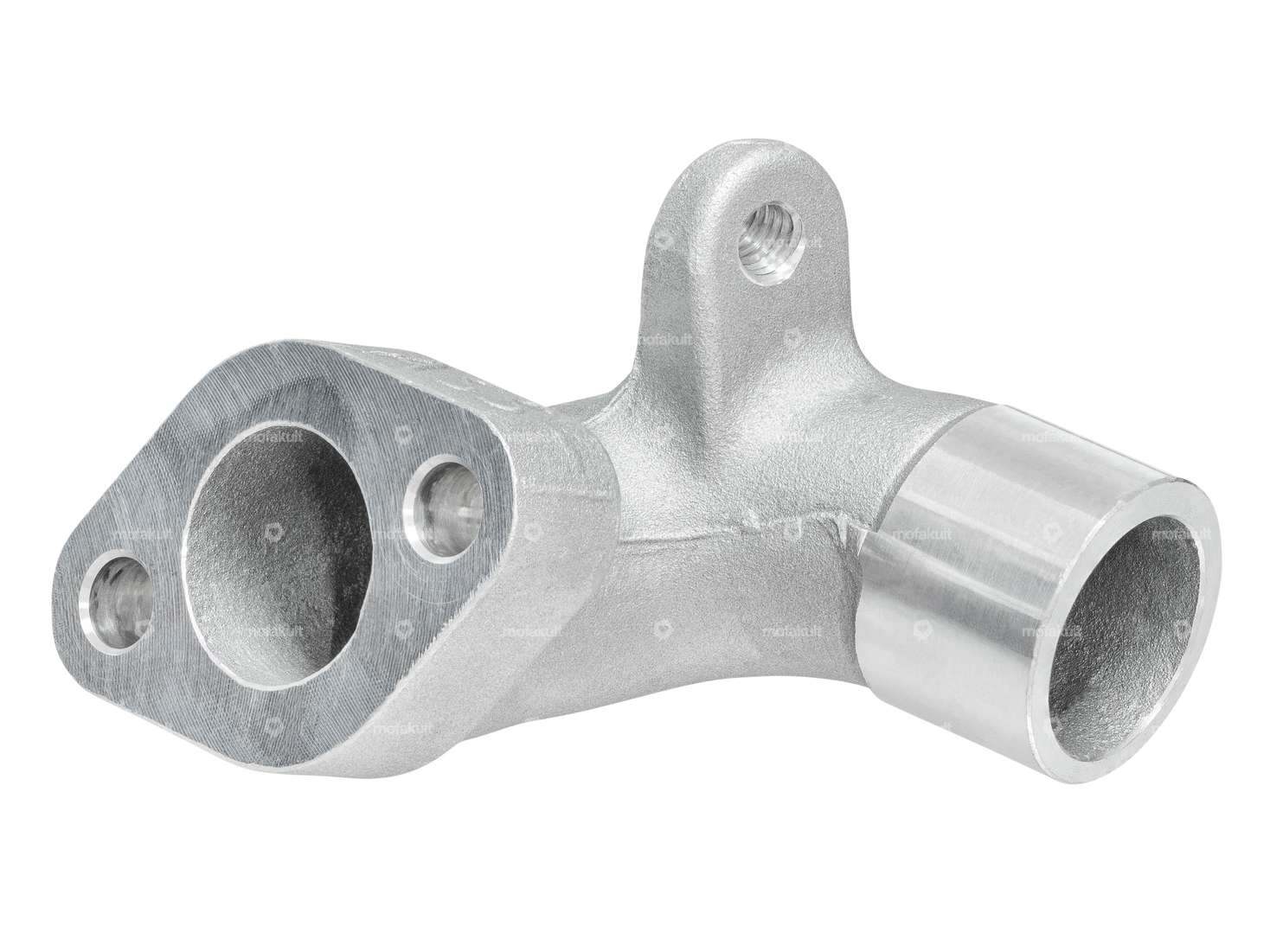

Short 50 mm intake manifold for hand-shifted Sachs 503 2AL and 2BL mopeds / mopeds.
This manifold is recommended in combination with the 41 mm BAD ASS Pandora tuning cylinder and makes it possible to fit a 17 mm Bing SRF or a Dell'Orto or GPO PHBG carburettor with the corresponding sleeve.
- Carburetor connection diameter: 23 mm
- Internal diameter: 17 mm throughout
- Hole spacing: 32 mm
- Threaded bracket: M6
To simplify installation, we recommend using M6 nuts with reduced key width. You can find these special nuts as well as the long 70 mm intake manifold or the sleeve for mounting PHBG carburetors in the accessories.
This is the tuning version of the original Sachs spare part with the number A2177.
Made by the brand BADASS.
| Manufacturer | BAD ASS |
| Material | Aluminum |
| Thread type | M6x1 (standard thread) |
| Ø inside | 17 mm |
| Hole spacing inlet | 32 mm |
| Ø External connection | 23 mm |
| Total length | 54 mm |
| Area of application | Tuning |
| Height flange center hole | 45 mm |
| Mounting type | Screws |
| Total height | 56.5 mm |
| Number of fixing points | 3 pcs |
| Camouflaged | No |
| Sachs | 503 - AAL, ABL, 2AL / 2BL |
Accessories & related products
Magura set screw M6x34 mm lock nut SW8
Slotted: No · Width across flats Screw: 8 mm · Manufacturer: Magura · Surface: galvanized (blue) · Surface: nickel-plated · Ø cable holder: 3.05 mm · Material: Brass · Material: Steel · Ø Receptacle: 7.05 mm · Thread type: M6x1 (standard thread) · Width across flats nut: 8 mm · Total length: 34 mm · Thread length: 24 mm
EUR 3.05
GPO 17.5 mm PHBG AS carburetor hand choke (Dell'Orto replica)
Nominal diameter: 17.5 mm · Manufacturer: GPO · Camouflaged: No · Component group Carburetor: Carburetor complete · Color: black · Material: Aluminum · Mounting type: Bride · Carburetor type: PHBG AS · Mounting type: Plug connection clamped · Total length: 71.5 mm · Width: 63 mm · Ø without reducing sleeve: 26 mm · Height: 130 mm · Ø Internal connection: 24 mm · Ø Air filter connection: 32 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Ø fuel hose connection: 5.3 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Area of application: Tuning · Vacuum connection: Yes · Choke control: Hand choke · Choke nozzle size: 55 · Nozzle thread: M5x0.8 (standard thread) · Nozzle block: 262AU · Nozzle size: 80 · Size of secondary nozzle: 50
EUR 97.60
17 mm Bing SRF carburetor (replica)
Material: Aluminum · Nominal diameter: 17 mm · Total length: 78 mm · Width: 64 mm · Height: 117 mm · Mounting type: Plug connection clamped · Component group Carburetor: Carburetor complete · Carburetor type: SRF · Choke control: Hand choke · Nozzle thread: M4x0.7 (standard thread) · Area of application: Tuning · Ø fuel hose connection: 6 mm · Ø Internal connection: 23 mm · Ø Air filter connection: 60 mm · Ø Air filter connection: 64 mm · Mixed oil connection: No · Vacuum connection: No · Nozzle block: 2.xx · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m
EUR 79.30
swiing® revival special nut M6 SW8 (sprocket ref. back pedal / intake manifold)
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut · Drive: External hexagon · Thread type: M6x1 (standard thread) · Height: 6 mm · Width across flats SW: 8 mm
EUR 3.55
Bing "19 mm" SRF carburetor
Nominal diameter: 17 mm · Mounting type: Plug connection clamped · Component group Carburetor: Carburetor complete · Carburetor type: SRF · Choke control: Hand choke · Nozzle thread: M4x0.7 (standard thread) · Area of application: Tuning · Ø fuel hose connection: 6 mm · Ø Inside entrance: 19 mm · Ø Internal connection: 23 mm · Ø Output inside: 19 mm · Ø Air filter connection: 60.2 mm
EUR 103.70
swiing® ingenious 15 mm intake manifold long version | Sachs 503 2AL, 2BL
Manufacturer: swiing® ingenious parts · Camouflaged: No · Material: Aluminum · Mounting type: Screws · Ø External connection: 20 mm · Ø inside: 15 mm · Thread type: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Total height: 80 mm · Number of fixing points: 2 pcs · Height flange center hole: 70 mm · Area of application: Tuning · Total length: 70 mm · Pony OEM number: A2176
EUR 73.10

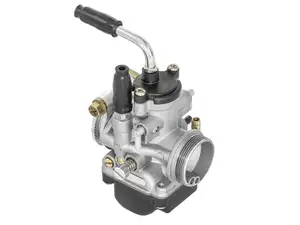

GPO 17.5 mm PHBG AD carburetor cable choke (Dell'Orto replica)
