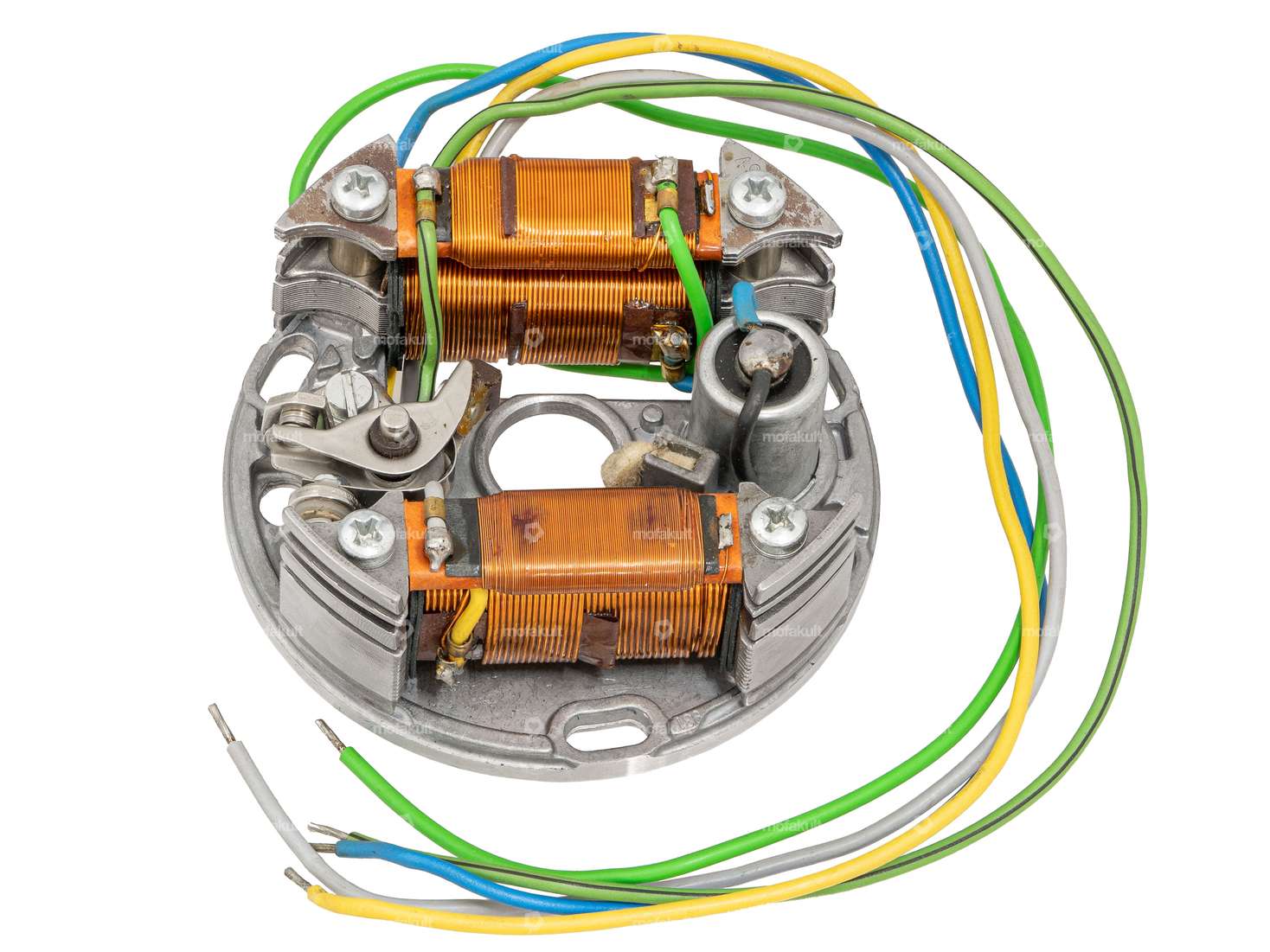

Complete Bosch ignition, which can be fitted to Puch Maxi S, N mopeds / mopeds with E50 single-automatic engine, among others. This ignition is originally installed on various Puch small engines.
An external ignition coil is required for this interrupter ignition.
The ignition is equipped with coils for brake lights and other power consumers such as horns etc.
Connection legend:
Blue cable: external ignition coil (excitation current)
Yellow cable: light 6 Volt 22 Watt
Grey cable: additional consumer 6 Volt 5 Watt (e.g. brake light)
Green cable / black cable: ground
Green cable: Additional consumer 6 volt 10 watt (e.g. horn)
Corresponding add-on parts such as external ignition coil, flywheel, adjustment tool etc. can be found under accessories.

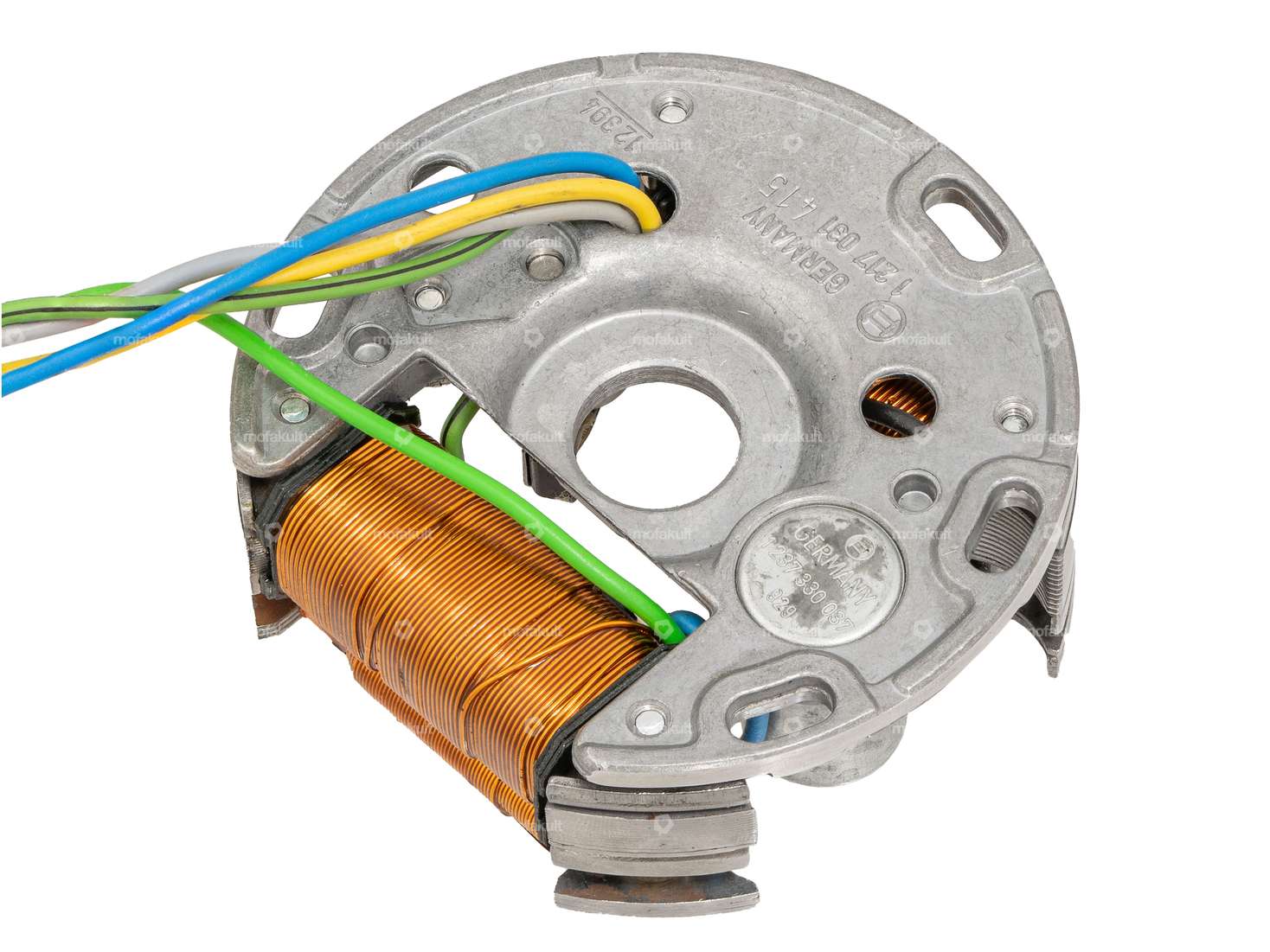

The following number is stamped on the ignition plate: 1 217 031 415
Quality product from the German manufacturer BOSCH in original equipment quality.
NOS – New from old stock.
| Manufacturer | BOSCH |
| Area of application | Standard, Original, Custom, Security |
| Material | Aluminum |
| Tension | 6 V |
| Performance | 10 W, 5 W, 22 W |
| Number of cables | 5 pcs |
| Cable length | 350 mm |
| Ø inside | 18 mm |
| Ø outside | 90 mm |
| Number of fixing points | 4 pcs |
| Ø bolt circle | 80 mm |
| Puch |
