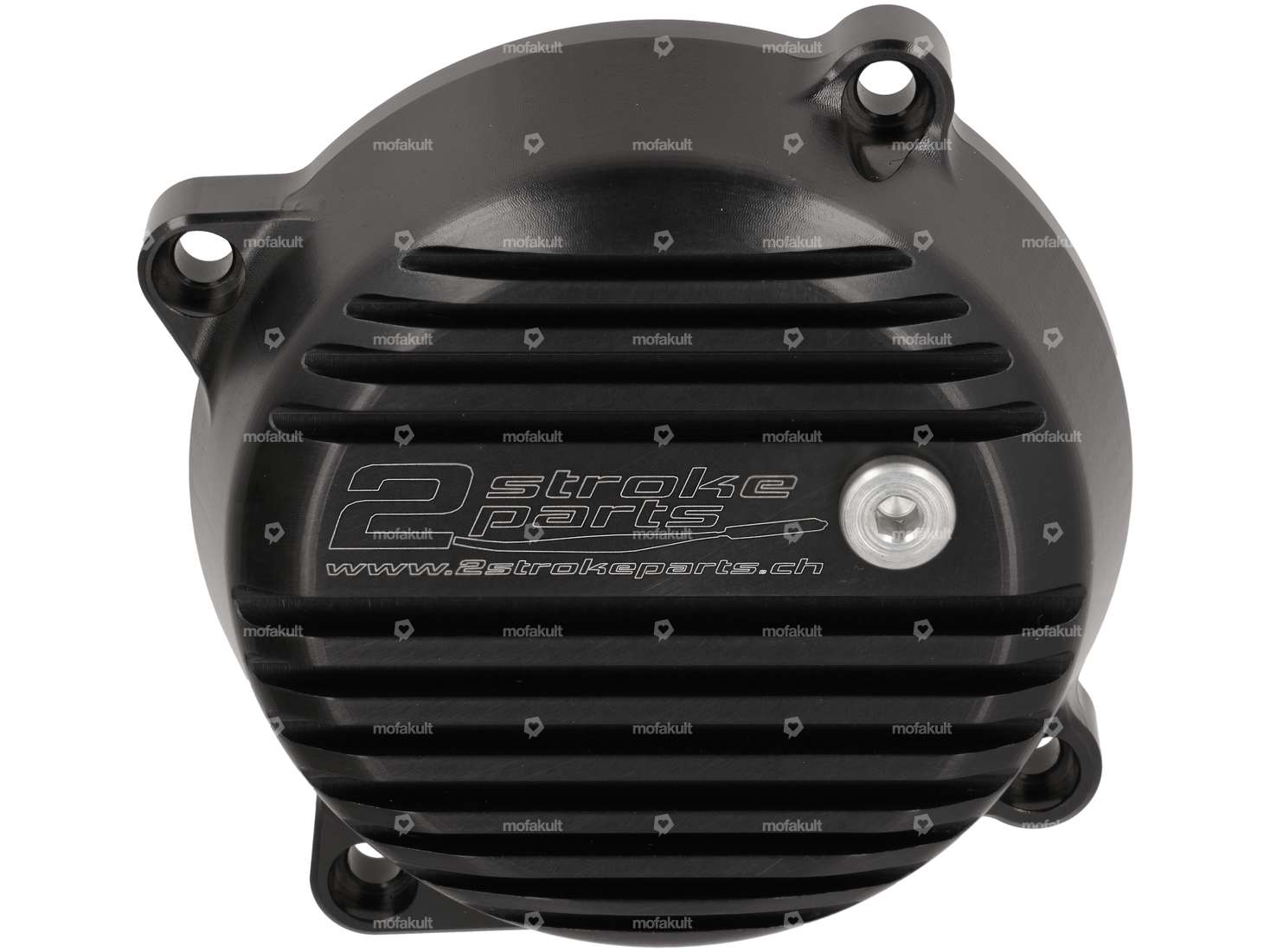

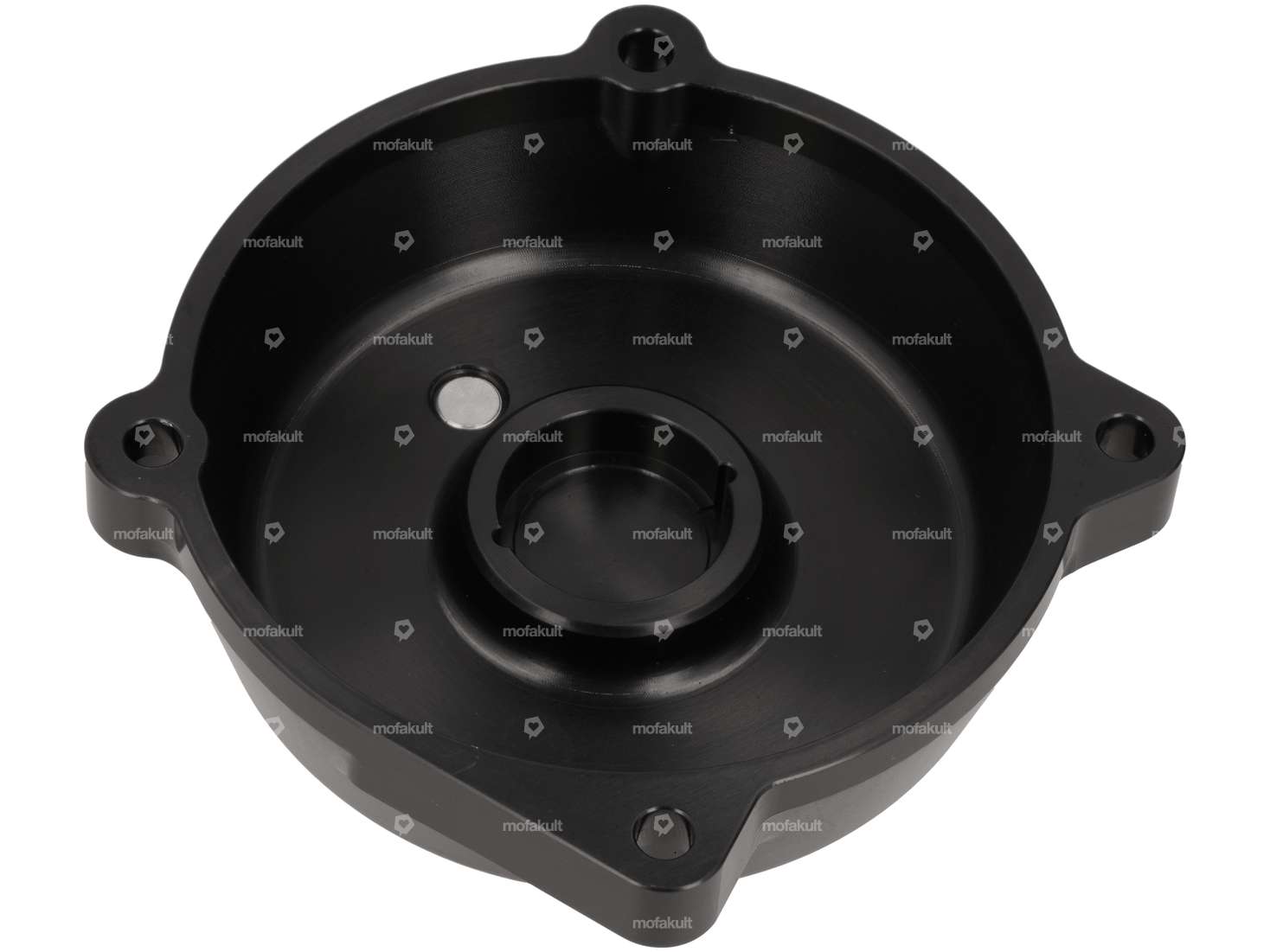

Black anodized aluminium gearbox cover, suitable for your Puch moped / moped with E50 engine.
The gearbox cover is equipped with cooling fins to ensure optimum heat dissipation. The increased position of the oil filler hole makes it possible to fill 1.5 dl more oil, which further improves the cooling capacity.
The lid and the filler screw are included in the scope of delivery.
Note: The clutch cover fits both the standard clutch and the Tripple Clutch Racing clutch.
Other matching parts such as the complete Tripple-Clutch racing clutch can be found in the accessories section.
| Manufacturer | Made in Switzerland |
| Material | Aluminum |
| Surface | anodized |
| Ø outside | 116 mm |
| Color | black |
| Width | 116 mm |
| Ø inside | 107 mm, 30 mm |
| Total length | 116 mm |
| Height | 38.5 mm |
| Number of fixing points | 4 pcs |
| Puch | E50 |
