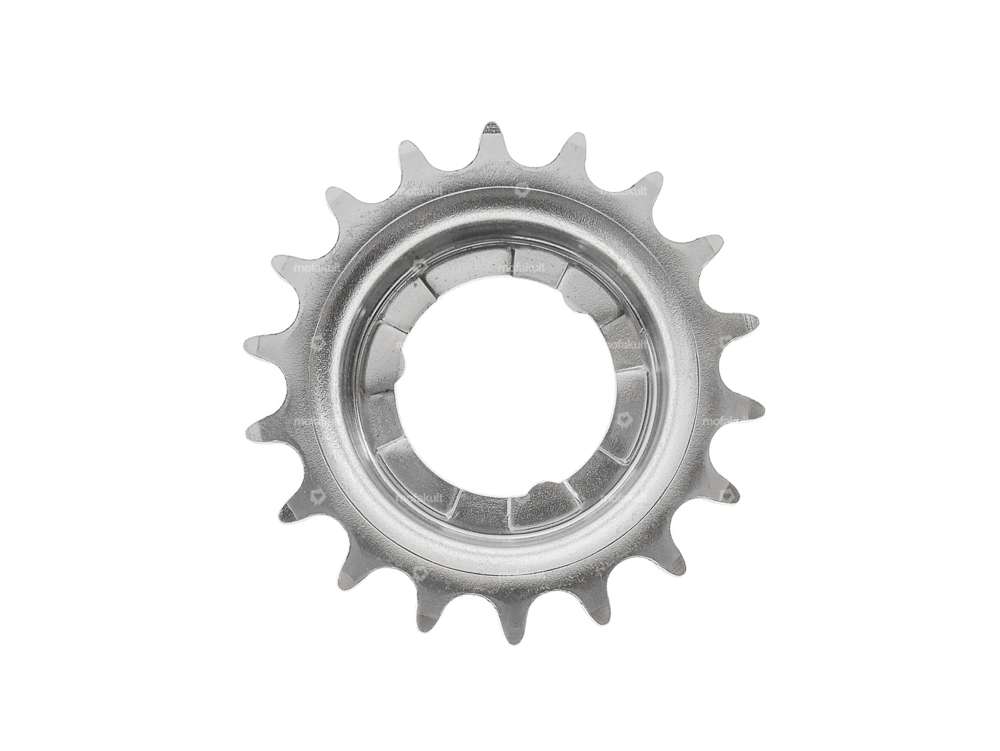

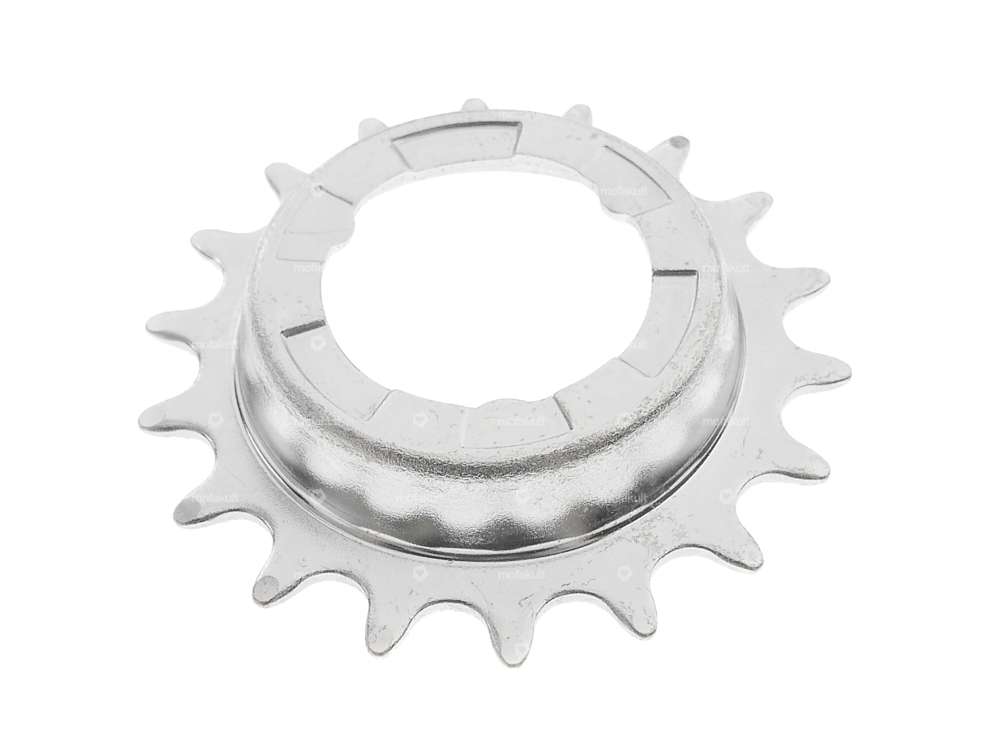

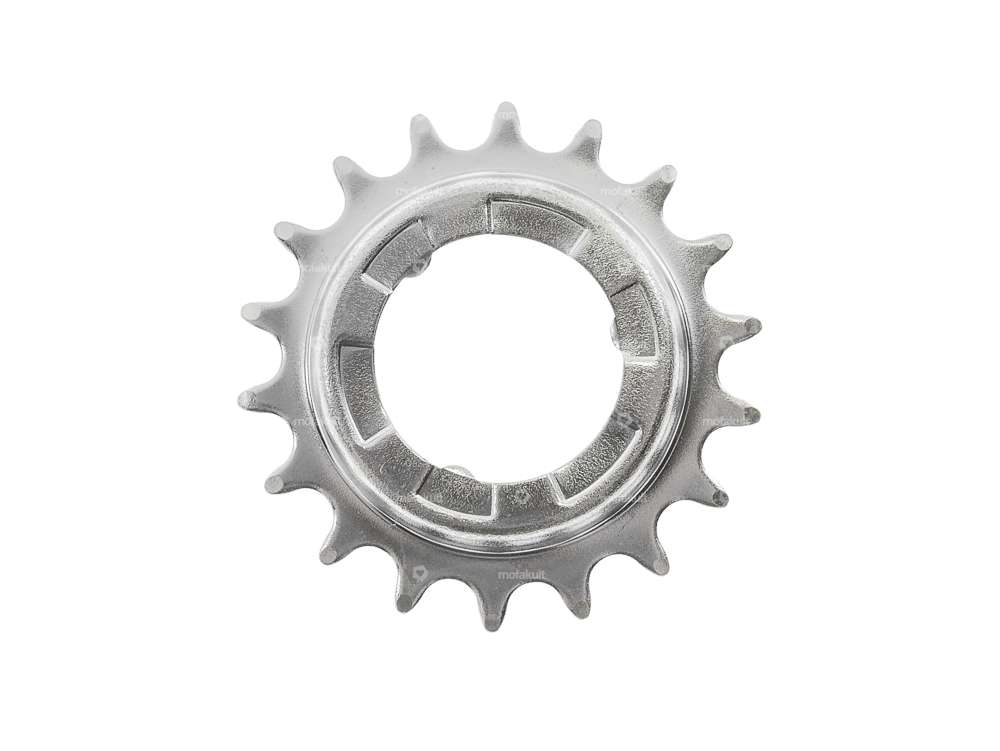

Cranked sprocket 18 teeth

Return spring brake plate | Puch Maxi

Spring design: Nose feather · Spring design: Torsion spring · Ø wire: 2.4 mm · Leg length: 45 mm · Length spring hook: 50 mm · Area of application: Original · Material: Spring steel · Area of application: Standard · Surface: galvanized (blue) · Ø outside: 30 mm · Ø inside: 25.5 mm · Total length: 125 mm

KMC drive chain 415H (reinforced) 128L

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Color: gray · Rolling circumference: 1626 mm · Number of chain links: 128 pcs · Chain lock type: Spring lock · Ø bore: 4 mm · Ø Pin: 3.94 mm

CAWI fuel filler cap bayonet 40 mm

Manufacturer: CAWI · Material: Steel · Surface: chrome-plated · Color: Chrome · Fuel filler cap: Bayonet 40 mm · Lockable: No · Vented: Yes · Ø External head: 64.8 mm · Height: 23.4 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Thread type: MF12x1 (fine pitch thread) · Mounting type: Union nut · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm

M6 sealing ring Fiber

Material: Fiber · Surface: raw · Place of use: Carburetor · Place of use: Motor housing · Thickness: 1 mm · Area of application: Standard · Ø inside: 6.4 mm · Ø outside: 11.8 mm · Puch OEM number: 24365

swiing® revival wheel axle M10.5x1 x 175 coaster brake galvanized

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 175 mm · Thread type: MF10.5x1 (fine pitch thread) · Thread length: 34 mm · Thread length: 45 mm · Ø shaft: 10.5 mm · Shank length: 95.6 mm

Stud bolt inlet/outlet M6/M7 x 30 mm

Material: Steel · Surface: burnished · Total length: 30 mm · Thread type: M6x1 (standard thread) · Thread type: M7x1 (standard thread)

Fortune / Merrick 2.00 - 2.25 x 19" tube

Manufacturer: Fortune · Tire width [inch]: 2 - 2.25 " · Tire width [mm]: 50.8 - 57.15 · Width [inch]: 2 · Width [inch]: 2 1/4 · Tire height [%]: 100 · Wheel size [inch]: 19 " · Old designation: 23 x 2 · Old designation: 23 x 2.25 · Valve type: TR4 Auto valve

swiing® revival wheel axle M10.5x1 x 175 coaster brake Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Total length: 175 mm · Thread type: MF10.5x1 (fine pitch thread) · Ø shaft: 10.5 mm · Thread length: 34 mm · Thread length: 45 mm · Shank length: 95.6 mm

Sprocket back pedal 18 teeth chrome

Material: Steel · Surface: chrome-plated · Color: Chrome · Number of teeth: 18 pcs
