Nice disc brake system for your Puch moped / moped with 5-star cast rim and EBR telescopic fork with mount for a brake caliper.
The disc brake system is factory-filled with brake fluid.
The disc brake system is filled with brake fluid ex works and is supplied ready for installation with all necessary components.

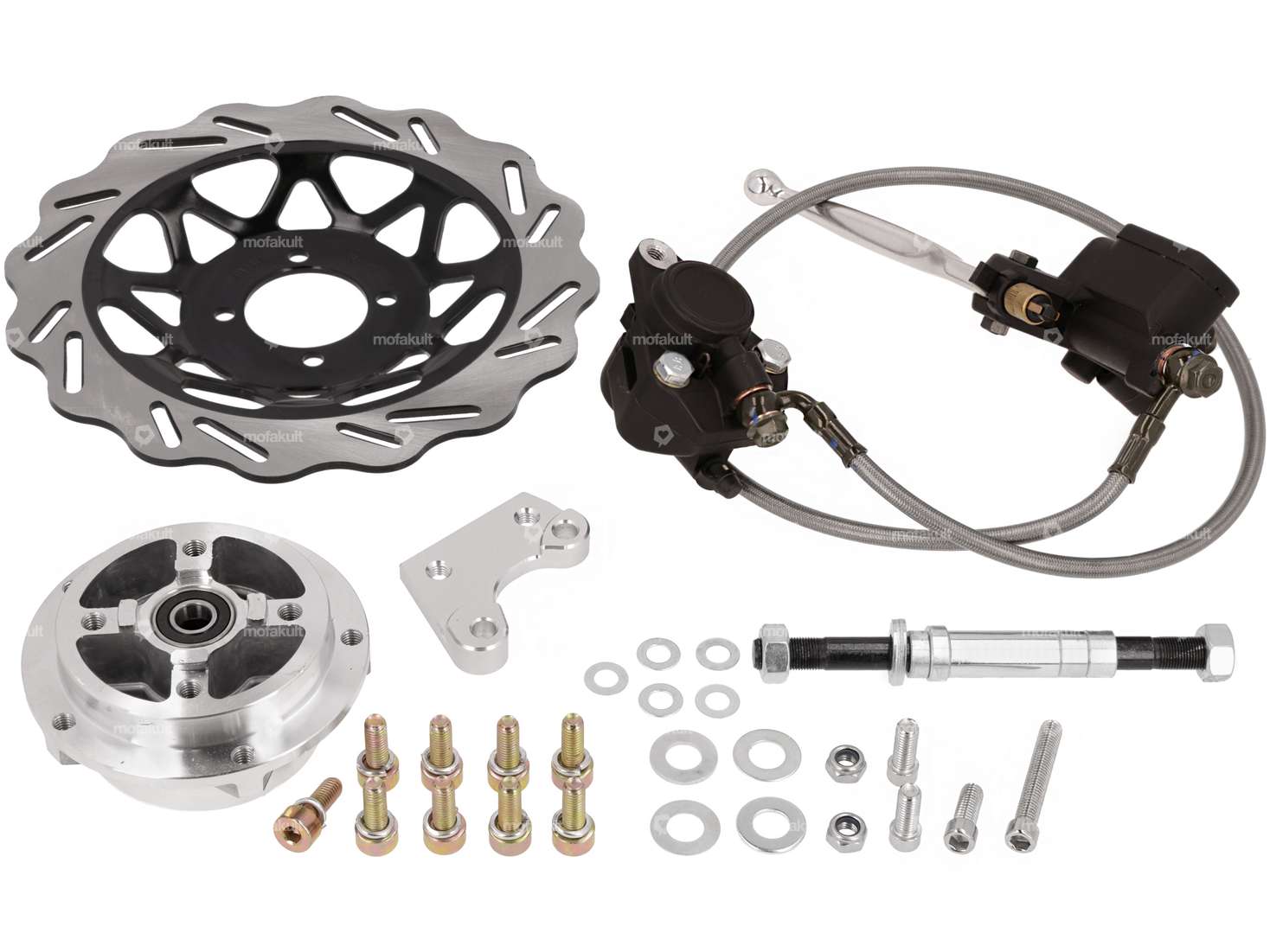

Scope of delivery:
- Brake disc Ø 240 mm

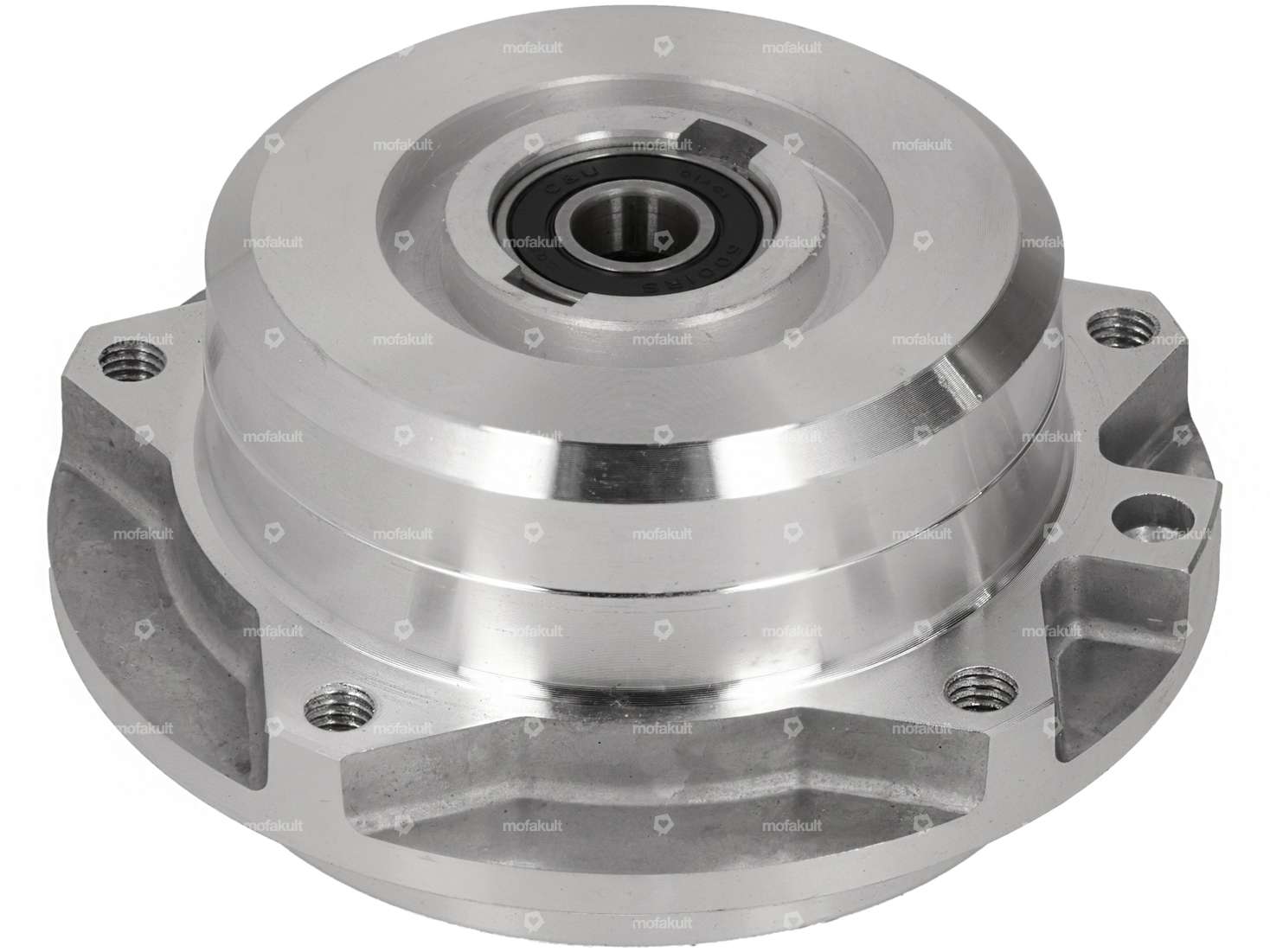

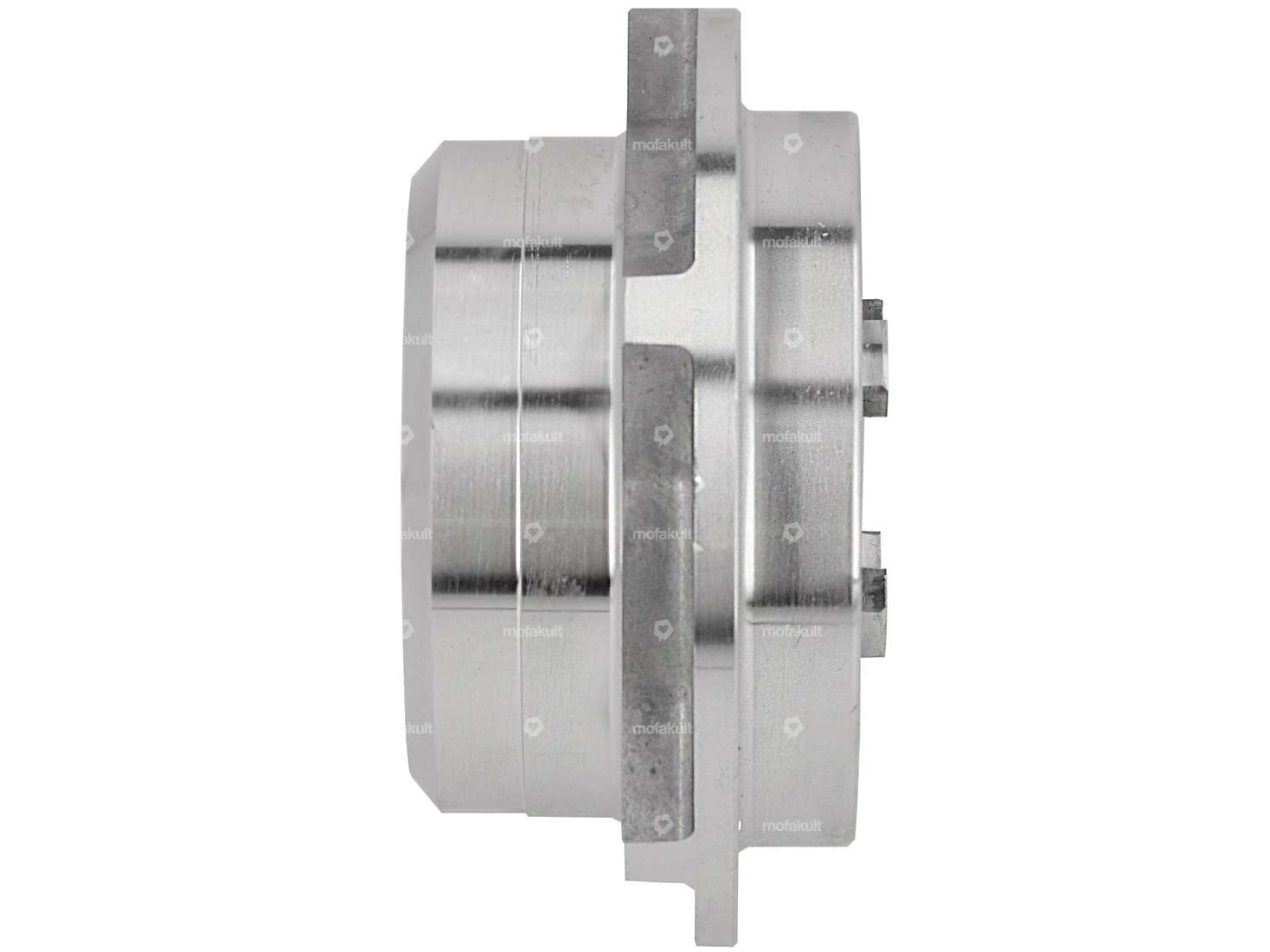

- Hub with ball bearings already installed

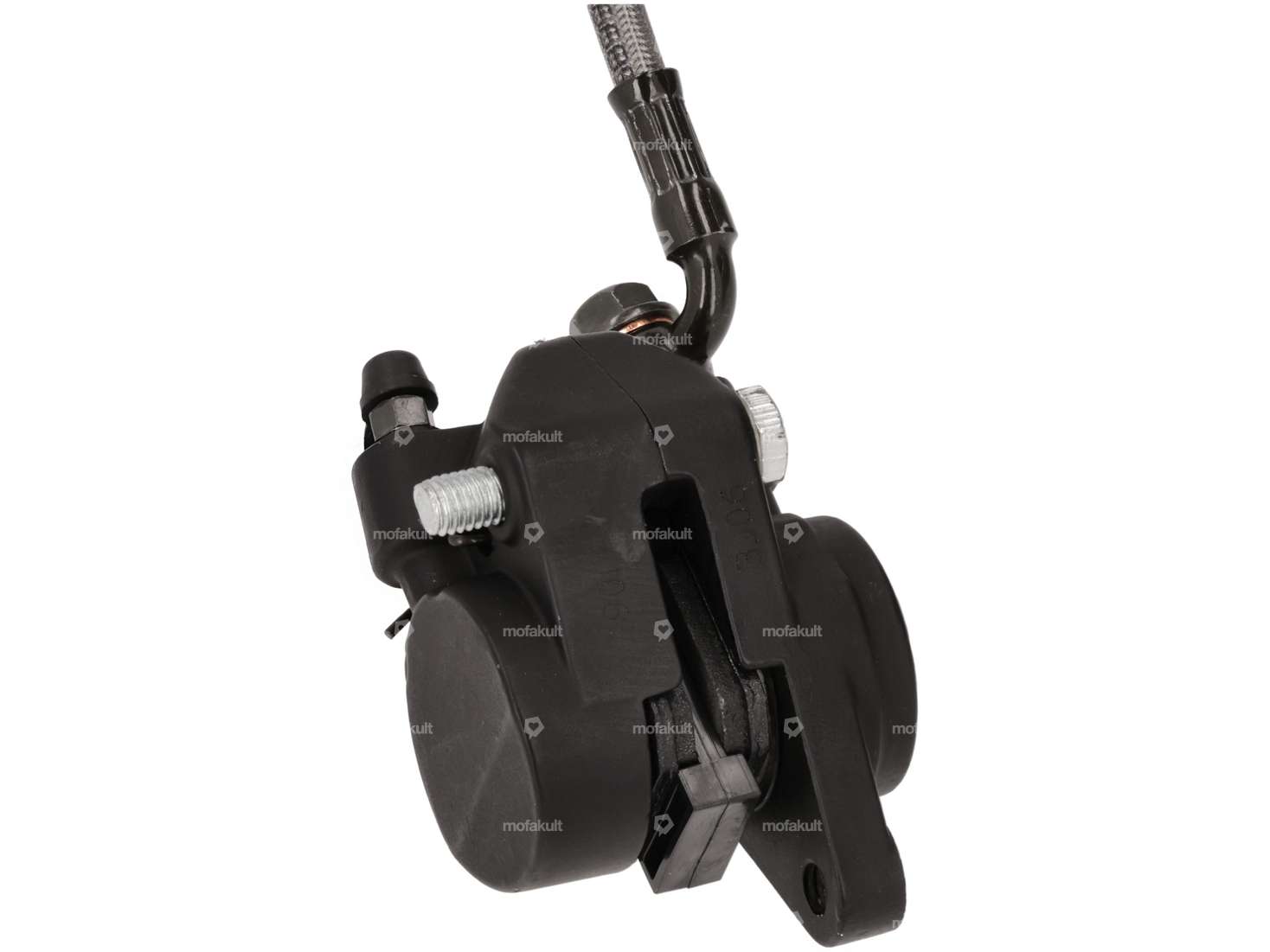

- Brake caliper
- 850 mm long steel flex hose

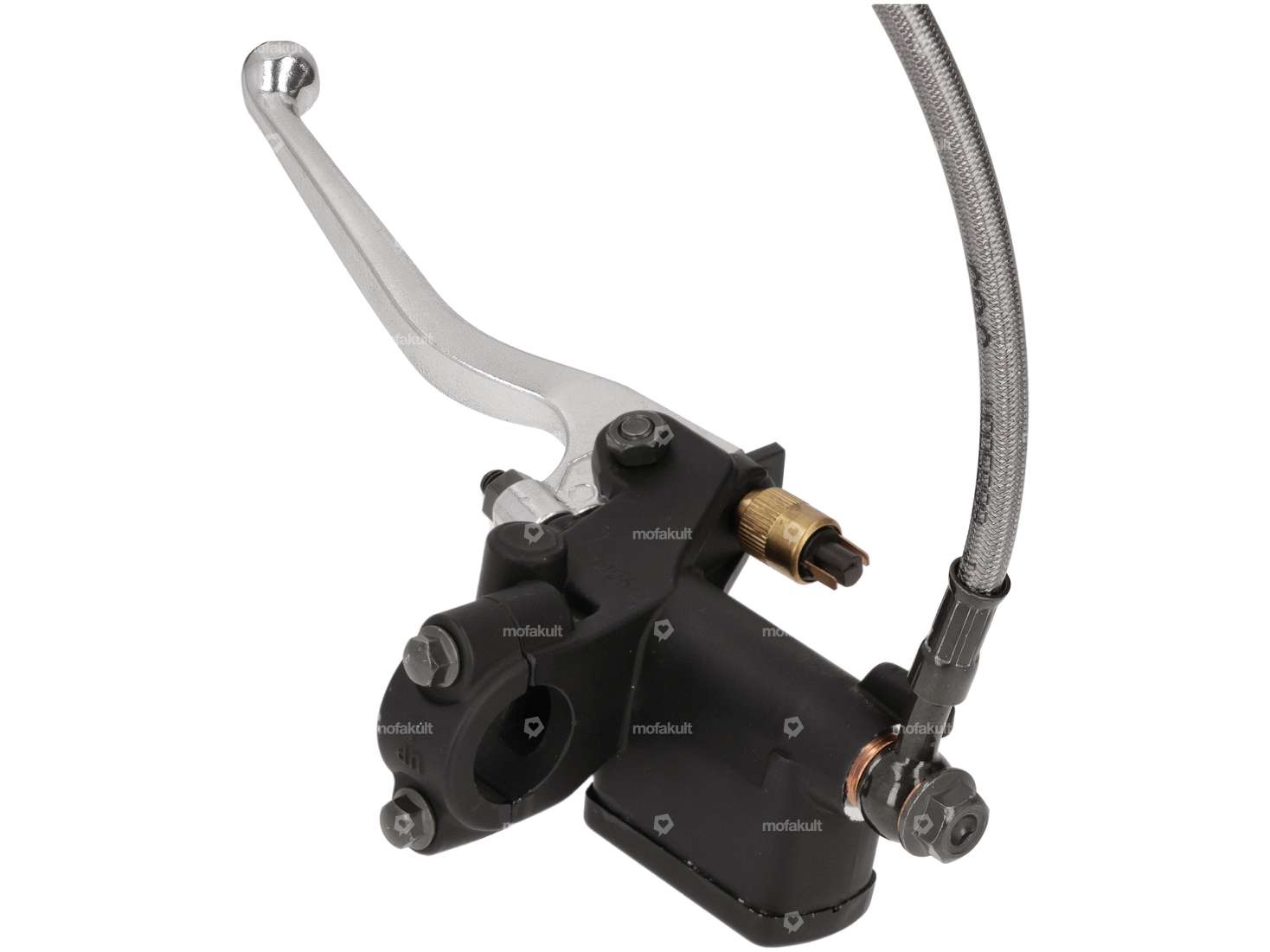

- Brake lever
- Mounting plate for attaching the brake calliper
- 12 mm wheel axle with all nuts and washers
- Bolts for mounting the hub to the rim

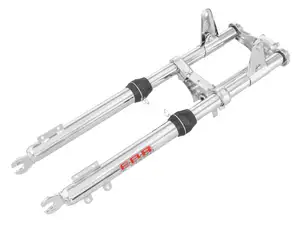

Notes: Mounting on the original fork is not possible. An EBR fork with the option of attaching a brake calliper is required (see accessories).
The hub fits in original Grimeca as well as in the reproduction rims in the accessories.
The disc brake kit works, but will not knock anyone off their saddle in terms of quality. You can find the high-quality alternative in the accessories section.
| Manufacturer | Quenching |
| Ø Handlebars | 22 mm |
| Ø outside | 240 mm |
| Cable length | 850 mm |
| Puch |
