For: Piaggio

18316

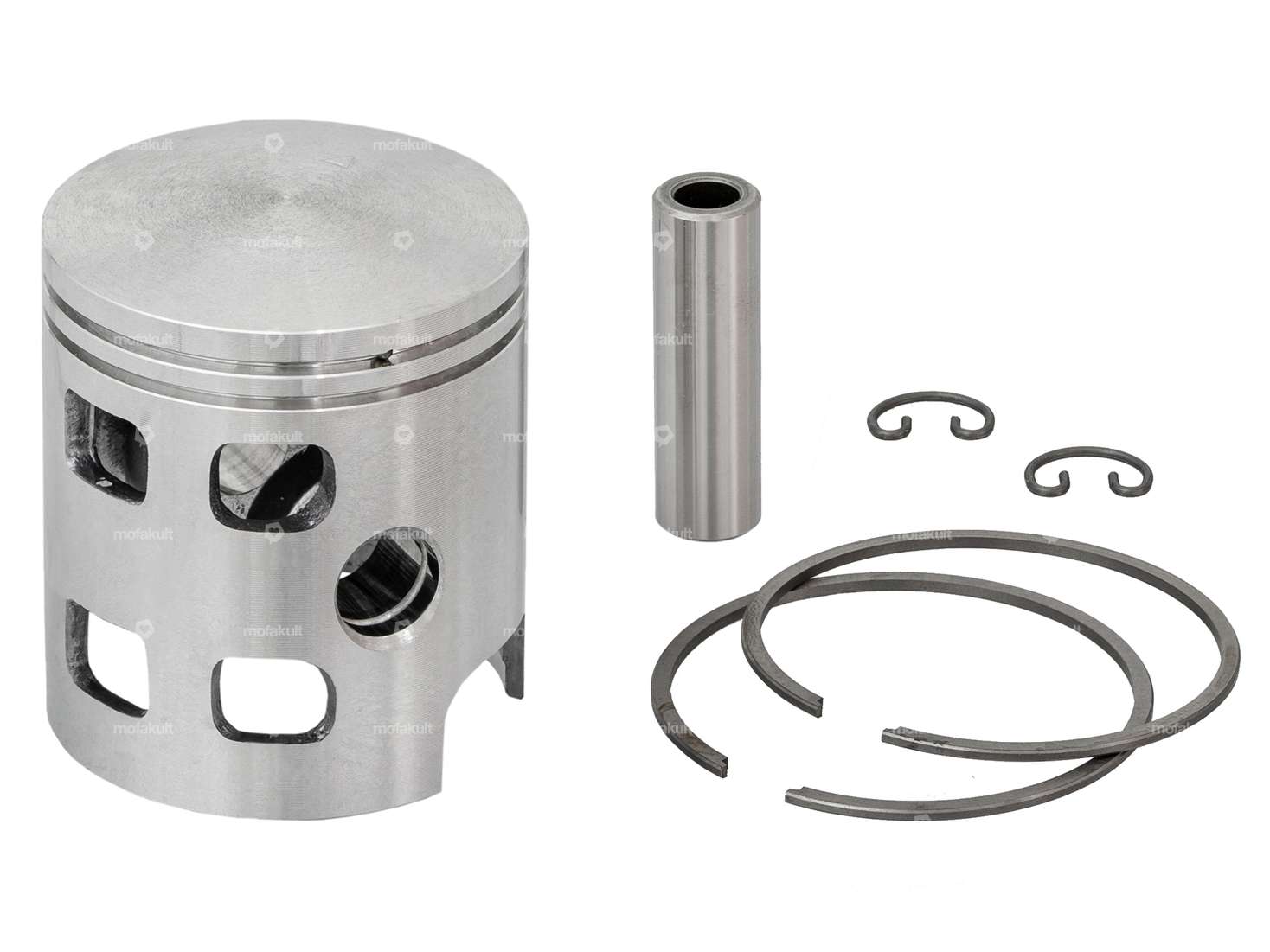

DR piston 43 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 82.00

Incl. 25% VAT.

Description

43.0 mm piston with two 1.2 mm rectangular piston rings with internal fuse (IS) for all Piaggio mopeds / mopeds with DR racing cylinders.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

ManufacturerDR Racing Parts
Ø outside piston (A)42.9 mm
Compression height (C)26.1 mm
Curvature (D)2.4 mm
Total piston height (E)50.5 mm
Number of piston rings (F)2 pcs
Nominal diameter43 mm
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.2 mm
Ø piston pin (B)10 mm
Weight piston kit82 g
Piaggio

Ciao - P , SC , PX , C24

Si

Bravo / Super Bravo

Boxer

Grillo
