For: Piaggio

20364

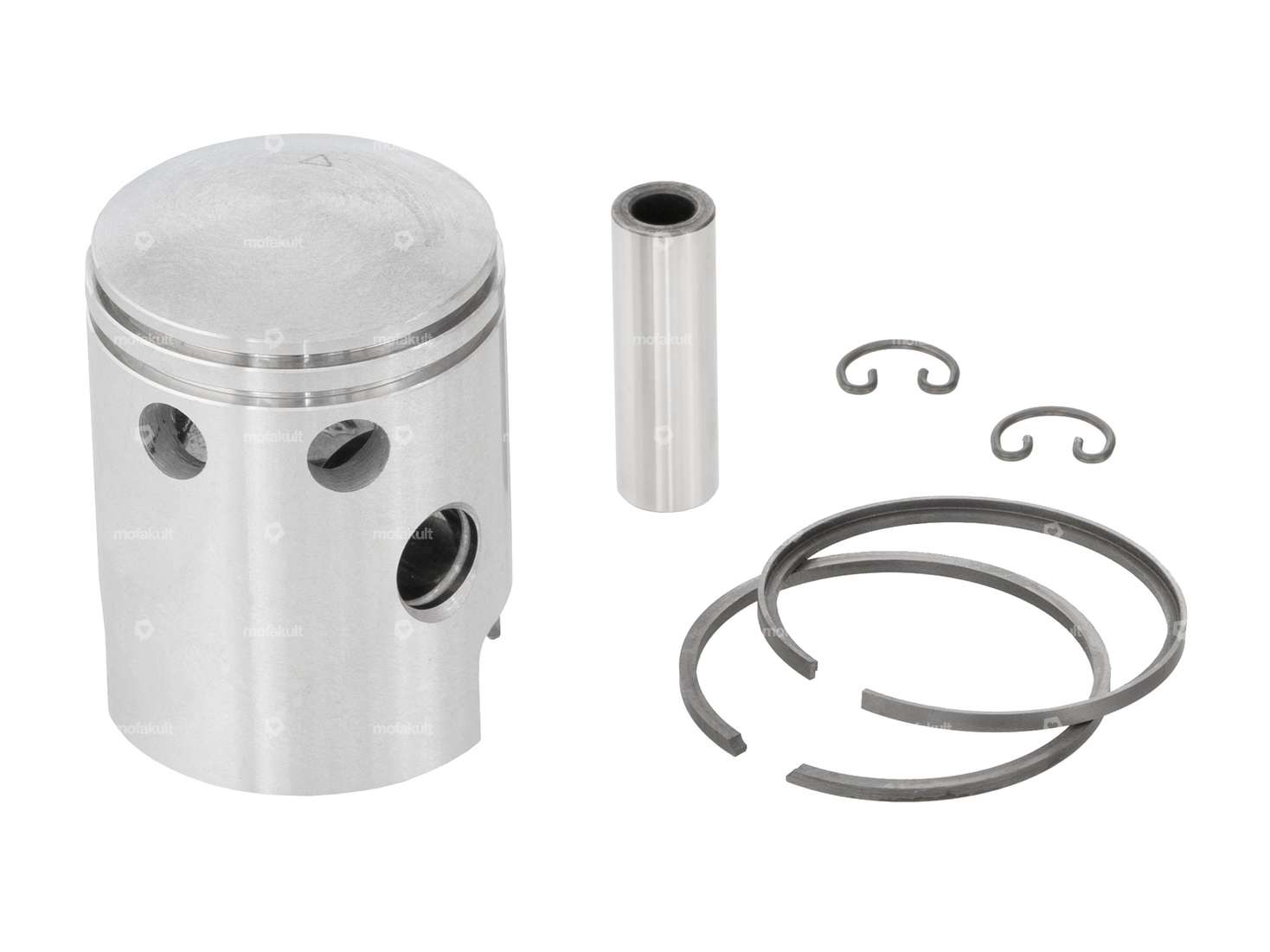

DR piston Ø 38.4 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 85.70

Incl. 25% VAT.

Description

38.40 mm oversize piston with an L-shaped piston ring with internal circlip and a rectangular piston ring with flank lock (FS) from DR for all Piaggio mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

ManufacturerDR Racing Parts
Nominal diameter38.4 mm
Ø outside piston (A)38.33 mm
Ø piston pin (B)10 mm
Compression height (C)26.4 mm
Curvature (D)3.8 mm
Total piston height (E)52.3 mm
Number of piston rings (F)2 pcs
Piston ring moldL-ring, Rectangular ring
Piston ring impactInternal fuse (IS), Flank safety device (FS)
Piston ring height2 mm, 1.5 mm
Weight piston kit78 g
Piaggio

Ciao - P , SC , PX , C24

Si

Bravo / Super Bravo

Boxer

Grillo
