For: Puch

17340

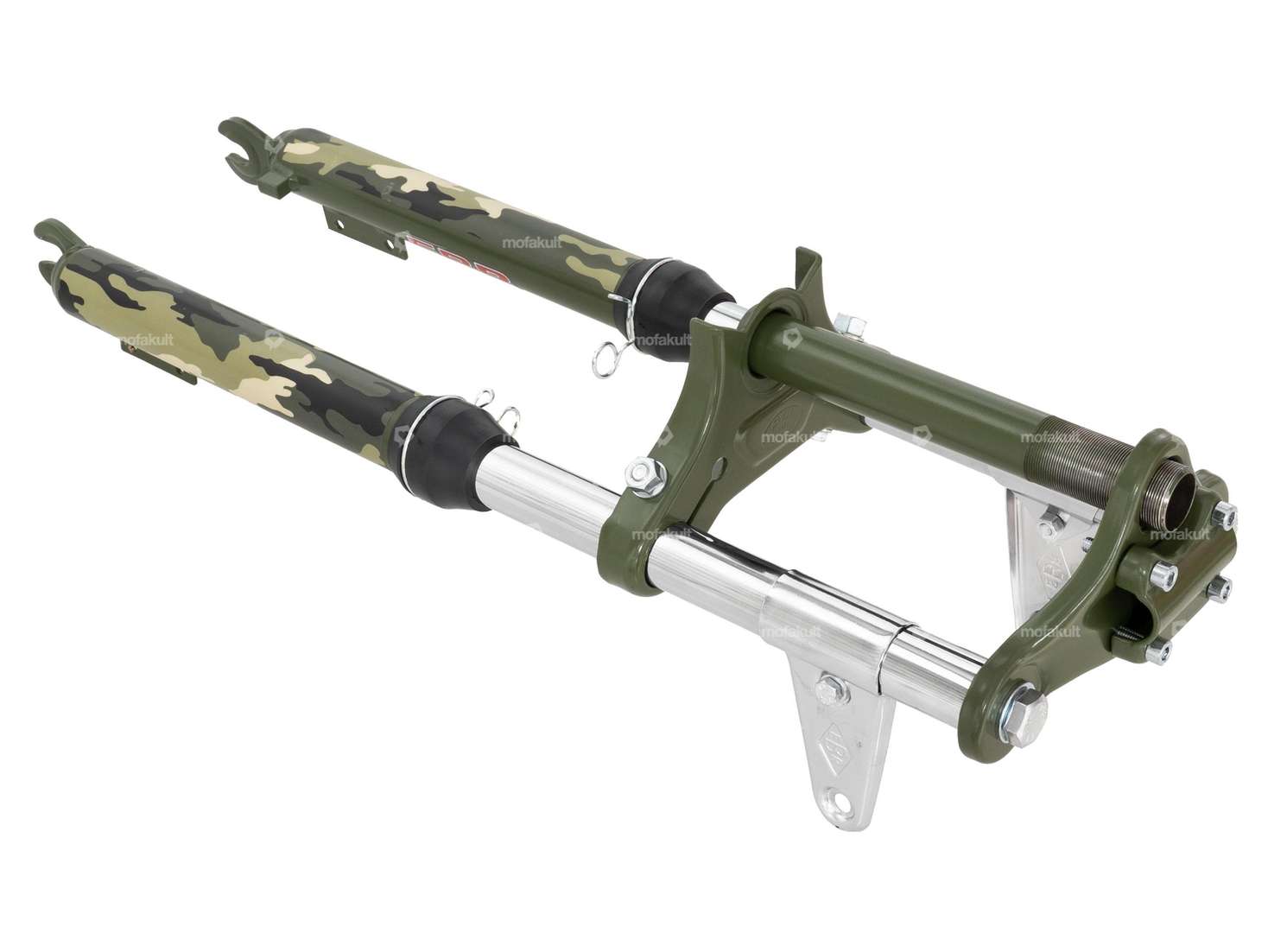

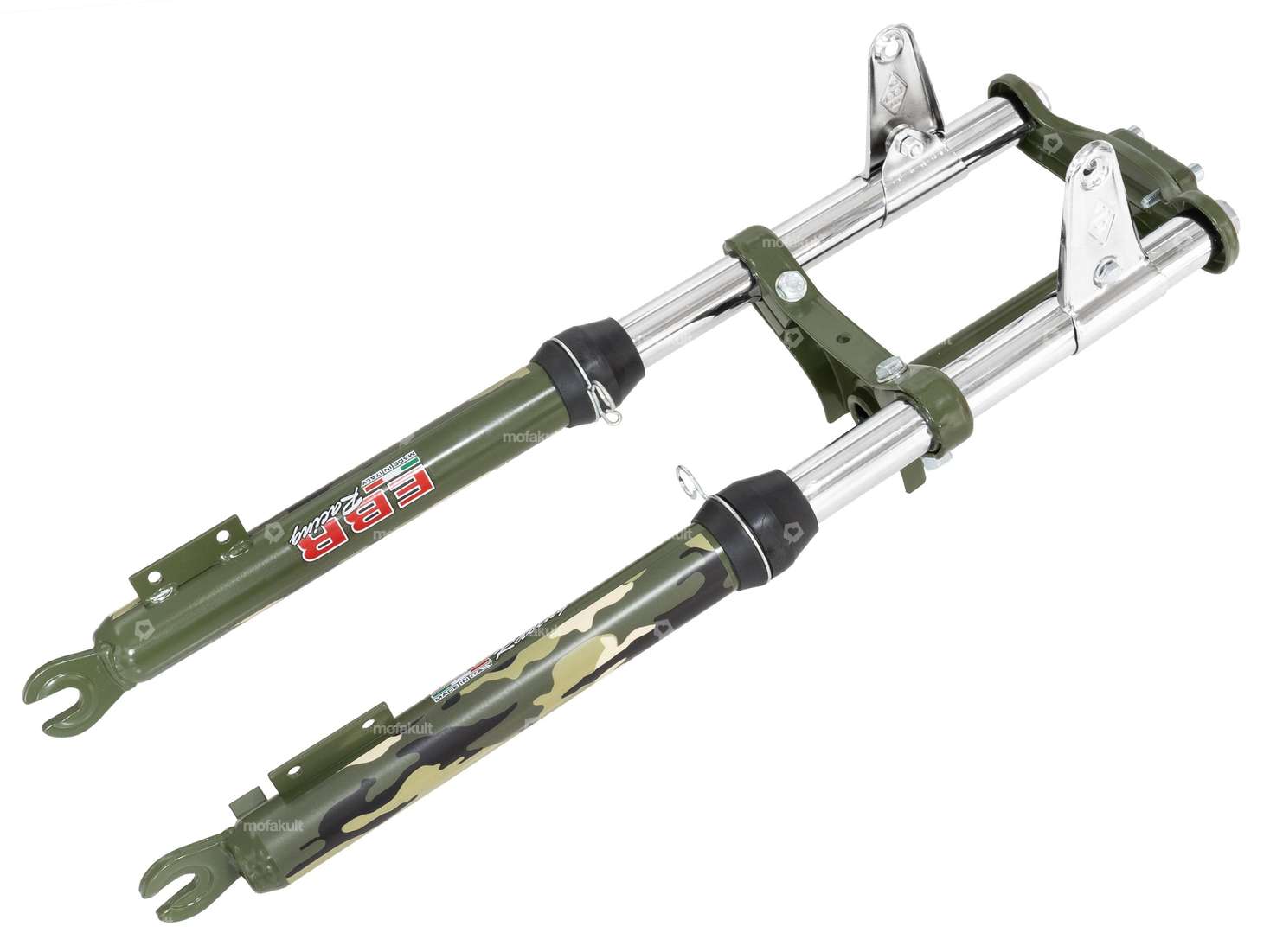

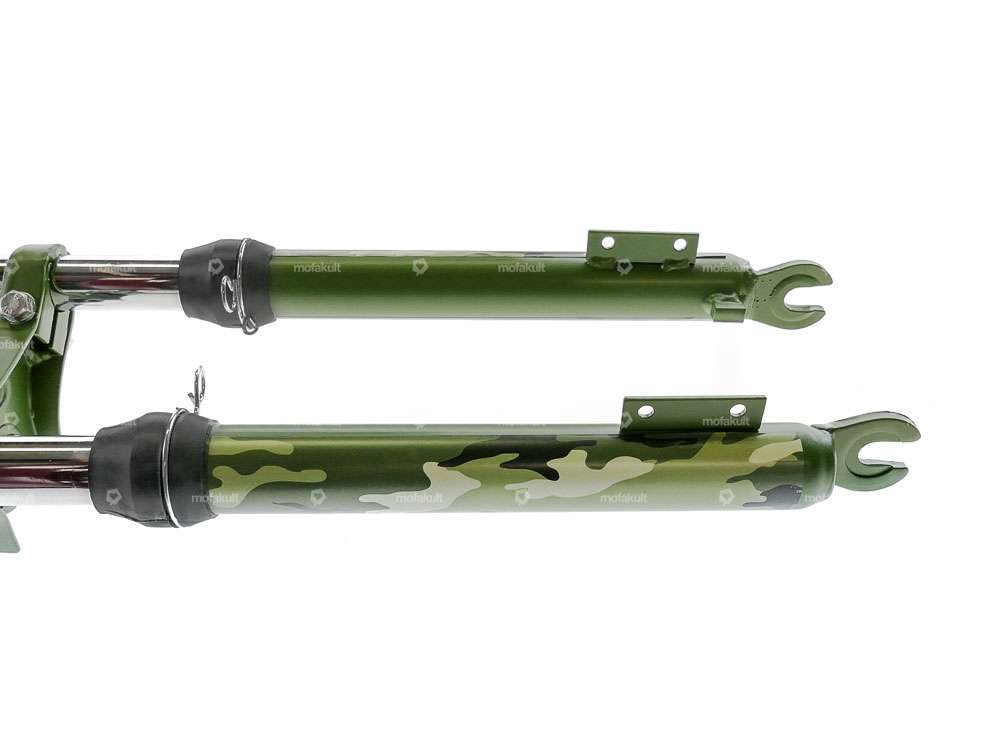

EBR fork military, reinforced | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 172.70

Incl. 25% VAT.

Description

Military size EBR fork, reinforced bars.

For various Puch mopeds.

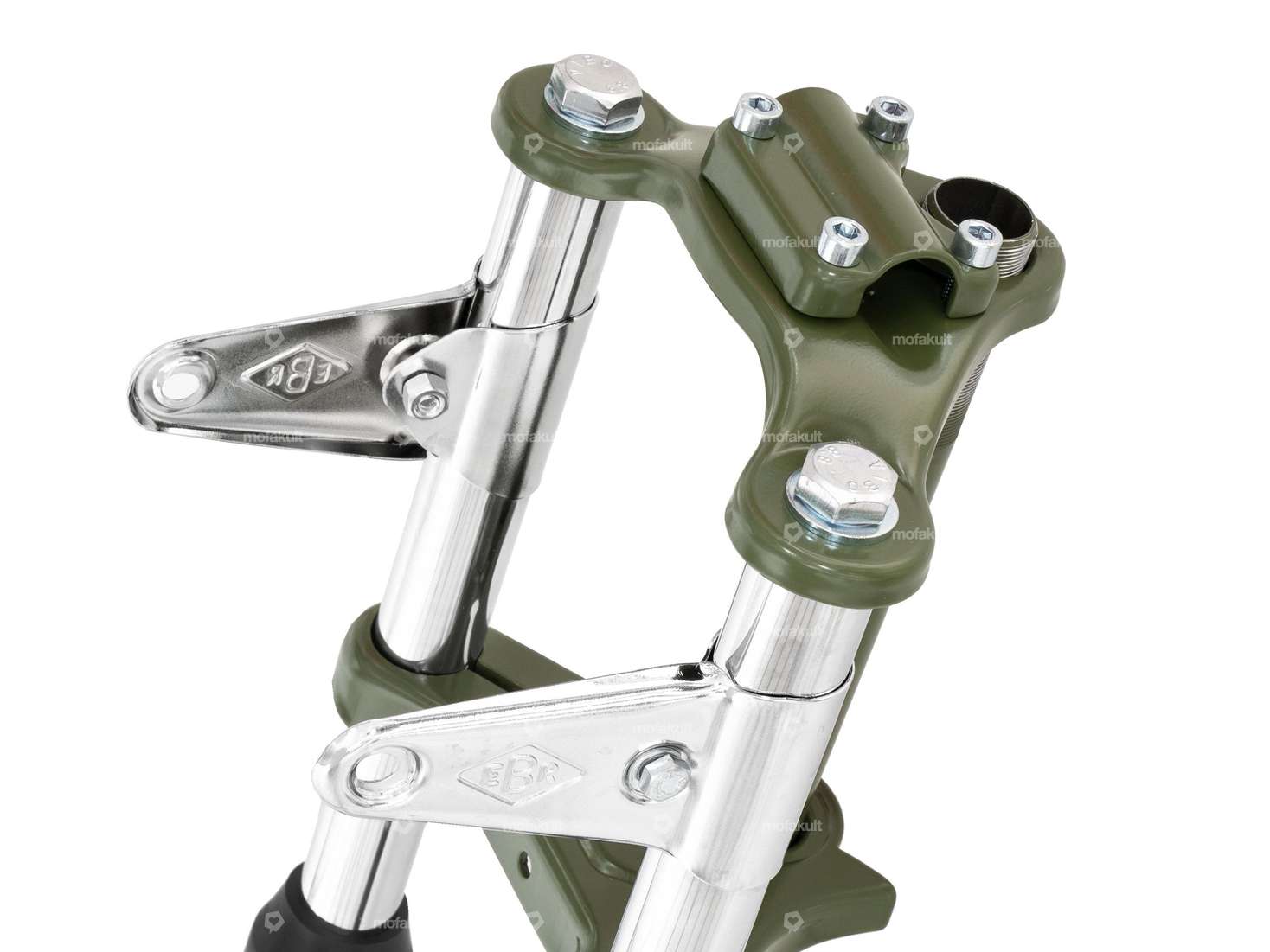

With clamp for attaching the handlebars to the fork plate.

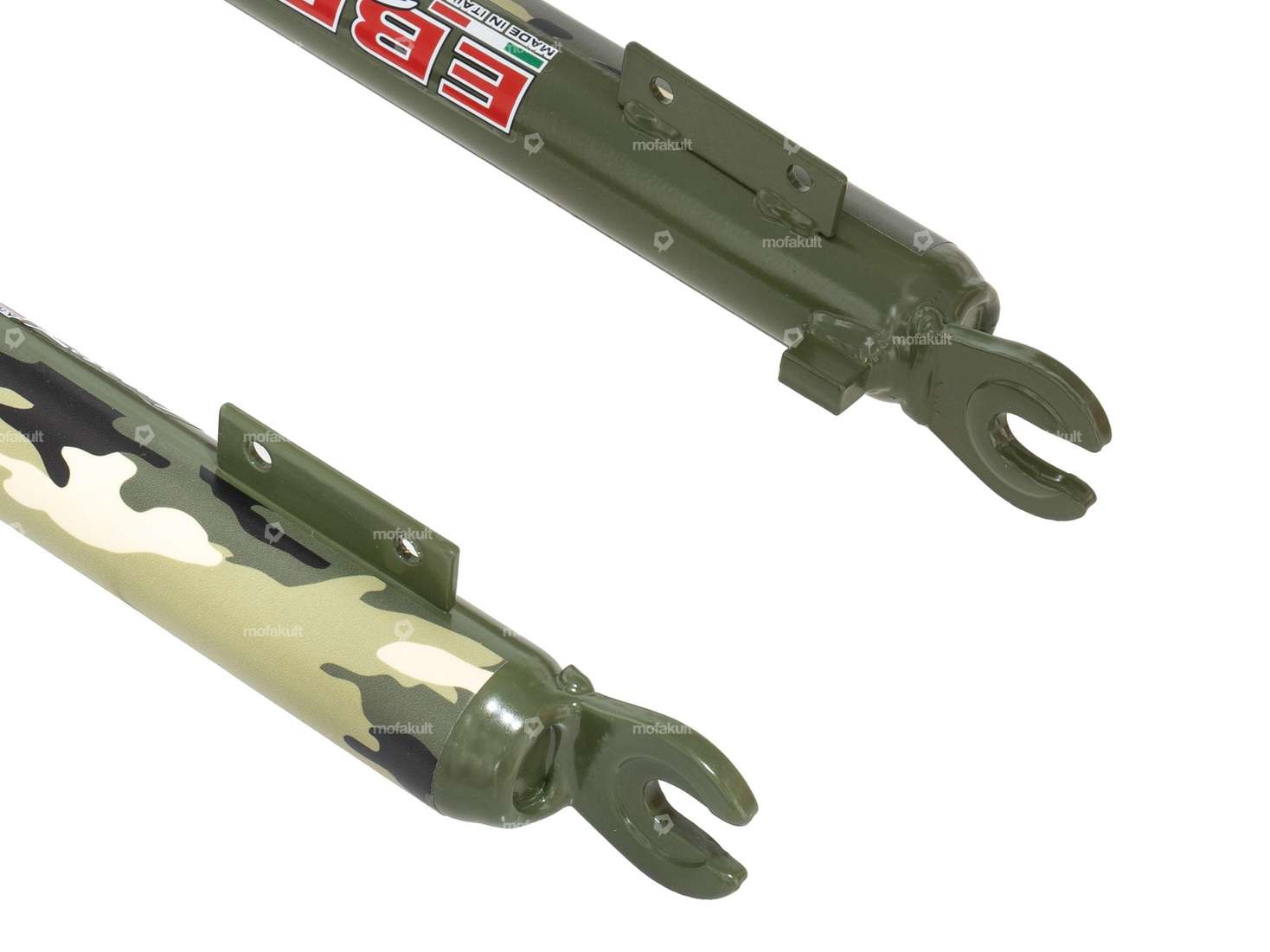

The tube bend at the bottom of the accessory is suitable for mounting mudguards.

Internal diameter head tube (for stem mounting): 22 mm
Head tube length: 18 cm
Length center of wheel axle to lower edge of lower fork crown: 37 cm
Total length: 58 cm
Thread: M26x1
Thread length on head tube: 6 cm

Branded product from the Italian manufacturer EBR.

ManufacturerEWC
MaterialSteel
Surfacevarnished, chrome-plated
Colorgreen, Chrome
Thread typeMF26x1 (fine pitch thread)
Total length580 mm
Ø head tube inside22 mm
Head tube length180 mm
Fork bridge - center wheel axle370 mm
Thread length60 mm
