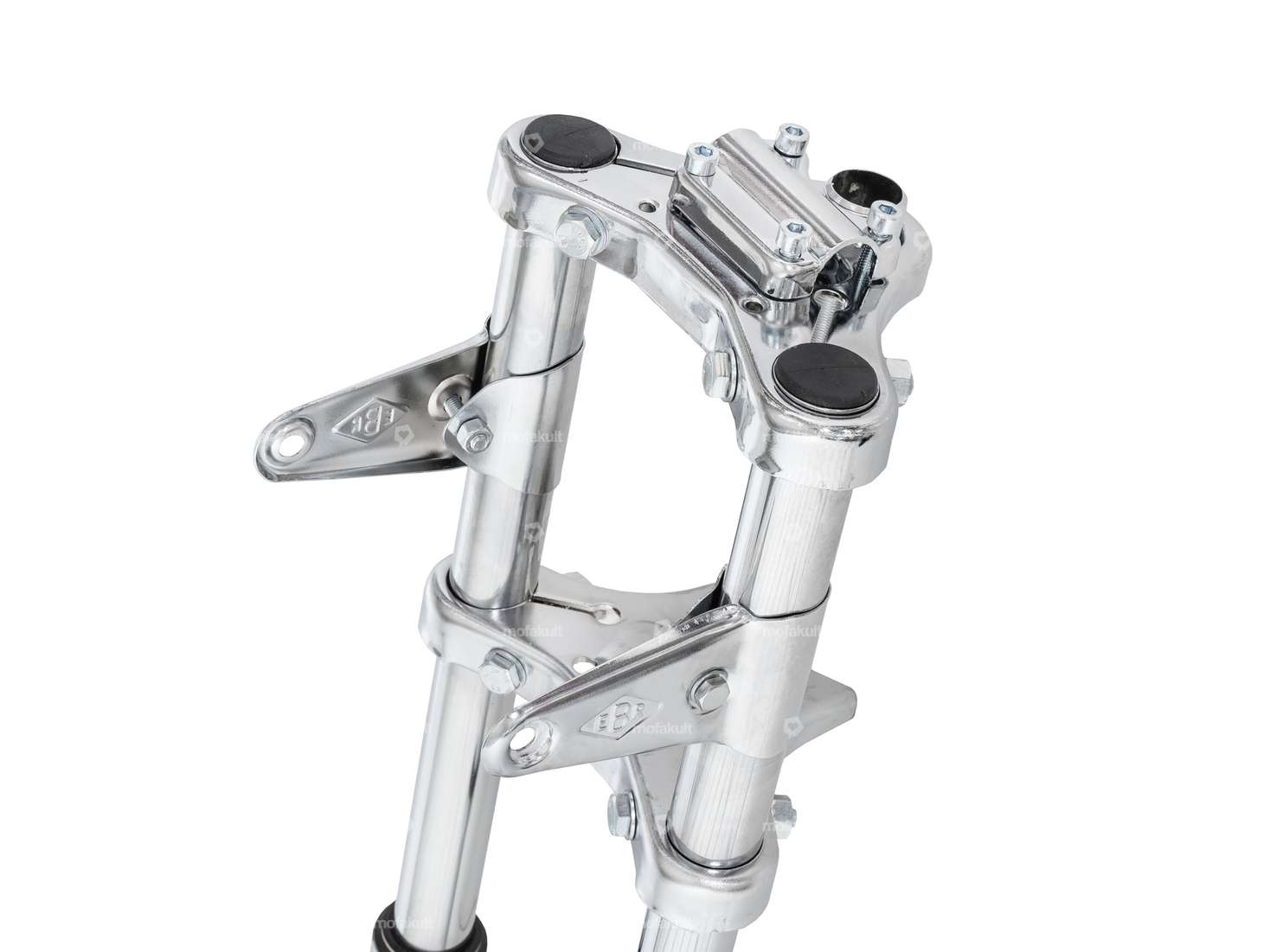

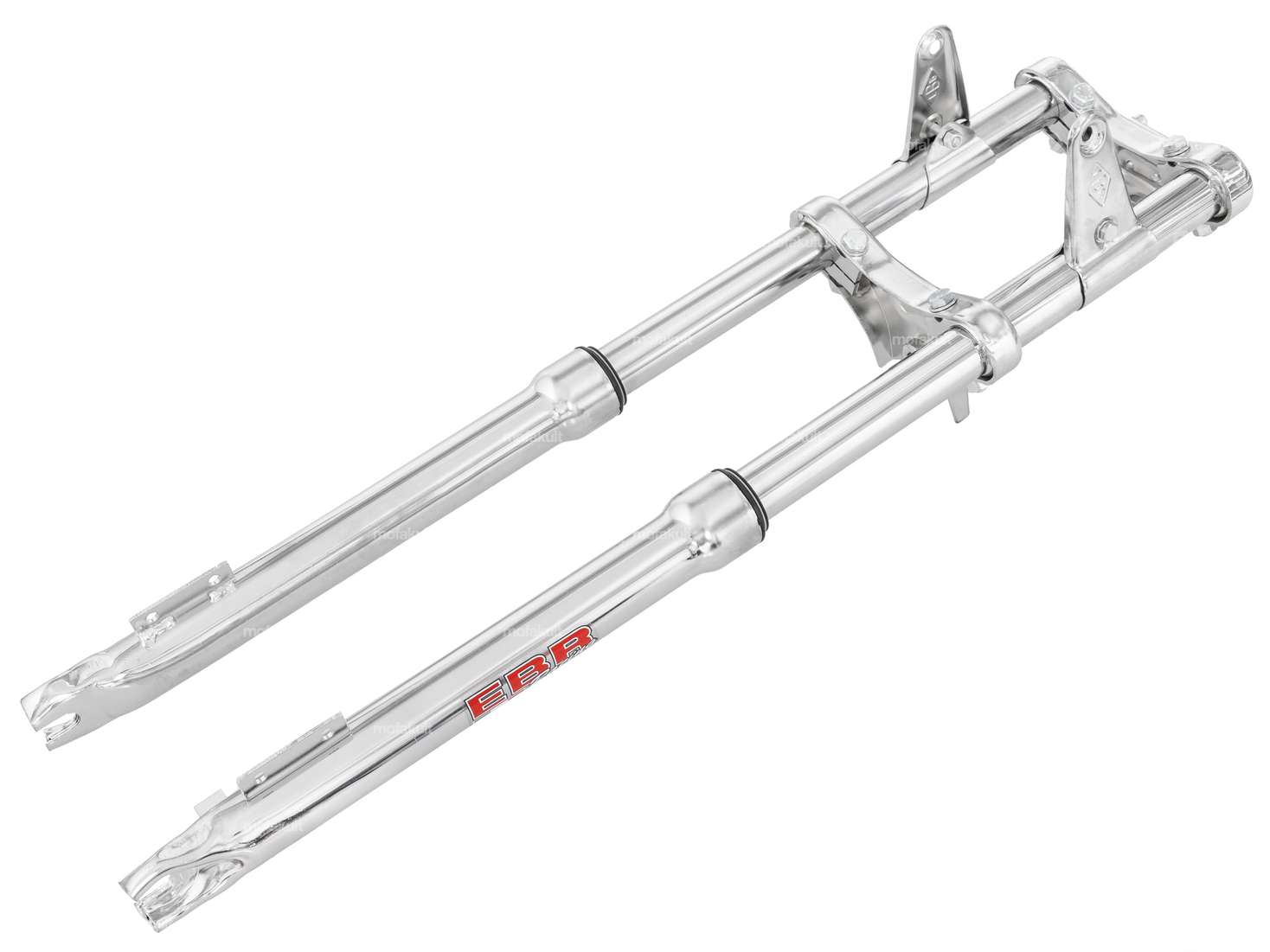

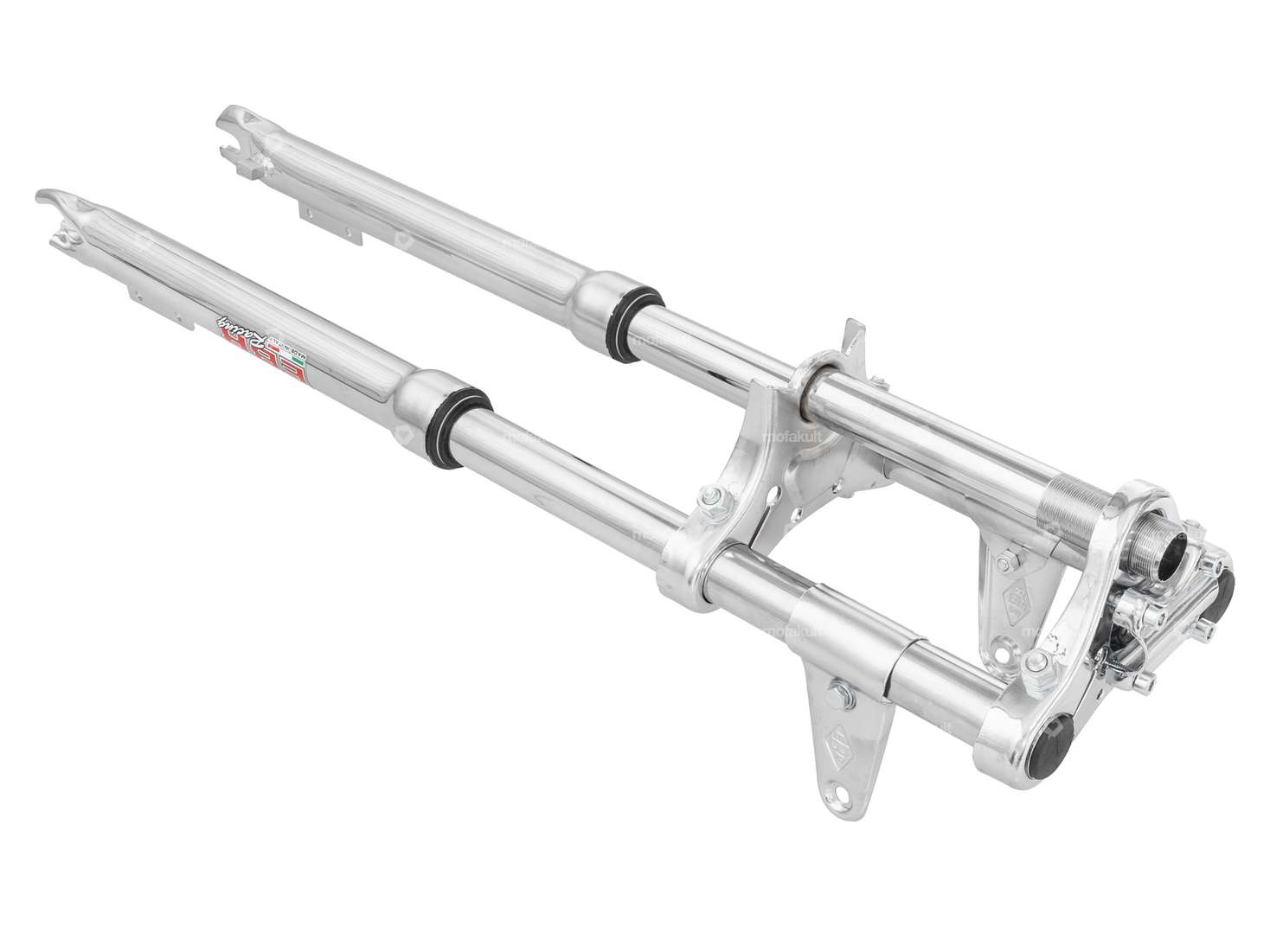

Reinforced, mechanical telescopic fork suitable for various Puch mopeds (Puch Maxi S / N, Puch X30 Sport / X30 Velux, Puch Supermaxi LG1 / LG2).
Bolts for attaching the brake anchor plate are located on both sides 40 mm above the center of the wheel axle.

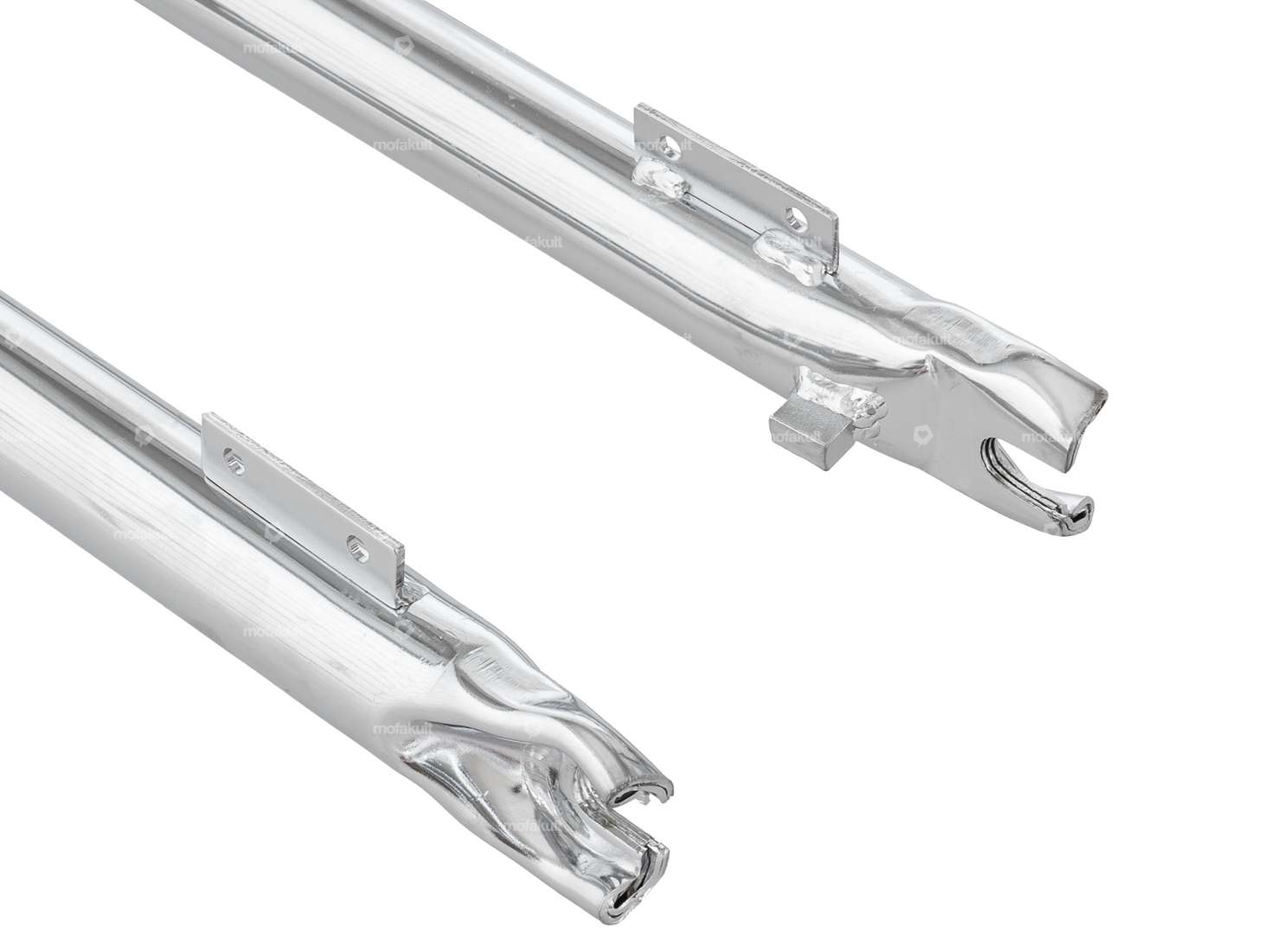

Two lugs are provided for attaching the mudguard.
Internal diameter head tube (for stem mounting): 22 mm
Stanchion tube diameter: 30 mm
Total length: 690 mm
Fork bridge - center wheel axle: 500 mm
Length center wheel axle to lower edge of lower fork bridge: 485 mm
Head tube length: 180 mm (55 mm thread length)
Head tube thread: M26x1
Hole spacing for lugs: 36 mm
Branded product from the Italian manufacturer EBR.
| Manufacturer | EWC |
| Material | Steel |
| Surface | chrome-plated |
| Adjustable | Yes |
| Ø spars | 30 mm |
| Spar end distance (center-center) | 130 mm |
| Ø outer head tube | 26.1 mm |
| Ø head tube inside | 22 mm |
| Head tube length | 182 mm |
| Total length | 700 mm |
| Thread type | MF26x1 (fine pitch thread) |
| Color | Chrome |
| Fork bridge - center wheel axle | 485 mm |
| Distance brake cam to wheel axle center-center | 40 mm |
| Thread length | 57 mm |
| Puch |
Ratings
Accessories & related products
EBR fork reinforced black | Puch
Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Color: Chrome · Color: black · Adjustable: No · Ø spars: 28 mm · Spar end distance (center-center): 140 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Head tube length: 180 mm · Total length: 580 mm · Thread type: MF26x1 (fine pitch thread) · Fork bridge - center wheel axle: 381 mm · Distance brake cam to wheel axle center-center: 40 mm · Thread length: 57 mm
EUR 162.70
EBR standard fork chrome | Puch
Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Color: Chrome · Adjustable: No · Ø spars: 23 mm · Spar end distance (center-center): 140 mm · Thread type: MF26x1 (fine pitch thread) · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Thread length: 57 mm · Head tube length: 180 mm · Total length: 570 mm · Fork bridge - center wheel axle: 383 mm · Distance brake cam to wheel axle center-center: 40 mm
EUR 159.00
EBR standard fork black | Puch
Color: Chrome · Color: black · Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Adjustable: No · Ø spars: 23 mm · Spar end distance (center-center): 120 mm · Ø head tube inside: 22 mm · Ø outer head tube: 26 mm · Thread type: MF26x1 (fine pitch thread) · Head tube length: 180 mm · Total length: 570 mm · Thread length: 57 mm · Fork bridge - center wheel axle: 383 mm · Distance brake cam to wheel axle center-center: 40 mm
EUR 171.30
EBR telescopic fork hydraulic black | Puch
Color: Chrome · Color: black · Manufacturer: EWC · Material: Aluminum · Material: Steel · Surface: chrome-plated · Surface: varnished · Adjustable: Yes · Ø spars: 28 mm · Spar end distance (center-center): 150 mm · Ø head tube inside: 22 mm · Ø outer head tube: 25.9 mm · Thread type: MF26x1 (fine pitch thread) · Head tube length: 200 mm · Total length: 635 mm · Thread length: 58 mm · Fork bridge - center wheel axle: 410 mm · Distance brake cam to wheel axle center-center: 35 mm
EUR 385.40

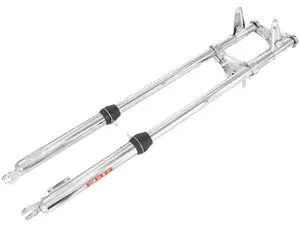

EBR Fork ULTRA LANG Chrome | Puch
