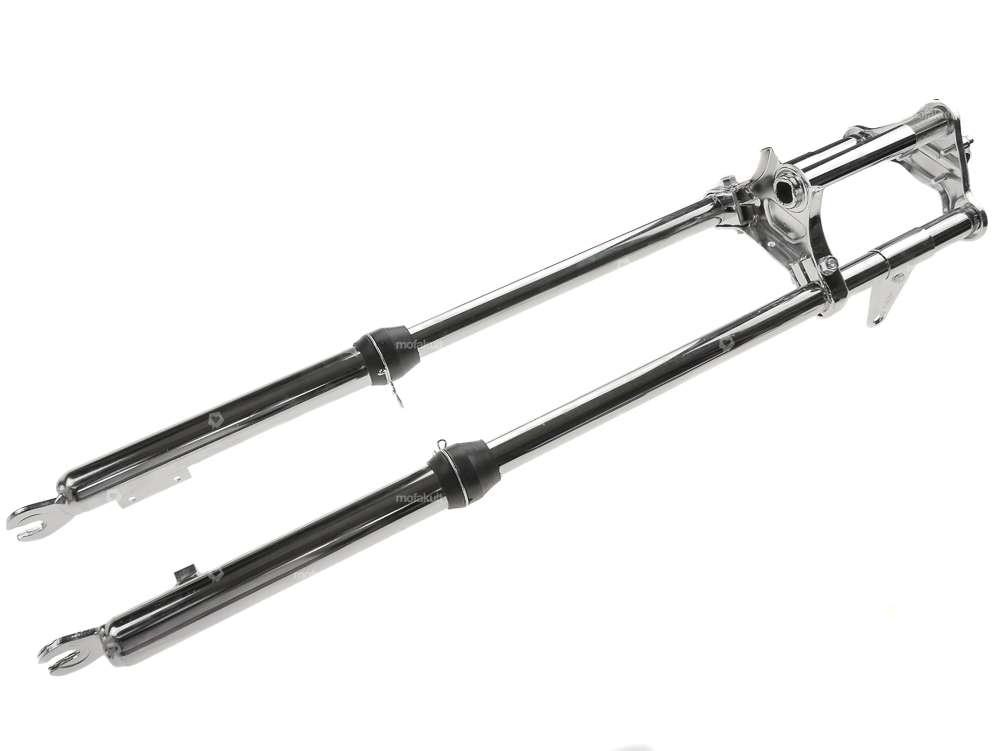

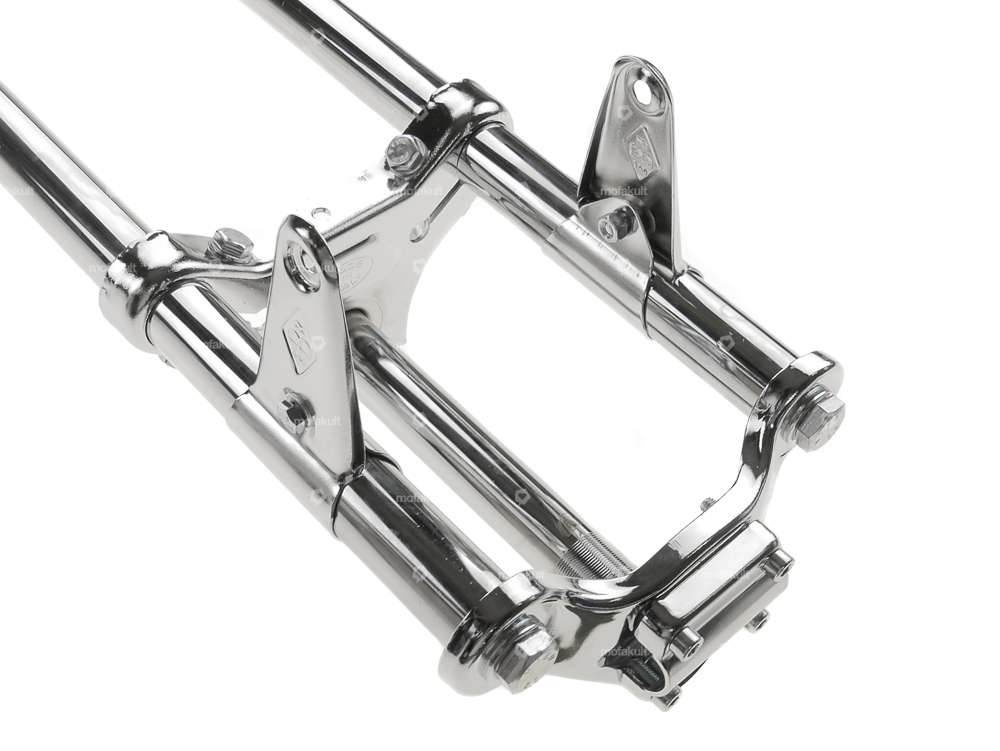

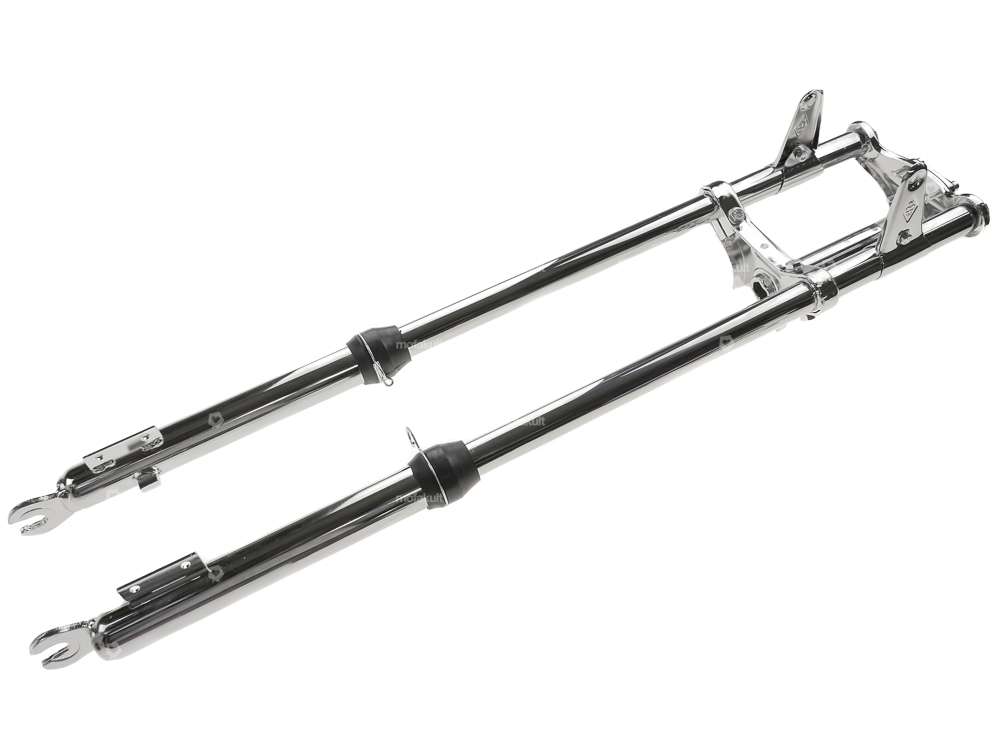

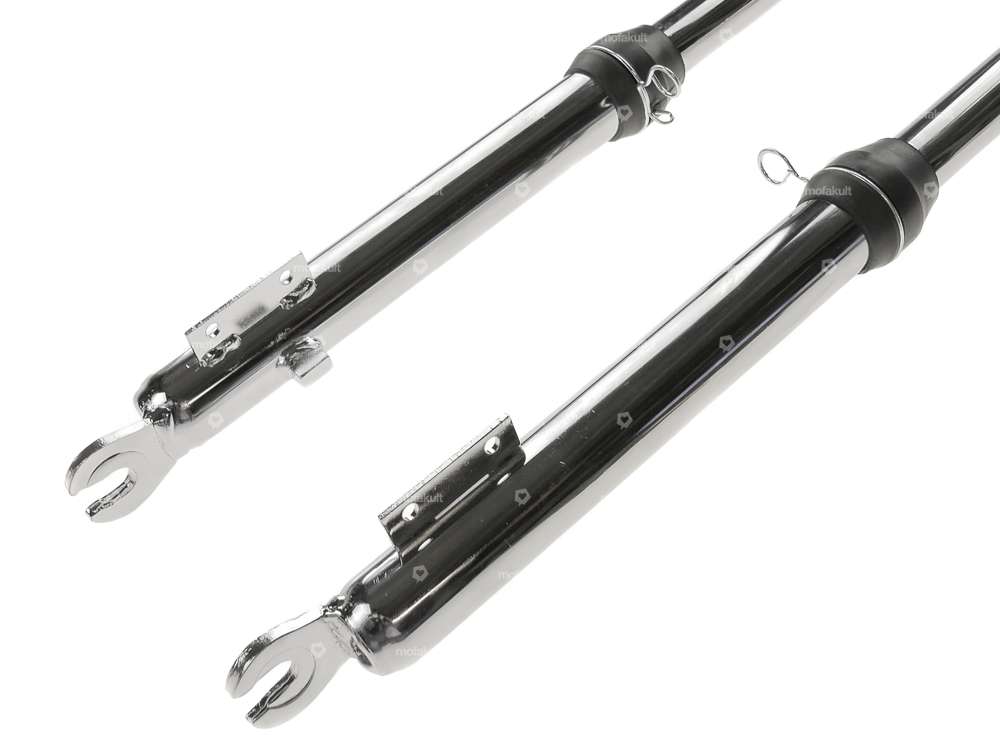

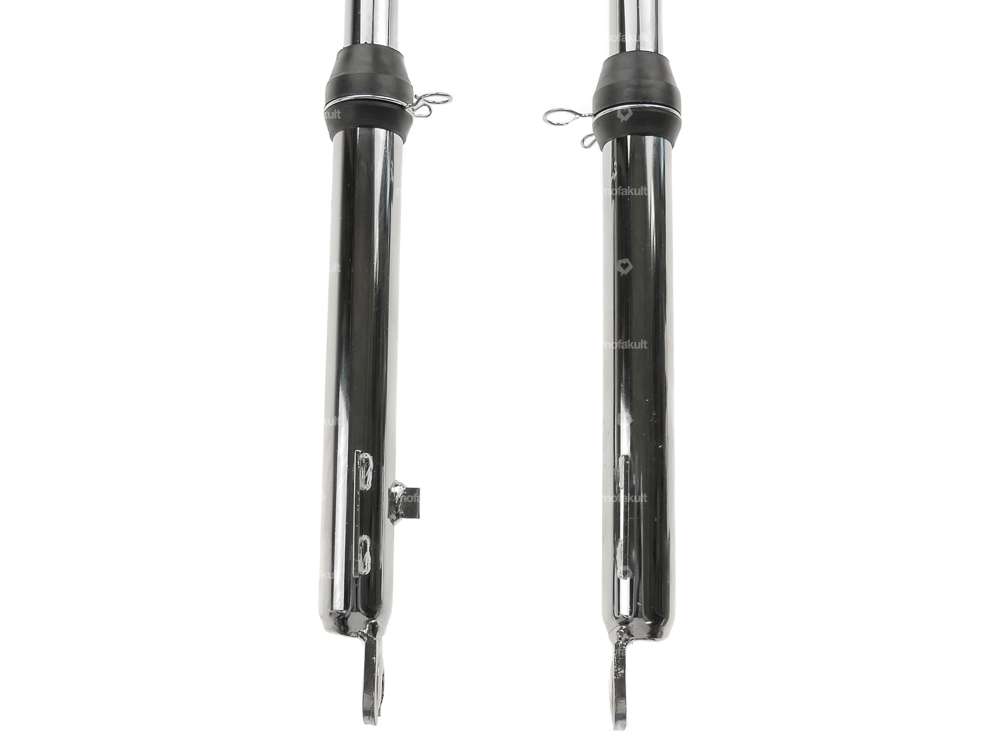

Chrome-plated chopper fork suitable for various mopeds such as Zündapp Belmondo, Sachs 50/2, etc.
The fork is 18 cm longer than the conventional EBR fork.
Strengthened stanchions have been installed to ensure stabilization of the greatly elongated fork.
If you want to be on the safe side, you can find appropriate stabilizers in the accessories.
The guide block for the brake anchor plate is located on the right-hand side.
Ø stanchion tube: 28 mm
Head tube length: 190 mm
Ø inner head tube: 21.5 mm (for stem mounting)
Total length: 860 mm
Thread: M26 x 1 mm
Center mounting brake anchor plate - center wheel axle: 8.5 mm
Branded product from the Italian manufacturer EBR.
| Manufacturer | EWC |
| Material | Steel |
| Color | Chrome |
| Surface | chrome-plated |
| Thread type | MF26x1 (fine pitch thread) |
| Adjustable | No |
| Total length | 860 mm |
| Spar end distance (center-center) | 137 mm |
| Ø outer head tube | 26.1 mm |
| Ø spars | 28 mm |
| Ø head tube inside | 22.4 mm |
| Head tube length | 192 mm |
| Thread length | 58 mm |
| Fork bridge - center wheel axle | 635 mm |
| Distance brake cam to wheel axle center-center | 85 mm |
| Sachs |
| Zündapp Belmondo |
