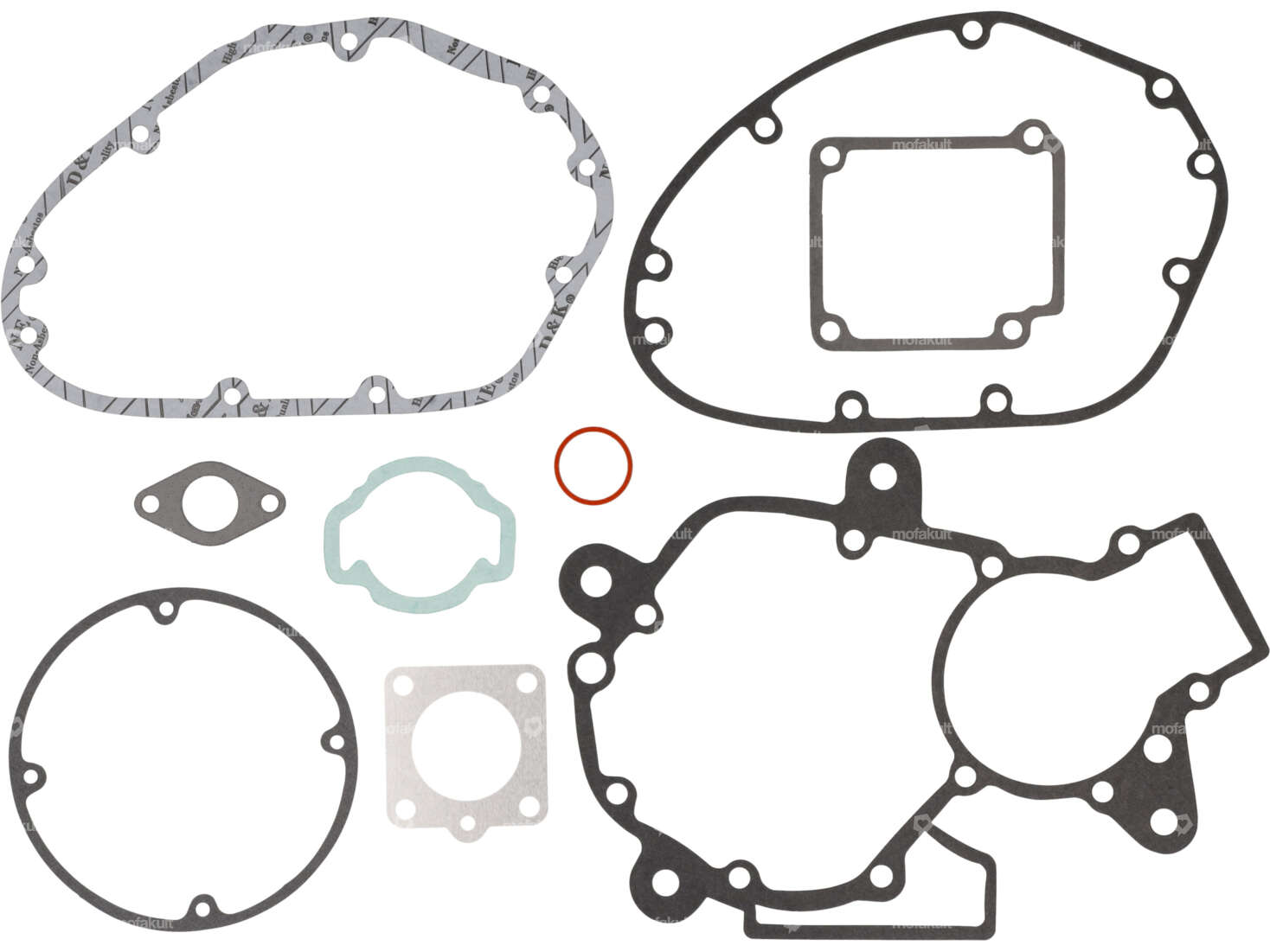

Engine gasket set | Puch MS, VS, DS, MV, M

Cylinder 38 mm | Victoria MS50/MS51 (M50)

Nominal diameter: 38 mm · Material: Gray cast iron · Camouflaged: No · Surface: sandblasted · Displacement: 50 ccm · Ø Outlet outside: 28 mm · Hole spacing inlet: 33 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Hole pattern [mm]: 46 x 46 · Outlet type: clamped · Area of application: Standard

Uncoupling shaft | Puch MS, MV, VS, DS, VZ

Material: Steel · Ø outside: 8 mm · Ø outside: 10 mm · Total length: 75 mm · Area of application: Standard

Silentblock engine mount | Puch MS50, VS50, MV50

Material: Rubber · Material: Steel · Ø inside: 8 mm · Ø outside: 20 mm · Total length: 17 mm

Blower cover inside blank aluminum | Puch MS, VS, DS, MV, VZ

Material: Aluminum · Color: gray

Gasket set Moped | Puch MS / VS / DS 50

Manufacturer: Made in Austria · Material: Sealing paper · Number of components: 17 pcs

Gearwheel 1st gear 30 teeth NOS | Puch Z50 MS50K (Kickstarter version)

Manufacturer: Puch · Material: Steel · Toothing type: straight toothed · Number of teeth: 30 pcs

Mazzucchelli crankshaft | Puch MV, VS, MS, DS, Monza, X50 (3 & 4 speed)

Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 75 mm · Total length crankpin ignition side: 68 mm · Ø crank webs: 69.6 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 14 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 8 mm · Thread length: 12 mm · Wide crank webs: 34.1 mm · Length 1st paragraph: 23 mm · Length 2nd paragraph: 12 mm · Length 3rd paragraph: 18.5 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 25 mm · Weight: 927 g · Number of gears: 2 pcs · Number of gears: 3 pcs · Number of gears: 4 pcs · Area of application: Standard

GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Area of application: Standard · Ø cylinder: 38 mm · Total length: 135 mm · Width: 125 mm · Hole pattern [mm]: 44 x 44 · Candle thread: short · Height: 55 mm · Number of fixing points: 4 pcs · Decompressor: No

swiing® revival side protection screw 50 mm black (Puch)

Manufacturer: swiing® revival parts · Material: Plastic · Material: Steel · Surface: dull · Thread type: M5x0.8 (standard thread) · Drive: Triangular head · Thread length: 50 mm · Color: black

swiing® revival nozzle set M3.5 (64 - 74) Bing SRE, SRA, SRC, SRF

Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Carburetor type: SRA (1/11/31) Velux · Carburetor type: SRA (1/11/35) Velux · Carburetor type: SRC · Carburetor type: SRE · Carburetor type: SRF · Quantity: 6 pcs · Total length: 6 mm · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70 · Nozzle size: 72 · Nozzle size: 74

swiing® revival plain bearing clutch basket | Puch Z50

Manufacturer: swiing® revival parts · Material: special bearing bronze · Ø inside: 15 mm · Ø outside: 17 mm · Nominal diameter inside: 15 mm · Total height: 16.2 mm

Motorex engine oil (gear oil) manual 450 ml

Temperature resistance (min.): -30 - 220 °C · Manufacturer: Motorex · Viscosity (SAE): 80W · Oil type: GL4 · Contents: 450 ml · Area of application: Gearbox lubrication with clutch · Gearbox type: Foot control · Gearbox type: Manual gearshift

swiing® revival centering screw M22x1 galvanized | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut · Thread type: MF22x1 (fine pitch thread) · Drive: External hexagon · Width across flats: 27 mm · Puch OEM number: 050.1.1233

Polini gasket set 43.5 mm

Manufacturer: Polini · Area of application: Tuning · Ø cylinder: 43.5 mm · Number of components: 5 pcs · Hole pattern [mm]: 44 x 44 mm / 39 x 36/32 mm · Hole spacing outlet: 42 mm

swiing® revival stud bolt set M6 x 106 mm | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Thread type: M6x1 (standard thread) · Total length: 106 mm · Drive: External hexagon · Thread length: 13 mm · Thread length: 18.5 mm · Width across flats: 10 mm · Alternative version of the Puch OEM number: 360.1.10.034.1

GPO spring puller

Manufacturer: GPO · Width: 55 mm · Total length: 155 mm · Area of application: Special tool

NSK L17 shoulder ball bearing

Stock number: L17 · Inner ring width: 10 mm · Manufacturer: NSK · Ball bearing closed: No · Bearing clearance: CN (standard) · Bearing cage: Brass cage ball-guided · Material: Brass · Material: Steel · Surface: blank / oiled · Bearing type: Shoulder bearing · Ø inside: 17 mm · Ø outside: 40 mm · Width: 10 mm · Area of application: Standard
