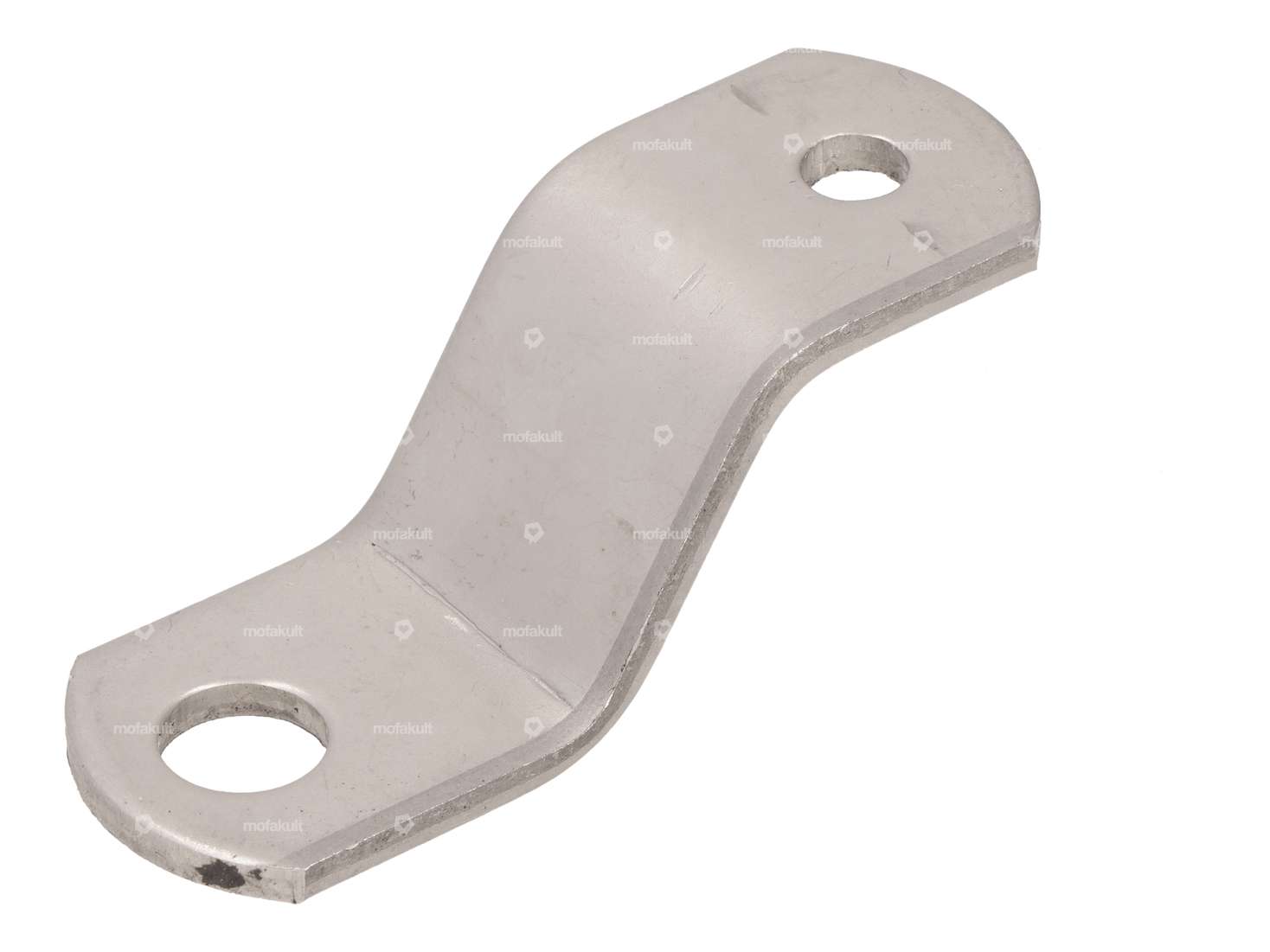

Exhaust mounting plate Inox | Puch Maxi N

Exhaust mounting plate | Puch Maxi N

Manufacturer: Made in Portugal · Material: Steel · Surface: galvanized (blue) · Number of fixing points: 2 pcs · Ø mounting hole: 8.5 mm · Ø mounting hole: 11 mm · Cranking (offset): 23 mm

Exhaust clamp 70 mm chrome wide version.

Material: Steel · Surface: chrome-plated · Color: Chrome · Width: 28 mm · Thickness: 2 mm · Manufacturer: Made in Portugal · Number of fixing points: 1 pcs · Ø mounting hole: 8.2 mm · Nominal diameter: 70 mm · Clamping diameter: 67 - 71 mm

Bent exhaust bracket

Material: Steel · Surface: galvanized (blue) · Thickness: 3 mm · Hole spacing: 38 mm · Number of fixing points: 2 pcs · Cranking (offset): 15 mm

swiing® ingenious resonance exhaust set Ø 28 / 70 mm | Puch Maxi, X30 Sport

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Ø outside: 70 mm · Total length: 730 mm · Color: Chrome · Ø Internal connection: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp · Flame tube attachment: Flange

Exhaust bracket Inox | Puch Maxi N

Manufacturer: Made in Netherlands · Material: Chrome steel (colloquially known as stainless steel) · Thickness: 3 mm · Cranking (offset): 20 mm · Hole spacing: 50 mm · Ø mounting hole: 7 mm · Ø mounting hole: 10 mm · Number of fixing points: 2 pcs

Pedestal bearing shell | Puch

Surface: galvanized (blue) · Surface: raw · Color: silver · Material: Aluminum · Material: Steel · Hole spacing: 41 mm · Number of fixing points: 3 pcs · Mounting type: Screws · Total length: 70 mm · Width: 46 mm · Height: 20 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Mounting type: Union nut

GPO cable duct black | Puch Maxi, Supermaxi

Total length: 320 mm · Width: 58 mm · Height: 22 mm · Manufacturer: GPO · Material: Plastic · Color: black · Ø mounting hole: 5.3 mm · Number of fixing points: 2 pcs

swiing® revival stand spring Inox | Puch

Material: Chrome steel (colloquially known as stainless steel) · Spring design: Tension spring · Surface: raw · Manufacturer: swiing® revival parts · Length spring hook: 19 mm · Length spring hook: 53 mm · Ø wire: 2.5 mm · Ø inside: 9 mm · Total length: 122 mm · Ø outside: 14 mm

NGK LB05F spark plug cap / 5 kΩ suppressed

Manufacturer: NGK · Material: Plastic · Material: Rubber · Spark plug socket: M4 · Color: black · Cable available: No · Suppressed: Yes · Resistance: 5000 Ω · Subcategory: Spark plug connector · Ø cable: 5 mm

swiing® revival brake support bolt short Inox | Puch Maxi, Supermaxi

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Area of application: Standard · Thread type: MF10x1 (fine pitch thread) · Drive: Outer edge · Ø External head: 14 mm · Width across flats: 13 mm · Width across flats: 17 mm · Shank: Yes · Ø shaft: 9.8 mm · Shank length: 9.5 mm · Total length: 32 mm · Thread length: 13 mm · Number of components: 3 pcs

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Surface: blank · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

swiing® revival side protection screw set black | Puch Maxi N

Manufacturer: swiing® revival parts · Material: Plastic · Material: Steel · Color: black · Thread type: M5x0.8 (standard thread) · Total length: 24.5 mm · Total length: 63 mm · Drive: Slot · Drive: Triangular head · Thread length: 13 mm · Thread length: 50 mm

Workshop card Premium Partner

Material: Paper · Color: white · Width: 100 mm · Height: 280 mm

Main stand set | Puch Maxi N

Material: Aluminum · Material: Chrome steel (colloquially known as stainless steel) · Material: Spring steel · Material: Steel · Color: black · Color: silver · Surface: galvanized (blue) · Surface: varnished · Stand base - center mount (A): 165 mm · Total width of stand base (B): 240 mm · Wide receptacle (C): 62 mm · Ø Receptacle (D): 18 mm · Spring nipple distance - center pivot axis (E): 90 mm · Wide upright foot (F): 30 mm · Wide upright foot (F): 55 mm · Total height: 180 mm
