GOL piston 41 mm (10 mm KoBo) | Piaggio Ciao, SI, Boxer, Bravo

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents: 1000 ml · Color: red

Meteor piston pin lock Ø 10 mm (double)

Manufacturer: Meteor · Material: Spring steel · Number of sensors / lugs: 2 pcs · Ø outside: 10 mm

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

GPO piston pin extractor Ø 10, 12, 14 mm

Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Manufacturer: GPO · Material: Steel · Surface: burnished · Number of components: 7 pcs · Area of application: (Dis)assembly tool · Width across flats: 10 mm · Width across flats: 17 mm · Total length: 130 mm

GPO piston 38.2 mm 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

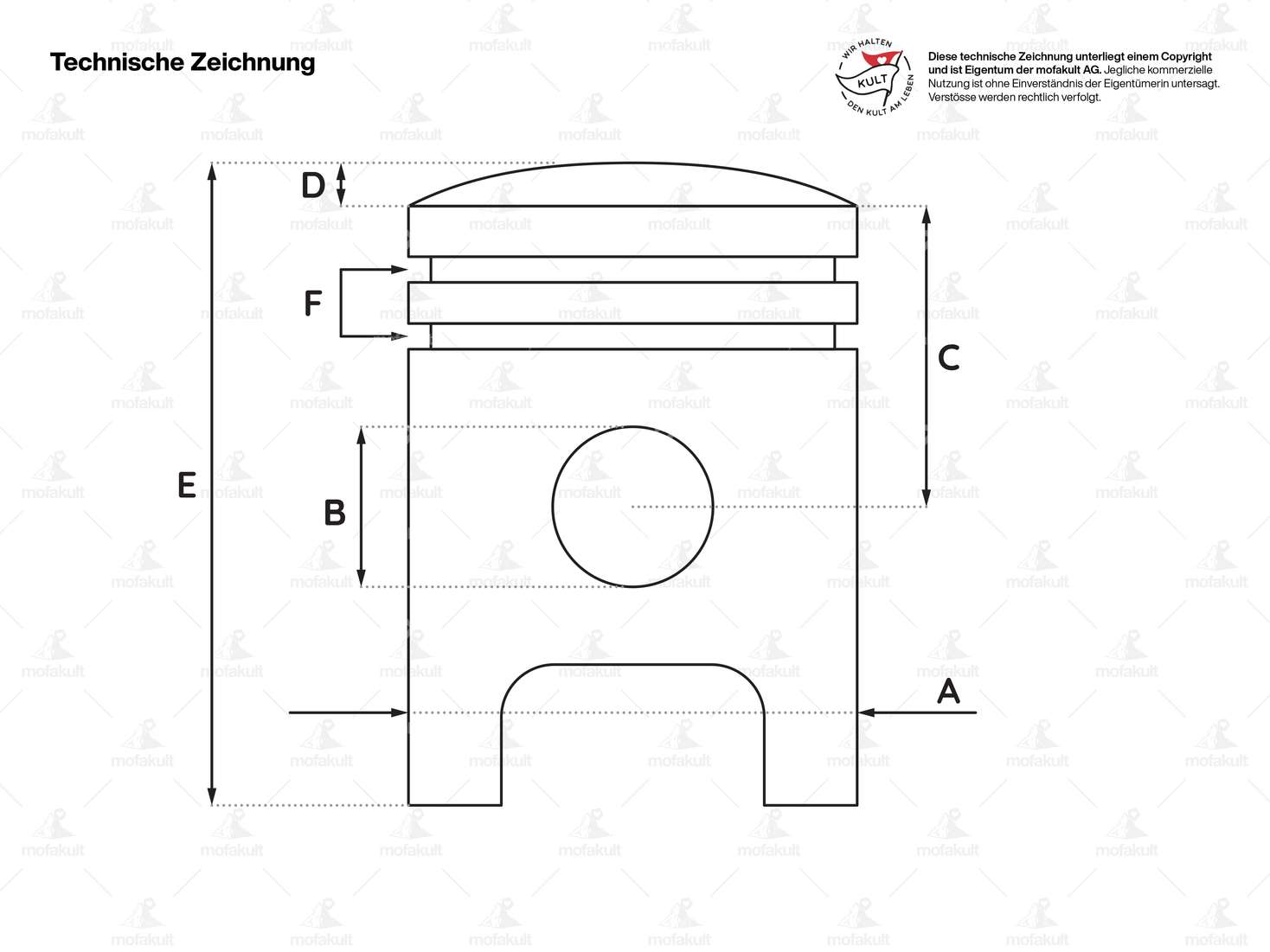

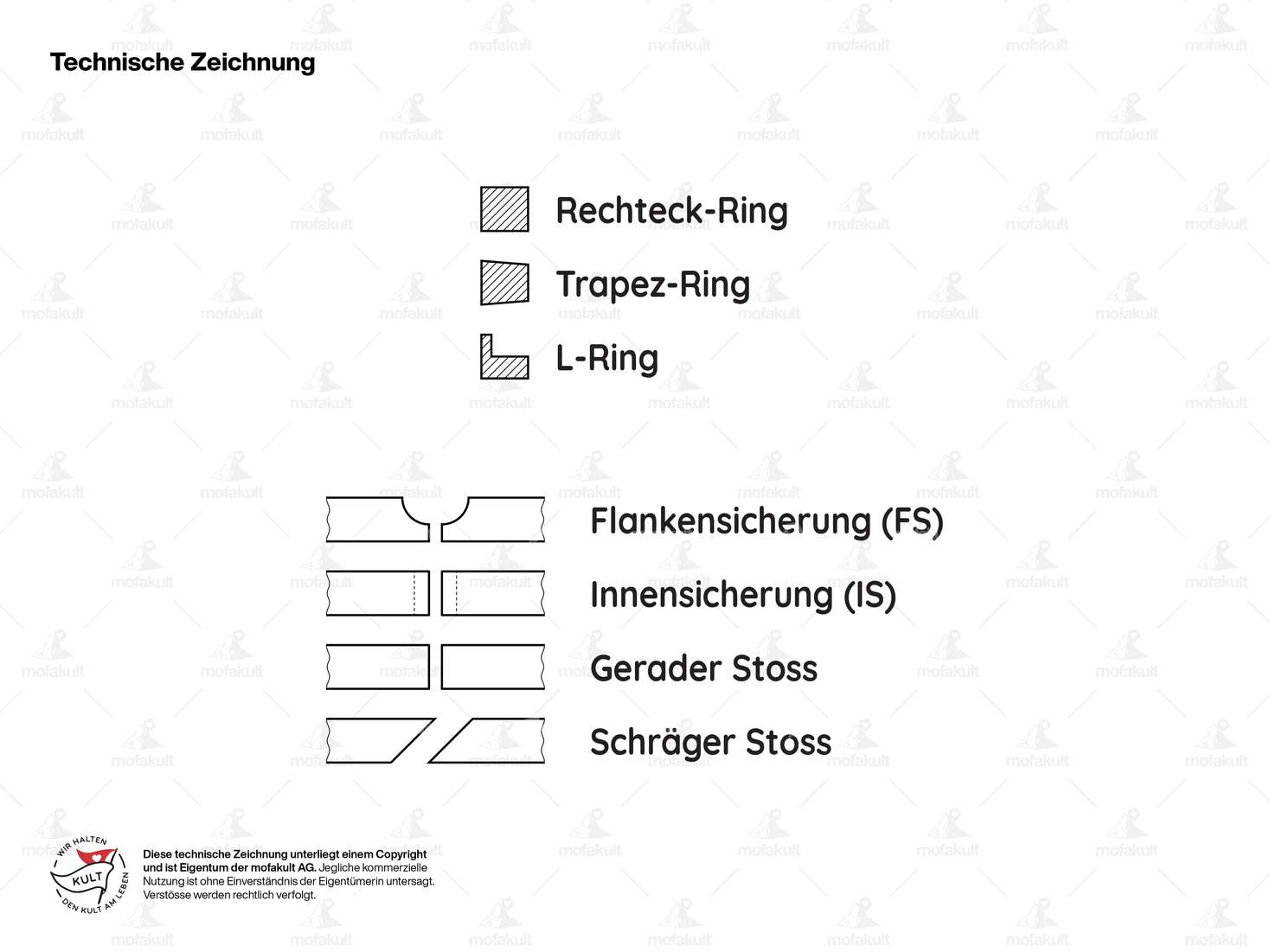

Manufacturer: GPO · Ø outside piston (A): 38.16 mm · Compression height (C): 26.6 mm · Curvature (D): 3.4 mm · Total piston height (E): 52 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38.2 mm · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 10 mm · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Weight piston kit: 65 g

Polini piston 43 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Nominal diameter: 43 mm · Ø outside piston (A): 42.94 mm · Ø piston pin (B): 10 mm · Compression height (C): 26.4 mm · Curvature (D): 2.55 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Weight piston kit: 83 g

Buzzetti piston assembly tool 40 - 80 mm

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool · Material: Metal · Number of components: 3 pcs · Ø inside: 40 - 80 mm

Meteor piston 43 mm Polini cylinder (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Meteor · Nominal diameter: 43 mm · Ø outside piston (A): 42.93 mm · Ø piston pin (B): 10 mm · Compression height (C): 26.6 mm · Curvature (D): 2.4 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Weight piston kit: 87 g

Spacer washer 15/21/0.5

Nominal diameter inside: 15 mm · Material: Steel · Ø outside: 21 mm · Thickness: 0.5 mm · Surface: blank / oiled · Ø inside: 15 mm

SITO Plus exhaust Ø 24 mm | Piaggio SI, Grillo

Manufacturer: SITO · Material: Steel · Surface: varnished · Color: black · Ø Silencer: 70 mm · Ø outside: 14 mm · Ø Flame tube outside: 25 mm · Exhaust type: Cylindrical · Ø Internal connection: 22.3 mm · Total length: 720 mm · Mounting type: Welded lug · Flame tube attachment: Plug connection clamped · Number of fixing points: 1 pcs

TECNO Exhaust 25 mm | Piaggio Ciao Mix

Manufacturer: TECNO · Material: Steel · Total length: 670 mm · Color: black · Ø Internal connection: 23 mm · Ø Flame tube outside: 25 mm · Exhaust type: Cylindrical · Mounting type: Welded lug · Number of fixing points: 1 pcs · Flame tube attachment: Plug connection clamped

Spring washer flywheel | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Special spring · Manufacturer: Made in Italy · Material: Spring steel · Ø inside: 14.7 mm · Material thickness: 0.2 mm · Ø outside: 20.5 mm · Area of application: Standard

Cover plate cylinder cover black | Piaggio, Ciao, SI, Bravo, Boxer

Manufacturer: Made in Italy · Material: Plastic · Color: black · Number of fixing points: 2 pcs · Total length: 95 mm · Width: 63 mm · Height: 90 mm

GPO blade gauge set 0.05 - 1.00 mm 20 pcs.

Measuring range: 0.05 - 1 mm · Manufacturer: GPO · Material: Steel · Number of components: 20 pcs · Thickness: 0.05 mm · Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.3 mm · Thickness: 0.35 mm · Thickness: 0.4 mm · Thickness: 0.45 mm · Thickness: 0.5 mm · Thickness: 0.55 mm · Thickness: 0.65 mm · Thickness: 0.7 mm · Thickness: 0.75 mm · Thickness: 0.8 mm · Thickness: 0.85 mm · Thickness: 0.9 mm · Thickness: 0.95 mm · Thickness: 1 mm · Area of application: Measuring tool

Gasket cylinder base aluminum original | Piaggio Ciao, SI, Bravo, Boxer

Material: Aluminum · Place of use: Cylinder base · Thickness: 0.25 mm · Area of application: Original

Gasket cylinder head 43 mm aluminum | Piaggio Ciao, SI, Bravo Boxer

Material: Aluminum · Place of use: Cylinder head · Ø cylinder: 41 - 43 mm · Thickness: 0.4 mm

SKF 6202 C3 ball bearing 15/35/11

Bearing type: Deep groove ball bearing · Stock number: 6202 · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Bearing cage: Sheet steel cage ball-guided · Ø inside: 15 mm · Width: 11 mm · Ø outside: 35 mm · Puch OEM number: 900.4.6202

swiing® ingenious ignition cams Athena / Jasil crankshaft | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® ingenious parts · Material: Chrome steel (colloquially known as stainless steel) · Surface: electropolished · Total length: 9.5 mm
