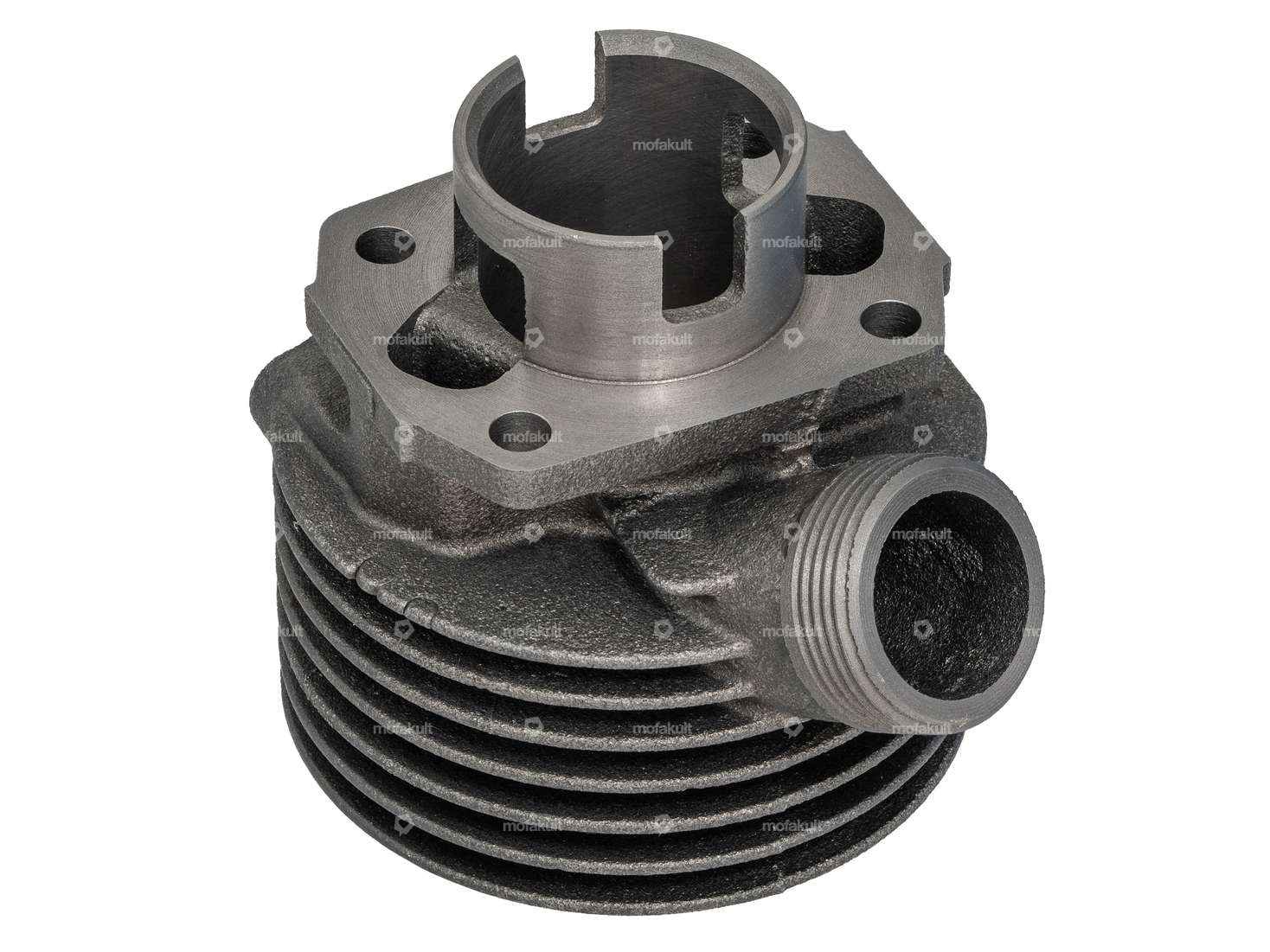

38 mm cylinder with diaphragm control for Sachs 2-, 3-, and 4-speed engines with forced-air cooling, which were installed in models such as the Hercules 50/ALS, 50/2 S, 50/KS, 50/2 DK, 50/3 LS, 50/4 LKS, Gritzner, etc.
Exhaust thread: M35 x 2 mm
; Outer diameter: approx. 92 mm
; Bore diameter: 38.01 mm
; Piston diameter: 37.94 mm
; Stud spacing: 51 x 40 mm
Note: Please observe the installation direction during assembly. The piston is installed with the arrow pointing toward the exhaust port on the exhaust side.
You can find the matching cylinder head and other mounting parts in the accessories section.
A good, affordable standard replacement part. GPO – GOOD PARTS ONLY.
Manufacturer: GPO · Nominal diameter: 38 mm · Ø outside piston (A): 37.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 27.5 mm · Curvature (D): 3.5 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.7 mm · Thick piston ring: 2 mm · Alternative version of the Sachs OEM number: 0290 058 025 · Weight piston kit: 78 g
Camouflaged: No · Manufacturer: GPO · Material: Gray cast iron · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Nominal diameter: 38 mm · Hole spacing inlet: 67 mm · Outlet type: Union nut · Number of fixing points: 4 pcs · Area of application: Tuning, Racing
Hole pattern [mm]: 51 x 40 mm · Number of components: 4 pcs · Hole spacing inlet: 31 mm · Ø outlet inside: 28 - 32 mm · Area of application: Standard, Tuning
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Diameter: 4.9 mm · Thread type: M5x0.8 (standard thread) · Total length: 23 mm · Thread length: 6 mm, 12 mm · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101, 0640 016 102 · Nominal diameter (thread): 5 mm
Manufacturer: swiing® revival parts · Material: Oiled paper · Thickness: 0.4 mm · Hole spacing inlet: 67 mm · Pony OEM number: A1840 · Sachs OEM no.: 0250 106 00
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) |
