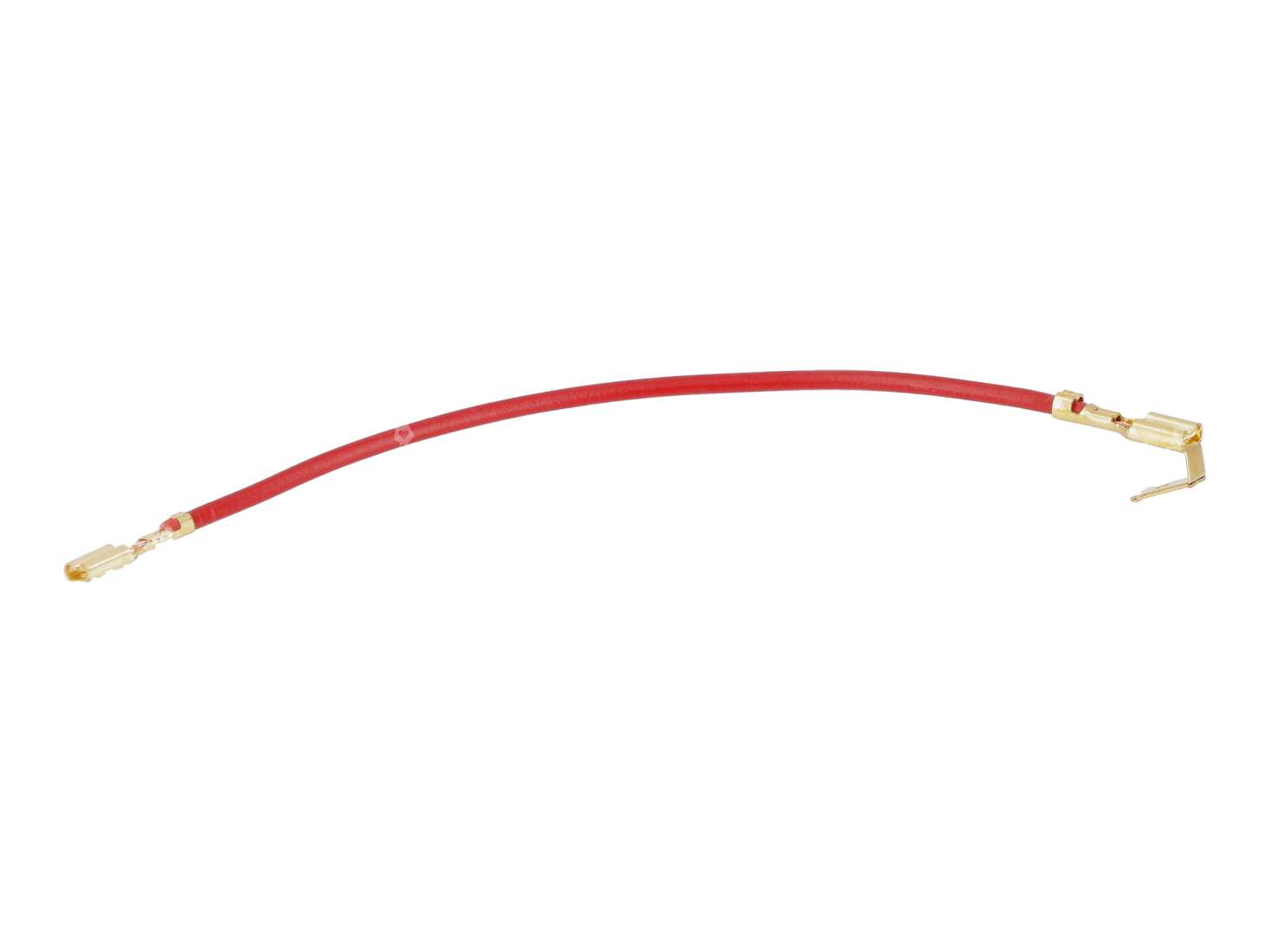

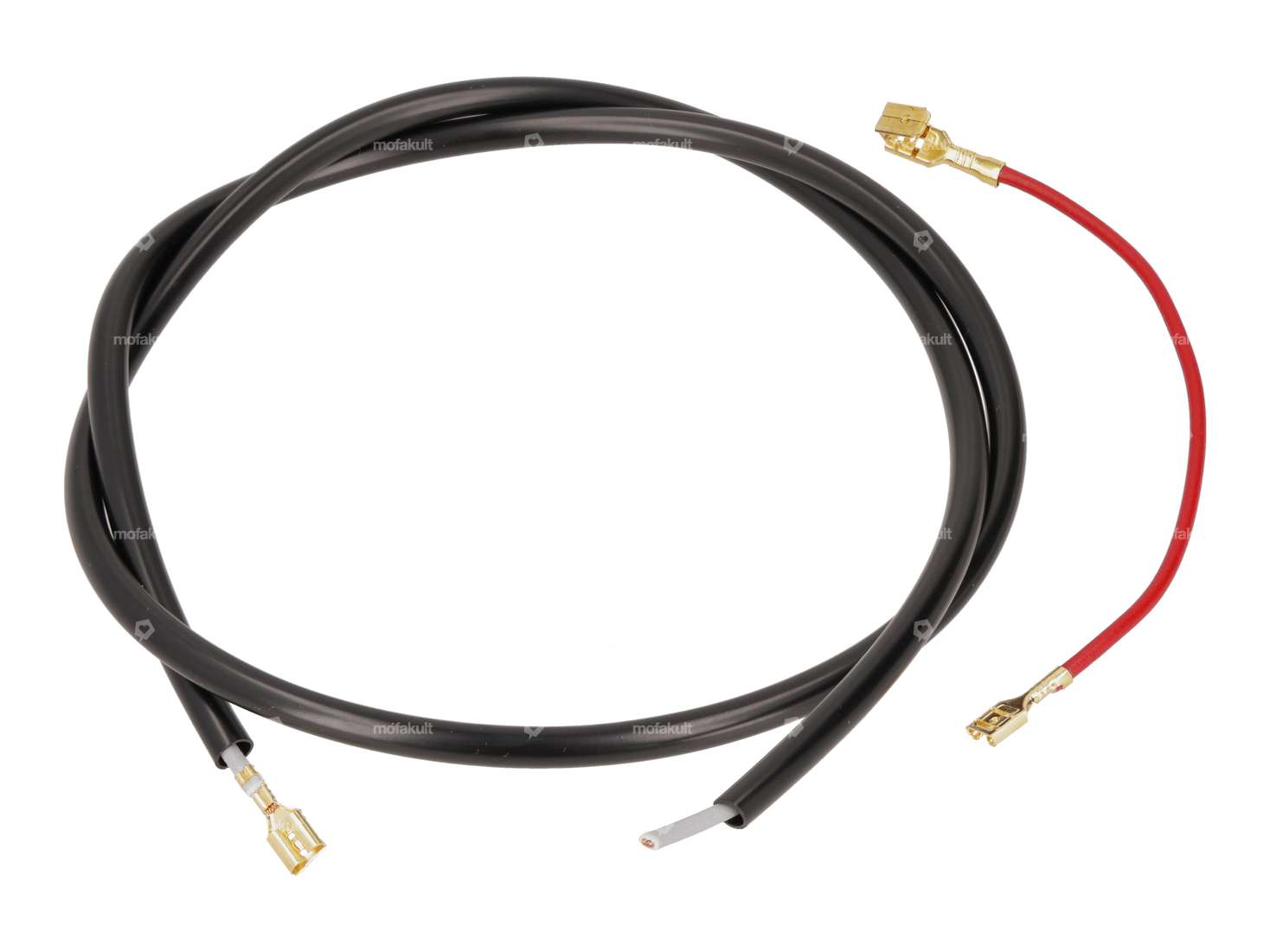

Simple Y-branch to connect a horn to the wiring harness of your Piaggio Ciao, Si, Bravo and Boxer mopeds/mopeds
.Thanks to the jumper cable, you don't have to cut up your original wiring harness or patch it up with solder clamps and other connectors. Simply connect the red cable lugs to the flat connector of the wiring harness on your headlight and plug the other side into one of the horn connections. The second, long gray cable is plugged into the other free slot of the horn and the opposite side is connected to the horn button to switch on the horn via the ground connection.
The gray alternative, complete cable harnesses (without adapter), horns and horn holders can be found in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
| Cable cross-section | 0.75 mm² |
| Manufacturer | GPO |
| Number of cables | 2 pcs |
| Cable bifurcation to lamp | 130 mm |
| Cable bifurcation to switch | 700 mm |
| Switch included | No |
| Piaggio | Ciao - P, SC, PX, C24 |
