Description

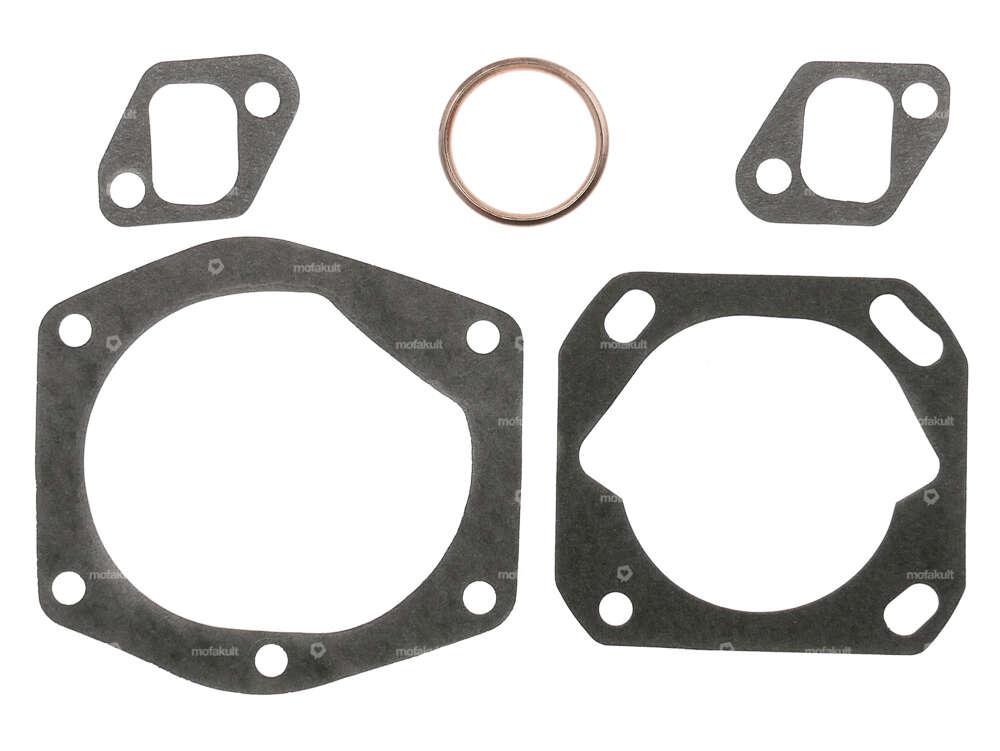

5-piece gasket set for your moped / moped with Sachs 504 and 505 engine

Among others, these engine gaskets are suitable for Hercules Prima M, 2, 3, 4, 5 and Optima models.

1 x cylinder base gasket
1 x clutch cover gasket
2 x intake gasket

Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.

Original Sachs spare part numbers: A4277, A4278, A4279

Details

Manufacturer	GPO
Number of components	5 pcs
Area of application	Standard

Suitable for the following models

Sachs

504 (without pedal shaft)

505 (with pedal shaft) - 1A (AT), 2A (HG), 2B (HG)

508 - 1 A

Hercules

Great - 2, 3, 4, 5, Optima
