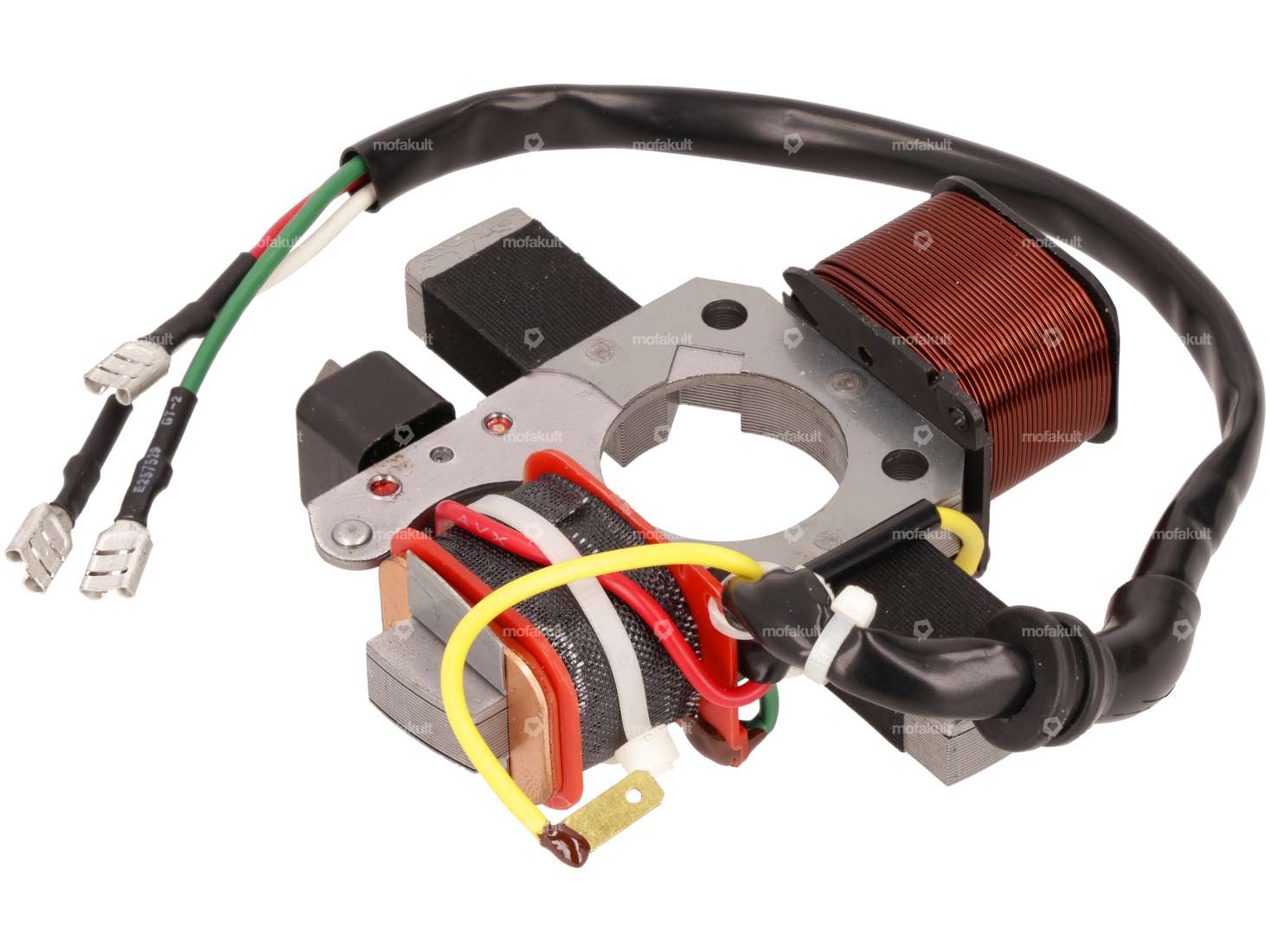

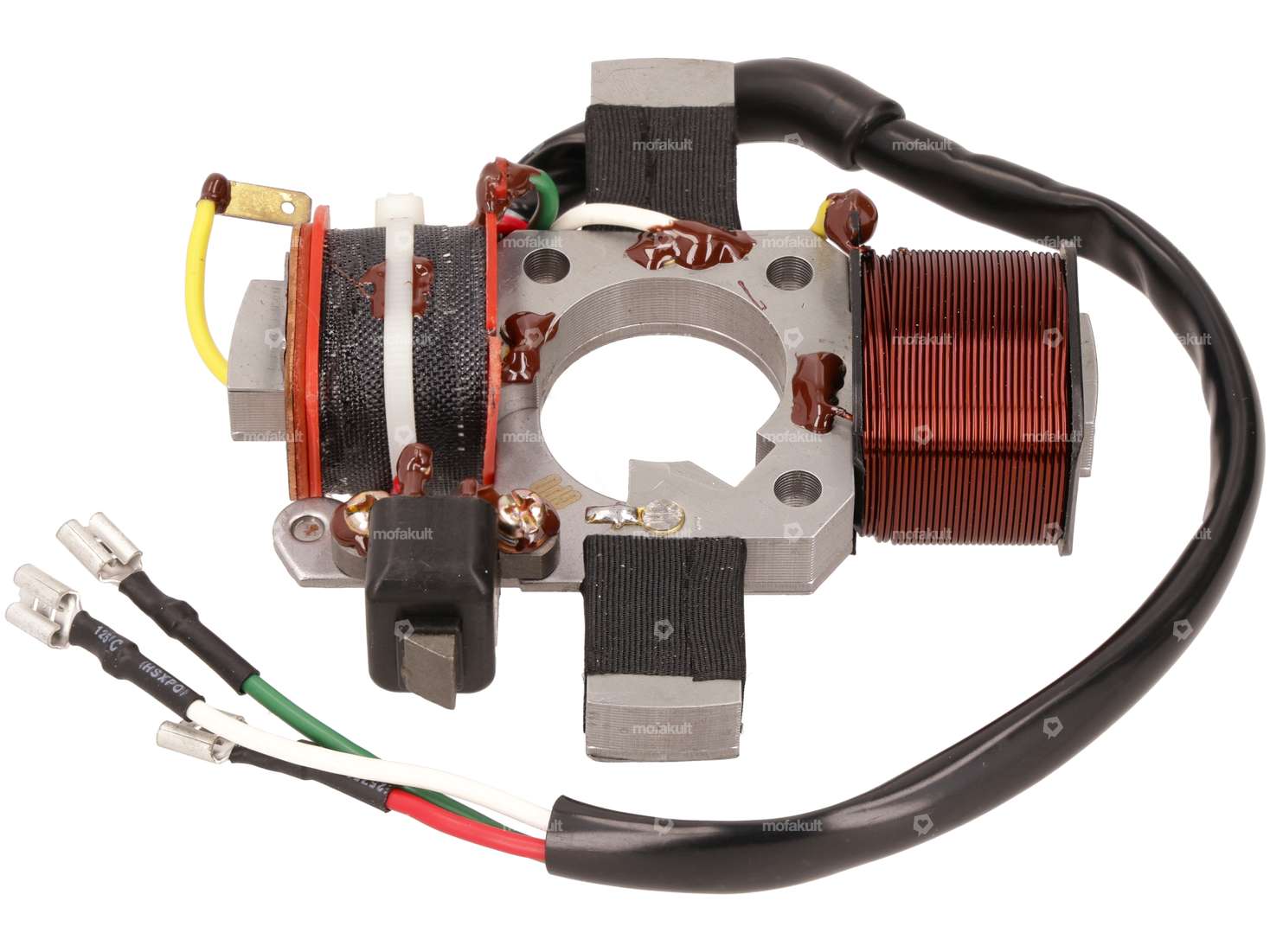

Complete ignition armature plate for electronic ignition, compatible with your Piaggio Ciao, Si, Bravo, and Boxer moped.
This ignition armature is equipped with only one output for the headlight. It does not include additional coils or connections for turn signals and brake lights.
Technical Specifications:
- Voltage: 12 volts
- Power: 90 watts
- Yellow output: Headlight
Advantages of CDI ignition:
- Optimal ignition timing at any RPM
- A strong, consistent spark at all times
- No more misfires
- No need to adjust the ignition
- Little to no wear
Note: This ignition system is only compatible with casings that originally had an electronic ignition installed, as well as various racing casings such as the Polini Speed Engine or the Malossi casing for electronic ignitions. If you’re converting your engine from a 6V breaker-point ignition to this 12V ignition, you’ll also need to convert the glow plugs to 12V and install a voltage regulator.
You can find a voltage regulator, the appropriate flywheel, a plug to solder onto the light coil, and other parts for your electronic ignition in the accessories section.
A good, affordable standard replacement part. GPO – GOOD PARTS ONLY.
Original Piaggio part number: 219965
| Manufacturer | GPO |
| Hole spacing | 34.5 mm |
| Tension | 12 V |
| Performance | 90 W |
| Cable length | 400 mm, 100 mm |
| Number of cables | 4 pcs |
| Ø outside | 105 mm |
| Number of fixing points | 3 pcs |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
