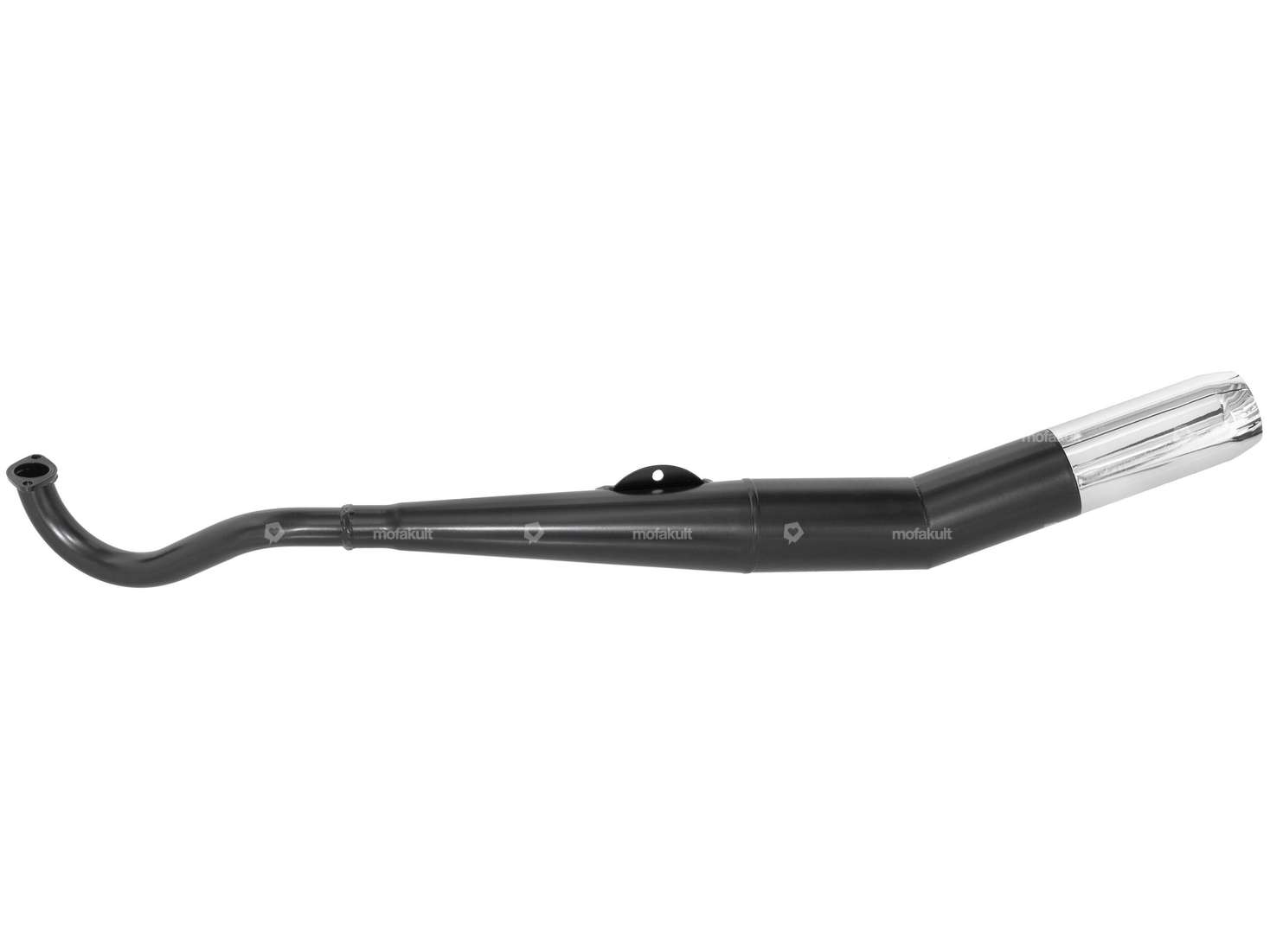

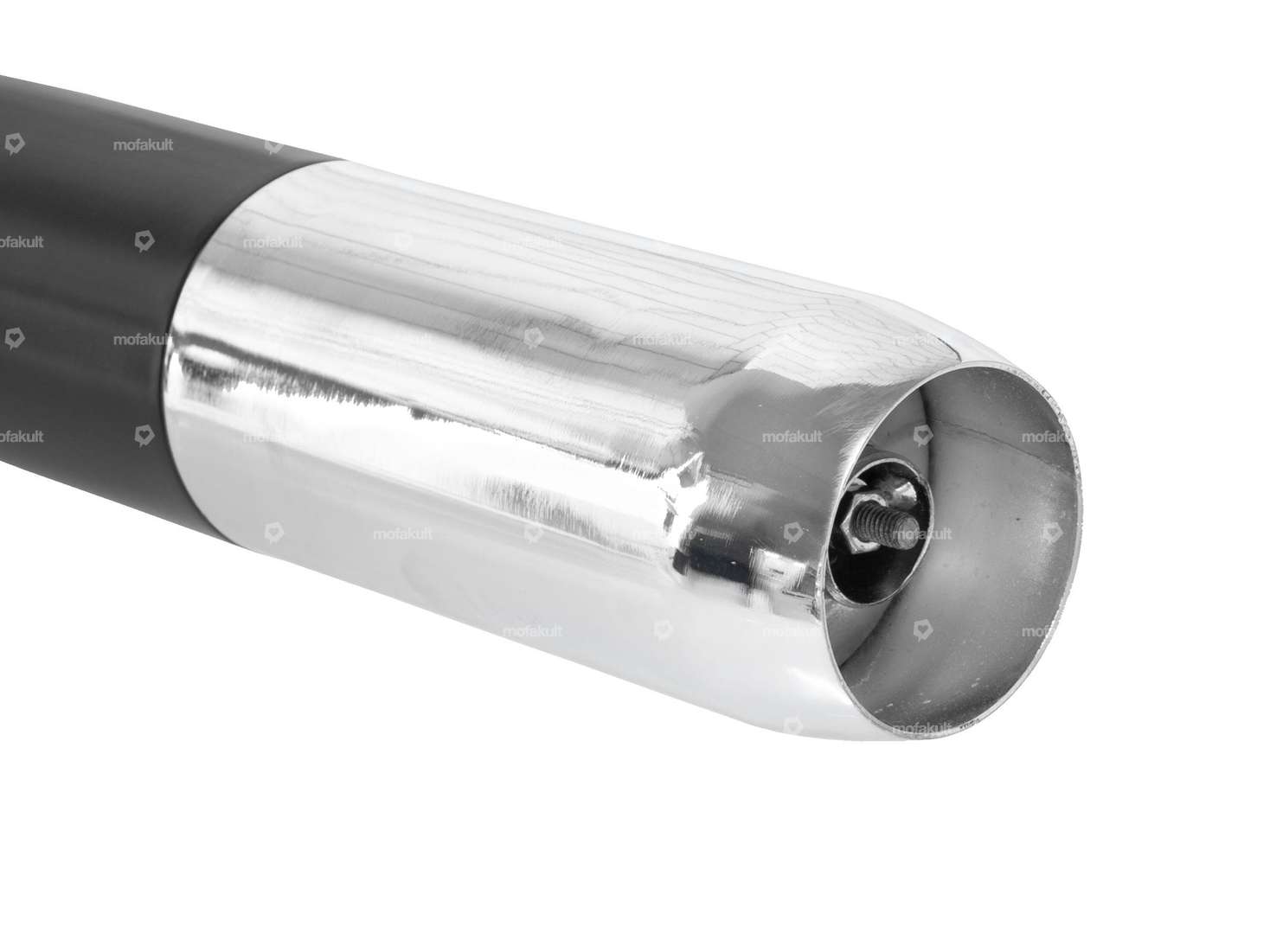

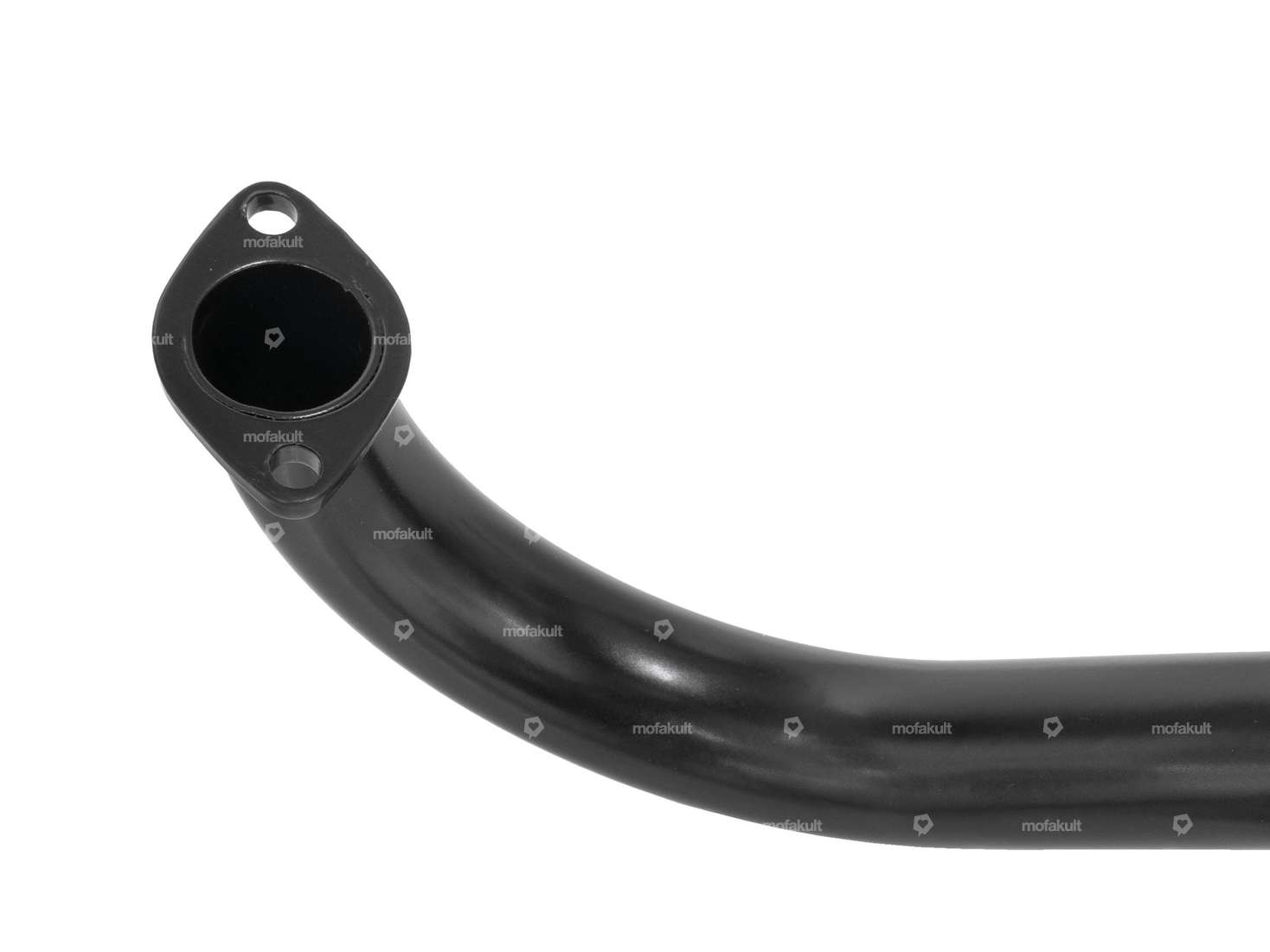

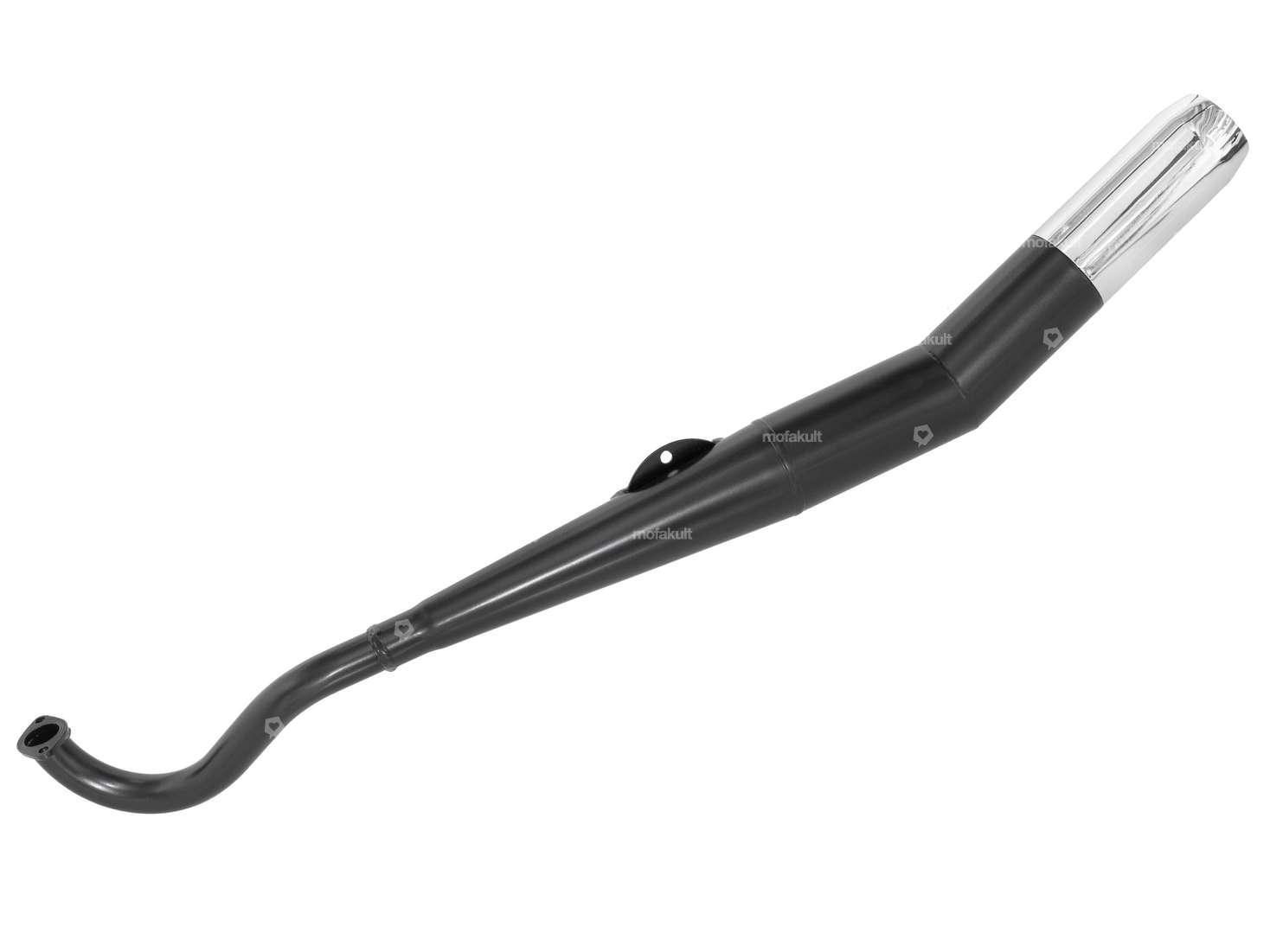

HOMOET Exhaust RS black / chrome | Puch

Large outlet seal with metal ring

Material: Sealing carton · Material: Sheet metal (steel) · Reinforced: Yes · Thickness: 2.1 mm · Ø outlet inside: 27 mm · Area of application: Tuning · Place of use: Outlet · Ø screw holder: 6.3 mm · Hole spacing outlet: 42.5 mm

Insulating wool exhaust 25 x 40 cm

Material: Ceramics · Color: white · Thickness: 10 mm · Width: 400 mm · Height: 220 mm

Large outlet seal

Ø inside: 25.5 mm · Ø outside: 39.7 mm · Thickness: 1.8 mm · Material: Sealing carton · Place of use: Outlet · Ø screw holder: 7.1 mm · Hole spacing outlet: 42.5 mm · Area of application: Tuning

Brass nut M6 3D

Material: Brass · Surface: blank · Nut type: Neck nut · Drive: External hexagon · Height: 25 mm · Ø outside: 9 mm · Area of application: Standard · Width across flats SW: 10 mm · Shank length: 20 mm · Thread depth: 25 mm · Thread type: M6x1 (standard thread)

M6 brass exhaust nut

Drive: External hexagon · Material: Brass · Thread type: M6x1 (standard thread) · Nut type: Hexagon nut

Insulating wool (balls)

Manufacturer: Made in Portugal · Material: Fabric insert · Surface: raw · Color: beige · Ø inside: 39 mm · Ø outside: 45.5 mm · Total length: 26 mm

LIQUI MOLY Exhaust assembly paste (150g)

Manufacturer: LIQUI MOLY · Area of application: Chemistry · Color: gray · Contents [g]: 150 g · Temperature resistance (min.): 0 - 700 °C

swiing® ingenious gasket outlet 28 mm graphite

Ø inside: 27.4 mm · Manufacturer: swiing® ingenious parts · Material: Graphite / Graphite · Reinforced: No · Thickness: 3 mm · Ø outlet inside: 28 mm · Area of application: Tuning · Place of use: Exhaust · Ø screw holder: 6.6 mm · Hole spacing outlet: 42.5 mm

swiing® ingenious M6 special nut exhaust flange (hexagon socket) strength 10

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Total length: 25 mm · Ø outside: 10 mm · Thread type: M6x1 (standard thread) · Thread length: 17 mm

Return spring brake plate | Puch Maxi

Spring design: Nose feather · Spring design: Torsion spring · Ø wire: 2.4 mm · Leg length: 45 mm · Length spring hook: 50 mm · Material: Spring steel · Surface: galvanized (blue) · Ø inside: 25.5 mm · Ø outside: 30 mm · Total length: 125 mm · Area of application: Original · Area of application: Standard

swiing® ingenious clutch springs reinforced (+20%) | Puch E50

Spring design: Pressure spring · Ø wire: 1.7 mm · Manufacturer: swiing® ingenious parts · Material: Spring steel · Color: blue · Surface: coated · Total length: 28 mm · Ø inside: 4.8 mm · Area of application: Tuning · Ø outside: 8.3 mm · Number of components: 3 pcs

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Mounting type: Union nut · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Thread type: MF12x1 (fine pitch thread)

GPO tail light ULO | Puch Maxi N, S old version

Manufacturer: GPO · Test mark: none · Material: Plastic · Color: black · Color: red · Ø Receptacle: 4 mm · Tension: 6 V · Width: 60 mm · Bulb holder: BA15s · Height: 110 mm · Mounting type: Nuts & bolts · Number of fixing points: 2 pcs · Depth: 80 mm · Battery operated: No · Brake light: No · Reflectors: Yes

Exhaust mounting plate | Puch Maxi N

Manufacturer: Made in Portugal · Material: Steel · Surface: galvanized (blue) · Number of fixing points: 2 pcs · Ø mounting hole: 8.5 mm · Ø mounting hole: 11 mm · Cranking (offset): 23 mm

Exhaust cigar 28 mm chrome | Puch Maxi S, N / X30 NS, NL

Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 920 mm · Ø Internal connection: 28 mm · Mounting type: Stud bolts & nuts · Mounting type: Welded lug · Ø outside: 70 mm · Number of fixing points: 1 pcs · Ø Flame tube outside: 28 mm · Exhaust type: Cigar · Flame tube attachment: Flange

Exhaust clamp 28 mm with rubber

Ø inside: 26.5 - 28 mm · Manufacturer: Quenching · Material: Rubber · Material: Steel · Surface: galvanized (blue) · Color: black · Color: silver · Total length: 40 mm · Mounting type: Nuts & bolts

GPO side bars chrome | Puch Maxi N

Total length: 360 mm · Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Width: 140 mm · Height: 60 mm · Number of fixing points: 2 pcs · Ø mounting hole: 8.1 mm · Hole spacing: 342 mm · Mounting type: Screws

Rim tape blue 17" (protection for inner tube)

Manufacturer: Made in Germany · Material: Rubber · Color: blue · Wheel size [inch]: 17 " · Total length: 1280 mm · Width: 23 mm

Chain tensioner 70 mm Simplex | Puch Maxi N, X30 Velux

Manufacturer: Made in Italy · Material: Steel · Surface: galvanized (blue) · Color: black · Color: silver · Number of teeth: 10 pcs · Total length: 140 mm · Ø outside sprocket: 36 mm · Ø mounting hole: 5 mm · Number of fixing points: 2 pcs
