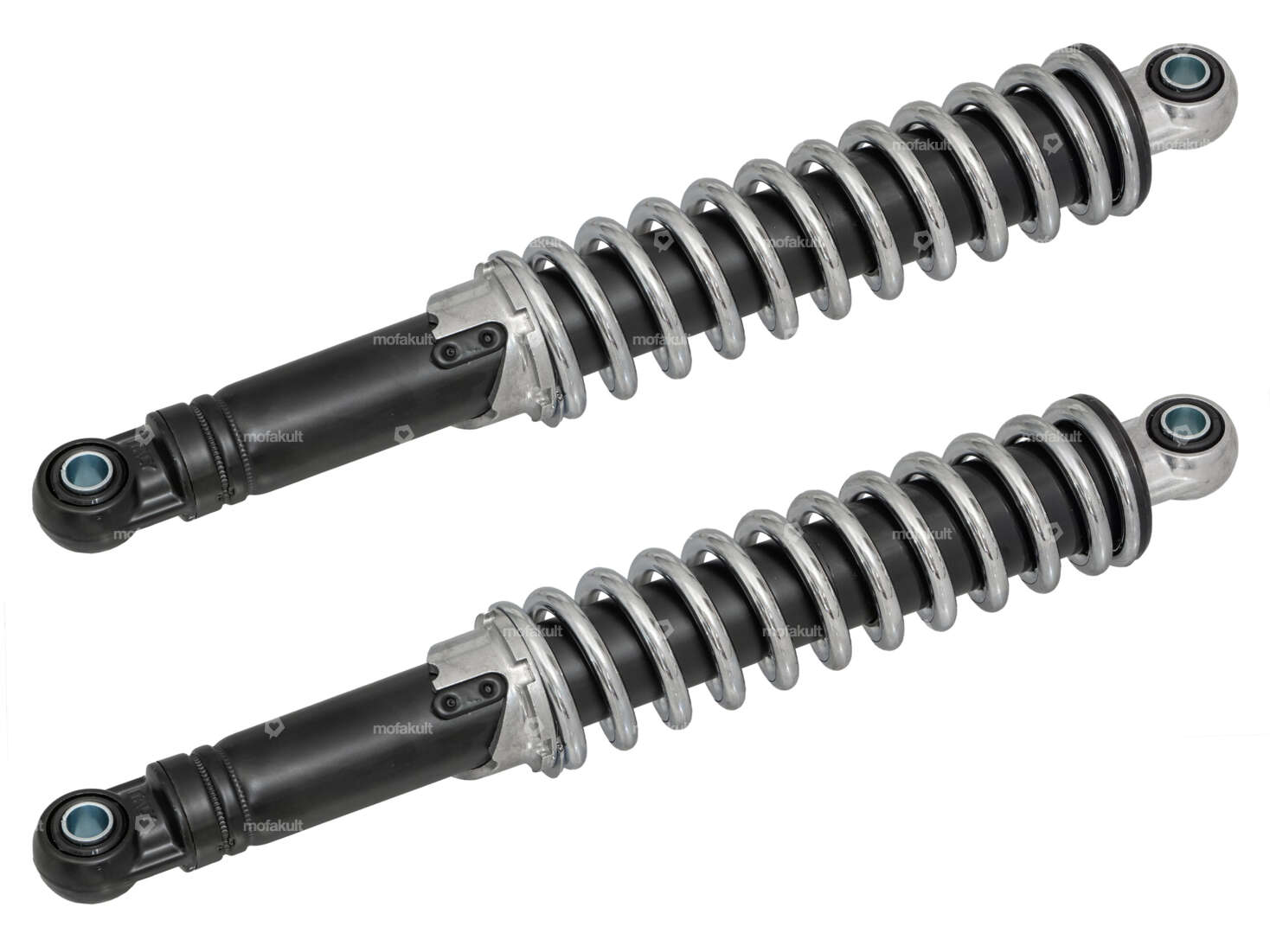

Black, adjustable shock absorbers with chrome-plated coil springs for your moped, moped and small motorcycle.
The hardness or preload of the coil springs can be adjusted using the special spring mount.
Length (mount - mount): 300 mm
Ø outer spiral spring: 45 mm
Ø spars: 28 mm
Büchsendurchmesser zur Bef.: 10 mm
The rear springs should always be secured with large washers to prevent the plastic bushes from shifting if lateral forces occur.
The scope of delivery corresponds to one pair.
Rear springs from other manufacturers, the matching adjustment key as well as the washers and fastening material can be found under accessories.
Quality product from the Italian manufacturer IMCA.
| Manufacturer | IMCA |
| Material | Steel |
| Surface | chrome-plated, varnished |
| Damping type | Spring |
| Color | Chrome, black |
| Adjustable | Yes |
| Ø Fastening inside | 10 mm |
| Ø outside | 45 mm |
| Ø spars | 28 mm |
| Number of fixing points | 2 pcs |
| Mounting type | Nuts & bolts |
| Hole spacing | 300 mm |
