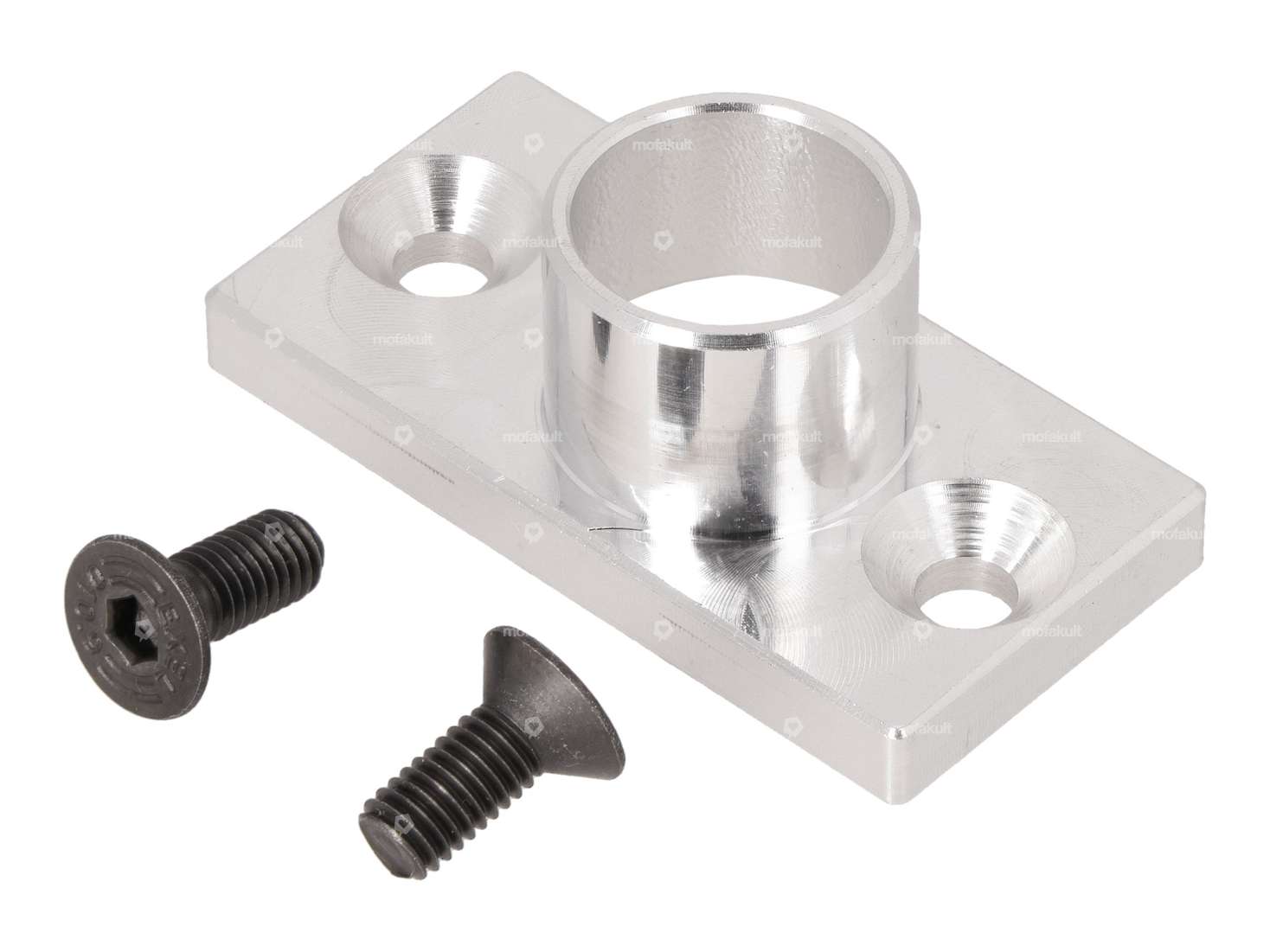

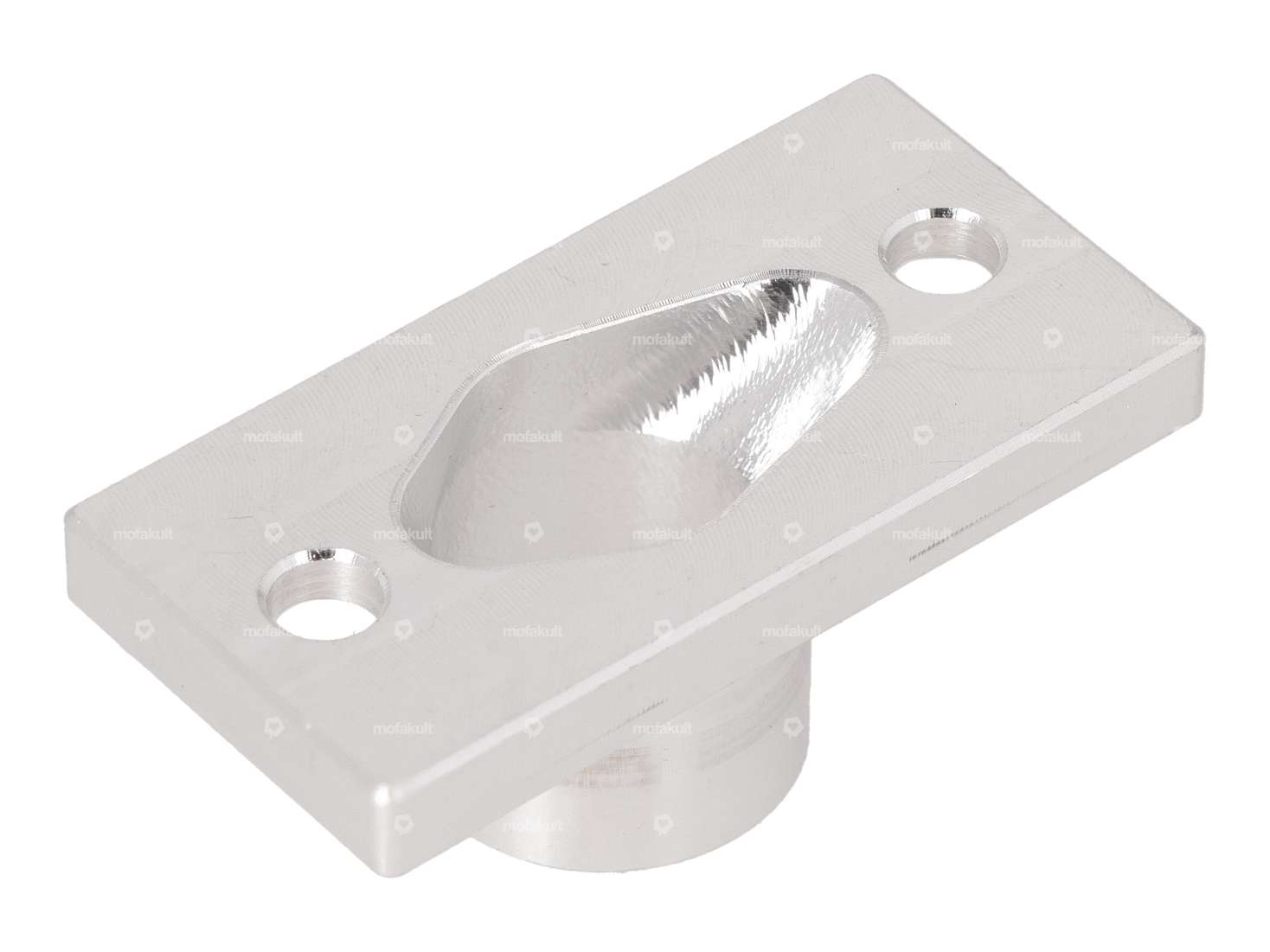

Tuning intake manifold suitable for fitting a Pinasco 16 / 16 SHA carburetor to your Piaggio Ciao, Si or Bravo moped / moped with Polini Speed Engine racing case.
In combination with the Pinasco 16 mm racing carburetor, this setup allows you to get maximum performance from your engine without having to make any modifications to the frame. As with the use of Dell'Orto SHA carburetors, air filters from Malossi, Polini and Pinasco can be fitted without modifications.
| Camouflaged | No |
| Material | Aluminum |
| Color | silver |
| Thread type | M5x0.8 (standard thread) |
| Total length | 48.1 mm |
| Ø External connection | 19 mm |
| Number of fixing points | 2 pcs |
| Hole spacing inlet | 36 mm |
| Ø inside | 16 mm |
| Mounting type | Screws |
| Total height | 18.8 mm |
| Piaggio | Ciao - PX , C24 Si Bravo / Super Bravo Grillo |
