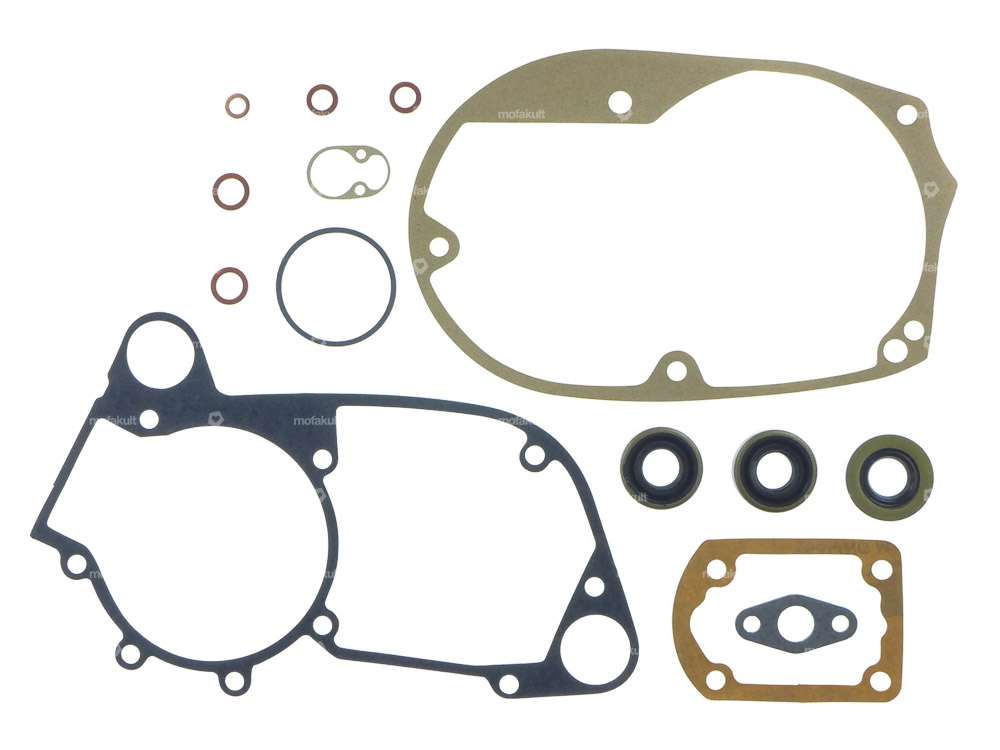

Gasket set incl. shaft seals (colloquially known as oil seals) for your moped / moped with manual Sachs 503 engine.
Includes the following items:
1 pc. Center gasket
1 pc. Gearbox cover gasket
1 pc. Sealing ring M8 (Ölablassschraube)
1 pc. Sealing ring M10 (engine bleed screw)
1 pc. Cylinder base gasket
1 pc. Inlet gasket 4 mm

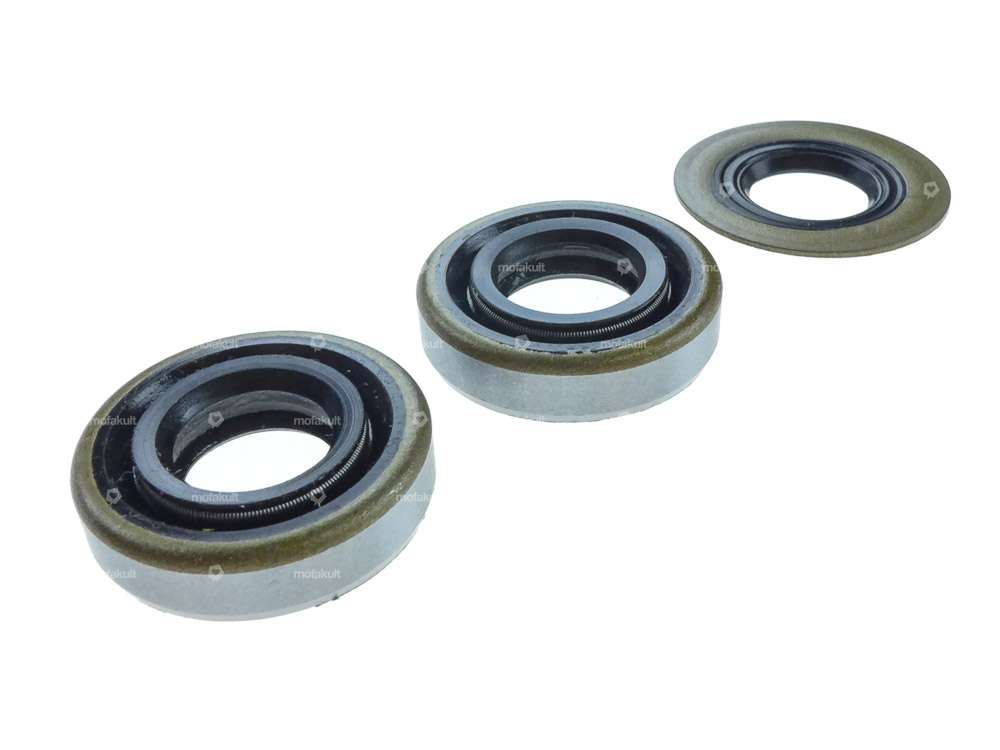

1 pc. Pinion shaft oil seal, 14.96/31.5/3.5
1 pc. Crankshaft oil seal, 15/30/7 DUO (double lip)
1 pc. Crankshaft oil seal, 15/30/7 AS
1 pc. Copper ring M6 level screw gearbox
1 pc. Gasket carburetor cover Bing
1 pc. Carburetor gasket round
| Material | Sealing paper, Sealing carton, Aluminum, Fiber, Copper |
| Number of components | 14 pcs |
| Ø outlet inside | 13.3 mm |
| Hole spacing inlet | 32 mm |
| Hole pattern [mm] | 60 x 40 |
| Area of application | Standard |
| Sachs | 503 - ABL, 2AL / 2BL |
