Central support suitable for Tomos A3 / A35 mopeds / mopeds.
This is an inexpensive version with slightly larger dimensional tolerances than its more expensive counterpart, but it fulfills its purpose.
The kickstand is supplied without bolt and spring.
You can find the high-quality finish as well as other parts for your Tomos in the accessories section.

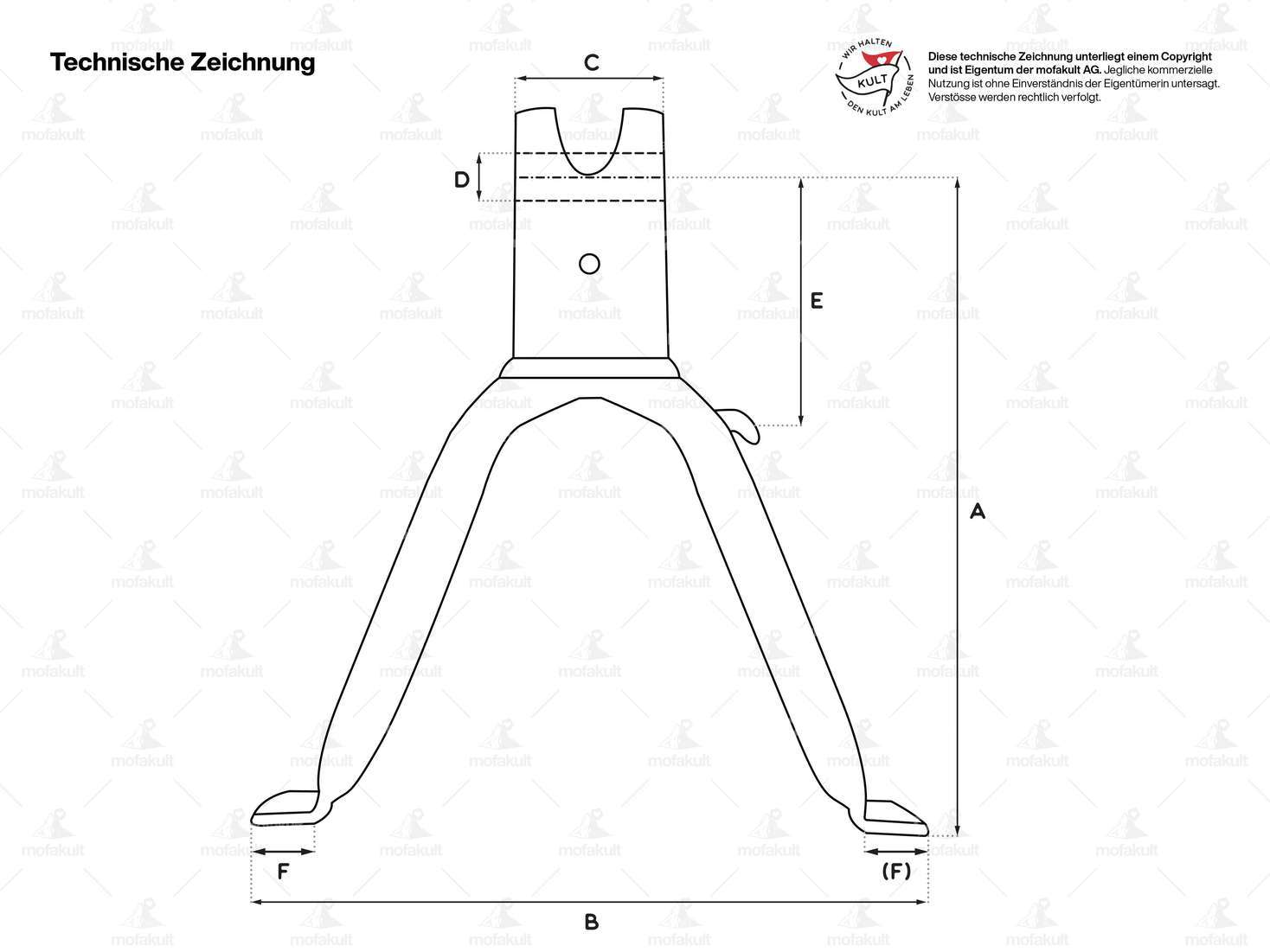

| Material | Steel |
| Surface | varnished |
| Stand base - center mount (A) | 200 mm |
| Color | black |
| Total width of stand base (B) | 235 mm |
| Wide receptacle (C) | 51 mm |
| Ø Receptacle (D) | 8.1 mm |
| Spring nipple distance - center pivot axis (E) | 65 mm |
| Wide upright foot (F) | 30 mm |
| Total height | 240 mm |
| Tomos OEM number | 237153S91 |
| Tomos |
Accessories & related products
Jamarcol Fuego exhaust 28 mm black | Tomos
Material: Steel · Surface: varnished · Color: black · Total length: 770 mm · Manufacturer: Jamarcol · Ø outside: 70 mm · Mounting type: Welded lug · Number of fixing points: 1 pcs · Ø Silencer: 50 mm · Ø Internal connection: 25 mm · Ø Flame tube outside: 28 mm · Exhaust type: Cone / double cone · Flame tube attachment: Flange
EUR 75.60
Airsal 44 mm cylinder kit tuning 10 mm KoBo | Tomos A35
Nominal diameter: 44 mm · Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Displacement: 65 ccm · Ø cylinder neck: 47.4 mm · Ø outlet inside: 22 mm · Inlet window: 29.5 x 37.5 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31.5 mm · Hole spacing inlet: 36 mm · Hole spacing inlet: 39 mm · Ø piston pin (B): 10 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: No · Area of application: Tuning
EUR 146.40

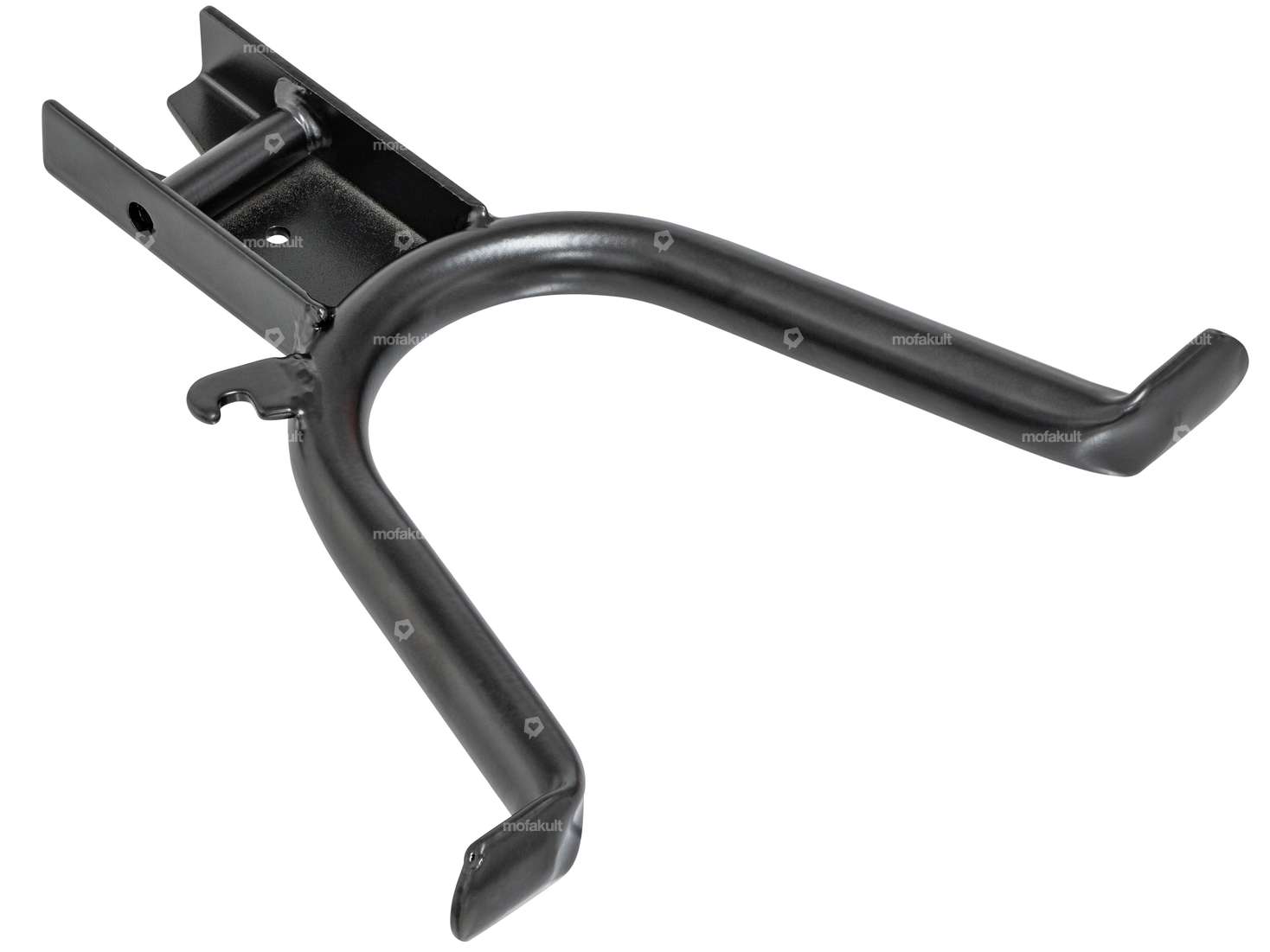

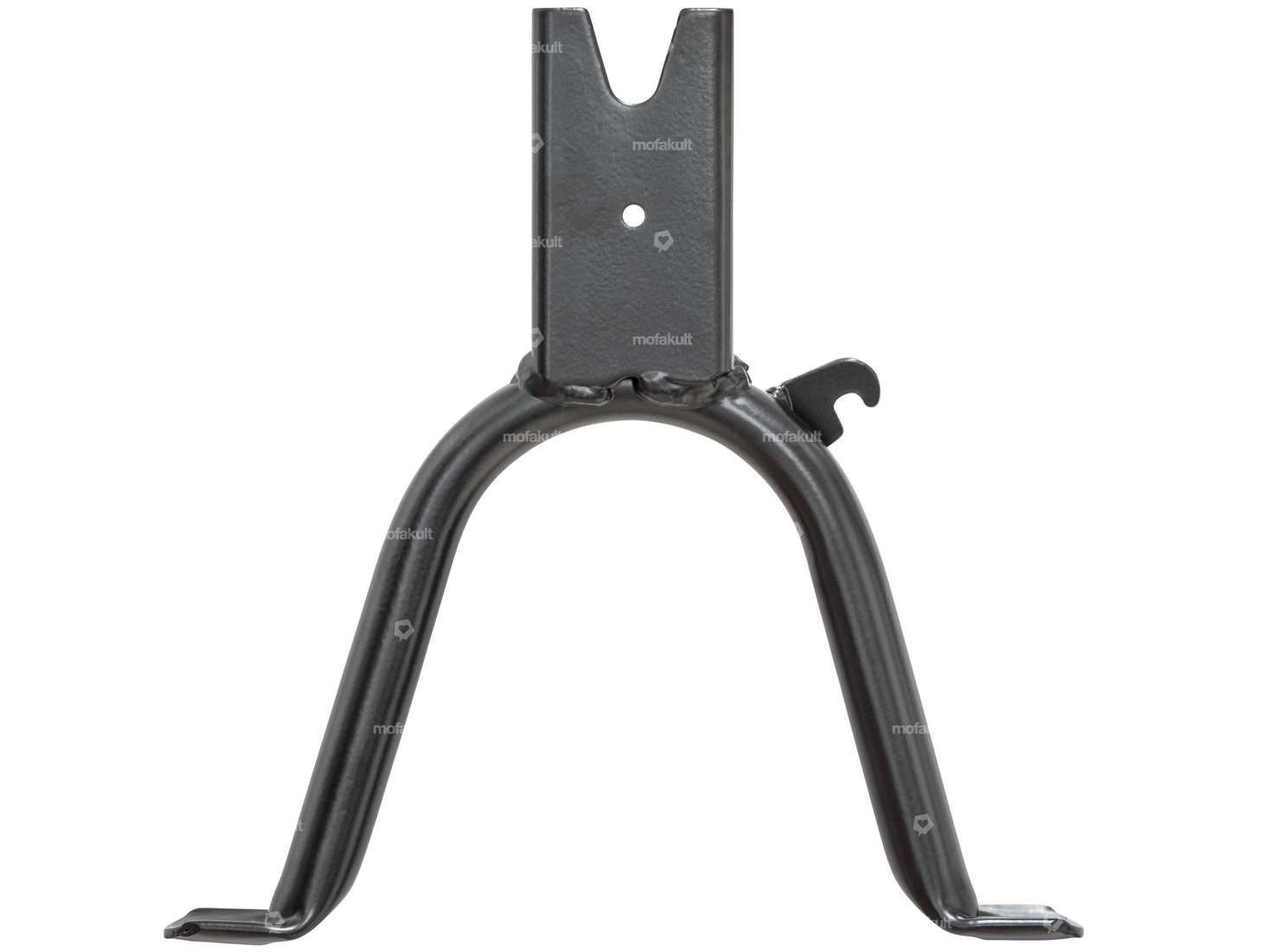

Main stand 24 cm black | Tomos A3 / A35
