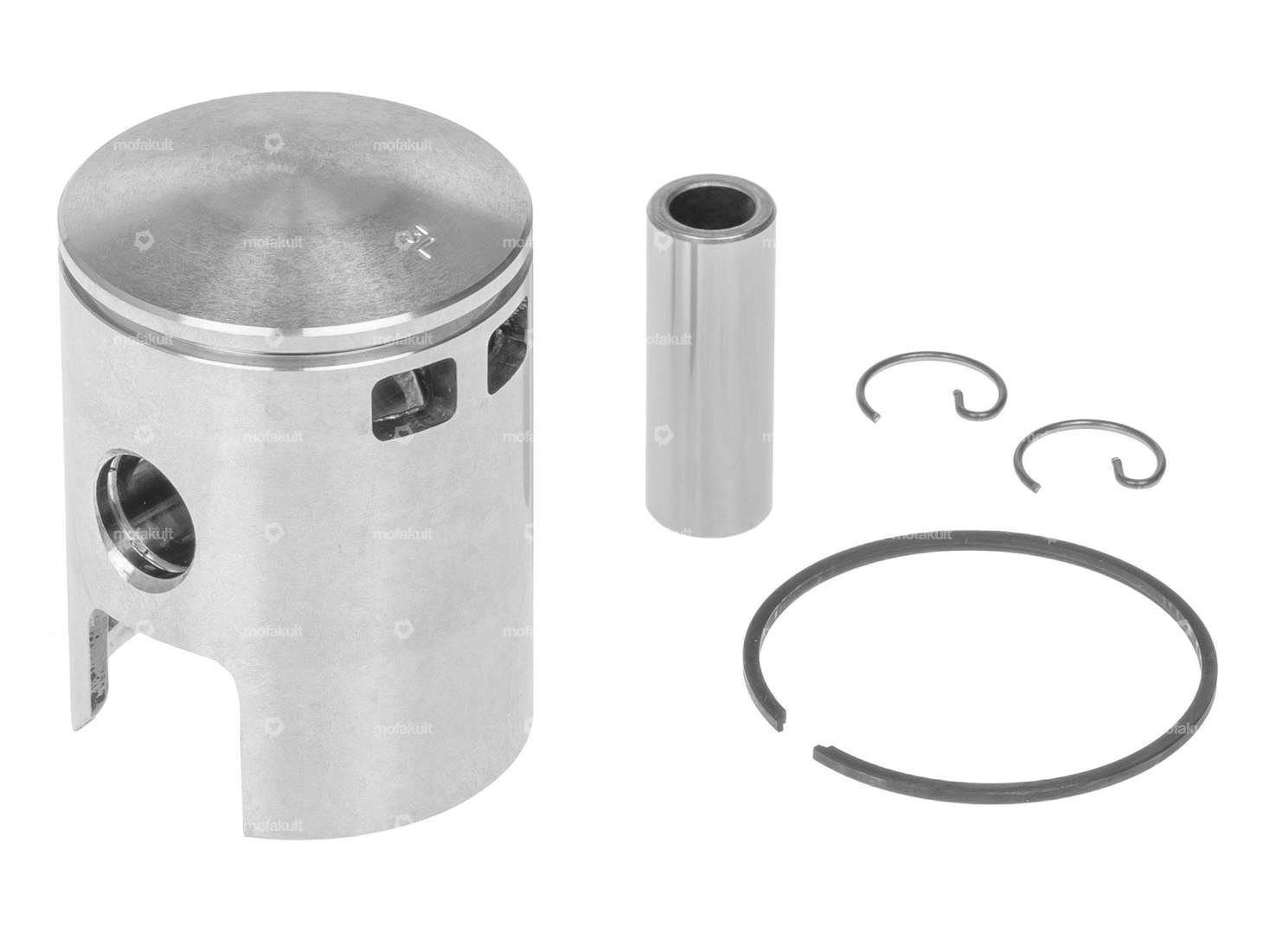

42.0 mm replacement piston with a 1.5 mm rectangular piston ring with internal fuse (IS) for the 42 mm Malossi cylinder kit suitable for Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the common piston rings, their stems and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tools, piston rings, piston pin retainers etc. in the accessories section.
Quality product from the Italian manufacturer Malossi.
| Nominal diameter | 42 mm |
| Manufacturer | Malossi |
| Ø outside piston (A) | 41.96 mm |
| Ø piston pin (B) | 12 mm |
| Compression height (C) | 22.7 mm |
| Curvature (D) | 4.4 mm |
| Total piston height (E) | 57.6 mm |
| Number of piston rings (F) | 1 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Accessories & related products
Malossi 42 mm cylinder kit 60 cc camouflaged | Puch
Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Displacement: 60 ccm · Nominal diameter: 42 mm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Number of fixing points: 4 pcs · Inlet window: 22 x 14 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Outlet type: straight · Hole pattern [mm]: 44 x 44 · Thread outlet: M6x1 (standard thread) · Decompressor: Yes · Camouflaged: Yes
EUR 366.20
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Area of application: (Dis)assembly tool · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Number of components: 7 pcs · Width across flats SW: 10 mm · Width across flats SW: 17 mm
EUR 24.30
Moped fans like you also bought:
Return spring brake plate | Puch Maxi
Spring design: Nose feather · Spring design: Torsion spring · Ø wire: 2.4 mm · Length spring hook: 50 mm · Leg length: 45 mm · Material: Spring steel · Surface: galvanized (blue) · Area of application: Original · Area of application: Standard · Ø outside: 30 mm · Ø inside: 25.5 mm · Total length: 125 mm
EUR 6.00
swiing® ingenious clutch springs reinforced (+20%) | Puch E50
Spring design: Pressure spring · Ø wire: 1.7 mm · Manufacturer: swiing® ingenious parts · Material: Spring steel · Color: blue · Area of application: Tuning · Total length: 28 mm · Surface: coated · Ø inside: 4.8 mm · Ø outside: 8.3 mm · Number of components: 3 pcs
EUR 21.90
Magura adjusting screw brake long
Manufacturer: Magura · Material: Brass · Color: silver · Thread type: MF6x0.75 (fine pitch thread) · Drive: Knurled screw · Total length: 47 mm · Total length: 65 mm · Surface: nickel-plated · Ø External head: 9.1 mm · Ø shaft: 6 mm · Shank length: 11 mm · Thread length: 24 mm
EUR 4.75
Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom
Possible lever positions: open / closed / reserve · Thread type: MF12x1 (fine pitch thread) · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Reserve level: 70 mm
EUR 12.10

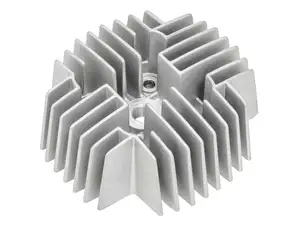

GPO 42 mm cylinder head tuning Malossi | Puch Maxi S, N / X30 NS, NL, N-2AH
