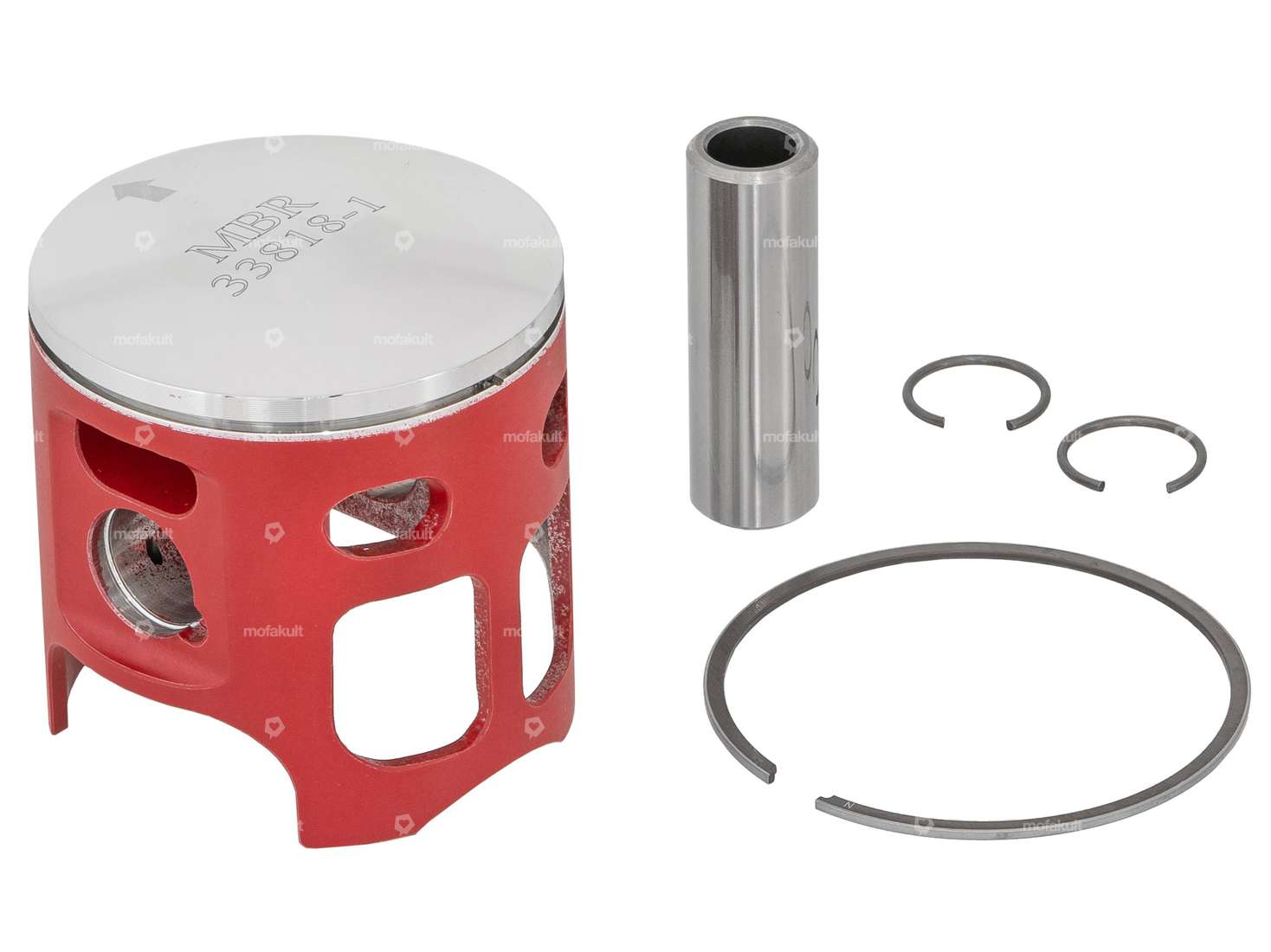

Forged Wössner high-performance piston for 47 mm Gilardoni italkit Puch cylinder kit.
ZME forged piston developed by MBR with a 1 mm rectangular piston ring with internal fuse (IS), which is often used in the Mofacross / Mofacup scene.
Optimal material structure, flow-optimized shape and large inlet windows characterize this high-quality racing piston.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the common piston rings, their stems and locking types on the legend in the pictures.
| Manufacturer | Wössner, MBR |
| Surface | molybdenum-coated |
| Ø outside piston (A) | 46.94 mm |
| Compression height (C) | 22 mm |
| Curvature (D) | 2.65 mm |
| Total piston height (E) | 48.15 mm |
| Number of piston rings (F) | 1 pcs |
| Nominal diameter | 47 mm |
| Piston ring mold | Rectangular ring |
| Ø piston pin (B) | 12 mm |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1 mm |
| Weight piston kit | 93 g |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
