For: Sachs

11670

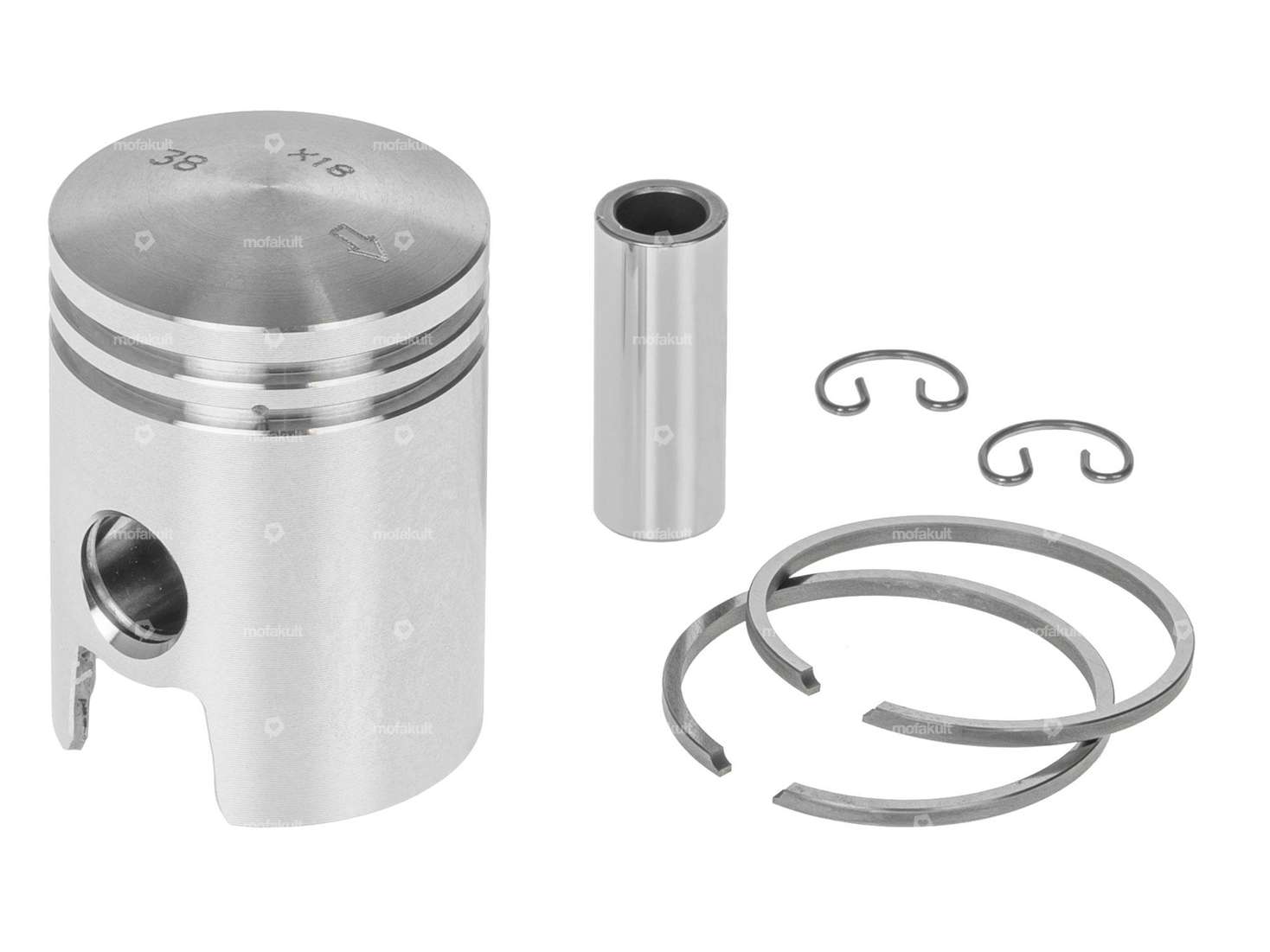

Meteor piston 38.9 mm oversize | Sachs 50/2 & 503

EUR 61.20

Incl. 25% VAT.

Description

38.9 mm ¨um dimension piston with 2 pieces of 2 mm rectangular piston rings with flank lock (FS) suitable for Sachs 502, 50/2, 503 2AL, AAL, 2BL, ABL CH.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.

Nominal diameter38 mm
ManufacturerMeteor
Ø outside piston (A)38.85 mm
Compression height (C)28 mm
Curvature (D)3 mm
Total piston height (E)53 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height2 mm
Ø piston pin (B)12 mm
Weight piston kit86 g
Pony OEM numberA2775
Sachs OEM no.0286 377 013
Sachs

50 (Fahrtwind, 1.25 / 1.5 hp, DE)

502 (Saxonette) - AL , AML

50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS)

503 - AAL , ABL , 2AL / 2BL
