logo_meteor-piston-mk

For: Zündapp

17880

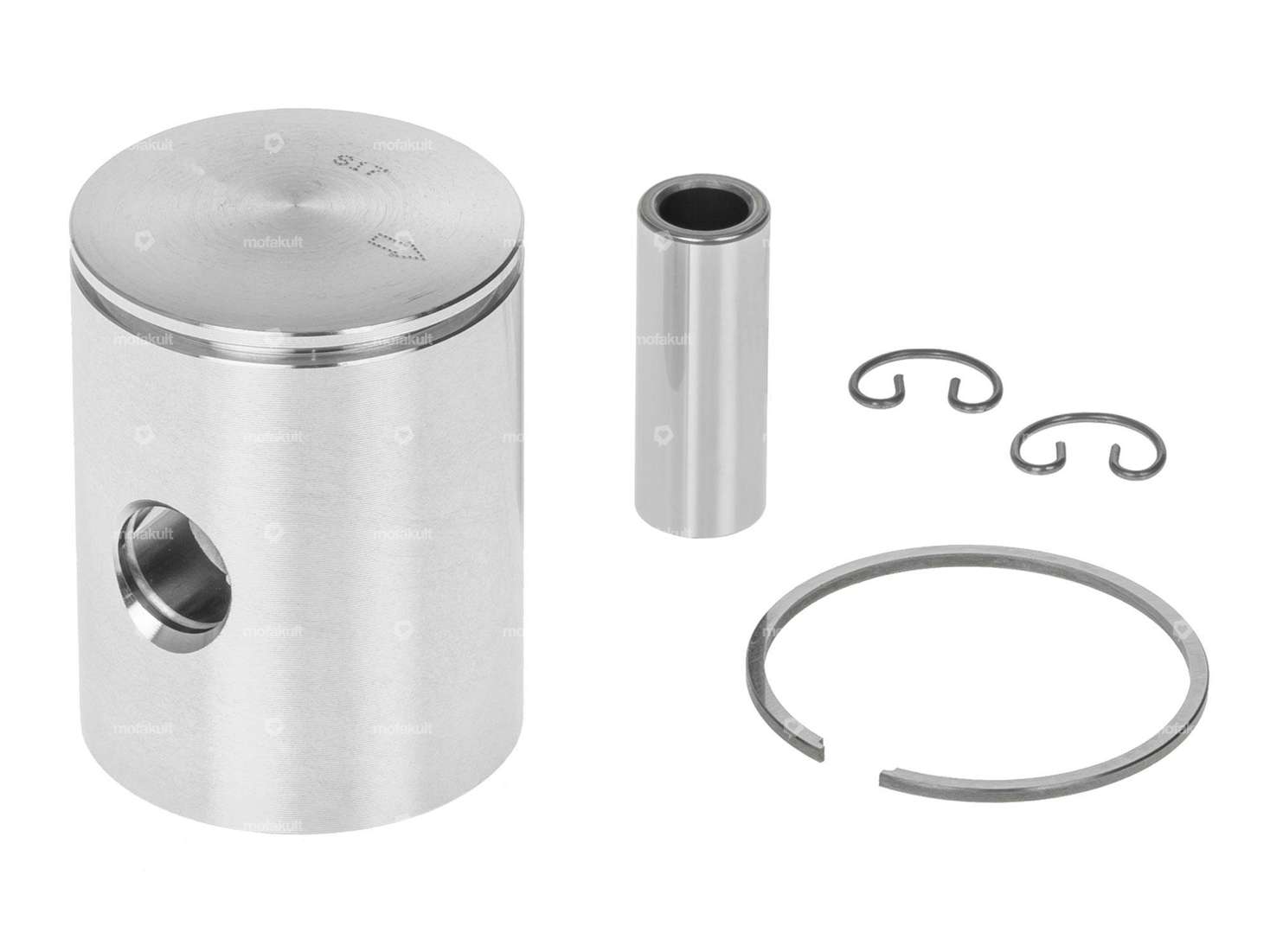

Meteor piston 38.95 mm #AB | Zündapp Belmondo, Bergsteiger

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 73.40

Incl. 25% VAT.

Description

39.0 mm piston with a rectangular piston ring with internal fuse (IS), suitable for Zündapp Belmondo mopeds, Zündapp Bergsteiger M25/M50 mopeds, as well as Alpa Spezial 3000 or Alpa Black River small motorcycles, which have a Zündapp type 247 engine installed.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

ManufacturerMeteor
Ø outside piston (A)38.95 mm
Compression height (C)26.2 mm
Curvature (D)1.3 mm
Total piston height (E)51.5 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Nominal diameter39 mm
Piston ring impactInternal fuse (IS)
Ø piston pin (B)12 mm
Tolerance groupAB
Weight piston kit86 g
Zündapp

Belmondo (Type 247-71)

Moped 25 (M 25) / Moped M 50 Bergsteiger (Type 247-434)
