Meteor piston 38 mm type E | Sachs 503 ADV

EUR 68.50

Incl. 25% VAT.

Description

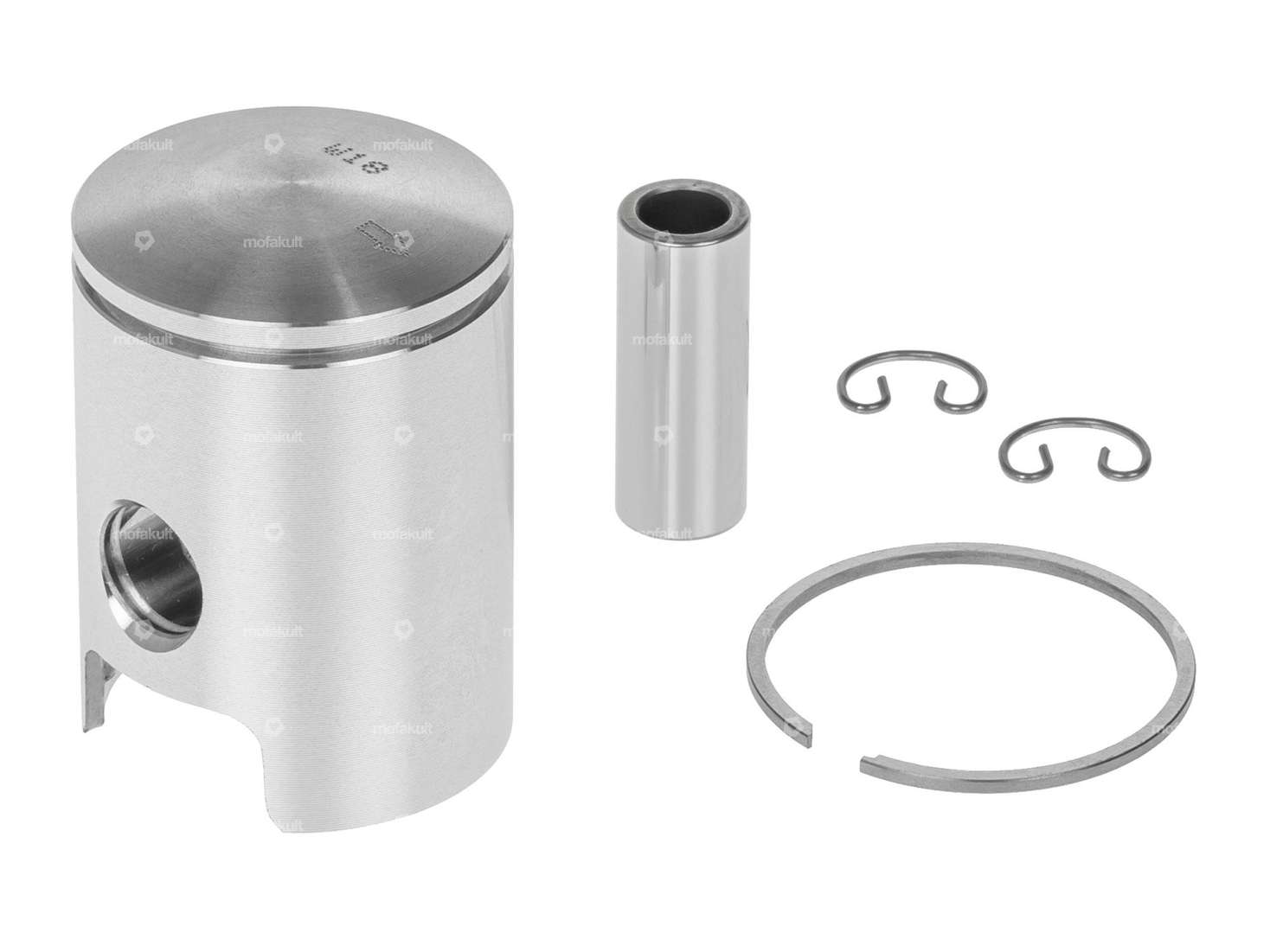

38 mm piston with a 1.5 mm rectangular piston ring with internal circlip (IS) suitable for Sachs 503 ADV engines.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

ManufacturerMeteor
Ø outside piston (A)38 mm
Ø piston pin (B)12 mm
Compression height (C)28 mm
Curvature (D)3 mm
Total piston height (E)54 mm
Number of piston rings (F)1 pcs
Nominal diameter38 mm
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Tolerance groupE
Weight piston kit76 g
Sachs

503 - ADV
