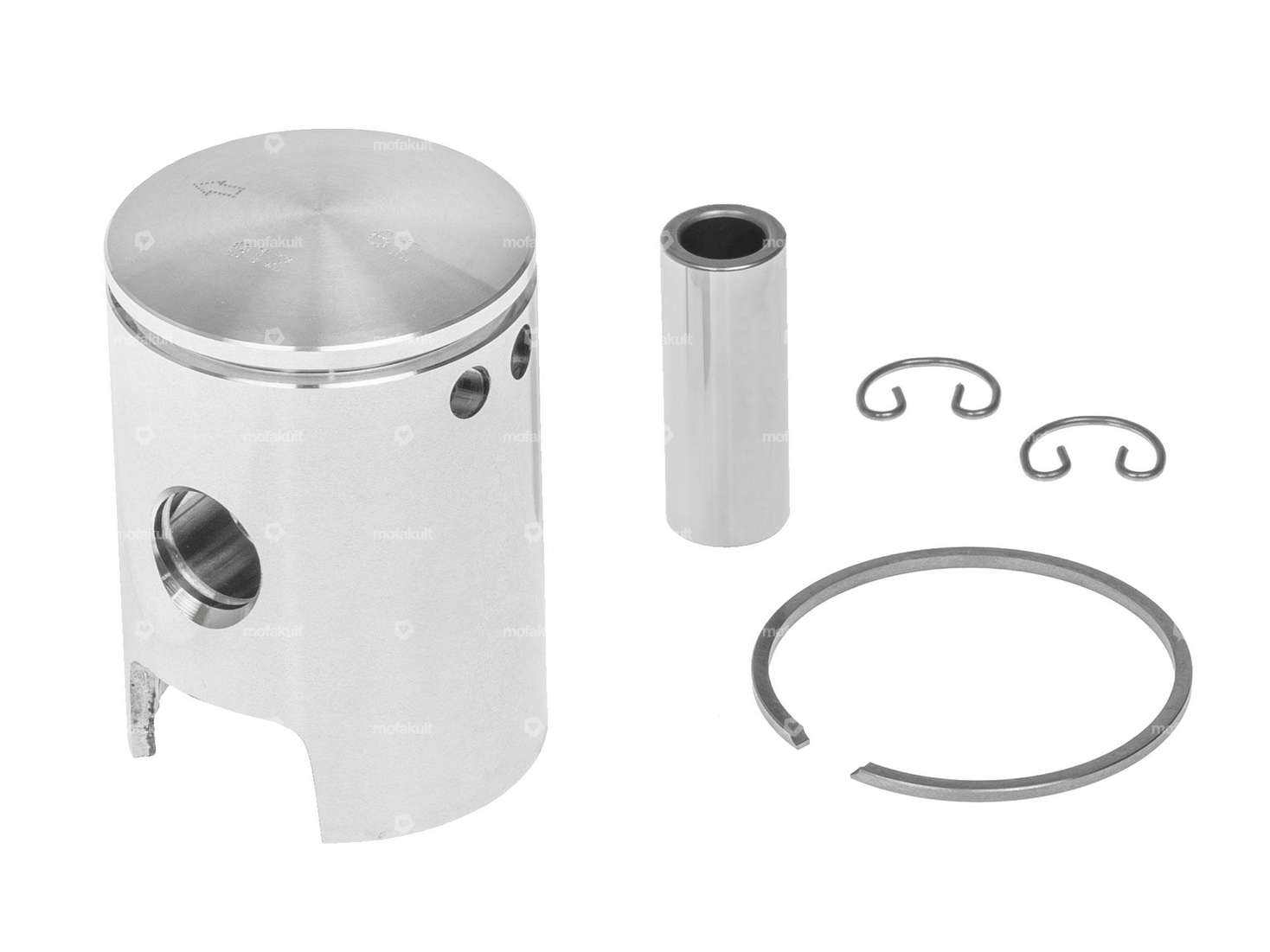

39.0 mm piston with a 1.5 mm rectangular piston ring with flank lock (FS) for Puch Supermaxi LG1 & LG2 mopeds / mopeds with catalytic converter.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the piston rings used, their dimensions and locking types on the legend in the images.
The piston in the second dimension is used for bored and honed cylinders.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tools, piston rings, piston pin locks etc. in the accessories section.
Quality product from the Italian manufacturer Meteor.
| Nominal diameter | 39 mm |
| Manufacturer | Meteor |
| Ø outside piston (A) | 39 mm |
| Compression height (C) | 24 mm |
| Curvature (D) | 2.3 mm |
| Total piston height (E) | 55.3 mm |
| Number of piston rings (F) | 1 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Piston weight | 86 g |
| Puch | E50 ZA50 (air-cooled) |
