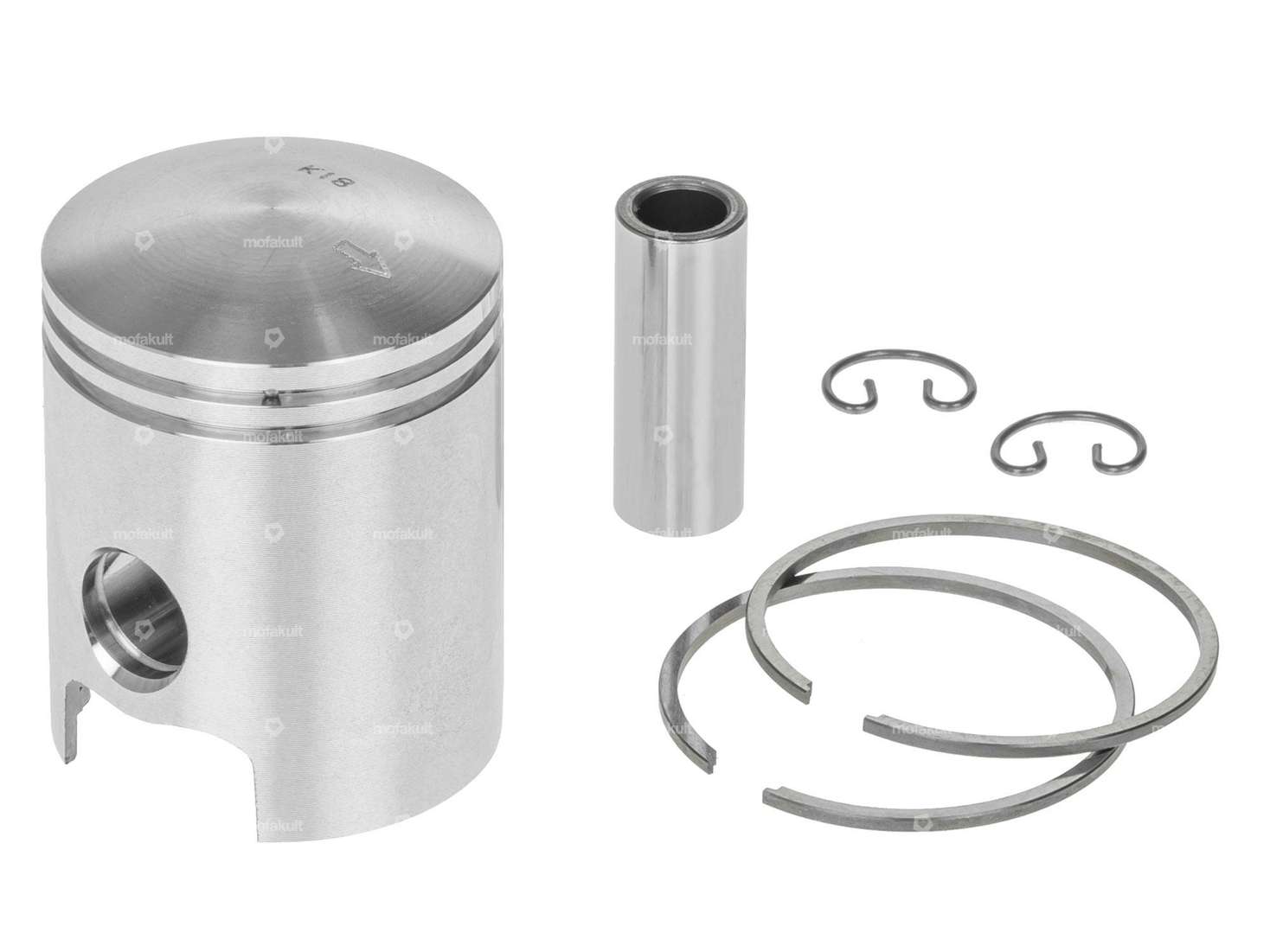

40.0 mm piston with two 1.5 mm rectangular piston rings with internal locking (IS) for Cilo Cross 521 & 512, Pony Cross 521, Pony GTX 521 mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Nominal diameter | 40 mm |
| Manufacturer | Meteor |
| Ø outside piston (A) | 39.95 mm |
| Compression height (C) | 27.9 mm |
| Curvature (D) | 4.15 mm |
| Total piston height (E) | 52 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Weight piston kit | 83 g |
| Pony / Cilo (Beta 521 & 512) | Beta 512 Beta 521 (engine) |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Material: Steel · Total length: 130 mm · Number of components: 7 pcs · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool
EUR 24.40
Explore categories from Piston
Moped fans also bought
Hot
swiing® revival Stud Bolt, Inlet/Outlet M6x30 (Grade 10.9)
Manufacturer: swiing® revival parts · Surface: galvanized (blue) · Diameter: 5.95 mm · Material: Steel · Nominal diameter (thread): 6 mm · Total length: 30 mm · Thread type: M6x1 (standard thread) · Thread length: 12 mm · Strength class: 10.9
EUR 2.20
swiing® revival gasket set cylinder original engine | Beta 521, 512
Manufacturer: swiing® revival parts · Material: Copper · Material: Sealing carton · Material: Sealing paper · Material: Sheet metal (steel) · Ø cylinder: 40 mm · Ø outlet inside: 22 mm · Number of components: 3 pcs · Hole pattern [mm]: 48 x 48 mm · Hole spacing outlet: 40 mm · Area of application: Original · Decompressor: Yes
EUR 17.00
Headlight original | Pony Cross, GTX (P8272)
Manufacturer: Pony · Tension: 12 V · Housing material: Plastic · Lens material: Plastic · Width: 158 mm · Height: 93 mm · Bulb holder: P26s · Performance: 15 W · Depth: 87 mm · Test mark: E2 · Thread size: M5 · Speedometer recording: None · Switch included: No · Battery operated: No · Color: black · Mounting type: Screws · Number of fixing points: 2 pcs · Area of application: Standard
EUR 97.90
GPO gasket 0.5 mm cylinder head 40 mm cylinder | Pony GTX, Cross 521
Nominal diameter: 40 mm · Manufacturer: GPO · Material: Aluminum · Place of use: Cylinder head · Ø cylinder: 40 mm · Ø inside: 40.5 mm · Thickness: 0.5 mm · Hole pattern [mm]: 48 x 48 · Alternative version of the Pony OEM number: A8098
EUR 3.55

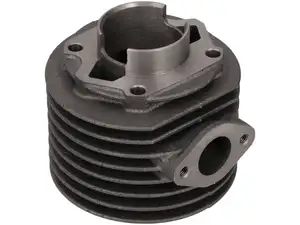

GPO 40 mm cylinder (without piston & gasket set) "original" | Pony GTX, Cross 521
