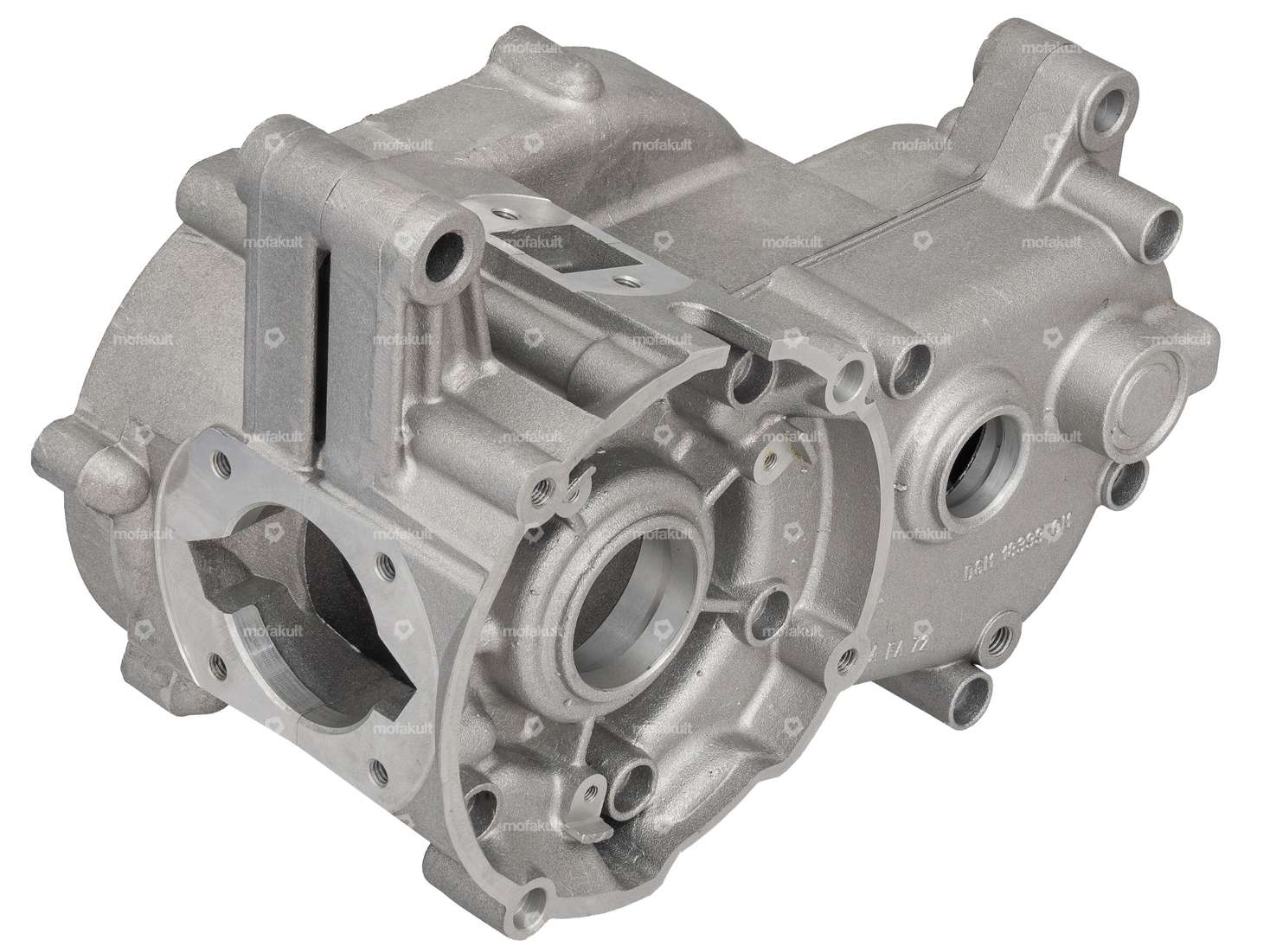

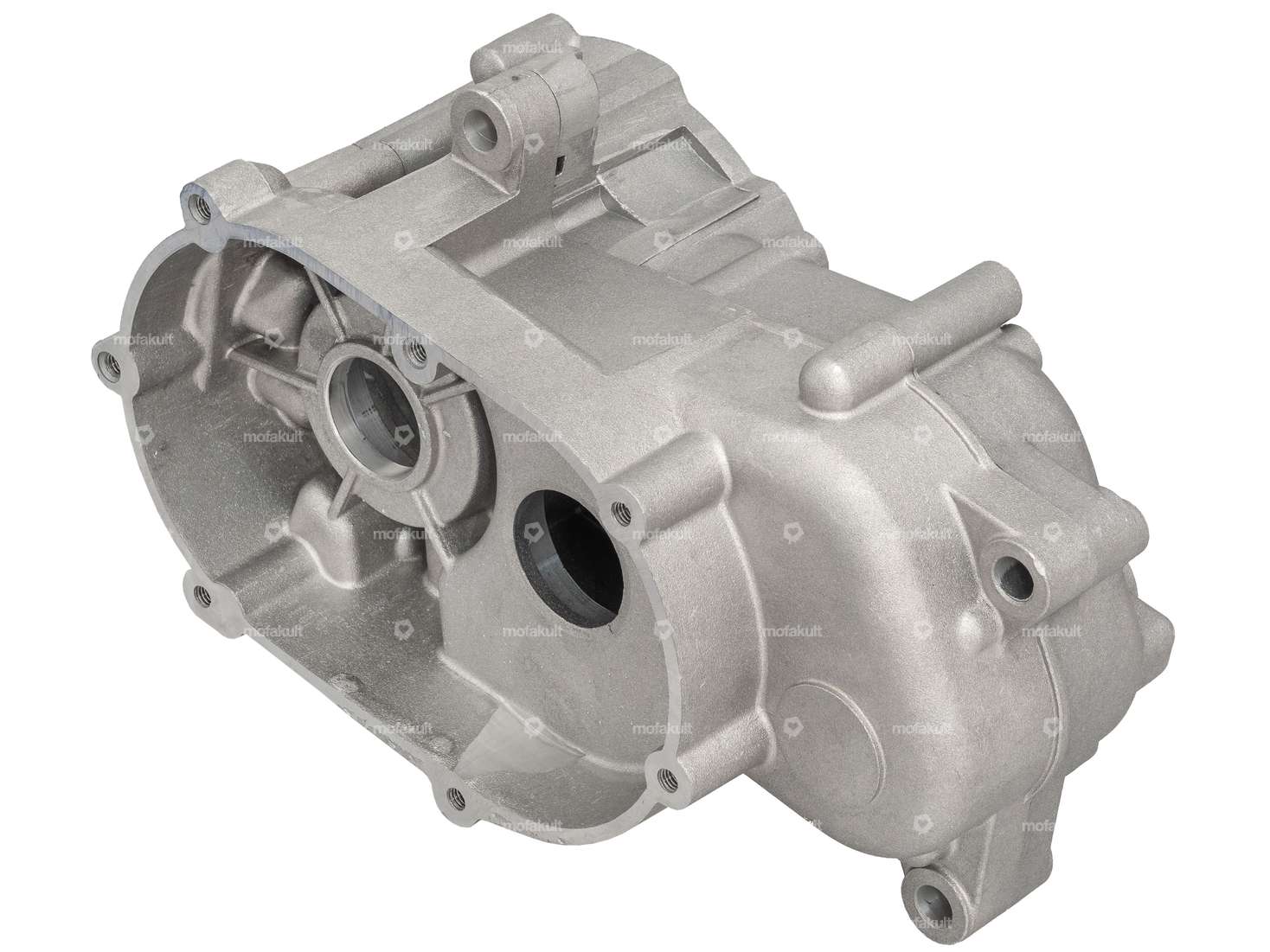

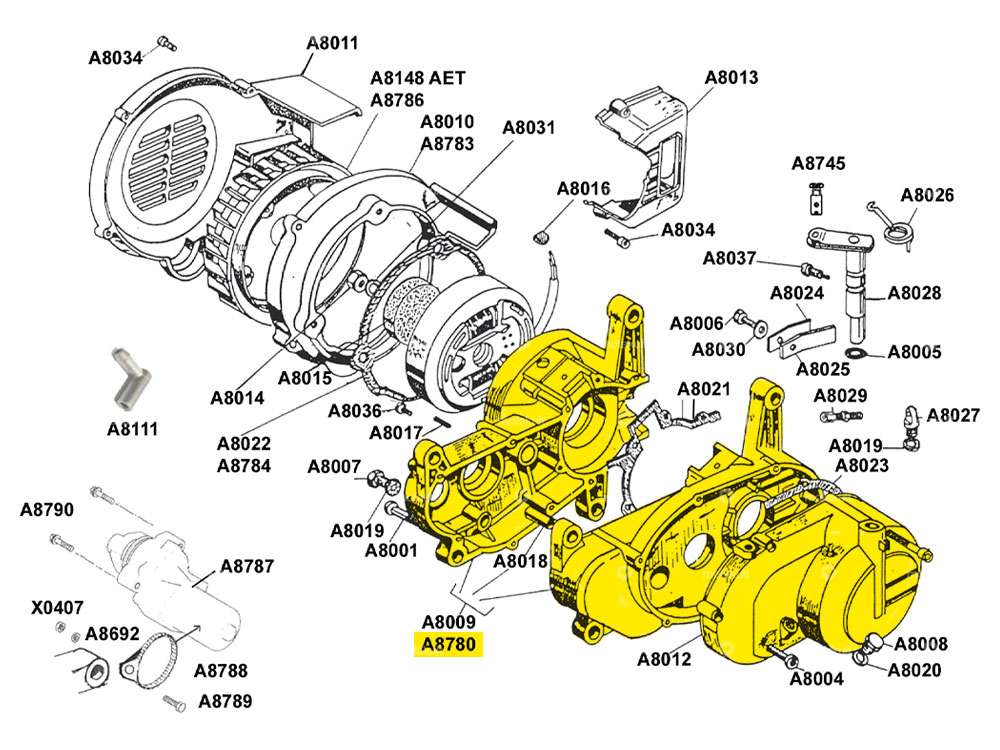

Motor housing E-Start | Beta 521 (A8780)

Motorex engine oil 450 ml | Pony / Cilo Beta 521 Automatic

Temperature resistance (min.): -36 - 200 °C · Manufacturer: Motorex · Oil type: ATF Dexron 3 (DEXIII) · Contents: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch

Engine gasket engine | Beta 521 (A8021)

Manufacturer: Pony · Material: Sealing paper · Number of components: 1 pcs · Number of fixing points: 17 pcs

Blower gasket motor | Beta 521, 512 (A8022, A8784)

Manufacturer: Pony · Material: Sealing paper · Number of components: 1 pcs · Number of fixing points: 4 pcs

Cylinder base gasket, engine Beta 521 & 512 (A8097)

Place of use: Cylinder base · Manufacturer: Pony · Thickness: 0.5 mm

Engine clutch cover gasket | Beta 521, 512 (A8023)

Manufacturer: Pony · Material: Sealing paper · Number of components: 1 pcs · Number of fixing points: 7 pcs

Clutch cover engine | Beta 521, 512 (A8012)

Manufacturer: Pony · Material: Aluminum · Color: black · Surface: varnished · Number of fixing points: 7 pcs

Elring Dirko HT sealing compound gray (silicone) 70 ml permanently elastic up to 315°C

Manufacturer: Elring · Area of application: Chemistry · Material: Silicone · Color: gray · Contents: 70 ml · Hazard warning: Causes damage to organs through prolonged or repeated exposure · Gap dimension (max.): 2 mm · Temperature resistance (min.): -60 - 315 °C

Elring Dirko HT sealing compound red (silicone) high temp. 70 ml elastic up to 315°C

Manufacturer: Elring · Area of application: Chemistry · Color: red · Contents: 70 ml · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Gap dimension (max.): 2 mm · Temperature resistance (min.): -60 - 300 °C

swiing® revival gasket set | Pony / Cilo Beta 521

Manufacturer: swiing® revival parts · Material: Copper · Material: Sealing carton · Material: Sealing paper · Number of components: 10 pcs · Hole spacing inlet: 35 mm · Ø outlet inside: 21.6 mm · Hole spacing outlet: 38 mm · Hole pattern [mm]: 48 x 48 · Decompressor: Yes · Area of application: Standard

Beta 521 engine with E-Start (A8000E)

Manufacturer: Pony · Material: Cast aluminum · Material: Plastic · Material: Steel · Area of application: Original

GPO flywheel trigger M26x1.5 / M22x1.5 | Puch, Sachs, Tomos, Beta 521

Width across flats trigger: 27 mm · Manufacturer: GPO · Clamping depth: 10 mm · Material: Steel · Surface: blackened · Number of components: 1 pcs · Width across flats Screw: 19 mm · Strength class: 8.8 · Thread type: MF22x1.5 (fine pitch thread) · Thread type: MF26x1.5 (fine pitch thread) · Total length: 55 mm · Total length: 75 mm · Area of application: (Dis)assembly tool

Woodruff key 3 x 3.7 mm

Material: Steel · Total length: 9.15 mm · Width: 3 mm · Height: 3.7 mm

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Ø Stranded wire: 1.2 mm · Nipple shape: Ball · Ø nipple: 3.5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Cable length: 1650 mm · Area of application: Standard

Motorex engine oil 450 ml | Pony / Cilo Beta 521 Automatic

Temperature resistance (min.): -36 - 200 °C · Manufacturer: Motorex · Oil type: ATF Dexron 3 (DEXIII) · Contents: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch

swiing® revival needle roller bearing 12/15/14.2 original

Bearing cage: Sheet steel cage · Manufacturer: swiing® revival parts · Bearing type: Needle sleeve · Width: 14.2 mm · Ø inside: 12 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 155 001

swiing® revival stud bolts M6 x 116 mm galvanized (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Thread type: M6x1 (standard thread) · Total length: 116 mm · Thread length: 15 mm · Thread length: 23 mm

O-ring clutch lever engine Beta 521 & 512 (A8005)

Place of use: Clutch · Manufacturer: Pony · Ø inside: 8 mm · Ø outside: 11 mm · Cord thickness: 1.5 mm

swiing® revival gasket set | Pony / Cilo Beta 521

Manufacturer: swiing® revival parts · Material: Copper · Material: Sealing carton · Material: Sealing paper · Number of components: 10 pcs · Hole spacing inlet: 35 mm · Ø outlet inside: 21.6 mm · Hole spacing outlet: 38 mm · Hole pattern [mm]: 48 x 48 · Decompressor: Yes · Area of application: Standard

swiing® revival engine revision set | Pony / Cilo Beta 521

Manufacturer: swiing® revival parts · Area of application: Standard · Number of components: 27 pcs

swiing® revival bearing & shaft seal set | Pony Beta 521

Manufacturer: swiing® revival parts · Number of components: 9 pcs · Area of application: Standard
