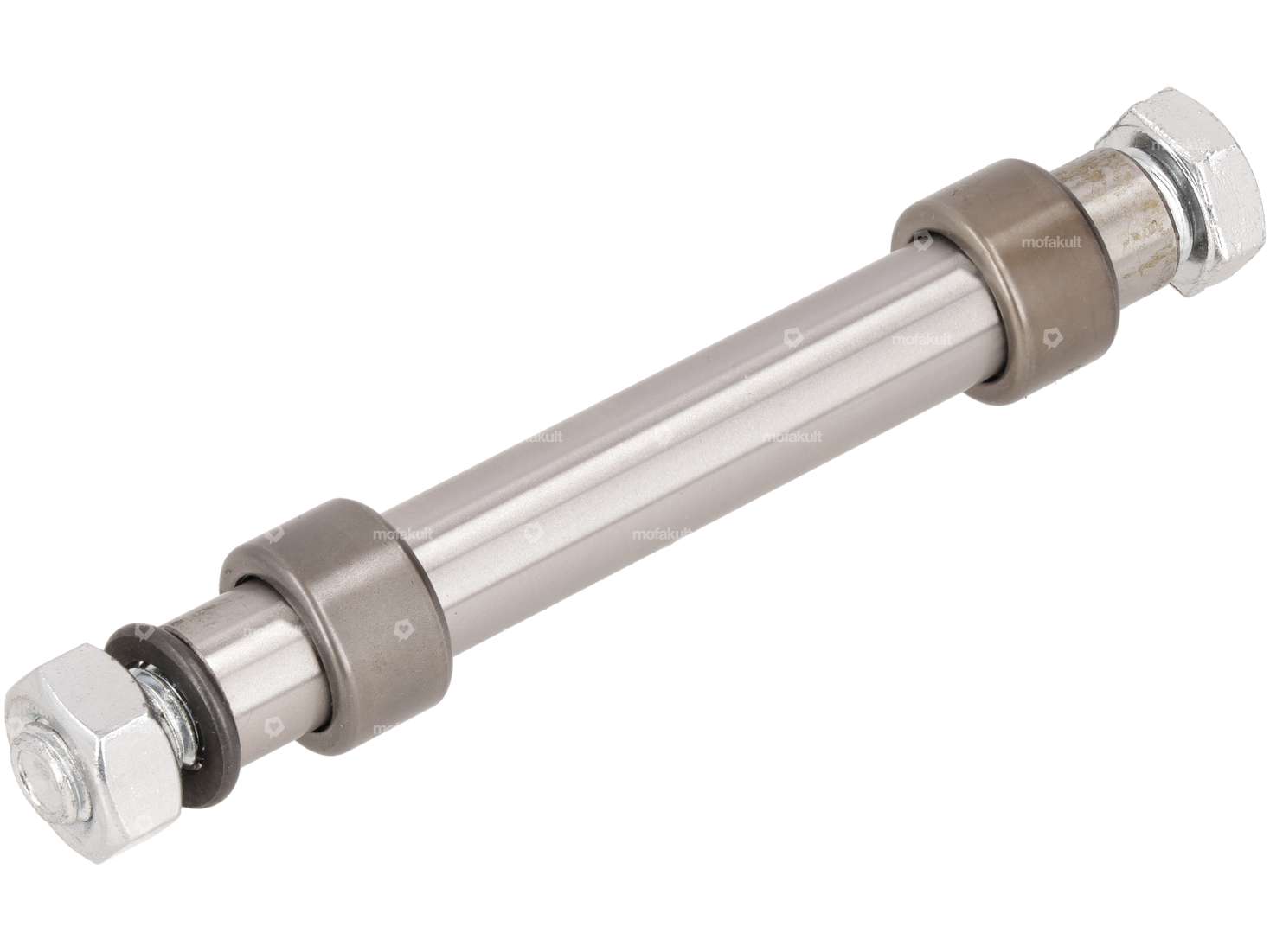

Repair kit for the axle of the substructure on your Piaggio Si, Bravo, Boxer and Grillo moped / moped.

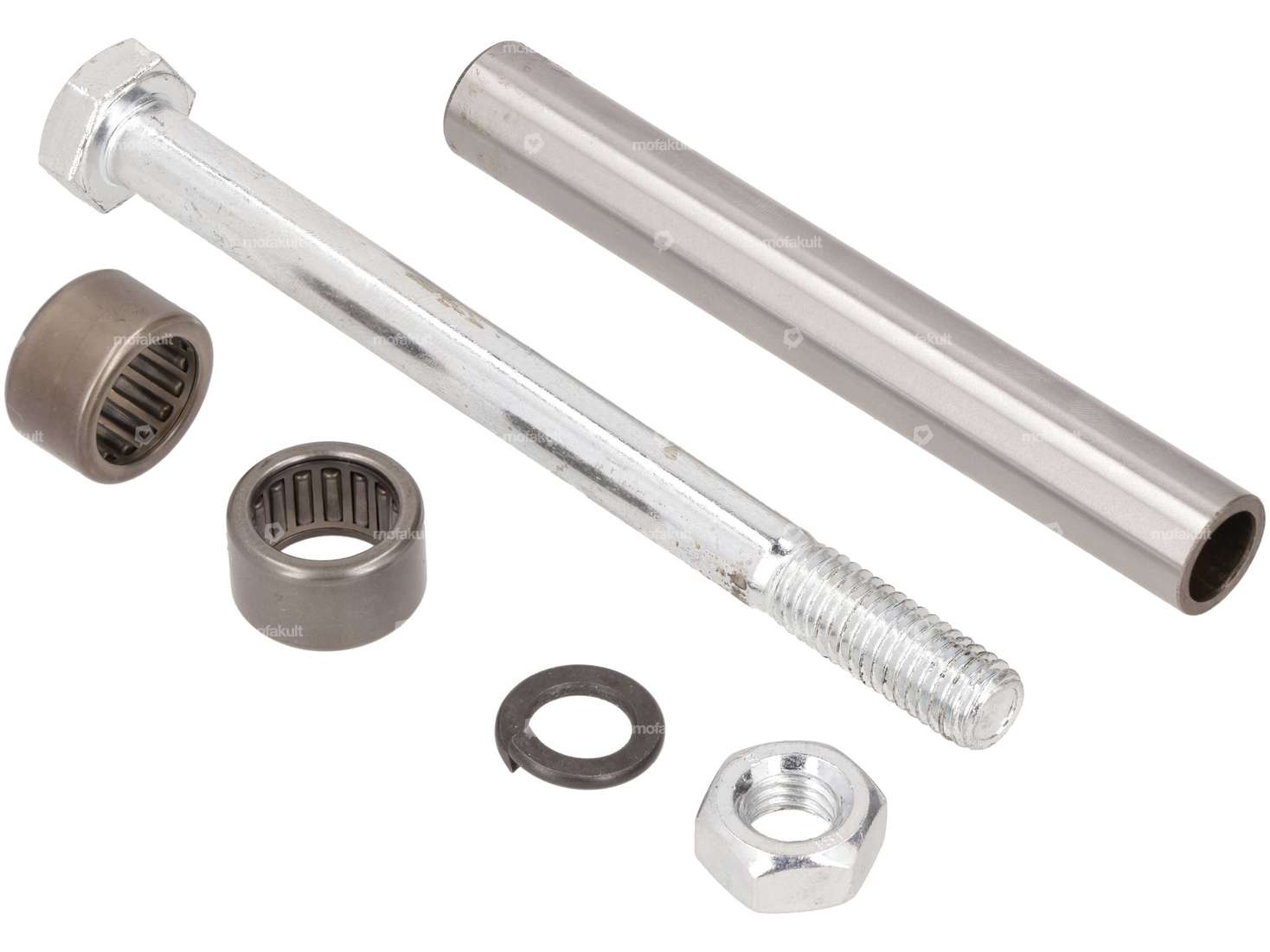

The revision kit for the swingarm consists of the screw, sliding bushes, two needle bearings as well as a nut and washer.
Ø outer sliding bush: 14 mm
Ø inner sliding bush: 10 mm
Ø outer needle bearing: 20 mm
Screw: M10 x 120
Made by the Italian brand Olympia.
Details
| Manufacturer | Olympia |
| Material | Steel |
| Surface | galvanized (blue) |
| Color | silver |
| Drive | External hexagon |
| Thread type | M10x1.5 (standard thread) |
| Ø inside | 10 mm |
| Total length | 120 mm |
| Ø outside | 14 mm |
| Ø axle | 10 mm |
| Ø External bearing | 20 mm |
Suitable for the following models
| Piaggio | Si Bravo / Super Bravo Boxer Grillo |
