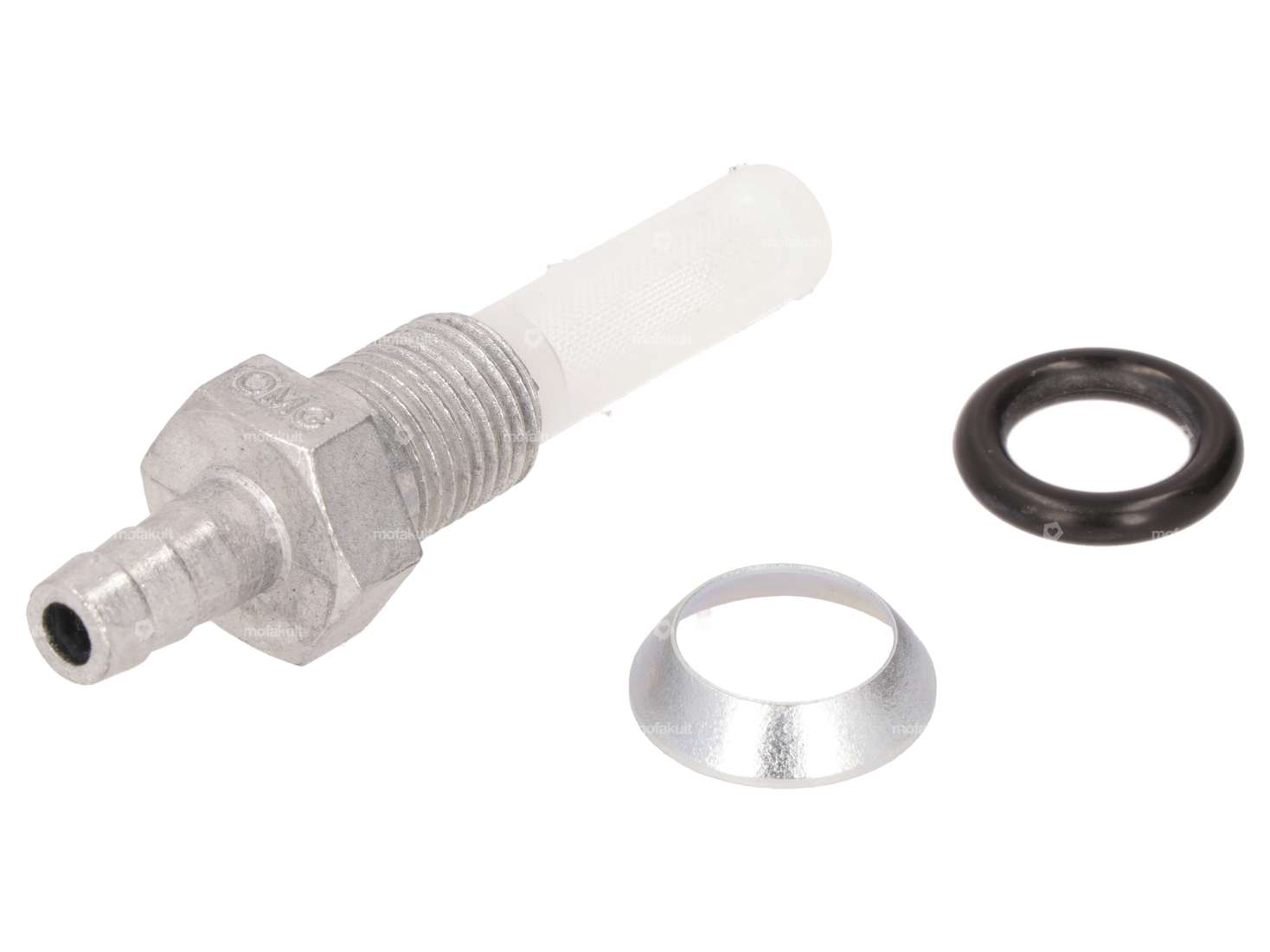

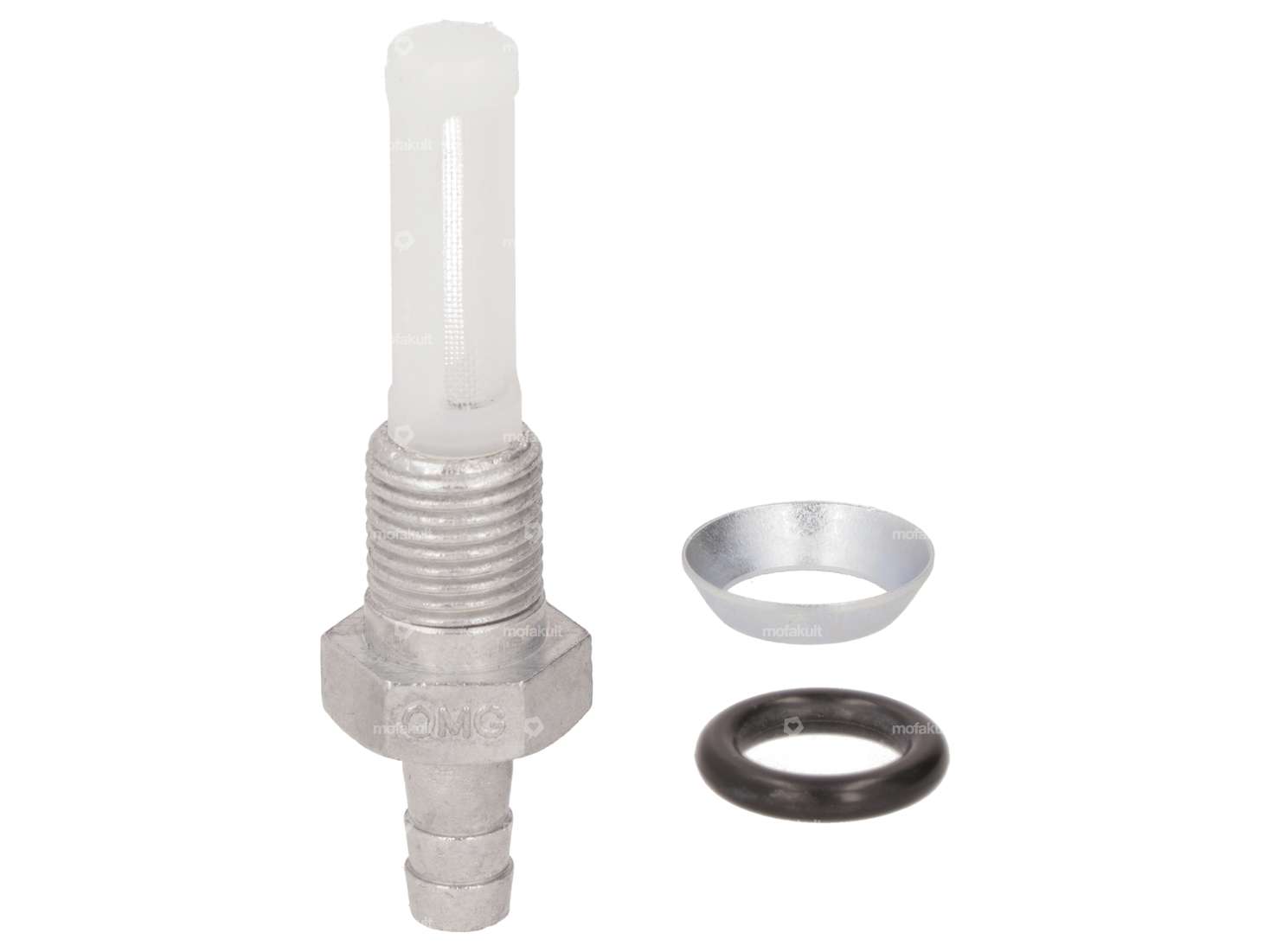

Universally usable fuel connection with M10x1 mm thread and downwardly extending nozzle for your moped, moped or small motorcycle. The fuel outlet has no locking position and is always open.
The fuel connector has the following features:
Connection thread: MF10 x 1 mm (fine thread)
Connection type: screw-in thread
Screw width (SW): 13 mm
Positions: open
Ø fuel hose connection: 6 mm / 5.5 mm
Filter length: 23 mm
Total length: 52 mm
Fuel hose, fuel filter and a fuel tap for between the fuel line can be found in the accessories.
Quality product from the Italian manufacturer OMG.
| Manufacturer | OMG |
| Outer width | 13 mm |
| Material | Aluminum, Plastic |
| Filter type | Plastic net |
| Thread type | MF10x1 (fine pitch thread) |
| Installation direction | vertical / vertical |
| Outlet direction | below |
| Mounting type | screw in (thread) |
| Ø fuel hose connection | 6 mm, 5.5 mm |
