Pinasco «Master» engine case with crankshaft (46 mm stroke / 12 mm KoBo) and normal intake suitable for your Piaggio Ciao, Si, Bravo, Boxer, Grillo moped / moped.
The Pinasco «Power Casing» engine case is supplied with a specially developed crankshaft, which has a wide cheek for controlling the intake. A standard 13 mm Dellorto SHA carburettor can be fitted to the rear of this case.
The following parts are included in the scope of delivery:
- Rear intake flange (connection diameter: 16 mm, Ø inside: 13 mm)
- Cylinder studs
- Engine housing (Ø for cylinder necks up to 50.7 mm)
- Engine housing screws
- Crankshaft Pinasco Competition with 46 mm stroke and 12 mm piston pin (axe 12)
- Installation instructions in English & Italian
No housing seal is supplied. Sealing compound is used for sealing.
We recommend using the 46 mm Pinasco cylinder kit for this racing gear. In addition, only electronic ignitions can be fitted to this housing.
Installation instructions:
- When using the crankshaft with 46 mm stroke, the housing must be slightly recessed inside so that the connecting rod does not protrude
- The cylinder must be raised by approx. 1.5 mm due to the higher stroke. We recommend checking the crushing edge before commissioning. This should be 0.8 - 1.0 mm.
- If the engine is installed in a Piaggio Ciao frame, some material must be removed from the right-hand side of the housing and cylinder. This process is described in the assembly instructions.
Corresponding add-on parts such as sealant, racing kit, racing ignition etc. can be found in the accessories section.
Quality product from the Italian manufacturer Pinasco.
Details
| Manufacturer | Pinasco |
| Material | Aluminum |
| Crankshaft stroke | 46 mm |
| Ignition type | Electronic |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
Malossi racing ignition 12V | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Material: Steel · Light coil voltage: 12 V · Performance: 90 W · Direction of rotation: right · Ø Internal flywheel: 80.5 mm · Ø Flywheel outside: 105 mm · Ø Flywheel outside: 139.5 mm · Ø cable: 7 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Weight: 804 g · Weight: 890 g · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning
EUR 489.10
SKF 6202 C3 ball bearing 15/35/11
Bearing type: Deep groove ball bearing · Stock number: 6202 · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Puch OEM number: 900.4.6202
EUR 12.10
Elring Dirko HT sealing compound gray (silicone) 70 ml permanently elastic up to 315°C
Temperature resistance (min.): -60 - 315 °C · Manufacturer: Elring · Material: Silicone · Color: gray · Contents [ml]: 70 ml · Area of application: Chemistry · Hazard warning: Causes damage to organs through prolonged or repeated exposure · Gap dimension (max.): 2 mm
EUR 24.30
EUR 347.14/l
Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao P, SC
Width: 60 mm · Manufacturer: Dell'Orto · Material: Aluminum · Component group Carburetor: Carburetor complete · Color: black · Area of application: Tuning · Carburetor type: SHA (Piaggio) · Choke control: Hand choke · Nominal diameter: 13 mm · Total length: 55 mm · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Ø Internal connection: 16 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.9 mm · Height: 110 mm · Mixed oil connection: No · Mounting type: Plug connection clamped · Vacuum connection: No · Camouflaged: No · Nozzle size: 66
EUR 85.50
Not in stock
Malossi oil seal FPM 15/24/5 A crankshaft | Piaggio Ciao, SI, Bravo, Boxer
Temperature resistance (min.): -30 - 200 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Width: 5 mm · Manufacturer: Malossi · Material: FPM / FKM (known as VITON®) · Surface: rubberized · Place of use: Crankshaft · Ø inside: 15 mm · Ø outside: 24 mm
EUR 17.50

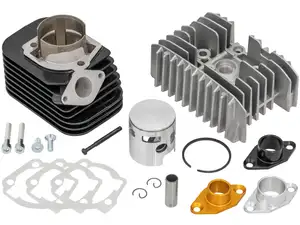

Pinasco 46 mm cylinder kit EVOTEN BIG 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Pinasco · Material: Aluminum · Surface: varnished · Area of application: Tuning · Displacement: 71 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 46 mm · Ø cylinder neck: 49.9 mm · Ø Outlet outside: 22.5 mm · Ø Outlet outside: 25 mm · Ø Outlet outside: 28 mm · Number of fixing points: 3 pcs · Ø outlet inside: 18.5 mm · Ø outlet inside: 20.9 mm · Ø outlet inside: 24.4 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 47.5 mm · Outlet type: clamped · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 55 x 34 · Decompressor: Yes · Camouflaged: No
EUR 513.50

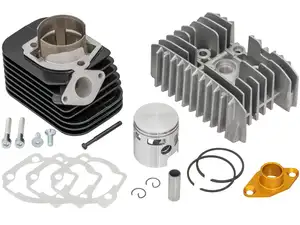

Pinasco 46 mm cylinder kit EVOTEN 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Pinasco · Material: Aluminum · Surface: varnished · Area of application: Tuning · Displacement: 71 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 46 mm · Ø cylinder neck: 50 mm · Ø Outlet outside: 22.5 mm · Number of fixing points: 3 pcs · Ø outlet inside: 18.5 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 48 mm · Outlet type: clamped · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 55 x 34 · Decompressor: Yes · Camouflaged: No
EUR 464.60
Moped fans like you also bought:

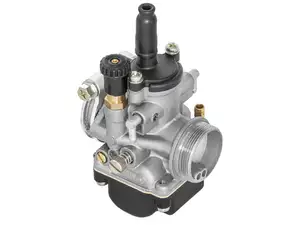

Dell'Orto 16 mm PHBG AS carburetor hand choke
Manufacturer: Dell'Orto · Component group Carburetor: Carburetor complete · Carburetor type: PHBG AS · Nominal diameter: 16 mm · Ø Internal connection: 24 mm · Ø without reducing sleeve: 26 mm · Ø Air filter connection: 32 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Choke nozzle size: 60 · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 74 · Size of secondary nozzle: 50 · Mounting type: Plug connection clamped · Width: 75 mm · Height: 125 mm · Area of application: Tuning
EUR 158.90
swiing® ingenious 16 mm SHA intake manifold Speed Engine (Version 2.0) | Piaggio Ciao, SI, Bravo
Manufacturer: swiing® ingenious parts · Camouflaged: No · Material: Aluminum · Surface: anodized · Color: graphite colors · Ø inside: 16 mm · Ø External connection: 19 mm · Mounting type: Screws · Hole spacing inlet: 36 mm · Number of fixing points: 2 pcs · Total height: 24.2 mm · Total length: 29 mm · Area of application: Tuning
EUR 40.20
Pinasco 46 mm cylinder kit EVOTEN 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Pinasco · Material: Aluminum · Surface: varnished · Area of application: Tuning · Displacement: 71 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 46 mm · Ø cylinder neck: 50 mm · Ø Outlet outside: 22.5 mm · Number of fixing points: 3 pcs · Ø outlet inside: 18.5 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 48 mm · Outlet type: clamped · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 55 x 34 · Decompressor: Yes · Camouflaged: No
EUR 464.60
Hot
Malossi Fly Clutch converter Vario Ø 102 mm | Piaggio SI, Bravo, Boxer
Manufacturer: Malossi · Material: Steel · Gearbox type: Vario · Number of jaws: 3 pcs · Number of springs: 3 pcs · Angle pulley: 15 ° · Ø outside: 102 mm · Hardness level Counter pressure spring: Level 2 (35 kg - yellow / blue / black) · Weight: 1170 g
EUR 244.50

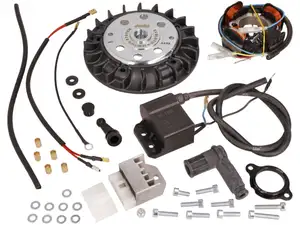

Polini EVO Electronic ignition | Piaggio Ciao, SI, Bravo, Boxer
