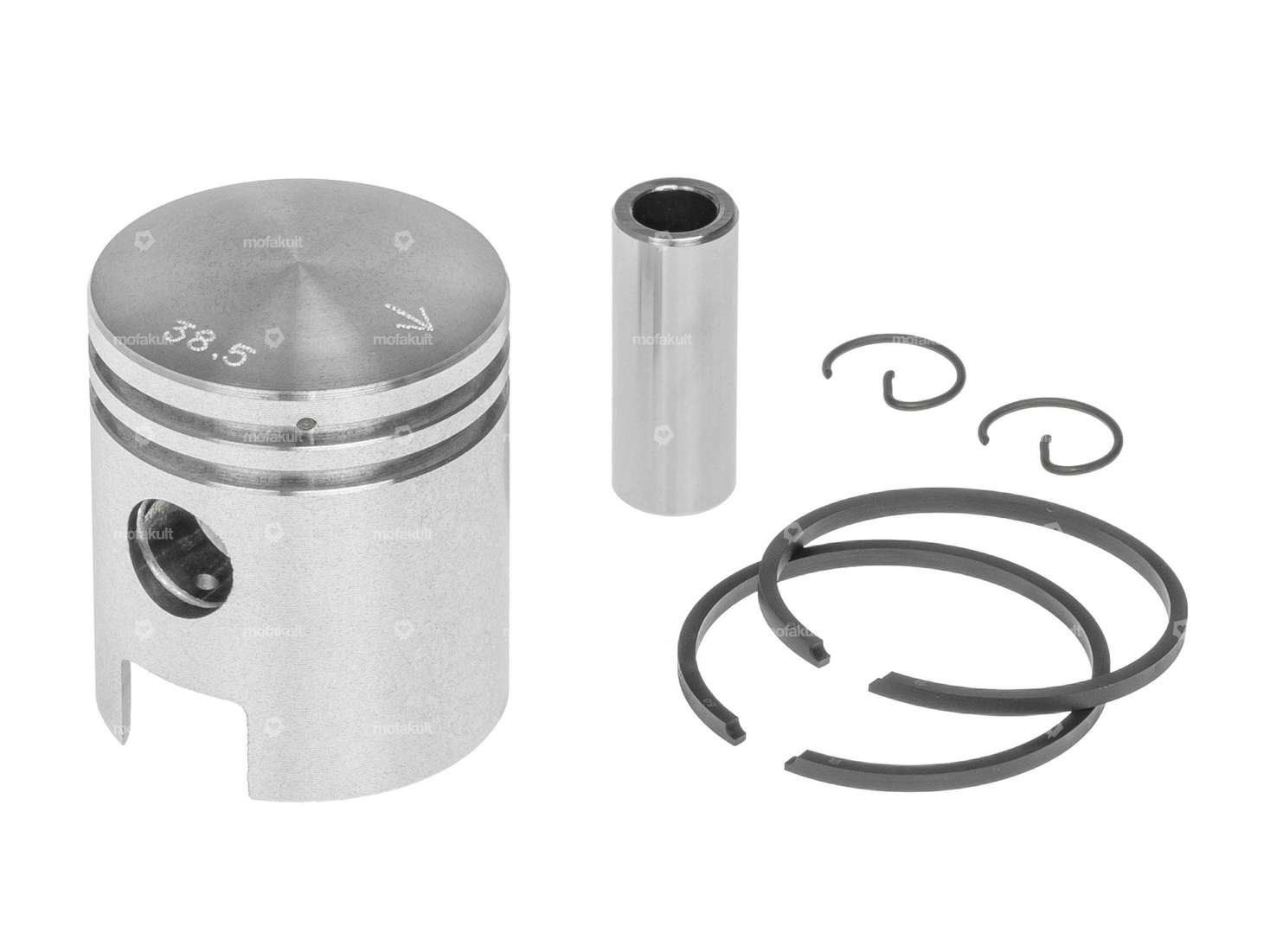

Piston 38 mm | Victoria MS50 / MS51

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Surface: blank · Number of sensors / lugs: 1 pcs · Ø outside: 12 mm

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents [ml]: 1000 ml · Color: red

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Surface: blank · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Sachs OEM no.: 0245 000 000 · Tomos OEM number: 032039

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Material: Steel · Surface: burnished · Area of application: (Dis)assembly tool · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Total length: 130 mm · Number of components: 7 pcs

Piston 38.5 mm | Victoria MS50 / MS51

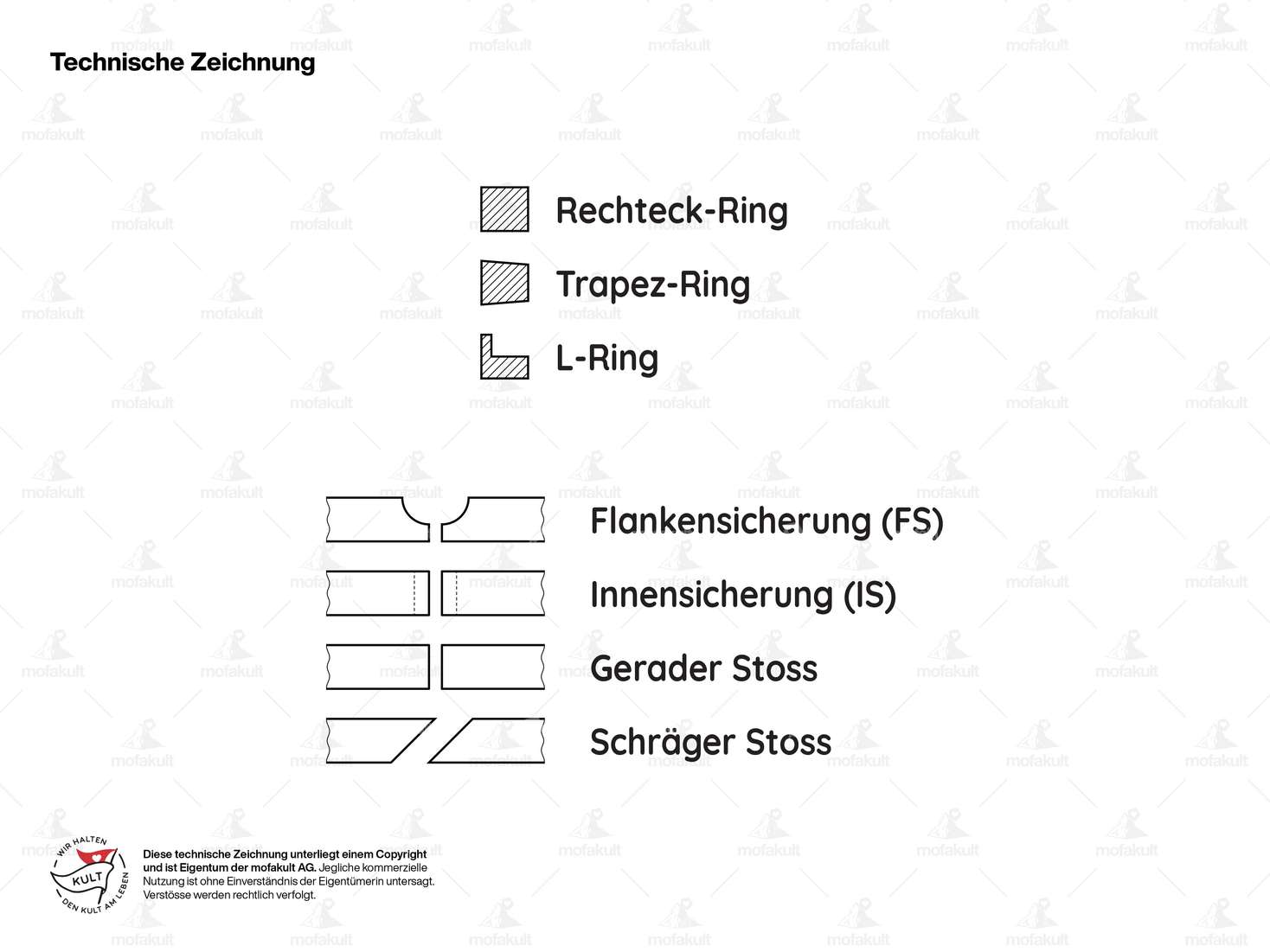

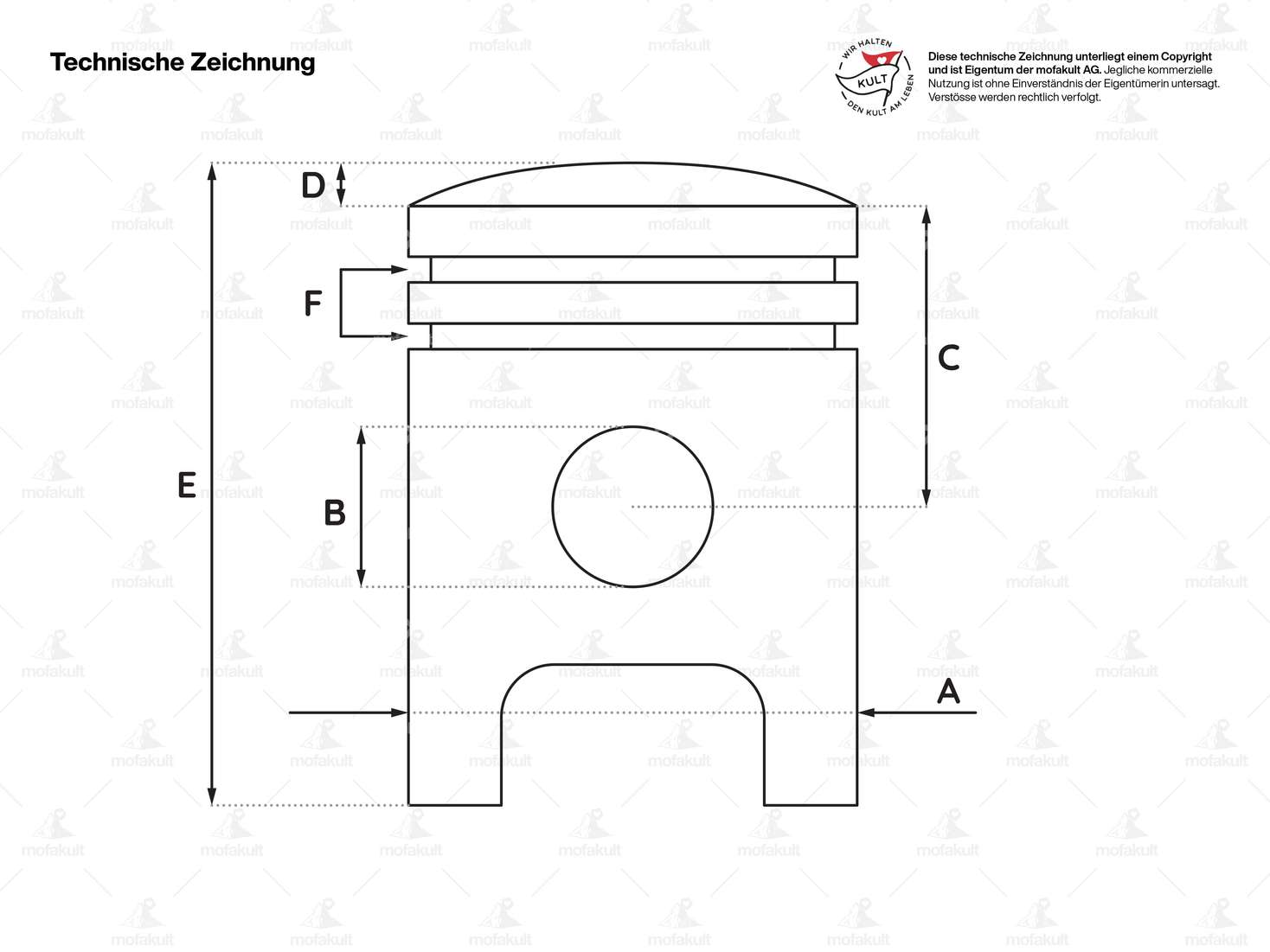

Nominal diameter: 38 mm · Ø outside piston (A): 38.45 mm · Ø piston pin (B): 12 mm · Compression height (C): 19.8 mm · Curvature (D): 2.2 mm · Total piston height (E): 40.05 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Piston weight: 71 g

Piston 39 mm | Victoria MS50 / MS51

Nominal diameter: 39 mm · Ø outside piston (A): 38.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 19.8 mm · Curvature (D): 2.15 mm · Total piston height (E): 46.05 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Piston weight: 74 g

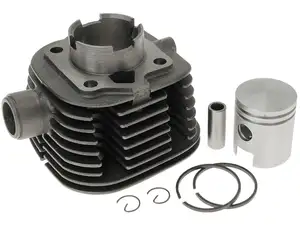

Cylinder 38 mm | Victoria MS50/MS51 (M50)

Nominal diameter: 38 mm · Material: Gray cast iron · Surface: sandblasted · Displacement: 50 ccm · Ø Outlet outside: 28 mm · Hole spacing inlet: 33 mm · Area of application: Standard · Ø piston pin (B): 12 mm · Hole pattern [mm]: 46 x 46 · Outlet type: clamped · Number of fixing points: 4 pcs · Camouflaged: No

Honing brush Ø 38 - 51 mm Cylinder

Grain size: 180 · Drive shank Drill chuck: round · Material: Silicon carbide · Number of components: 1 pcs · Diameter: 38 - 51 mm · Area of application: Workshop accessories

Continental 2.25 x 19" whitewall

Manufacturer: Continental · Tire width [inch]: 2.25 " · Color: black and white · Tire width [mm]: 57.15 · Width [inch]: 2 1/4 · Speed index: B = 50 km/h · Load capacity index: 41 = 145 kg · Profile type: KKS 10 · Tire type: Allround · Old designation: 23 x 2.25 · White wall: Yes · Wheel size [inch]: 19 " · Tubeless (yes/no): Tubetype TT (requires hose)

Starter lever Magura replica

Manufacturer: Made in Portugal · Place of use: left · Surface: raw · Color: black · Total length: 90 mm · Thickness: 4.1 mm · Thickness: 12.5 mm

GPO LED bulb 12V (BA15s) white 1-phase

Manufacturer: GPO · Test mark: none · Tension: 12 V · Color: white · Total length: 48 mm · Bulb holder: BA15s · Ø base: 15 mm · Ø Lamp head: 18 mm · LED: Yes

swiing® ingenious LED bulb rear light 12V (BA9s) white 1-phase

Manufacturer: swiing® ingenious parts · Tension: 12 V · Color: white · Bulb holder: BA9s · Ø base: 9 mm · Total length: 33 mm · Test mark: none · Ø Lamp head: 12 mm · LED: Yes

Heidenau 2.25 x 19" tube

Valve type: TR6 car valve · Manufacturer: Heidenau · Tire width [inch]: 2.25 " · Tire width [mm]: 57.15 - 57.15 · Width [inch]: 2 1/4 · Tire height [%]: 100 · Old designation: 23 x 2.25 · Wheel size [inch]: 19 "

Petrol hose Ø 5 / 7 mm transparent 5 m

Manufacturer: Made in Italy · Material: Plastic · Color: transparent · Ø inside: 5 mm · Ø outside: 7 mm · Total length: 5000 mm

Engine gasket set | M51/ MS50/ MS51

Number of components: 7 pcs · Area of application: Standard

swiing® ingenious 38 mm cylinder kit CH12 Vertex-Edition "Tuning" camouflaged | Puch

Nominal diameter: 38 mm · Manufacturer: Vertex · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 20 mm · Inlet window: 24 / 21 x 15 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Area of application: Tuning · Decompressor: Yes · Ø piston pin (B): 12 mm · Hole pattern [mm]: 44 x 44 · Outlet type: straight · Number of fixing points: 4 pcs · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Camouflaged: Yes · Alternative version of the Puch OEM number: 349.7.10.105.0

GPO 15 mm intake manifold | Puch ZA50

Manufacturer: GPO · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Ø inside: 15 mm · Total length: 51.5 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Height flange center hole: 52.5 mm · Total height: 63 mm · Ø External connection: 20 mm · Hole spacing inlet: 32 - 38 mm

GPO adjusting nozzle Bing SSB Sachs (1A quality)

Manufacturer: GPO · Material: Brass · Component group Carburetor: Spraying · Surface: blank · Quantity: 1 pcs · Carburetor type: SSB · Drive: External hexagon · Nozzle type: Main nozzle · Width across flats SW: 11 mm · Total length: 58 mm · Nozzle thread: MF7x0.75 (fine pitch thread)
