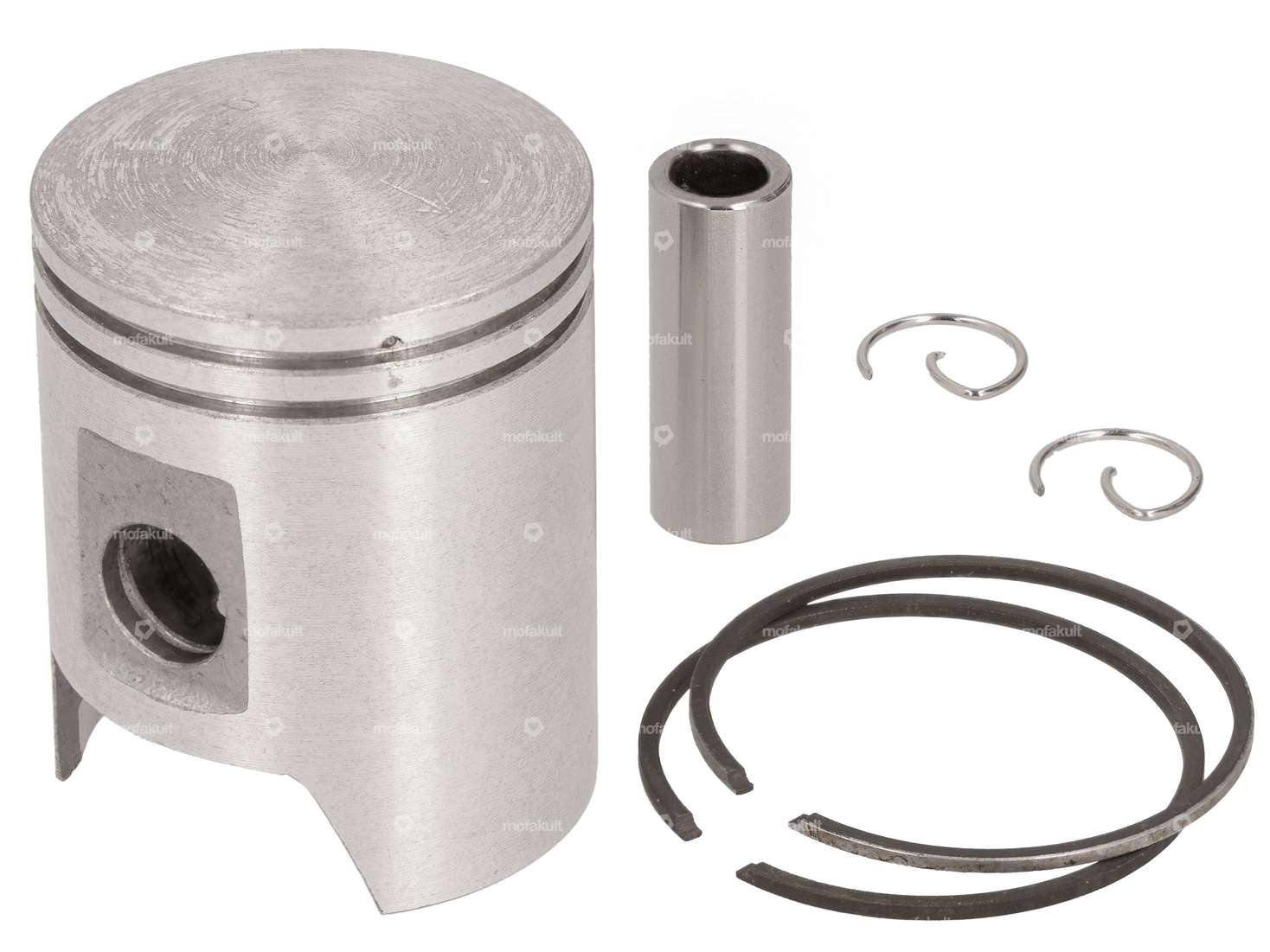

43.70 mm ¨ous piston with two pieces of 1.5 mm rectangular piston ring with flank lock (FS) for the Hero cylinder kit for various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Ø outside piston (A) | 43.7 mm |
| Ø piston pin (B) | 12 mm |
| Compression height (C) | 27.5 mm |
| Curvature (D) | 2.7 mm |
| Total piston height (E) | 57.2 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 43.5 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 1.5 mm |
| Weight piston kit | 97 g |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
