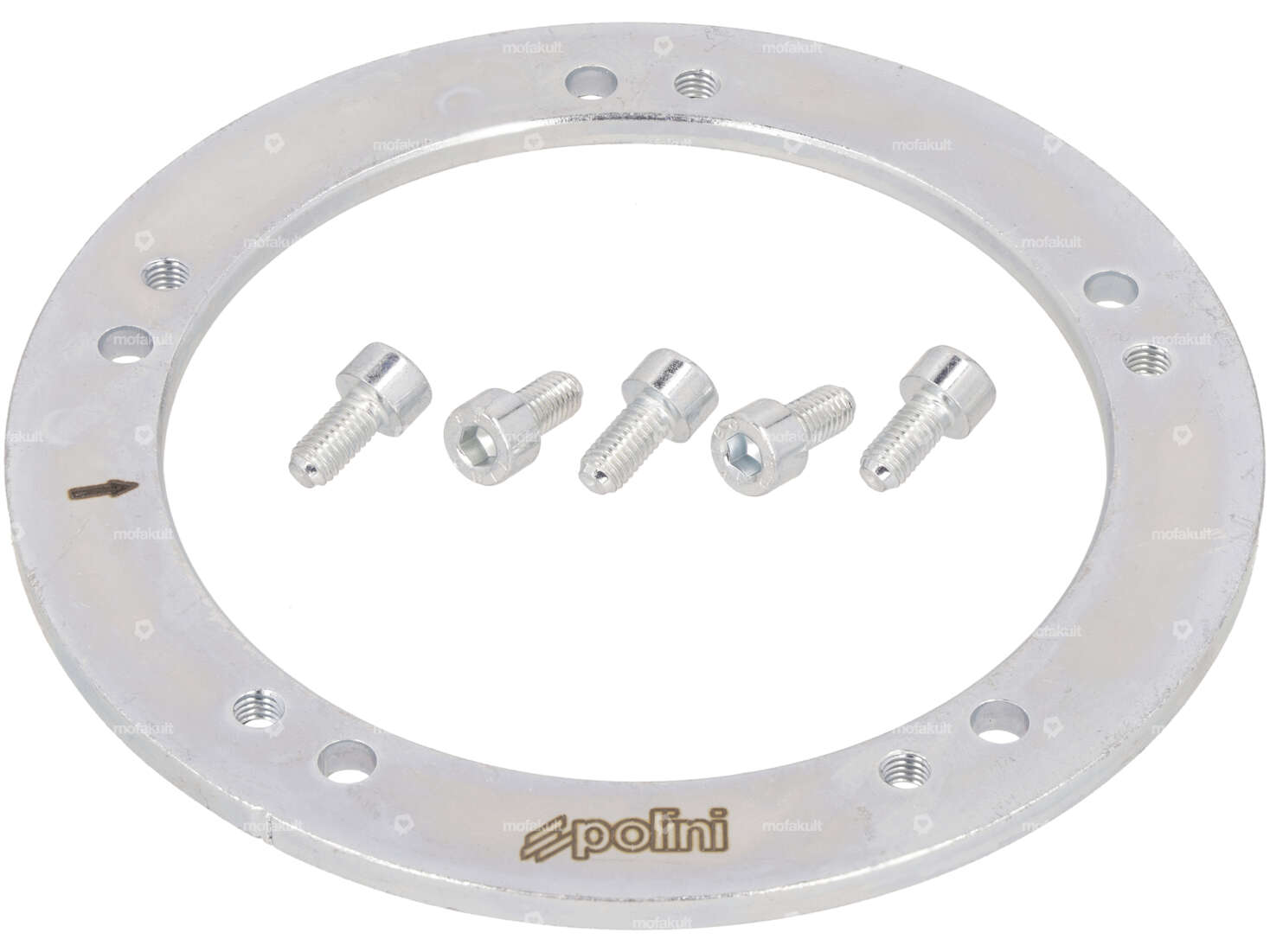

Additional weight, specially developed for the EVO ignition from Polini. It is used in conjunction with engine cases with reed valve intake and a full cheek crankshaft on your Piaggio Ciao, Si, Bravo and Boxer moped/moped
The balancing weight gives your engine a smooth, even running when stationary and improves the «starting behavior». Depending on the setting, even more torque can be achieved with the additional weight.
The flywheel is suitable for all gearbox types that are operated with a diaphragm system and full cheek shaft. In addition to the Polini EVO REED, this also includes the Malossi MP-One engine housing.
Supplied with the required fastening screws.
You can find other parts from the EVO series, such as the complete ignition, in the accessories section.
Quality product from the Italian manufacturer Polini.
| Manufacturer | Polini |
| Thickness | 4 mm |
| Material | Steel |
| Surface | galvanized (blue) |
| Ø inside | 90 mm |
| Area of application | Tuning |
| Ø outside | 120 mm |
| Number of fixing points | 5 pcs |
| Weight | 150 g |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
