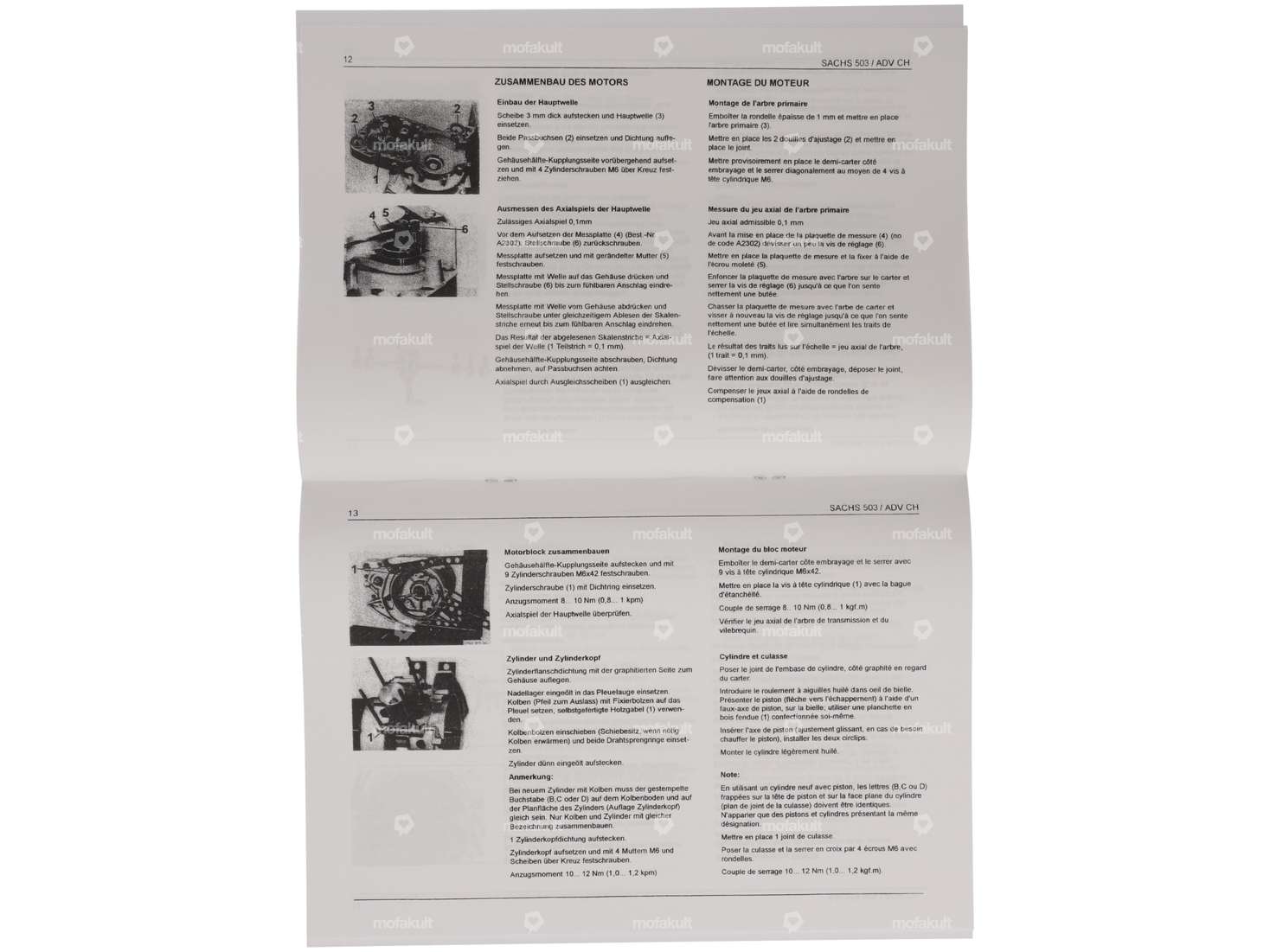

Nostalgic repair manual with various exploded views and descriptions for repairing your Sachs 503 ADV CH moped / moped engine.
All aspects of the engine are described in detail and are illustrated by comprehensive overhaul instructions, numerous pictures and important facts.

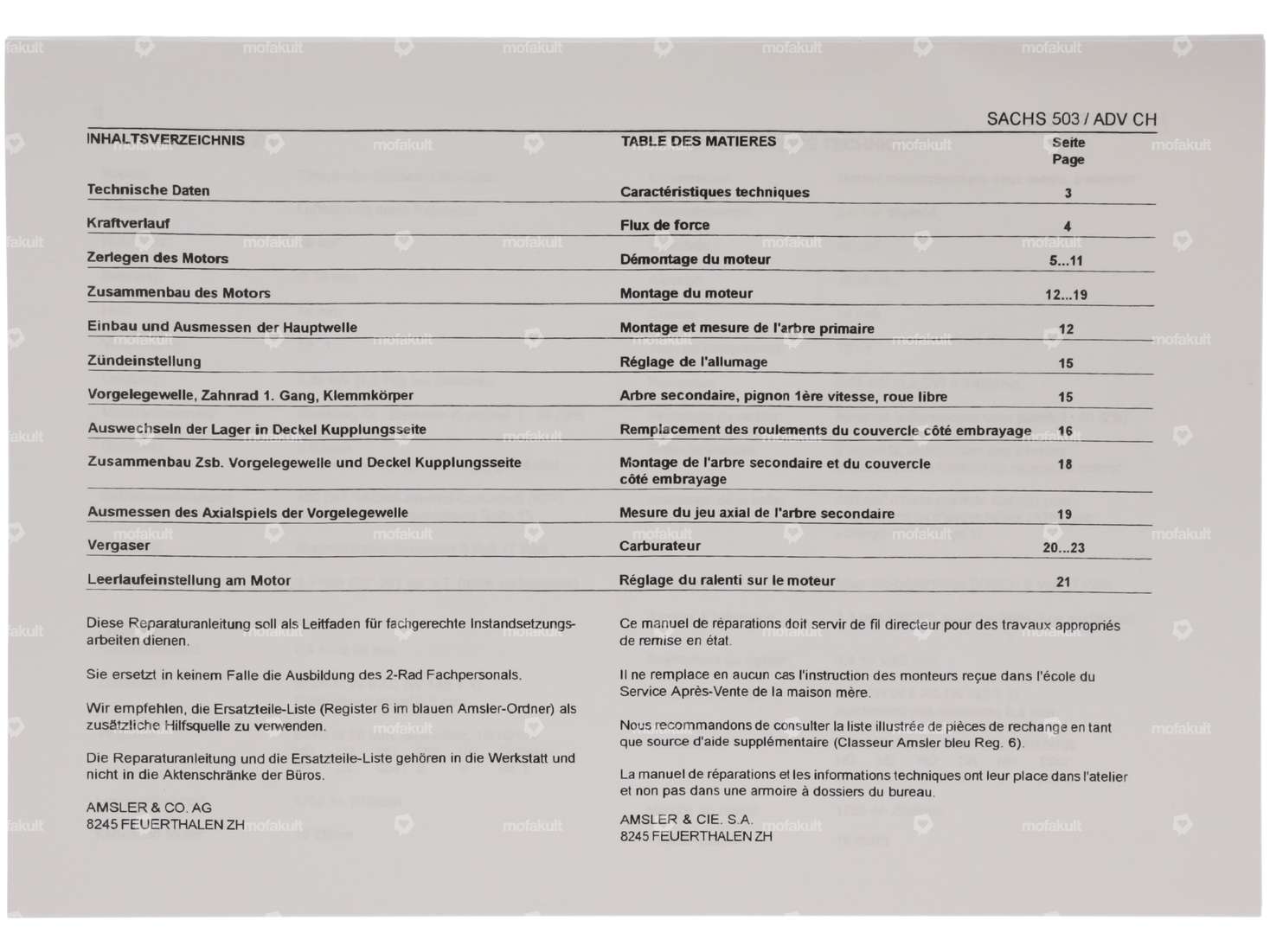

In addition, the following areas are explained in detail: technical data, special tools, engine, inspection work, carburetor and the ignition system.
| Material | Paper |
| DIN format | A4 |
| Number of pages | 28 pcs |
| Language | German, French |
| Sachs | 503 - ADV |
Accessories & related products
Explore categories from Literature & Posters
Moped fans also bought
Oil seal NBR 17/33/7 B DUO crankshaft | Sachs 503 AB, ADV
Shaft seal type: B DUO - With sheet metal outer casing / two sealing lips. · Width: 7 mm · Manufacturer: Sachs · Ø outside: 33 mm · Place of use: Crankshaft · Material: NBR · Ø inside: 17 mm · Temperature resistance (min.): -30 - 100 °C
EUR 10.90
NSK 6201 ball bearing 12/32/10
Bearing type: Shoulder bearing · Bearing cage: Sheet steel cage ball-guided · Stock number: 6201 · Width: 10 mm · Inner ring width: 10 mm · Manufacturer: NSK · Ball bearing closed: No · Ø outside: 32 mm · Bearing clearance: CM (special/noise-reduced) · Groove ring: No · Material: Steel · Ø inside: 12 mm · Area of application: Standard
EUR 10.40
swiing® revival gearbox cover gasket | Sachs 503 AAL, ABL, AB, AC, ADV, 2AL, 2BL (A1888)
Color: sand-colored · Total length: 200 mm · Width: 130 mm · Thickness: 0.35 mm · Manufacturer: swiing® revival parts · Number of fixing points: 6 pcs · Material: Sealing paper · Number of components: 1 pcs · Pony OEM number: A1888 · Sachs OEM no.: 0250 150 000
EUR 6.65
Shaft seal NBR 14.96x31.5x3.5 Pinion shaft | Sachs 502, 50/2, 503 (A1134)
Width: 3.5 mm · Manufacturer: Sachs · Ø outside: 31.5 mm · Material: NBR · Place of use: Pinion shaft · Ø inside: 14.96 mm · Temperature resistance (min.): -30 - 100 °C · Pony OEM number: A1134 · Sachs OEM no.: 0230 011 100 · Sachs OEM no.: 0230 011 200
EUR 9.20
Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)
Shaft seal type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Ø outside: 30 mm · Material: NBR · Width: 7 mm · Ø inside: 15 mm · Temperature resistance (min.): -30 - 100 °C · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000
EUR 6.65
swiing® revival gasket set | Sachs 503 ADV wide screen Cat.
Manufacturer: swiing® revival parts · Material: Copper · Material: Fiber · Material: Rubber · Material: Sealing carton · Material: Sealing paper · Ø outlet inside: 23.3 mm · Hole pattern [mm]: 56 x 56 · Hole spacing inlet: 38 mm · Decompressor: No · Number of components: 15 pcs · Area of application: Standard
EUR 55.00
