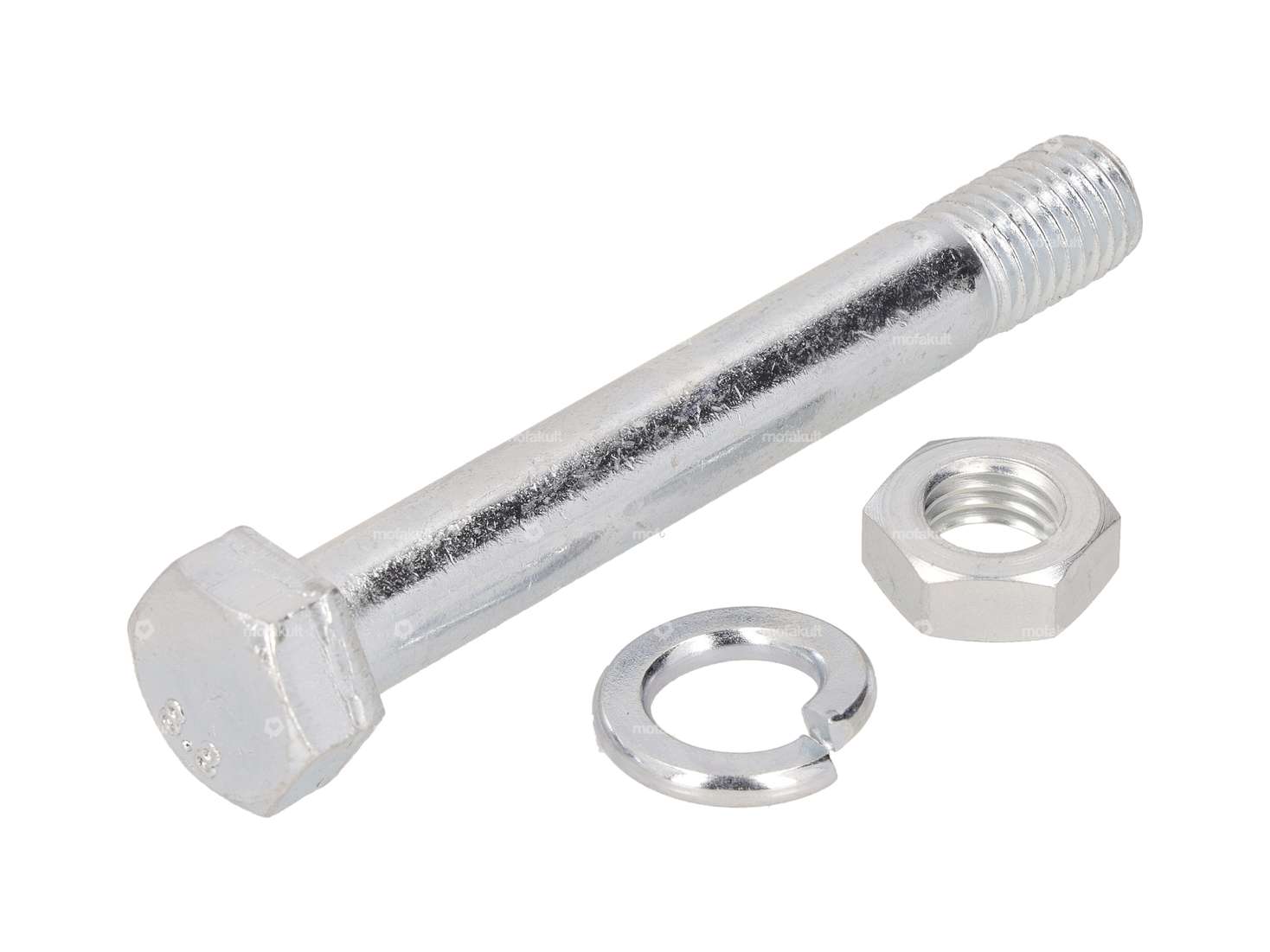

Screw set for attaching the rear shock absorber to the engine housing, suitable for your Vespa Largeframe and Smallframe scooter. You can find a list of the exact models below in the drop-down menu under «suitable for the following models».
The scope of delivery includes the screw, nut and snap ring.
You can find the matching silent rubber in the accessories section.
Original Piaggio spare part number: 014689, 12263
| Material | Steel |
| Surface | galvanized (blue) |
| Thread type | M9x1.25 (standard thread) |
| Nominal diameter (thread) | 9 mm |
| Screw head | Hexagon |
| Thread length | 12.5 mm |
| Drive | External hexagon |
| Width across flats | 14 mm, 13 mm |
| Shank | Yes |
| Strength class | 8.8 |
| Number of components | 3 pcs |
| Piaggio OEM number | 014689, 12263 |
| Vespa | Vespa PX, T5, Cosa - PX80 E Lusso · V8X1T · 1983 - 1993 Lusso / Arcobaleno , PX100E · VIX1T · Indien , P125X · VNX1T · 1977 - 1982 (PX alt) Aussenverschluss , P125X · VNX2T · 1981 - 1984 (PX alt) Innenverschluss , PX125 E · VNX2T · 1982 - 1993 / Lusso / Arcobaleno , PX125 · VNX2T · 1993 - 1996 Classic , PX125 · VNX2T · 1997 - 1999 (Disc) , T5 125 · VNX5T · 1985 - 1993 , PX125 · ZAPM471 · 2001 MY Katalysator (Millenium) , P150X · VLX1T · 1978 - 1993 , P150S · VBX1T · 1978 - 1990 , PX150 · ZAPM742 · 2001 MY Katalysator (Millenium) , P200E · VSX1T · 1977 - 1984 (Zündschloss Lenkkopf) , PX200 · VSX1T · 1984 - 1993 Lusso / Arcobaleno , PX200 · VSX1T · 1993 - 1996 Classic , Cosa 125 · VNR1T · I 1988 - 1992 II 1992 - 1998 , PX200 · VSX1T · 1997 - 1999 (Disc) , Cosa 150 · VLR1T · I 1988 - 1991 II 1992 - 1995 , Cosa 200 · VSR1T · I 1988 - 1992 II 1992 - 1998 , P80X · V8X1T · alt (Zündschloss Lenkkopf) |
