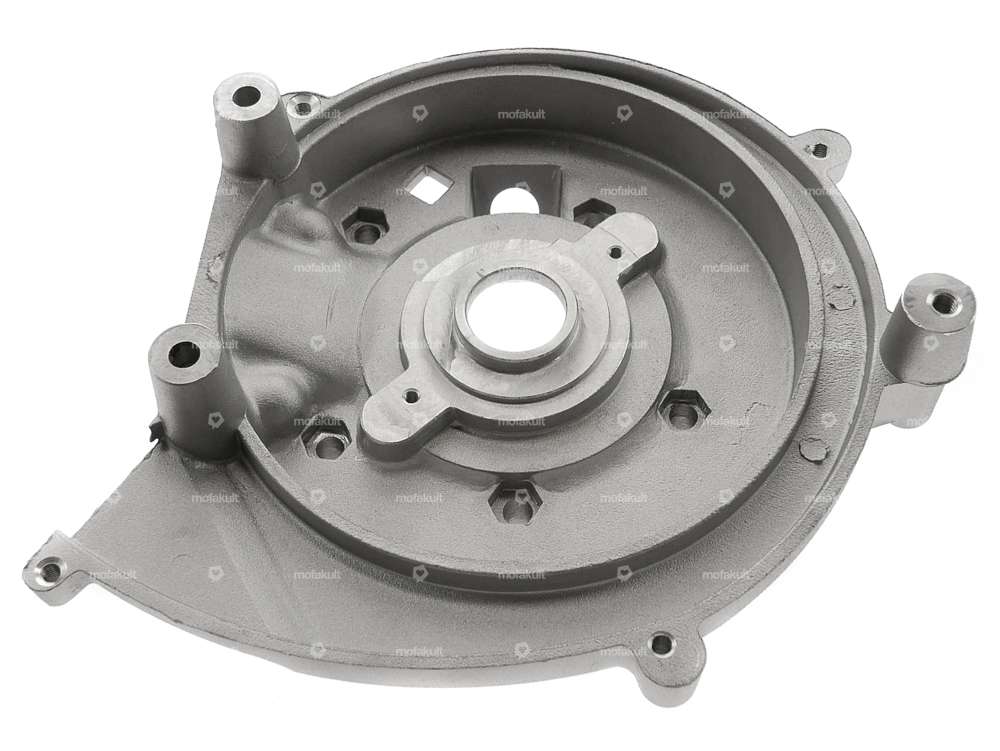

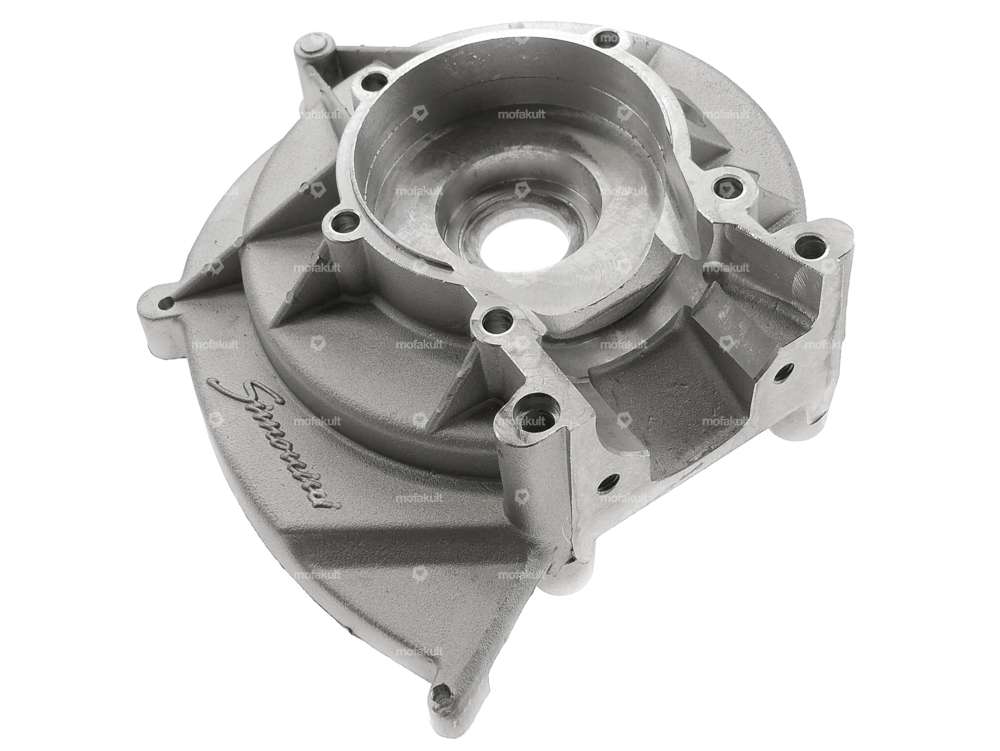

Racing engine case with intake system compatible with your Piaggio Ciao, Si, Bravo, and Boxer moped.
The racing engine case is one of the most exclusive cases available for Piaggio mopeds. It can only be used with the 100 cc Simonini cylinder kit, which can generate up to 16 PS at 13,000 rpm.

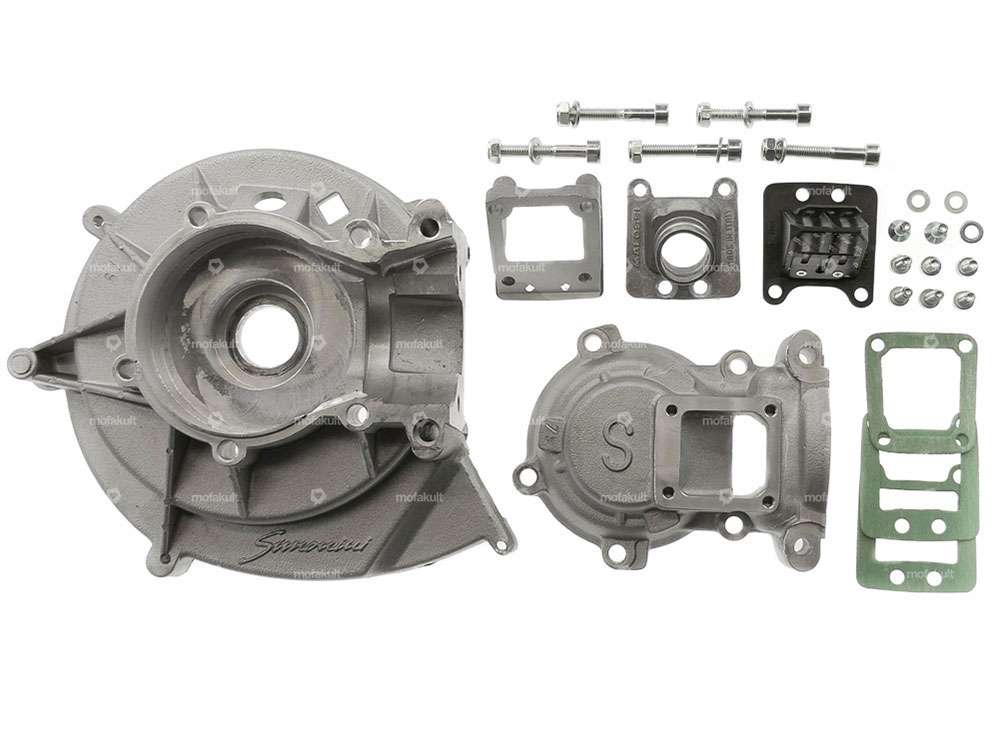

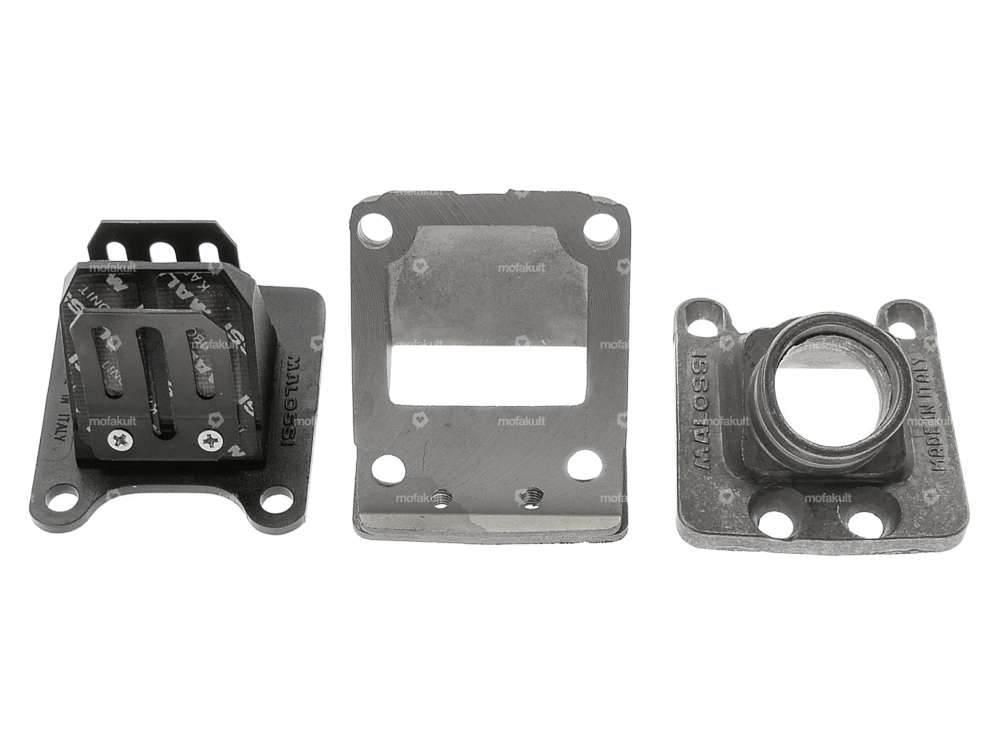

All parts shown are included in the package.
Notes:
This engine case can only be used in combination with the appropriate bearings.
A 6302 bearing (15x42x13 mm) is required in the left bearing seat on the ignition side, and a 6202 ball bearing (15x35x11 mm) is required in the right bearing seat.
The original Piaggio ball bearings cannot be used with this racing housing.
You can find the matching racing crankshafts, the cylinder kit, and the required ball bearings in the accessories section.
A quality product from the Italian manufacturer Simonini.
| Manufacturer | Simonini |
| Material | Aluminum |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
Simonini 47.6 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer
Nominal diameter: 47.6 mm · Manufacturer: Simonini · Material: Aluminum · Surface: sandblasted · Displacement: 100 ccm · Crankshaft stroke: 46 mm · Number of fixing points: 4 pcs · Area of application: Tuning · Hole pattern [mm]: 50 x 50 · Ø piston pin (B): 12 mm · Outlet type: slanted · Camouflaged: No
EUR 367.60
SKF 6202 C3 ball bearing 15/35/11
Ø inside: 15 mm · Stock number: 6202 · Ø outside: 35 mm · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Bearing cage: Sheet steel cage ball-guided · Bearing type: Deep groove ball bearing · Width: 11 mm · Puch OEM number: 900.4.6202
EUR 12.10
SKF 6302 C3 ball bearing 15/42/13 auxiliary shaft | Vespa P200, PX200, Cosa 200, Rally, T5
Ø inside: 15 mm · Stock number: 6302 · Ø outside: 42 mm · Inner ring width: 13 mm · Manufacturer: SKF · Bearing clearance: C3 · Bearing cage: Sheet steel cage · Groove ring: No · Material: Steel · Bearing type: Deep groove ball bearing · Width: 13 mm · Ball bearing closed: No · Piaggio OEM number: 83018R · Piaggio OEM number: 112793 · Piaggio OEM number: 235934 · Piaggio OEM number: 485912
EUR 18.30
