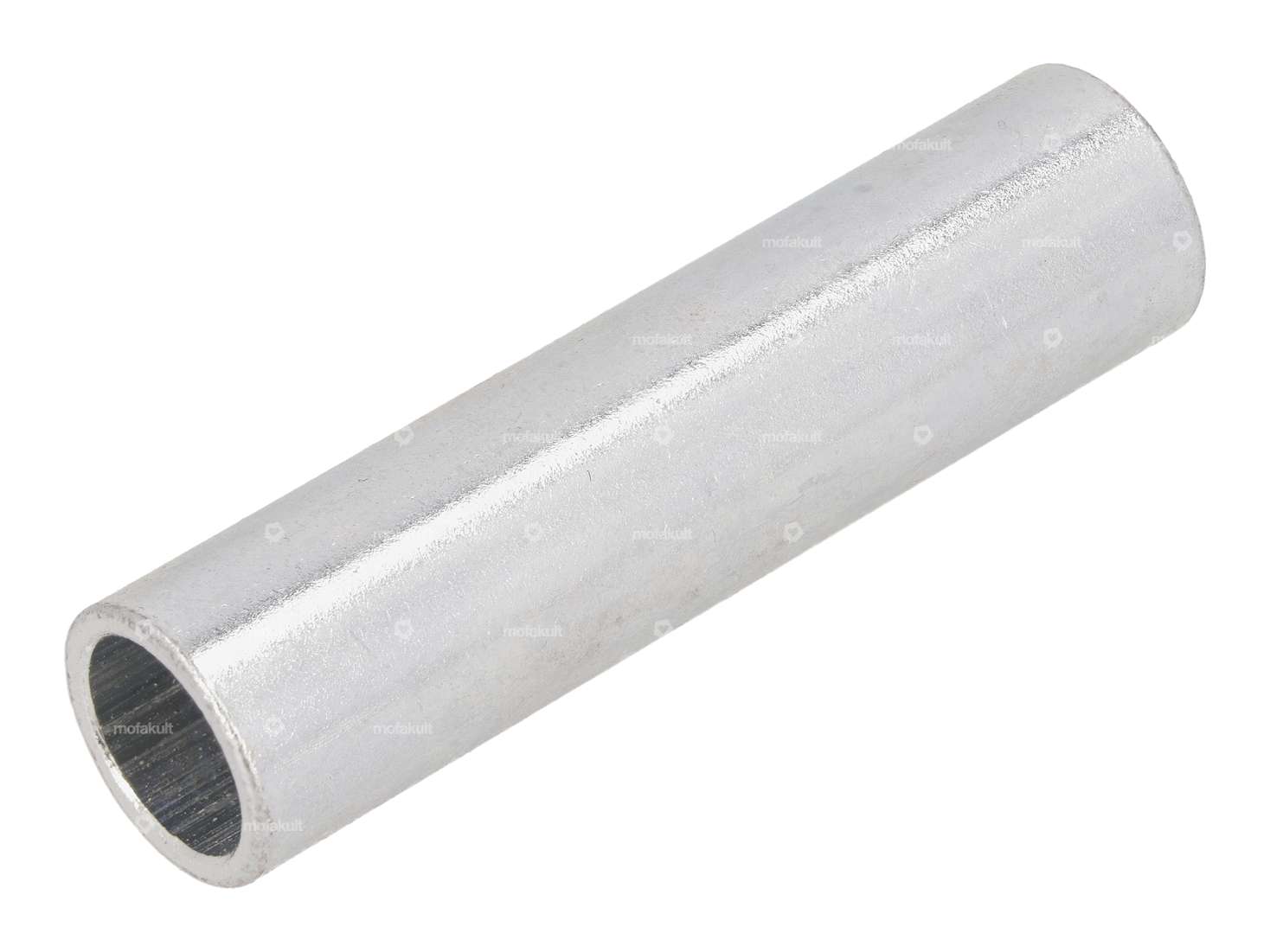

Spacer bushing wheel axle rear Tomos

Nut M11x1 x 10 SW19 Wheel nut galvanized

Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut 1D · Height: 10 mm · Drive: External hexagon · Width across flats: 19 mm · Strength class: 8 · Thread type: MF11x1 (fine pitch thread) · Area of application: Standard

Nut M12x1 x 10 SW19 Wheel nut Inox

Material: Chrome steel (colloquially known as stainless steel) · Surface: blank · Nut type: Hexagon nut 1D · Height: 10 mm · Drive: External hexagon · Width across flats: 19 mm · Strength class: A2-70 · Thread type: MF12x1 (fine pitch thread) · Area of application: Standard

swiing® revival clamp brake cable | Pony / Cilo (P8343)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Number of components: 3 pcs · Ø shaft: 8.5 mm · Ø Cable bushing: 2.9 mm · Drive: External hexagon · Screw head: Hexagon · Ø outside: 12 mm · Total length: 17 mm · Width across flats: 10 mm · Thread type: M6x1 (standard thread) · Thread length: 9 mm

NTN 6201 2RS ball bearing 12/32/10

Bearing cage: Sheet steel cage ball-guided · Stock number: 6201 · Inner ring width: 10 mm · Manufacturer: NTN · Dust protection type: 2RS - NBR contact seal on both sides · Bearing clearance: CN (standard) · Bearing type: Deep groove ball bearing · Width: 10 mm · Ø inside: 12 mm · Ø outside: 32 mm · Ball bearing closed: Yes

Oil seal NBR 15/32/5.5 A main shaft | Sachs 504, 505, 535 (A4216)

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Width: 5.5 mm · Ø inside: 15 mm · Ø outside: 32 mm

Axle rear swing arm | Tomos

Material: Steel · Color: black · Surface: blackened · Surface: galvanized (blue) · Drive: External hexagon · Ø inside: 12.15 mm · Ø Bearing inside: 18.1 mm · Ø axle: 12 mm · Ø outside: 18 mm · Ø outside: 22 mm · Ø External bearing: 22 mm · Total length: 120 mm · Thread type: M12x1.75 (standard thread) · Tomos OEM number: 026083 · Tomos OEM number: 209144

Wheel axle M11x1 x 165 rear galvanized | Tomos Quadro

Material: Steel · Surface: galvanized (blue) · Ø shaft: 11.9 mm · Shank length: 117 mm · Total length: 185 mm · Thread type: MF11x1 (fine pitch thread) · Thread length: 12 mm · Thread length: 17 mm · Tomos OEM number: 230515

Rear light LED with reflector white | Tomos A3/A35

Material: Plastic · Bulb holder: LED (permanently installed) · Color: black · Color: red · Color: white · Tension: 12 V · Width: 85 mm · Height: 160 mm · Mounting type: Nuts & bolts · Test mark: none · Brake light: Yes · Battery operated: No · Reflectors: Yes · Number of fixing points: 2 pcs

Spacer bushing 12/20/11.3 rear wheel axle | Tomos

Manufacturer: Tomos · Nominal diameter inside: 12 mm · Ø inside: 12 mm · Ø outside: 20 mm · Total length: 11.35 mm · Tomos OEM number: 222883
